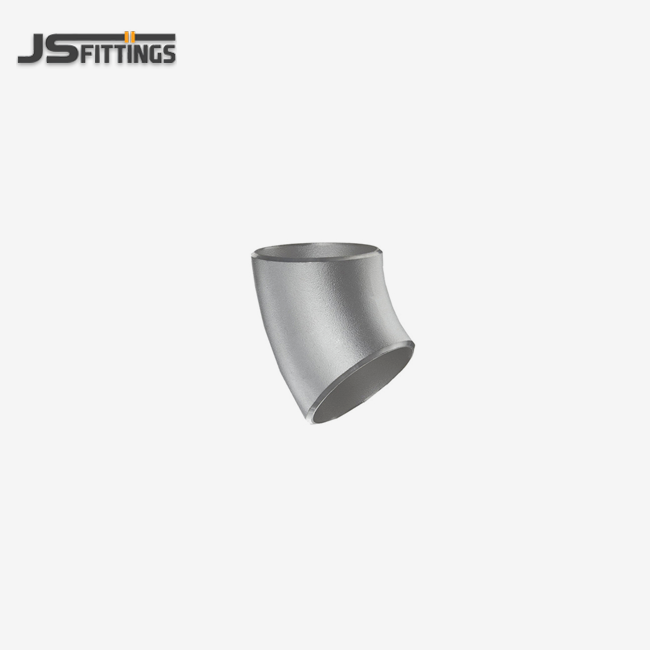

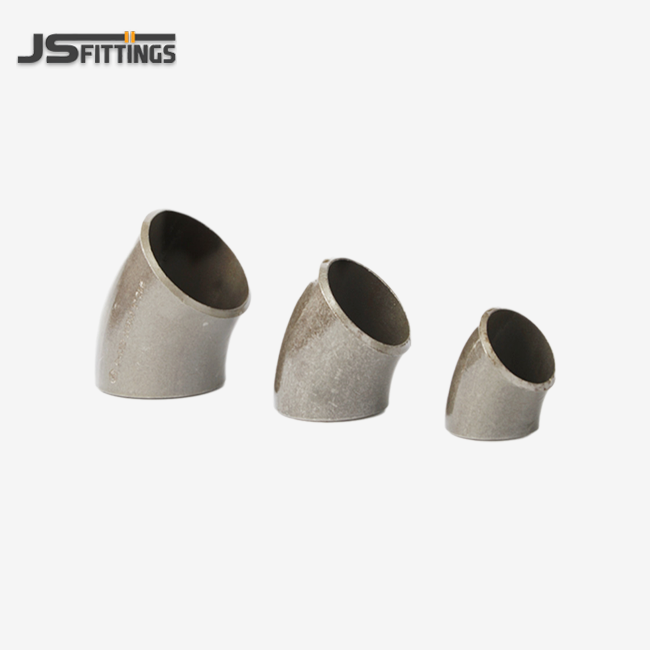

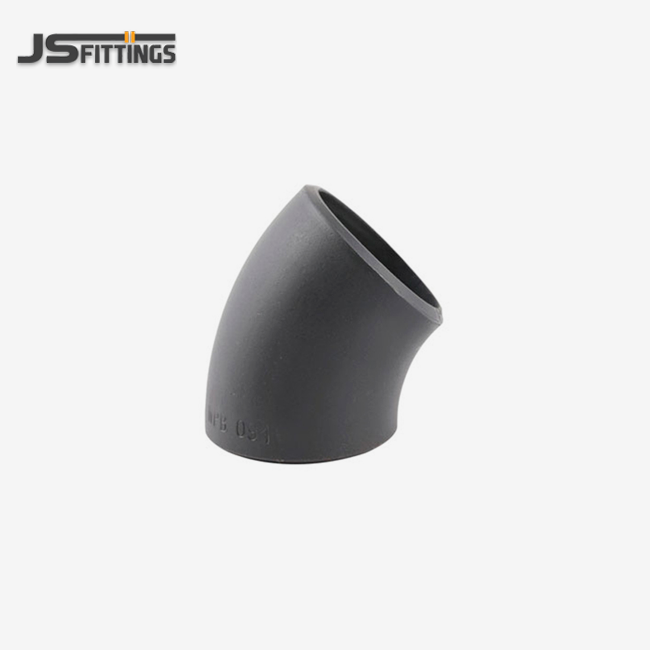

45 Degree Buttweld Elbow
Radius Types:
Long Radius (LR): 1.5D (Most common for smooth flow).
Short Radius (SR): 1D (For tight-space installations).
Size Range: 1/2" – 72" (DN15 – DN1800).
Wall Thickness: SCH 10, SCH 40, SCH 80, SCH 160, SCH XXS (Per ASME B16.9).
Standard Compliance: ASME B16.9, MSS-SP-75, EN10253, DIN 2605.
Material Grades:
Carbon Steel: ASTM A234 WPB
High-Yield: API 5L / ASTM A860 WPHY 42/52/60/65/70.
Stainless Steel: ASTM A403 WP304/L, WP316/L (Corrosion resistant).
Low-Temp: ASTM A420 WPL6.
End Finish: Precisely Beveled Ends (per ASME B16.25) for high-speed welding.
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
45 Degree Buttweld Elbow
45 Degree Buttweld Elbow Manufacturer
Hebei Jinsheng Pipe Fitting Manufacturing specializes in creating high-quality 45 degree buttweld elbow arrangements with over 40 a long time of fabricating brilliance. Our progressed 7,000 square meter office conveys precision-engineered elbows that diminish stream grinding and weight drop compared to 90-degree options. With yearly deals surpassing RMB 100 million and month to month shipments outperforming 50 holders, we keep up strict ASME B16.9 compliance and 37.5° slope exactness for predominant weld infiltration. Our ISO 9001 certified quality framework guarantees each elbow meets worldwide measures for basic pipeline applications.
45 Degree Buttweld Elbow Overview
The elbow speaks to an ideal adjust between directional alter and stream productivity in pipeline frameworks. This manufactured steel fitting interfaces specifically through welding, making it perfect for high-pressure and high-temperature applications where strung or attachment associations cannot perform adequately.
Unlike sharp 90-degree turns, our 45-degree setup gives gentler stream moves. This plan minimizes turbulence and diminishes weight misfortunes altogether. You'll discover these elbows especially profitable in frameworks where keeping up stream speed is crucial.
Each elbow highlights precision-machined incline closes that make culminate "V" grooves for welding. This guarantees full entrance welds that pass X-ray assessment reliably. The uniform divider thickness all through the twist avoids powerless spots common in second rate fittings.
Key Features & Advantages
Optimized Stream Execution: The 45-degree point makes negligible stream resistance compared to more honed twists. Your framework benefits from diminished weight drop and lower pumping costs.
Superior Weld Quality: Exactness 37.5° inclines per ASME B16.25 measures guarantee steady, high-quality welds. This decreases establishment time and makes strides joint reliability.
Uniform Divider Dissemination: Progressed mandrel shaping keeps up steady thickness all through the whole twist. You get the same plan weight rating as your straight pipe sections.
Dimensional Precision: Tight resiliences on center-to-face measurements make these elbows idealize for pre-fabrication work. Parts fit together without constrained alignment.
Extended Benefit Life: Smooth inside surfaces and slow directional changes minimize erosion-corrosion, particularly imperative in grating liquid applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size Range | 1/2" to 48" |
| Wall Thickness | SCH 10, SCH 40, SCH 80 |
| Angle | 45 degrees ±1° |
| Radius Type | Long Radius (LR) Standard |
| End Preparation | Beveled per ASME B16.25 |
| Center-to-End | Per ASME B16.9 dimensions |
| Temperature Range | -29°C to +400°C |
| Pressure Rating | Up to 6000 PSI |
Standards & Certifications
Our manufacturing strictly follows internationally recognized standards:
- ASME B16.9 - Factory-made wrought butt-welding fittings
- ASTM A234 - Piping fittings of wrought carbon steel
- ASTM A403 - Wrought austenitic stainless steel piping fittings
- DIN 2615 - Welding fittings with reduced pressure rating
- JIS B2312 - Carbon steel butt-welding pipe fittings
- MSS SP-75 - High test wrought butt welding fittings

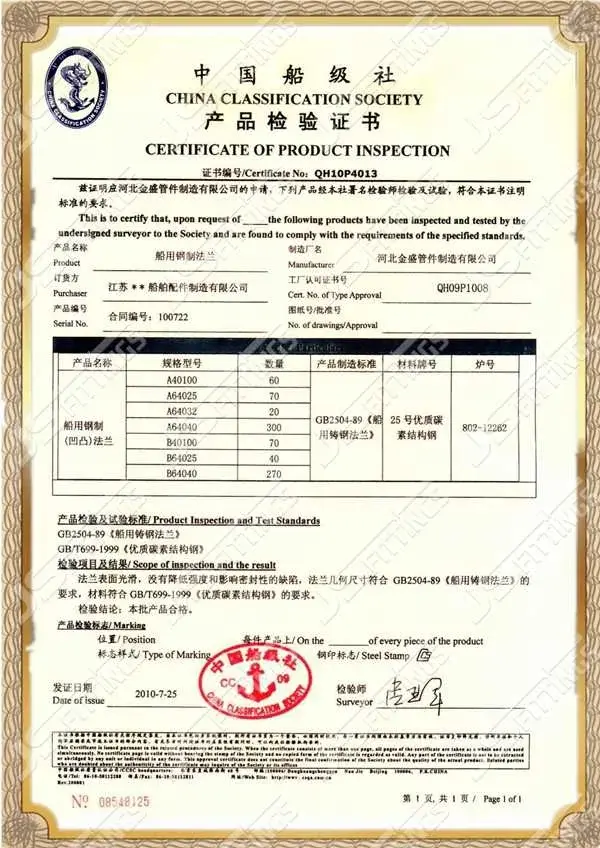

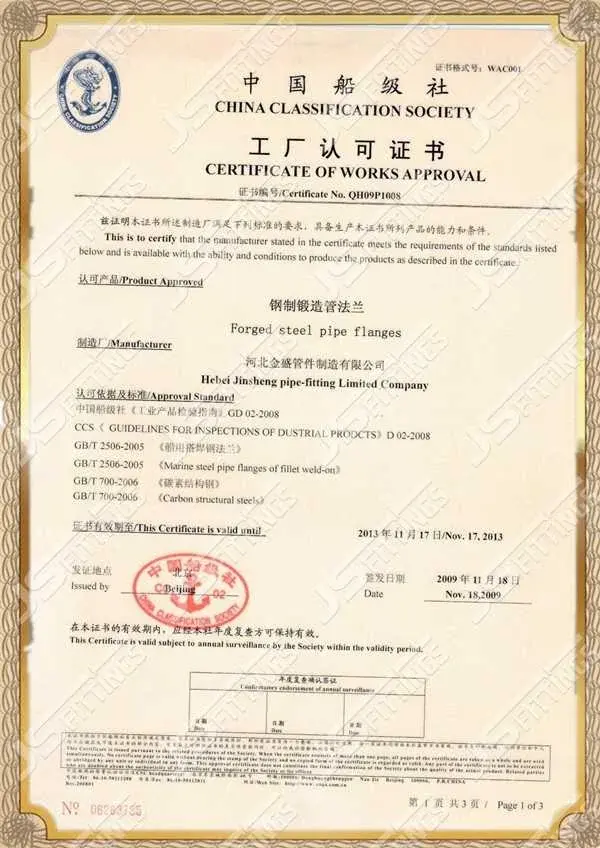

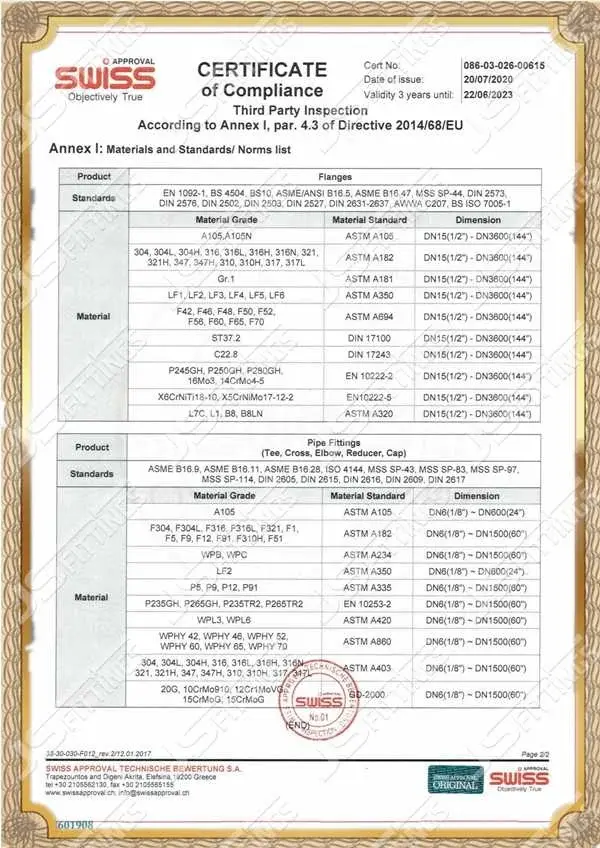

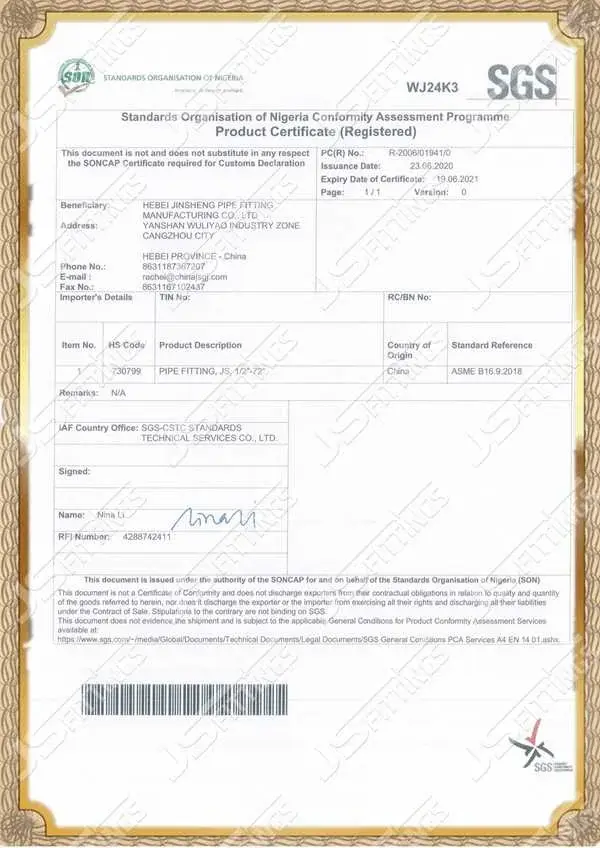

Quality certifications include ISO 9001, CE marking, and GOST-R compliance.
Chemical Composition & Mechanical Properties
| Grade | Carbon (C) | Manganese (Mn) | Silicon (Si) | Tensile Strength | Yield Strength |
|---|---|---|---|---|---|
| A234 WPB | ≤0.30% | 0.29-1.06% | ≥0.10% | ≥415 MPa | ≥240 MPa |
| A403 WP304 | ≤0.08% | ≤2.00% | ≤1.00% | ≥515 MPa | ≥205 MPa |
| A403 WP316L | ≤0.035% | ≤2.00% | ≤1.00% | ≥485 MPa | ≥170 MPa |
All materials undergo rigorous testing including spectrometer analysis and mechanical property verification.

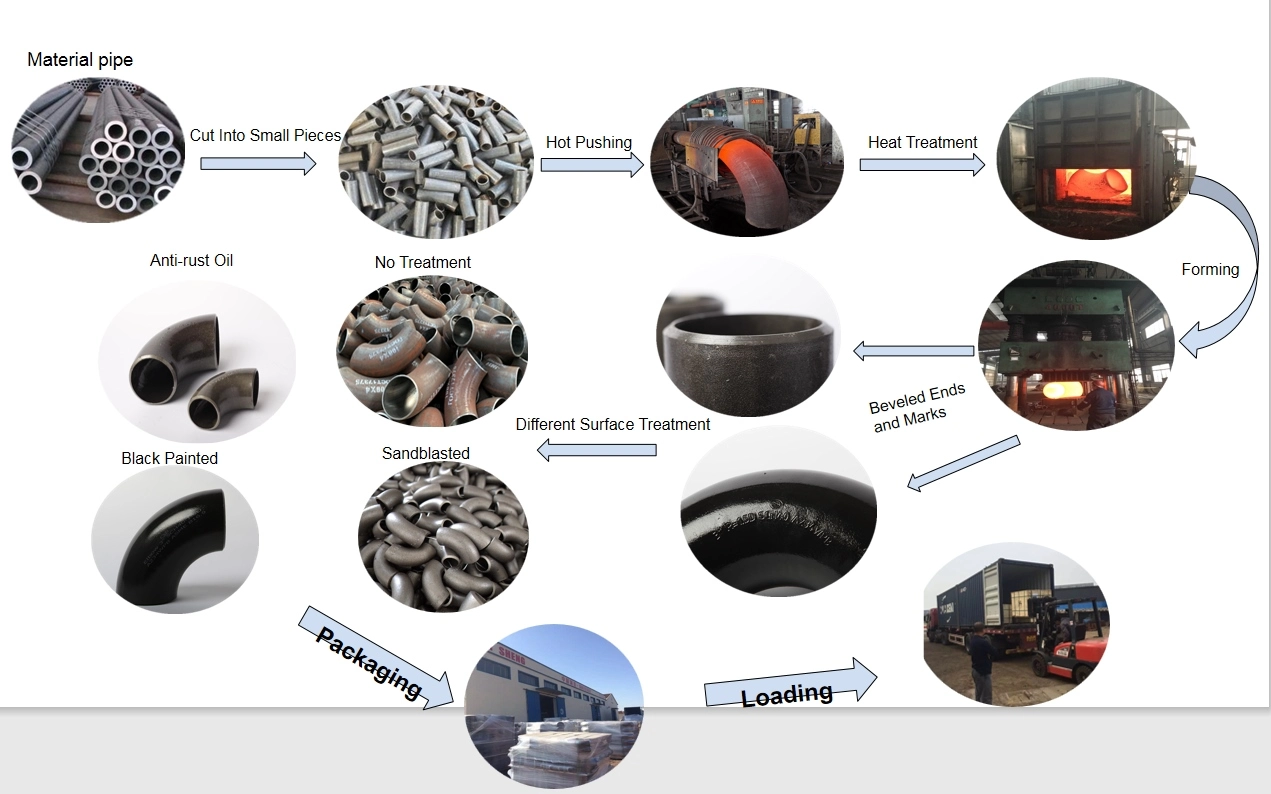

Manufacturing Process
Our 45 degree buttweld elbow generation takes after a controlled fabricating sequence:
Material Determination: Premium review steel billets experience chemical composition confirmation some time recently processing.
Hot Shaping: Accuracy mandrel bowing at controlled temperatures keeps up grain structure astuteness and uniform divider thickness.
Machining: CNC hardware makes exact slope closes and dimensional tolerances.
Heat Treatment: Normalized or stress-relieved preparing optimizes mechanical properties.

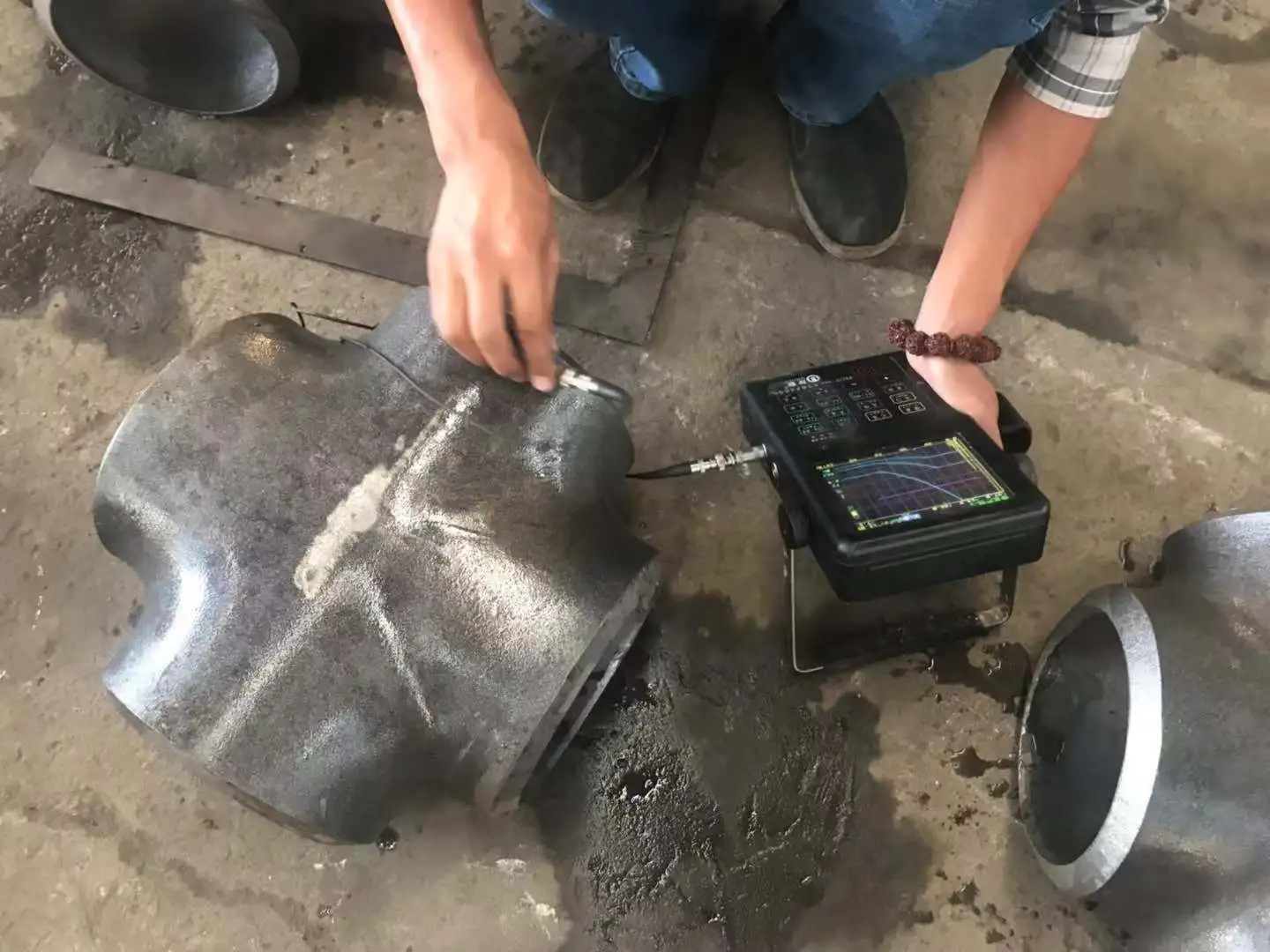

Quality Testing: Each clump experiences dimensional review, surface examination, and non-destructive testing.
Surface Finish & Coating Options
You can select from a few defensive wraps up based on your application requirements:
- Black Paint: Standard erosion security for indoor applications
- Varnish Coating: Improved dampness resistance for direct environments
- Epoxy Coating: Prevalent chemical resistance for cruel conditions
- Hot-Dip Galvanizing: Greatest erosion security for open air installations
All coatings comply with significant industry guidelines and experience attachment testing.
Applications
45 degree buttweld elbow fittings serve basic parts over different industries:
Oil & Gas: Seaward stages, refineries, and conveyance frameworks where stream effectiveness things most.
Chemical Handling: Destructive liquid taking care of frameworks requiring smooth inner surfaces.
Power Era: Steam and cooling water frameworks in warm and atomic plants.
Water Treatment: Metropolitan and mechanical water handling facilities.
Manufacturing: Handle channeling in nourishment, pharmaceutical, and common manufacturing.
Marine Frameworks: Dispatch channeling frameworks where space imperatives require proficient layouts.

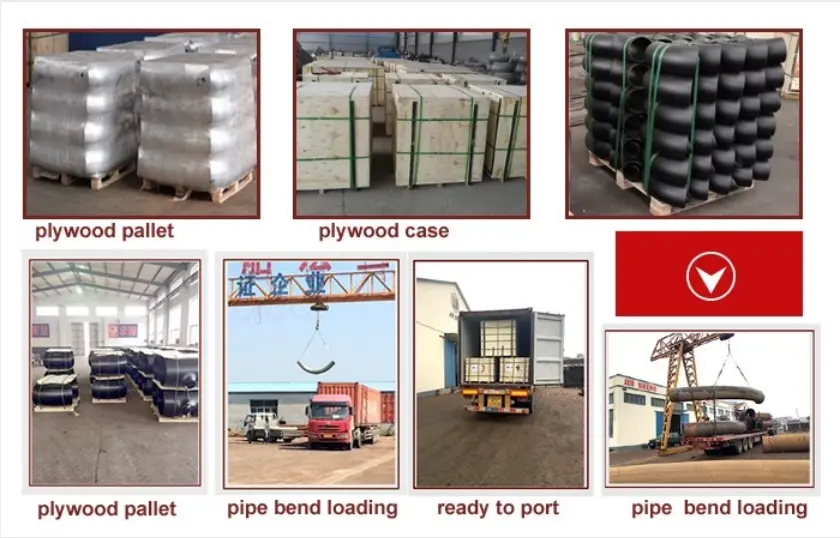

Packaging & Delivery
Your orders get proficient bundling guaranteeing item astuteness amid transportation:
- Wooden boxes for littler sizes with froth cushioning
- Steel supports for bigger breadth elbows
- Plastic conclusion caps securing slope surfaces
- Detailed pressing records and quality certificates
- Container stacking optimization for worldwide shipments
Standard conveyance time ranges from 15-30 days depending on determinations and quantities.
Customization Service
We get it that standard items do not continuously meet special extend necessities. Our designing group provides:
Custom Points: Non-standard degrees past the ordinary 45° configuration
Special Materials: Outlandish combinations for extraordinary benefit conditions
Modified Measurements: Non-standard center-to-end measurements
Surface Medications: Specialized coatings for particular environments
Documentation: Custom process test certificates and assessment reports
Quality Control
Every elbow experiences comprehensive quality verification:

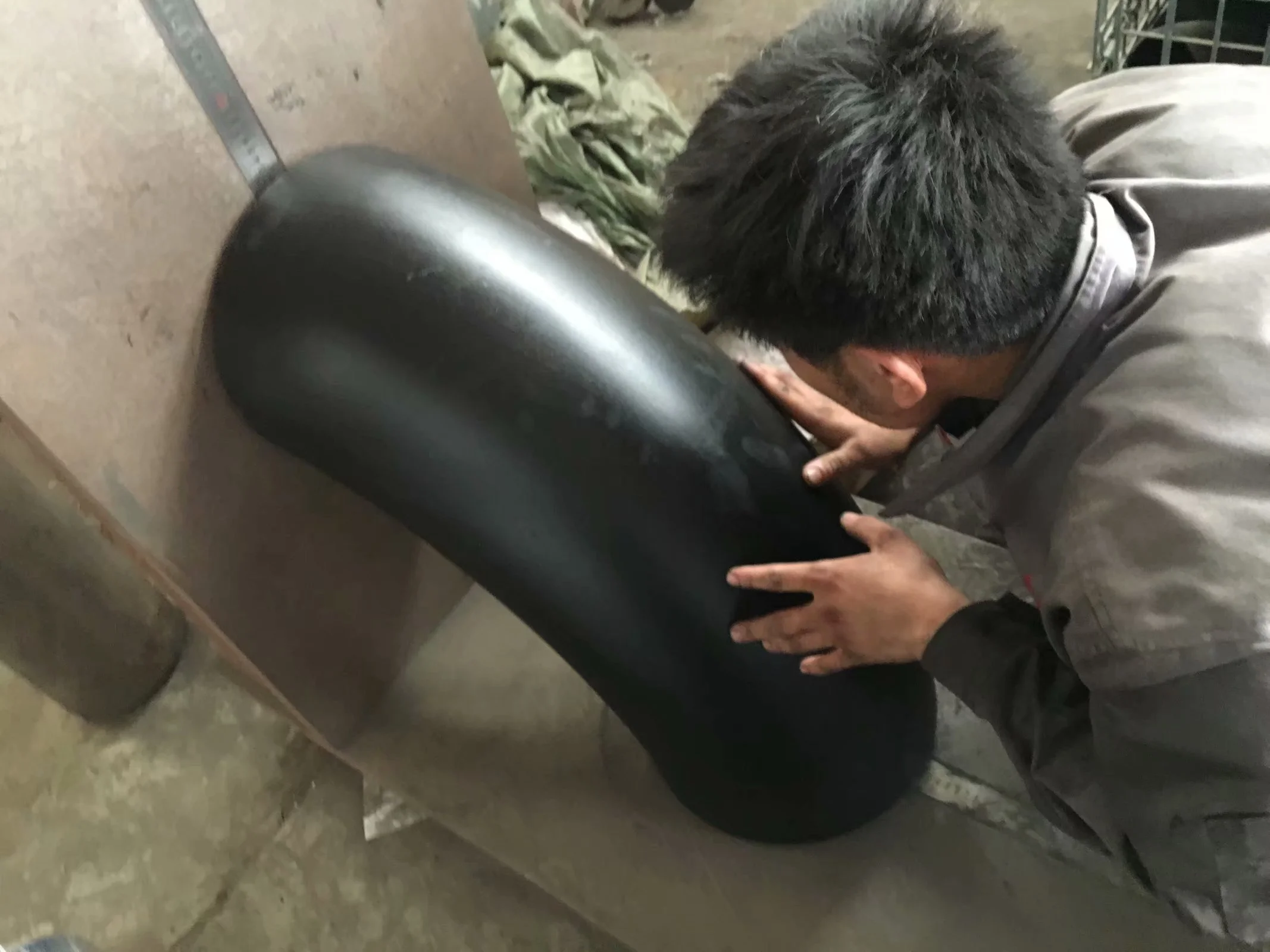

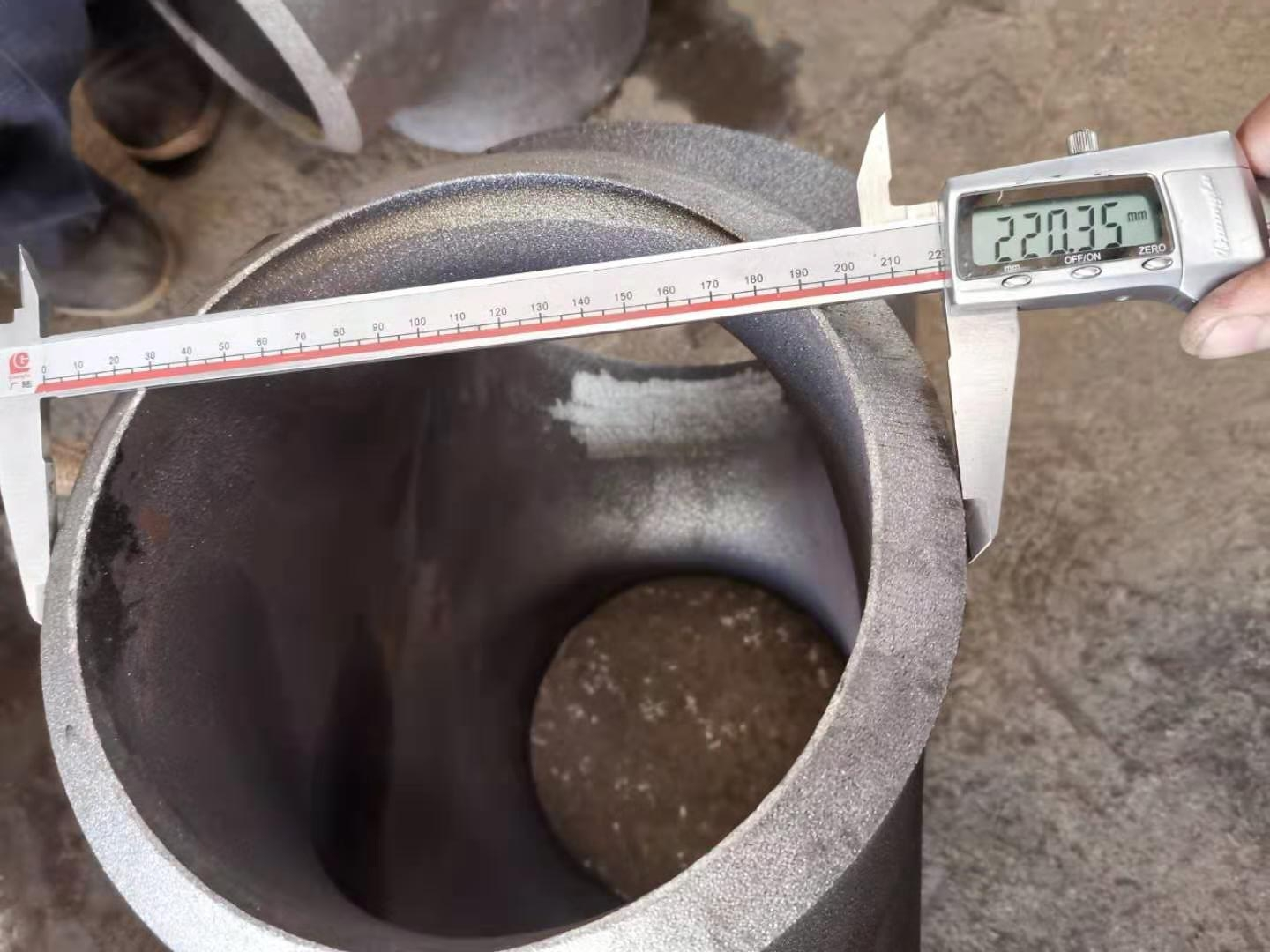

Dimensional Assessment: CMM estimation of basic dimensions
Surface Examination: Visual and penetrant testing of all surfaces

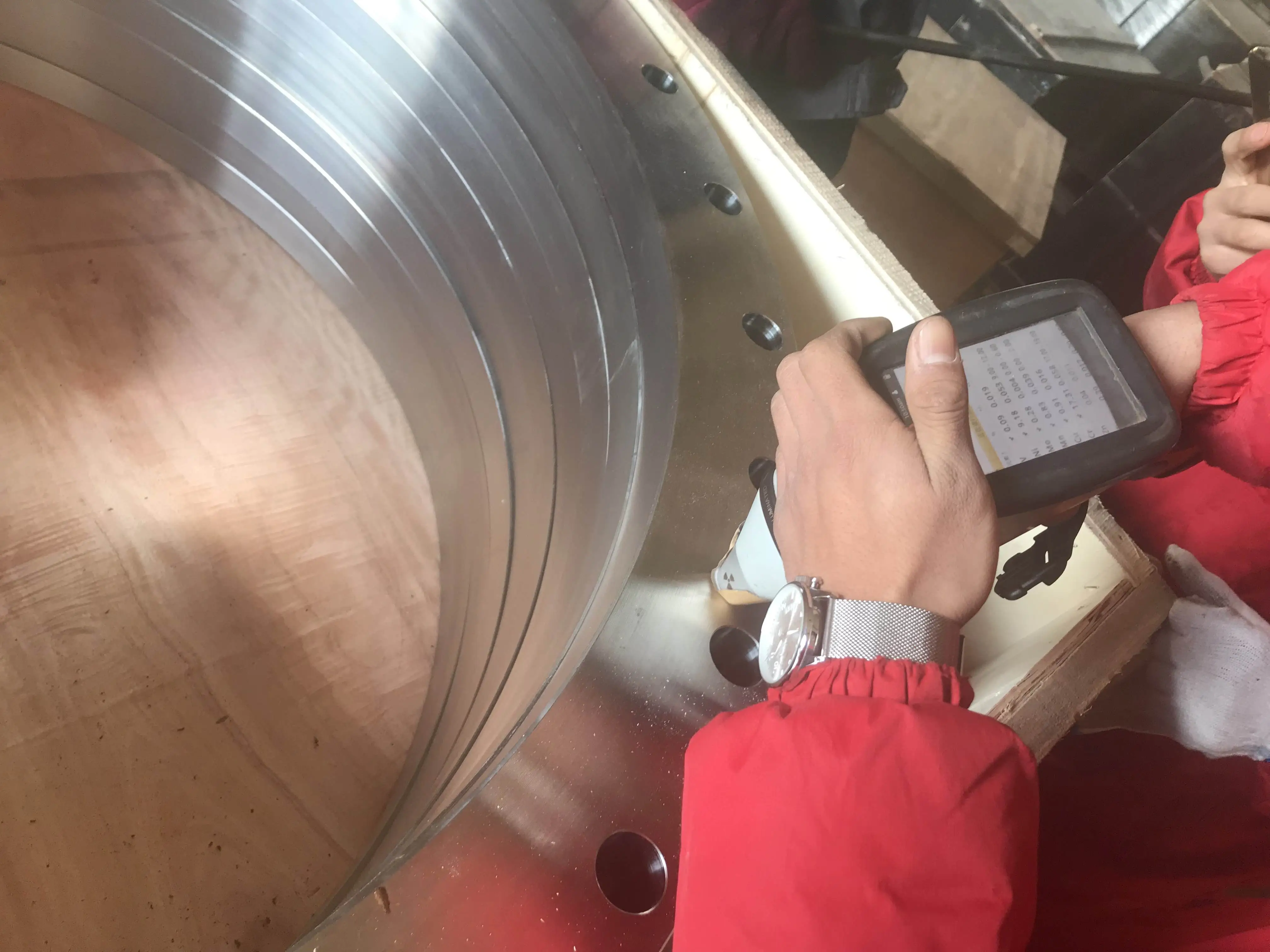

Material Confirmation: PMI testing affirming chemical composition
Pressure Testing: Hydrostatic testing when specified
Documentation: Total traceability with fabric certificates
Our quality framework keeps up ISO 9001 certification with normal third-party reviews.
FAQ
Q: How do you measure center-to-end dimensions for 45-degree elbows?
A: We measure from the pipe centerline intersection point to the weld end face along the 45-degree axis, following ASME B16.9 standards exactly.
Q: Can two 45-degree elbows create pipeline offsets?
A: Yes, using two elbows with straight pipe between creates smooth "Z-bends" that bypass obstacles while maintaining excellent flow characteristics.
Q: Do you manufacture short radius 45-degree elbows?
A: We focus on long radius versions as industry standard. Short radius options require custom manufacturing with extended lead times.
Q: Are these elbows suitable for pipeline pig passage?
A: Absolutely. The gradual 45-degree angle allows cleaning and inspection pigs to pass through easily without risk of jamming.
Q: Must the elbow schedule match the connecting pipe exactly?
A: Yes, matching schedules ensures proper ID/OD alignment, eliminating internal steps that could cause turbulence or debris collection.
Contact Us
Ready to enhance your pipeline efficiency? Contact our technical team at admin@jsfittings.com for expert guidance and competitive pricing on your 45 degree buttweld elbow requirements.
