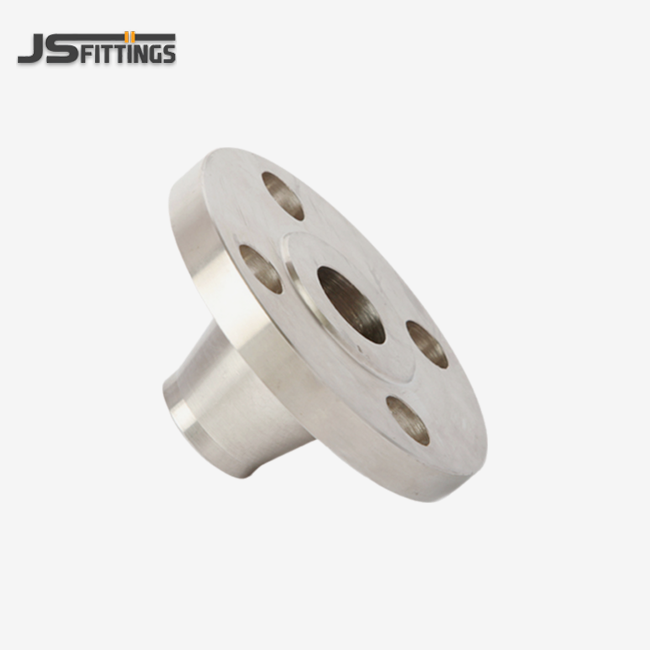

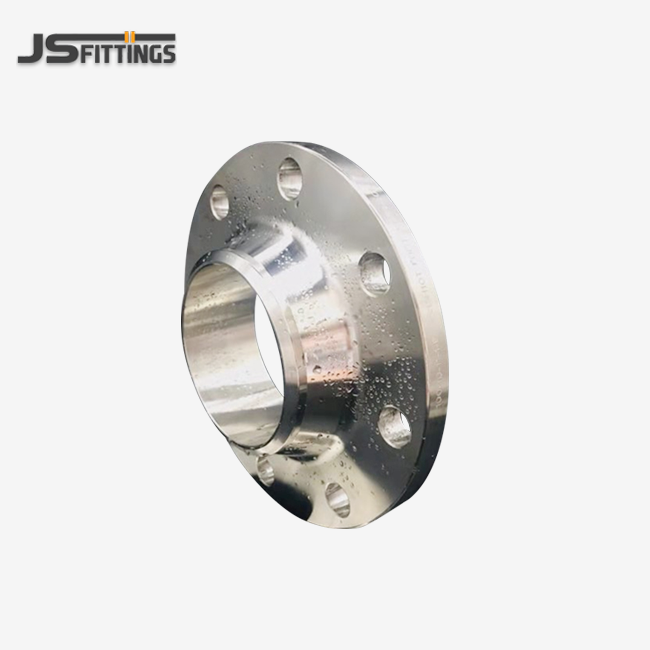

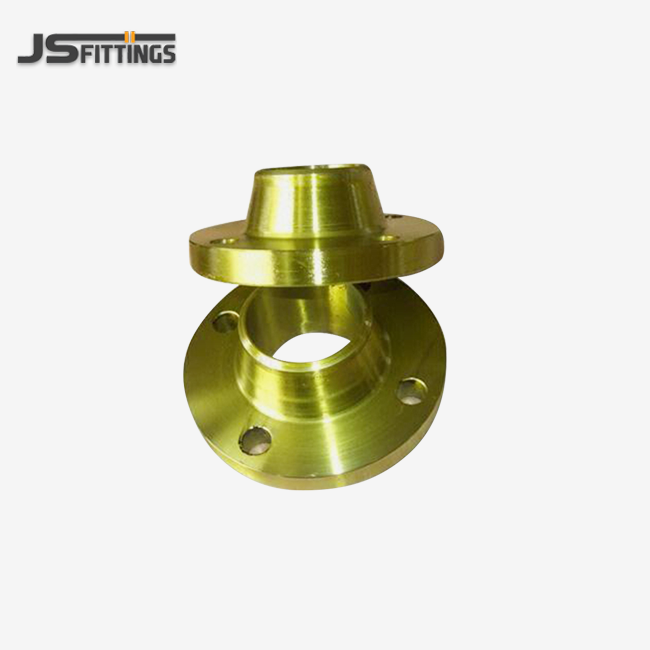

Forged Steel Weld Neck Flanges
Pressure Ratings:
ASME: Class 150, 300, 400, 600, 900, 1500, 2500.
Metric: PN 6, 10, 16, 25, 40, 64, 100, 160, 250, 400.
Material Selection:
Carbon Steel: ASTM A105
Stainless Steel
Alloy Steel
Size Range: 1/2" – 60" (DN15 – DN1500) or custom
Facing Options: Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF).
Bevel Details: Precision-machined beveled ends according to ASME B16.25 to match your pipe schedule (SCH 40, 80, 160, etc.).
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Forged Steel Weld Neck Flanges - Professional Manufacturer
Forged Steel Weld Neck Flanges Manufacturer
Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd. is your trusted producer of forged steel weld neck flanges with over 40 a long time of industry skill. Our advanced 7,000 square meter office produces high-quality spines assembly universal measures. With yearly deals surpassing RMB 100 million and month to month shipments outperforming 50 holders, we convey solid arrangements for your basic pipeline applications. Our Fashioned Steel Weld Neck Spines are made beneath ISO 9001 quality administration frameworks and trusted by driving worldwide vitality companies counting NIOC and ADNOC.
Forged Steel Weld Neck Flanges Overview
Weld neck flanges speak to the gold standard for high-pressure channeling associations. These spines include a long decreased center that consistently moves into the pipe divider through a full-penetration butt weld. This plan makes the most grounded conceivable rib association, making it perfect for basic applications where security and unwavering quality cannot be compromised.
Our fashioned steel development guarantees prevalent mechanical properties compared to cast options. The producing handle adjusts the steel grain structure, coming about in improved quality and weakness resistance. You'll discover these ribs crucial for high-pressure, high-temperature administrations where other spine sorts basically cannot perform.
Key Features & Advantages
Superior Structural Integrity
The long decreased center plan gives amazing stretch dissemination and support at the pipe-to-flange intersection. This kills stretch concentration focuses that can lead to untimely failure.
Full Penetration Welding
Unlike slip-on flanges, weld neck flanges utilize total butt welding, making a homogeneous association that matches the pipe's quality characteristics all through the joint.
Excellent Flow Characteristics
The smooth inside bore keeps up steady stream speed and minimizes weight drops. This plan avoids turbulence and decreases erosion-corrosion at association points.
Enhanced Fatigue Life
Forged development combined with appropriate weld plan conveys predominant weakness resistance for cycling weight applications.
Radiographic Inspection Ready
The butt weld plan permits for total radiographic examination, guaranteeing weld quality meets the most rigid assessment requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturing Standard | ASME/ANSI B16.5, B16.47, DIN, JIS, GOST |
| Size Range | 1/2" to 60" (DN15-DN1500) |
| Pressure Classes | Class 150, 300, 600, 900, 1500, 2500 |
| Material Grades | A105, LF2, F11, F22, F91, 316L, Duplex 2205 |
| Facing Types | Raised Face (RF), Flat Face (FF), RTJ |
| Hub Design | Long tapered transition |
| Bore Type | Match pipe ID or as specified |
Standards & Certifications
Our manufacturing processes comply with internationally recognized standards:
- ASME B16.5 - Pipe Flanges and Flanged Fittings
- ASME B16.47 - Large Diameter Steel Flanges
- ASTM A105 - Carbon Steel Forgings
- ISO 9001 - Quality Management System
- CE Marking - European Conformity
- GOST-R - Russian Federation Standards
Chemical Composition & Mechanical Properties
Carbon Steel A105 (Standard Grade)
| Element | Composition % |
|---|---|
| Carbon (C) | 0.35 max |
| Manganese (Mn) | 0.60-1.35 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.040 max |
| Silicon (Si) | 0.15-0.40 |
Mechanical Properties
- Tensile Strength: 485 MPa minimum
- Yield Strength: 250 MPa minimum
- Elongation: 22% minimum
- Impact Energy: 27J at -29°C

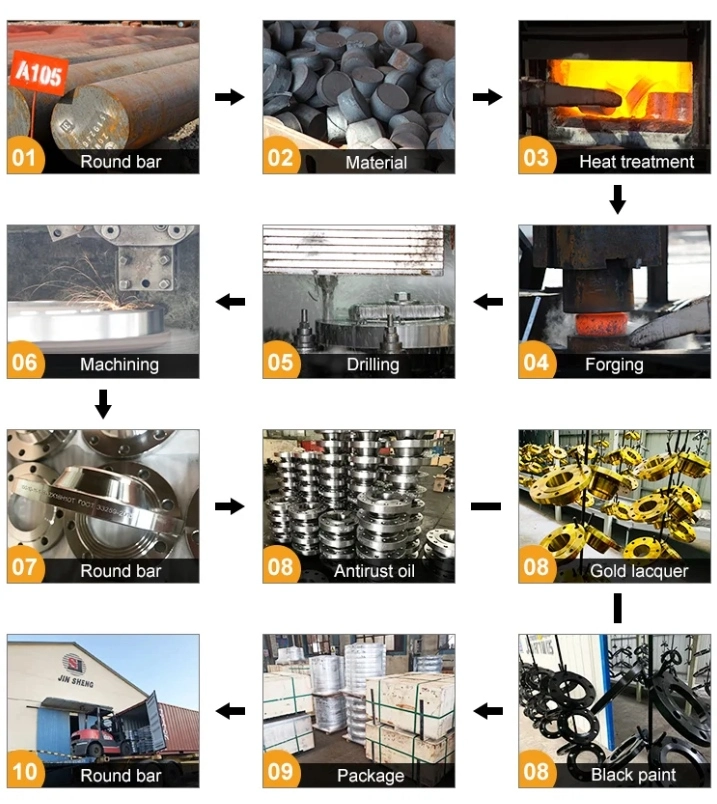

Manufacturing Process
Our forged steel weld neck flanges experience thorough fabricating processes:
Forging: Crude steel billets are warmed and manufactured beneath controlled conditions to accomplish ideal grain structure and mechanical properties.
Machining: Exactness CNC machining guarantees correct dimensional precision and appropriate surface wrap up for all basic surfaces.
Heat Treatment: Stretch calming and normalization forms optimize fabric properties and diminish fabricating stresses.
Quality Testing: Each flange experiences dimensional assessment, fabric confirmation, and non-destructive testing as required.
Surface Finish & Coating Options
We offer various surface treatments to meet your specific environmental requirements:
- Standard Mill Finish: Cost-effective option for standard applications
- Anti-Rust Oil Coating: Temporary protection during storage and shipment
- Black Lacquer: Enhanced corrosion resistance for mild environments
- Hot-Dip Galvanizing: Superior long-term protection for outdoor installations
- Epoxy Coating: Chemical resistant finish for harsh environments

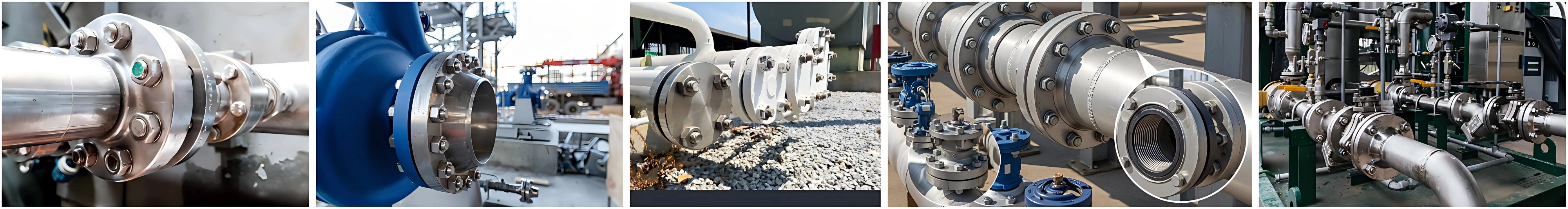

Applications
Forged steel weld neck flanges excel in demanding industrial applications:
Oil & Gas Industry: High-pressure transmission lines, refinery process piping, offshore platforms
Petrochemical Plants: Process vessels, heat exchangers, critical service lines
Power Generation: Boiler connections, steam lines, cooling systems
Marine Applications: Ship piping systems, offshore structures
Industrial Processing: Chemical plants, pharmaceutical facilities, food processing
Packaging & Delivery
Your flanges are carefully protected during shipment:
- Individual plastic caps protect flange faces
- Wooden cases or steel pallets for secure transport
- Detailed packing lists and material certificates included
- Standard delivery: 15-30 days depending on specifications
- Express delivery available for urgent requirements
Customization Service
We understand that standard specifications don't always meet unique project requirements. Our engineering team can provide:
- Custom dimensions and specifications
- Special material grades and compositions
- Modified facing types and surface finishes
- Private labeling and marking
- Technical drawing reviews and approvals

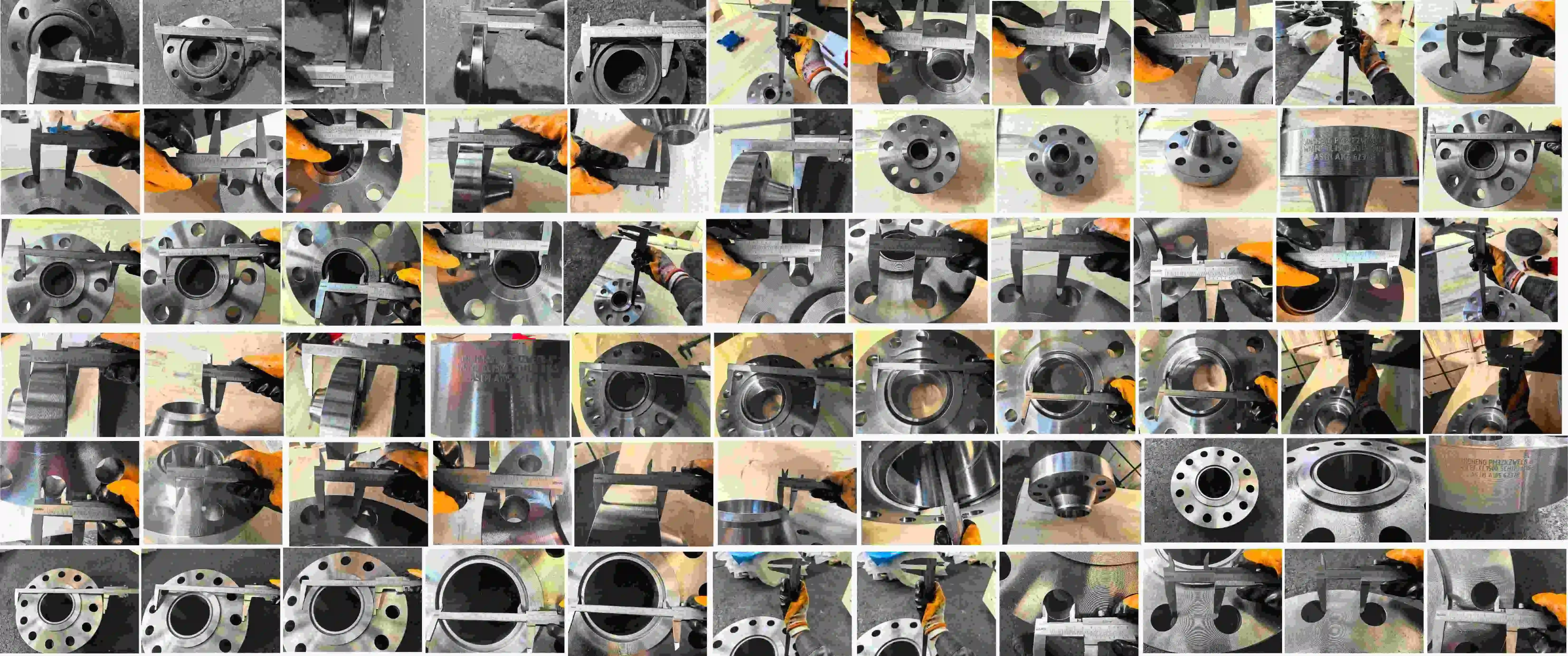

Quality Control
Quality assurance is fundamental to our manufacturing philosophy. Every step includes:
- Raw material certification and verification
- In-process dimensional inspections
- Mechanical testing and material analysis
- Final inspection before shipment
- Comprehensive documentation package
- Third-party inspection services available
FAQ
Q: What makes weld neck ribs prevalent to other spine types?
A: The long decreased center and butt weld plan give the most grounded conceivable association, perfect for high-pressure and basic applications.
Q: Can you give ribs with uncommon fabric certificates?
A: Yes, we give total fabric traceability documentation counting process certificates and test reports for all products.
Q: What is your least arrange quantity?
A: We suit both expansive and little orders, counting test amounts for extend evaluation.
Q: Do you offer specialized back for spine selection?
A: Our experienced building group gives specialized help to guarantee you select the ideal spine determinations for your application.
Q: How do you guarantee dimensional accuracy?
A: All flanges are made utilizing exactness CNC gear and experience comprehensive dimensional review some time recently shipment.
Contact Us
Ready to discuss your forged steel weld neck flanges requirements? Contact our technical sales team at admin@jsfittings.com for expert guidance and competitive pricing.
