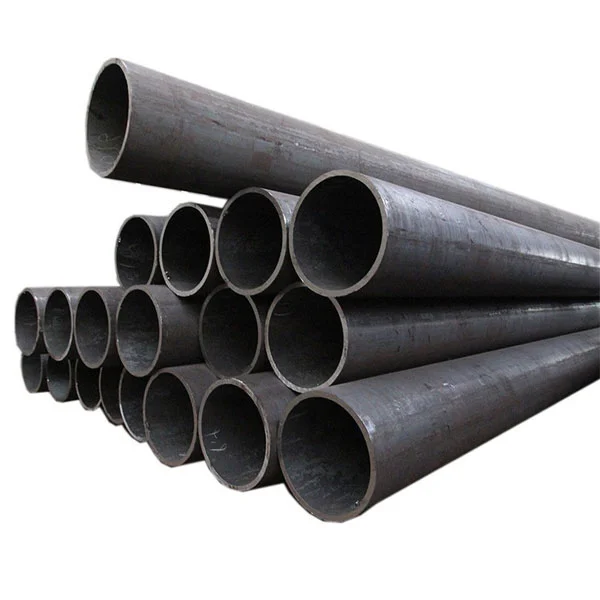

ASTM A53 Carbon Steel Pipe
Types & Grades:Type E (ERW): Grade A & B
Type S (Seamless): Grade A & B
Type F (Furnace Welded): Grade A
Size Range: 1/8" to 26" (NPS 1/8 to NPS 26)
Wall Thickness: SCH 10, SCH 40, SCH 80, SCH 160, SCH STD, SCH XS, SCH XXS
Surface Finish: Hot-dip Galvanized (Most Common), Black Vanished, Bare, Zinc-Rich Primer
Ends: Plain Ends, Beveled Ends, Threaded & Coupled (T&C)
Testing: Hydrostatic Test, Flattening Test, Bend Test, NDT (for Type E & S)
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction

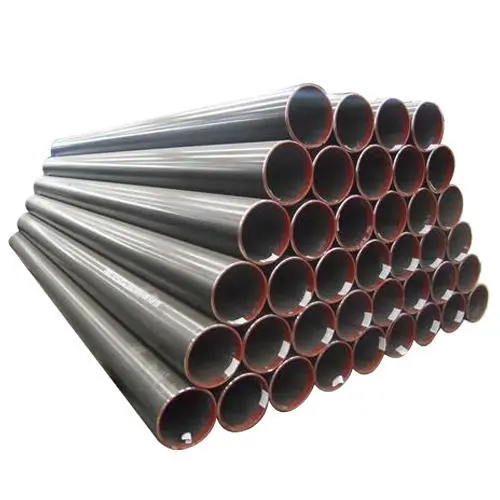

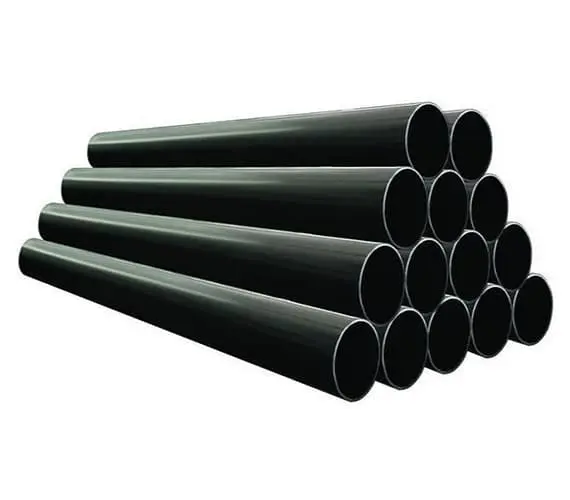

ASTM A53 Carbon Steel Pipe Manufacturer
Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd. brings you premium ASTM A53 carbon steel pipe arrangements supported by over 40 a long time of fabricating fabulousness. Our state-of-the-art 7,000+ square meter office conveys extraordinary quality channels with yearly deals surpassing RMB 100 million and month to month shipments outperforming 50 holders. We keep up strict dimensional resiliences and conduct 100% hydrostatic testing, guaranteeing zero spillage execution for your basic applications over water, steam, and discuss line systems.
ASTM A53 Carbon Steel Pipe Overview
Our products speak to the idealize adjust of unwavering quality, flexibility, and cost-effectiveness for general-purpose applications. Designed particularly for water, steam, and discuss line benefit, these channels offer remarkable execution in direct temperature and weight conditions. Accessible in both consistent and welded arrangements, our channels meet rigid ASTM benchmarks whereas giving the adaptability you require for assorted mechanical applications.
Key Features & Advantages
Superior Dimensional Control: We keep up strict resiliences on divider thickness and ovality, guaranteeing idealize arrangement amid field welding and lessening your establishment time significantly.
Comprehensive Testing Protocol: Each pipe experiences thorough hydrostatic testing and ultrasonic assessment (UT) to ensure leak-free execution beneath weight surges.
Dual Fabricating Choices: Select between consistent (SMLS) development for high-pressure applications or welded (ERW) channels for cost-effective solutions.
Proven Track Record: Trusted by major vitality companies over 30+ nations, our channels convey steady execution in requesting environments.
Quality Certifications: ISO 9001 certified fabricating prepare with CE and GOST-R compliance guarantees worldwide quality standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards | ASTM A53, API Spec 5L (PSL1 & PSL2), ASTM A106 |
| Grades | Grade A, Grade B |
| Manufacturing Type | Seamless (SMLS), Electric Resistance Welded (ERW) |
| Size Range | 1/2" to 24" (Seamless), up to 48" (Welded) |
| Wall Thickness | SCH 40, SCH 80, SCH 160, STD, XS, XXS |
| Length | 6m, 12m, or customized |
| End Type | Plain end, Beveled end, Threaded |
Standards & Certifications
Our fabricating forms entirely follow to globally recognized guidelines. ASTM A53 specification ensures reliable chemical composition and mechanical properties. Extra compliance with API 5L and ASTM A106 guidelines gives flexibility for different applications. Our quality administration framework takes after ISO 9001 conventions, upheld by progressed testing hardware counting spectrometers and non-destructive testing instruments.
Chemical Composition & Mechanical Properties
| Grade | Carbon (%) | Manganese (%) | Phosphorus (%) Max | Sulfur (%) Max |
|---|---|---|---|---|
| Grade A | 0.25 max | 0.95 max | 0.05 | 0.045 |
| Grade B | 0.30 max | 1.20 max | 0.05 | 0.045 |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | |
| ----------- | --------------------------- | -------------------------- | ------------------- | |
| Grade A | 330 min | 205 min | 20 min | |
| Grade B | 415 min | 240 min | 20 min |

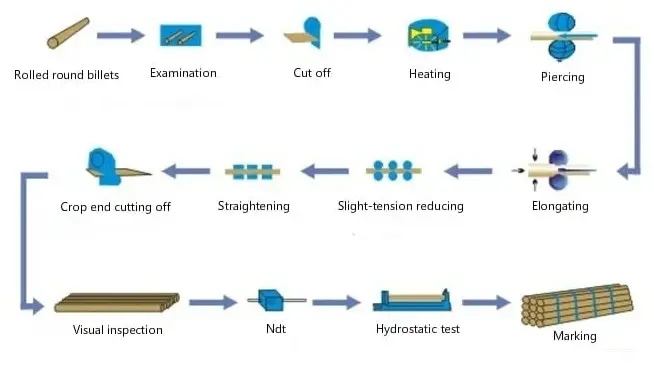

Manufacturing Process
Our progressed fabricating office utilizes both consistent and welded generation strategies. Consistent channels experience hot penetrating and rolling forms, making uniform divider thickness without weld creases. Welded channels utilize high-frequency electric resistance welding (ERW) innovation, taken after by comprehensive warm treatment to guarantee ideal mechanical properties. Each generation clump gets cautious checking through our computerized quality control system.
Surface Finish & Coating Options
Standard Finishes:
- Black (as-rolled surface)
- Pickled and oiled
- Hot-dip galvanized
- Epoxy coating
Protective Coatings:
- 3PE (Three-layer polyethylene)
- FBE (Fusion bonded epoxy)
- Coal tar enamel
- Custom coating solutions

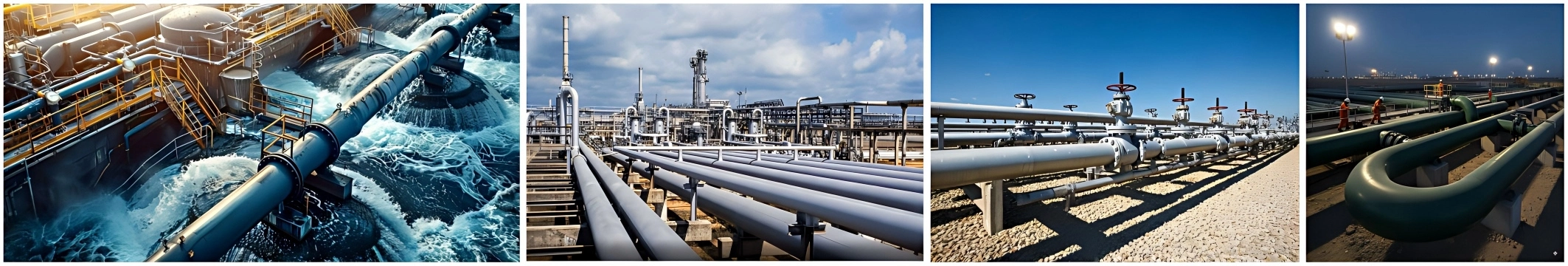

Applications
ASTM A53 carbon steel pipe serves various businesses with solid performance:
- Water Distribution Systems: Metropolitan water supply systems and building plumbing systems
- Steam Applications: Moo to medium weight steam lines in mechanical facilities
- Air Line Benefit: Compressed discuss conveyance in fabricating plants
- Structural Applications: System and bolster frameworks in development projects
- Fire Security Frameworks: Sprinkler frameworks and fire concealment networks
- HVAC Frameworks: Warming, ventilation, and discuss conditioning installations

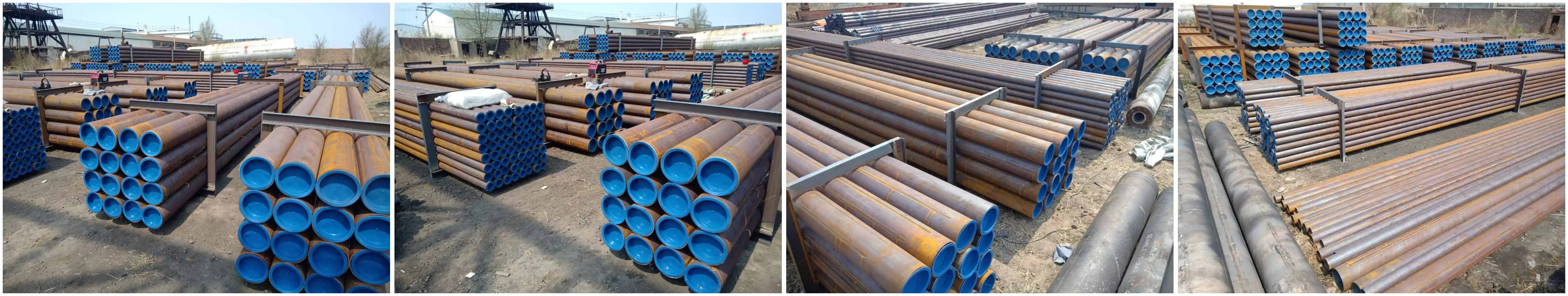

Packaging & Delivery
Your channels get cautious bundling to guarantee secure transportation. We utilize steel strapping with defensive conclusion caps and plastic wrapping for climate assurance. Conveyance choices incorporate ocean cargo, arrive transportation, and express shipping for critical orders. Our experienced coordinations group facilitates with worldwide shipping accomplices to guarantee opportune conveyance to your extend site.
Customization Service
We get it that each venture has special necessities. Our designing group gives comprehensive customization administrations counting extraordinary measurements, elective grades, custom coating applications, and adjusted conclusion arrangements. Whether you require test amounts for testing or full-scale generation runs, we oblige orders of all sizes with adaptable least arrange quantities.
Quality Control
Quality affirmation starts with crude fabric assessment utilizing progressed spectrometer examination. All through generation, we screen dimensional exactness, chemical composition, and mechanical properties. Last assessment incorporates hydrostatic weight testing, ultrasonic examination, and visual review. Our quality documentation gives total traceability with process test certificates for each shipment.
FAQ
Q: What's the distinction between ASTM A53 Grade A and Grade B?
A: Review B offers higher malleable and abdicate quality compared to Grade A, making it appropriate for higher weight applications whereas keeping up fabulous weldability.
Q: Can ASTM A53 channels be utilized for high-temperature service?
A: ASTM A53 is outlined for direct temperature applications. For high-temperature benefit over 400°F, consider ASTM A106 details.
Q: What wall thickness should I choose for my application?
A: Wall thickness selection depends on your operating pressure, temperature, and safety factors. Our technical team can provide recommendations based on your specific requirements.
Q: Do you provide material certificates?
A: Yes, we provide complete mill test certificates (MTC) with chemical composition, mechanical properties, and test results for every shipment.
Contact Us
Ready to discuss your ASTM A53 carbon steel pipe requirements? Contact our experienced team at admin@jsfittings.com for technical consultation and competitive quotations.
