180° Return Bend

180° Return Bend Manufacturer

Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd conveys precision-engineered 180° return bend arrangements with over 40 a long time of fabricating fabulousness. Our generation office ranges 7,000+ square meters, accomplishing yearly deals surpassing RMB 100 million and month to month shipments outperforming 50 holders. Each return twist meets ASTM/ASME, Noise, and JIS benchmarks, including exact center-to-center measurements with resistances that guarantee idealize arrangement in warm exchanger and kettle applications. Our progressed hot-forming handle with inside mandrels conveys steady divider thickness and smooth stream ways for ideal performance.

180° Return Bend Overview

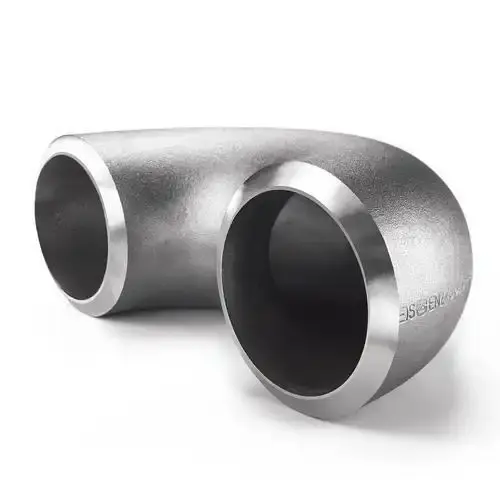

Our product fittings give total stream inversion in the most compact space conceivable. These precision-formed components are basic for warm exchanger development, kettle coils, and condenser frameworks where tight span turns are required.

Each fitting is made through controlled hot-forming forms that keep up auxiliary judgment whereas accomplishing the correct 180-degree point. The smooth inside surface minimizes weight drop and anticipates dregs buildup, making them perfect for high-pressure and high-temperature applications.

Whether you require standard long span (LR) or brief span (SR) setups, our return twists convey dependable execution in requesting mechanical environments.

Key Features & Advantages

Extreme Space Efficiency

The essential advantage lies in turning around stream inside an greatly tight span. This maximizes warm exchange surface range in compact warm exchanger bundles and warming coils.

Reduced Weld Joints

A single unit replaces two 90-degree elbows furthermore interfacing pipe, cutting weld focuses by 50%. This decreases potential spill sources and brings down establishment labor costs significantly.

Precision Dimensional Control

Our fabricating handle guarantees correct center-to-center separations basic for multi-pass warm exchangers. Each fitting adjusts flawlessly with tube sheets without field adjustments.

Minimized Flow Turbulence

Despite total stream inversion, the mandrel-formed inner surface remains smooth. This keeps up steady stream with negligible weight drop and avoids erosion.

Superior Structural Integrity

Controlled shaping forms oversee divider diminishing at the external twist sweep. This guarantees satisfactory thickness for high-pressure cycles and warm development service.

Clean Beveled Ends

Precision-machined inclines per ASME B16.25 measures empower quicker orbital welding setups and higher X-ray assessment pass rates.

Technical Specifications

Standards & Certifications

Our 180° return bend comply with multiple international standards ensuring global project compatibility:

• ASTM/ASME Standards: A234, A403, B16.9, B16.25
• DIN Standards: DIN2615 for dimensional requirements
• JIS Standards: JIS B2312 for Japanese market compliance
• Quality Certifications: ISO 9001, CE, GOST-R
• Testing Standards: Non-destructive testing, spectrometer analysis

All certifications are maintained through regular audits and continuous quality improvement programs.





Chemical Composition & Mechanical Properties

Carbon Steel (A234 WPB)

• Carbon: 0.30% max
• Manganese: 0.29-1.06%
• Phosphorus: 0.05% max
• Sulfur: 0.058% max
• Tensile Strength: 415-585 MPa
• Yield Strength: 240 MPa min

Stainless Steel (A403 WP316L)

• Chromium: 16.0-18.0%
• Nickel: 10.0-14.0%
• Molybdenum: 2.0-3.0%
• Carbon: 0.035% max
• Tensile Strength: 485 MPa min
• Yield Strength: 170 MPa min

Manufacturing Process

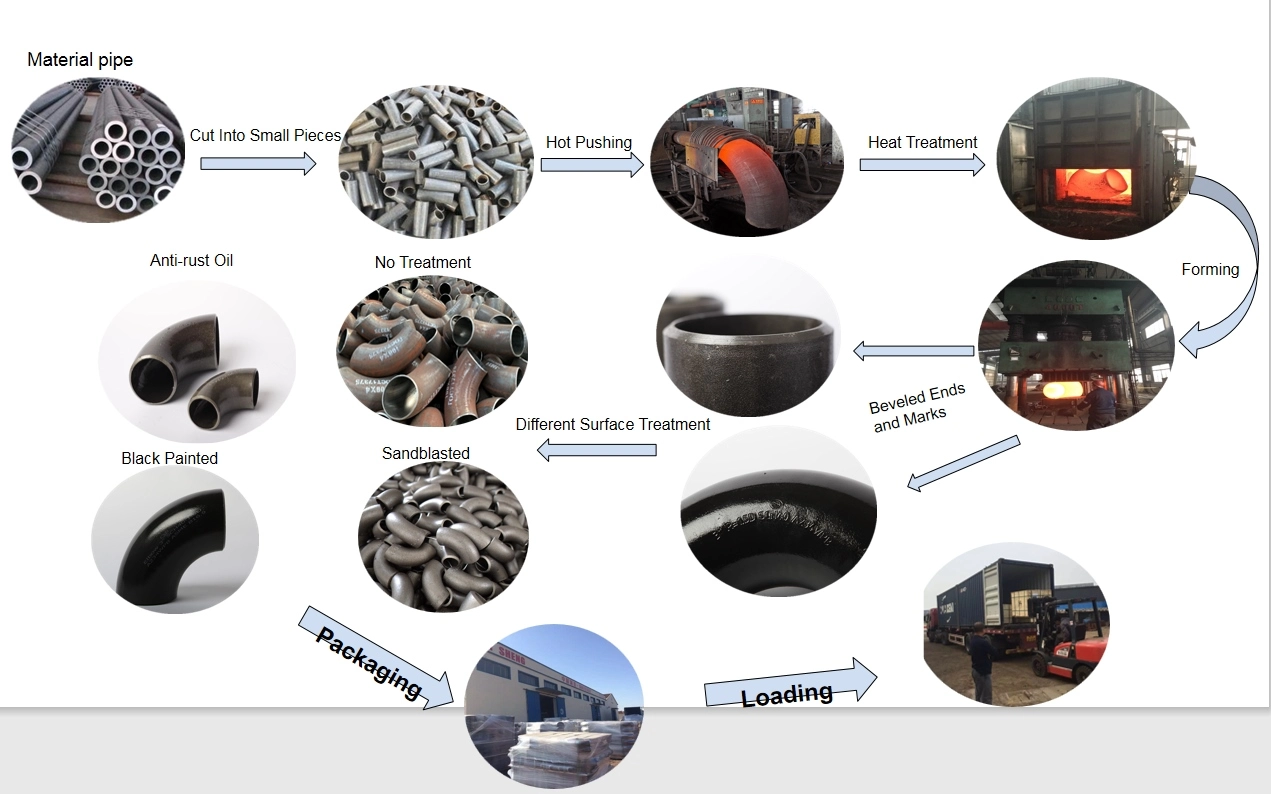

Our controlled manufacturing process ensures consistent quality and dimensional accuracy:

1. Material Selection: Premium grade steel pipes meeting chemical composition requirements
2. Hot Forming: Controlled heating to optimal forming temperature
3. Internal Mandrel Support: Prevents deformation during bending process
4. External Sizing: Maintains precise outer dimensions and roundness
5. Heat Treatment: Stress relief and property normalization
6. End Machining: Precision beveling for welding preparation
7. Dimensional Inspection: Center-to-center and angle verification
8. Surface Finishing: Applied per customer specifications

Surface Finish & Coating Options

Standard Finishes:

• Black Painted: Cost-effective protection for indoor applications
• Varnished: Enhanced corrosion resistance with smooth finish
• Epoxy Coated: Superior chemical resistance for harsh environments
• Hot-Dip Galvanized: Maximum corrosion protection for outdoor service

Custom Coatings Available:

• Specialized epoxy systems for specific chemical exposure
• High-temperature coatings for elevated service conditions
• Color-coded finishes for system identification

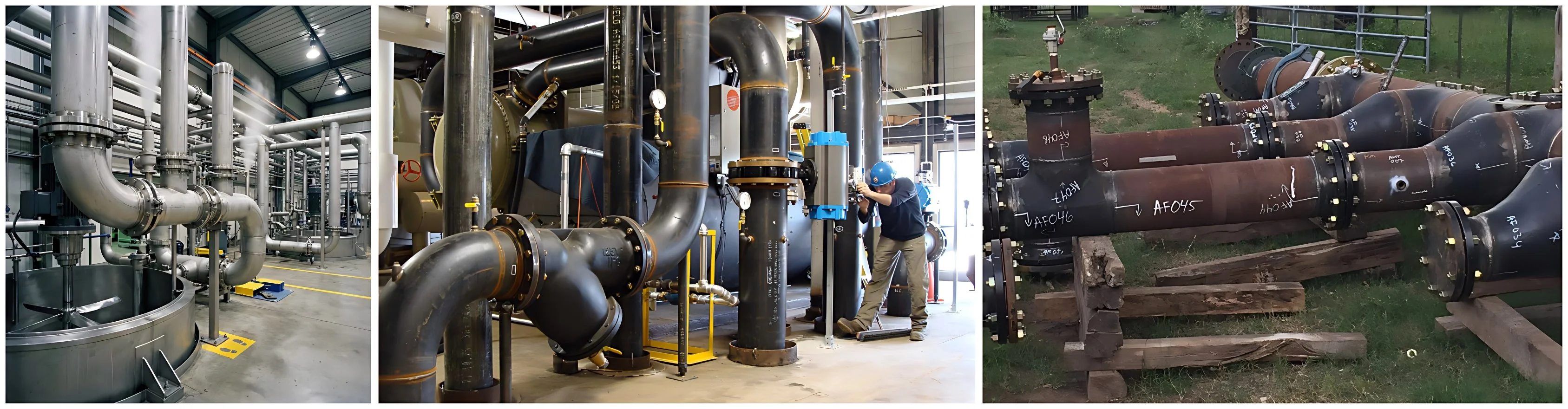

Applications

Heat Exchanger Construction

Primary application in shell-and-tube heat exchangers where multiple passes are required in compact spaces.

Boiler and Steam Systems

Essential components in boiler coil construction and steam distribution systems requiring tight radius turns.

Refinery and Petrochemical

Used in process heaters, reboilers, and distillation column systems where space optimization is critical.

HVAC and Refrigeration

Refrigerant distribution systems and air conditioning units requiring compact flow reversal solutions.

Power Generation

Condenser systems and cooling circuits in power plants where efficient heat transfer is essential.

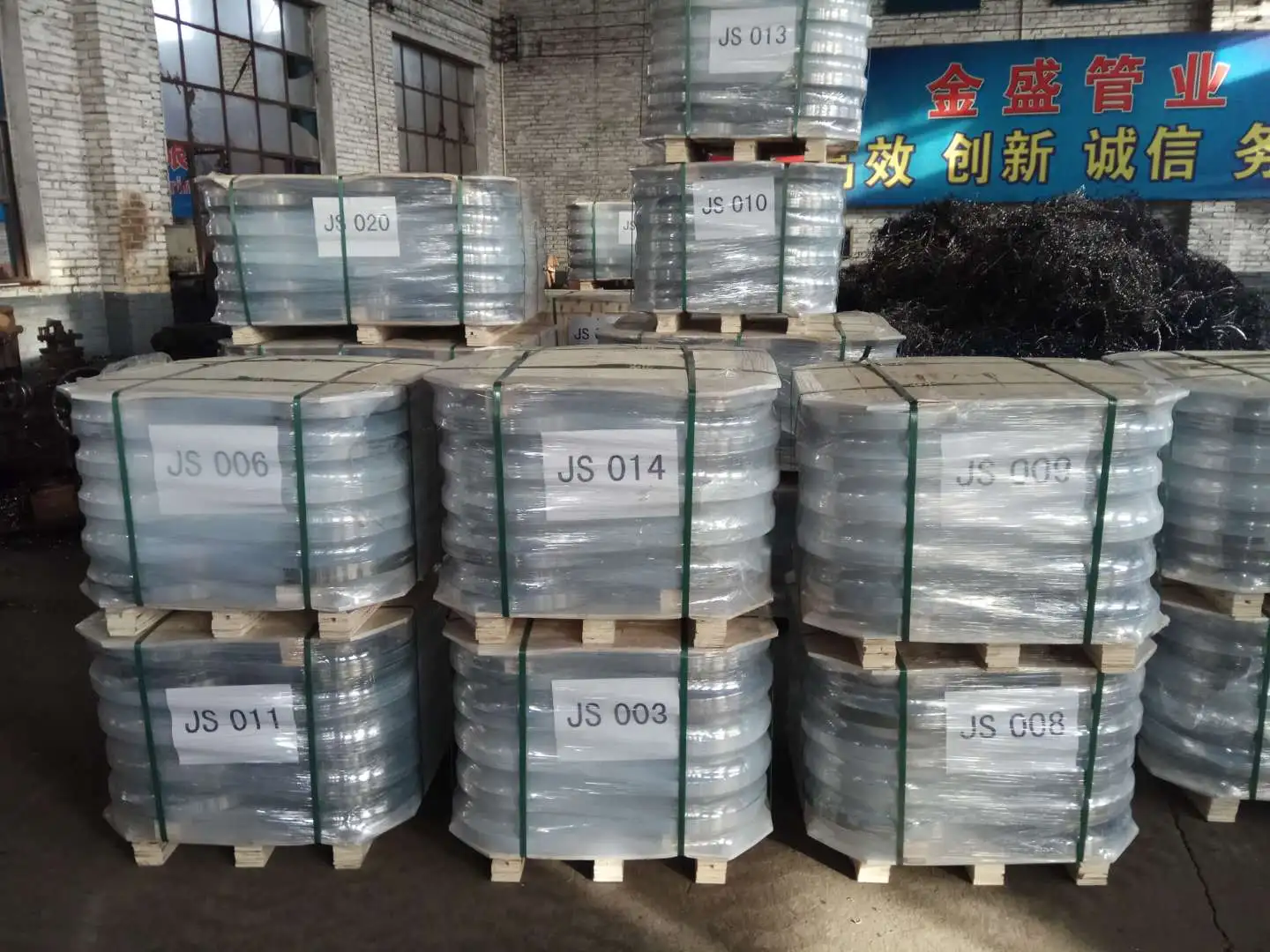

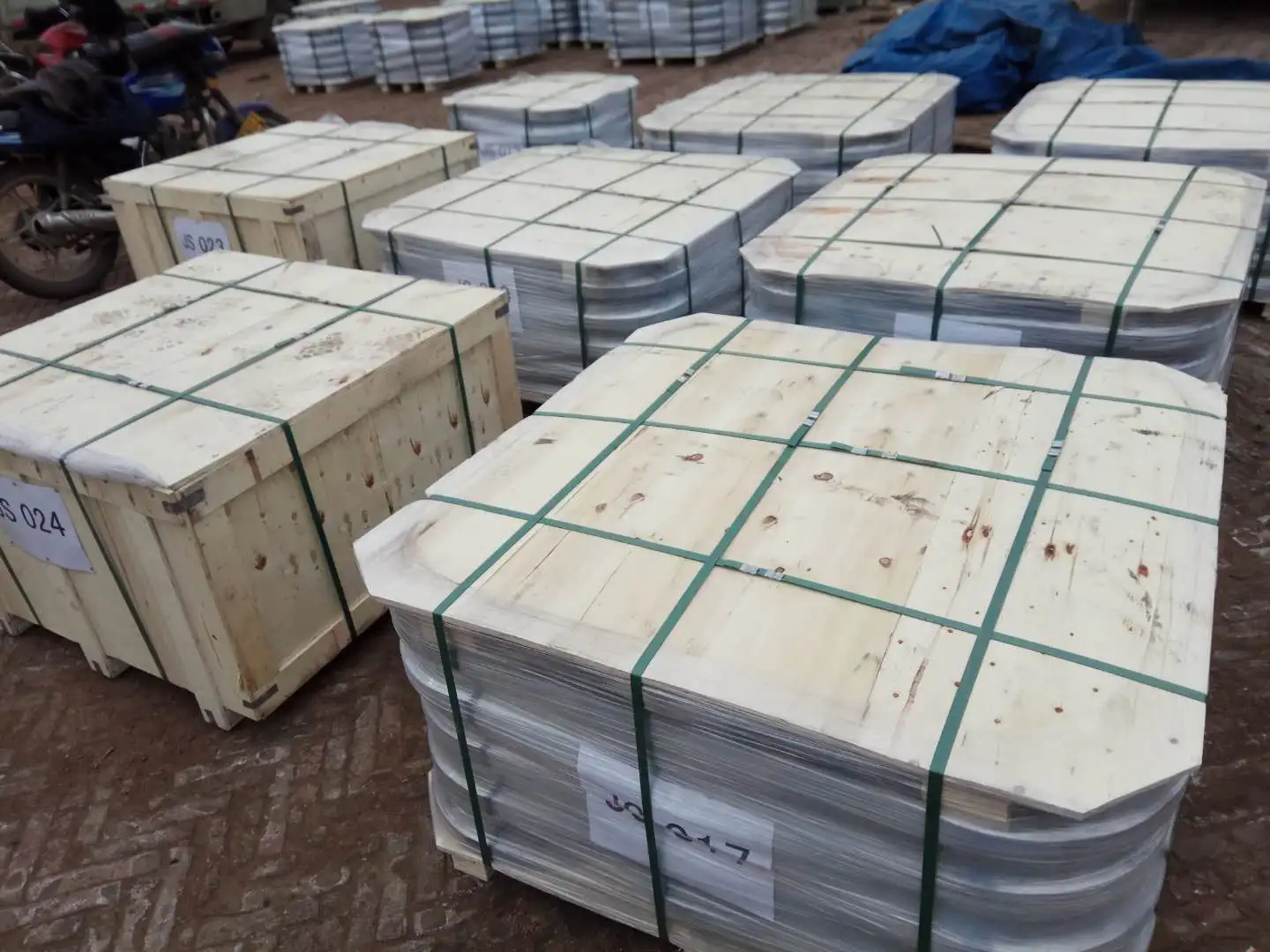

Packaging & Delivery

Protective Packaging:

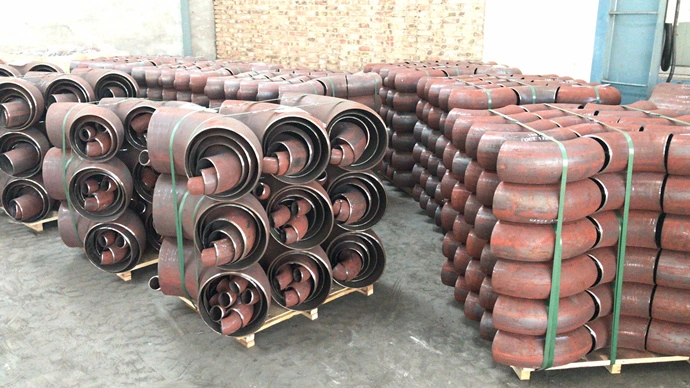

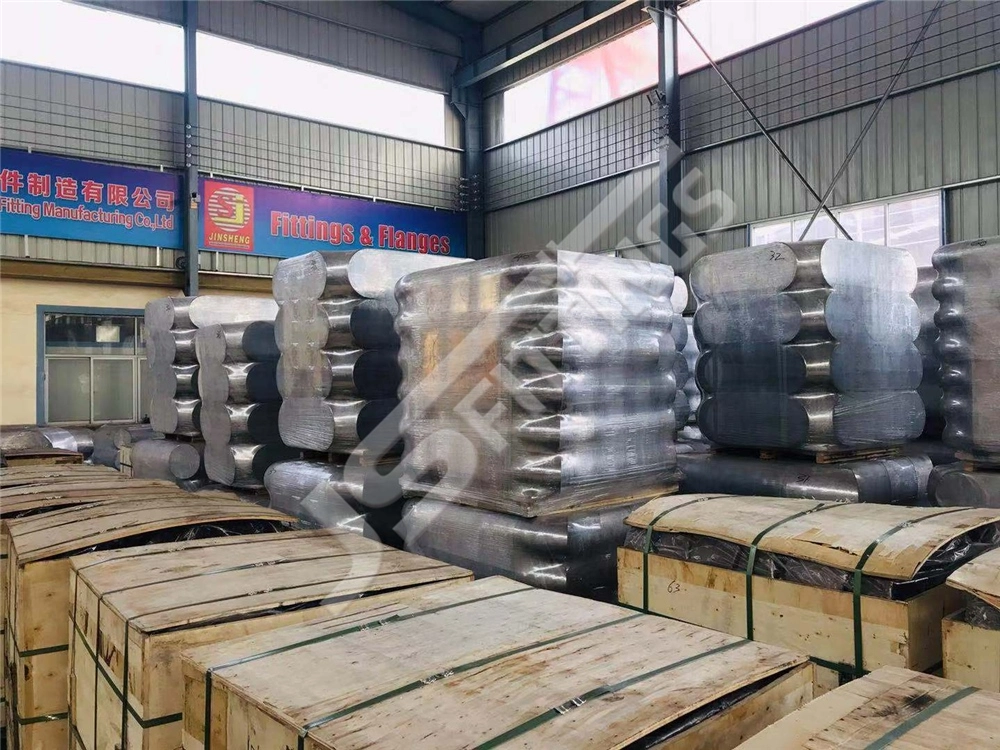

• Individual plastic caps on all ends
• Wooden crates for larger sizes
• Steel bands for secure bundling
• Moisture-resistant wrapping

Shipping Options:

• Sea freight for standard deliveries
• Air freight for urgent requirements
• Express delivery for samples
• Consolidated shipping available

Documentation:

• Material test certificates
• Dimensional inspection reports
• Packing lists and shipping documents

Customization Service

We provide comprehensive customization services to meet specific project requirements:

• Non-Standard Dimensions: Custom center-to-center distances
• Special Materials: Exotic alloys and duplex stainless steels
• Unique Specifications: Modified wall thickness and end preparations
• Volume Production: Dedicated production runs for large projects
• Engineering Support: Technical consultation and design assistance

Our experienced engineering team works directly with customers to develop optimal solutions for challenging applications.









Quality Control

Incoming Material Inspection:

• Chemical composition verification using spectrometer analysis
• Mechanical property testing for strength and ductility
• Dimensional checks on raw materials

Process Control:

• Temperature monitoring during forming operations
• Dimensional verification at each manufacturing stage
• Surface quality inspection throughout production

Final Inspection:

• Complete dimensional verification including center-to-center distance
• Visual inspection for surface defects
• Non-destructive testing when specified
• Pressure testing capabilities available

FAQ

Q: What is the difference between Long Radius (LR) and Short Radius (SR) ptoduct?

A: The difference is in the center-to-center distance. LR bends have a 3D distance (3 times nominal pipe size), while SR bends have 2D distance. LR is standard for most applications, while SR is used when space is extremely limited.

Q: How do you measure the center-to-center dimension?

A: This measures the distance between centerlines of both ends. For our quality control, we verify this dimension on calibrated surface plates to ensure ASME B16.9 compliance.

Q: Are these fittings suitable for pigging operations?

A: Standard return bends are typically too tight for pigging. If your system requires pigging capability, consider custom long-radius induction bends with 5D or 10D radius instead.

Q: What applications use these fittings most commonly?

A: Primary applications include heat exchanger construction, boiler coils, condenser units, refinery heaters, and HVAC systems where compact flow reversal is needed.

Q: How do you prevent end deformation during bending?

A: We use internal mandrels and external sizing dies during hot-forming. This maintains perfectly round ends and ensures flat 180-degree angles for stress-free alignment.

Contact Us

Ready to source premium quality 180° return bend fittings? Contact our technical sales team at admin@jsfittings.com for quotations, specifications, and expert application guidance.
