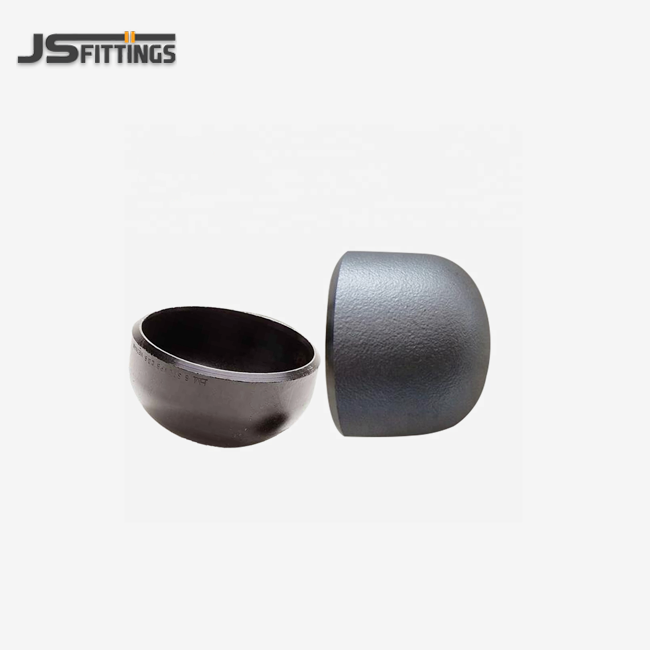

Buttweld Cap

Buttweld Cap - Professional Pipeline Closure Solution

Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd. brings over 40 a long time of skill in fabricating premium buttweld cap arrangements. Our state-of-the-art 7,000 square meter office produces high-quality caps extending from 1/2" to 48" (DN15-DN1200) with divider thicknesses from SCH 10 to XXS. With yearly deals surpassing RMB 100 million and month to month shipments over 50 holders, we provide solid product items that meet ASME B16.9, Noise 2617, and EN 10253 guidelines for basic pipeline applications worldwide.

Buttweld Cap Overview

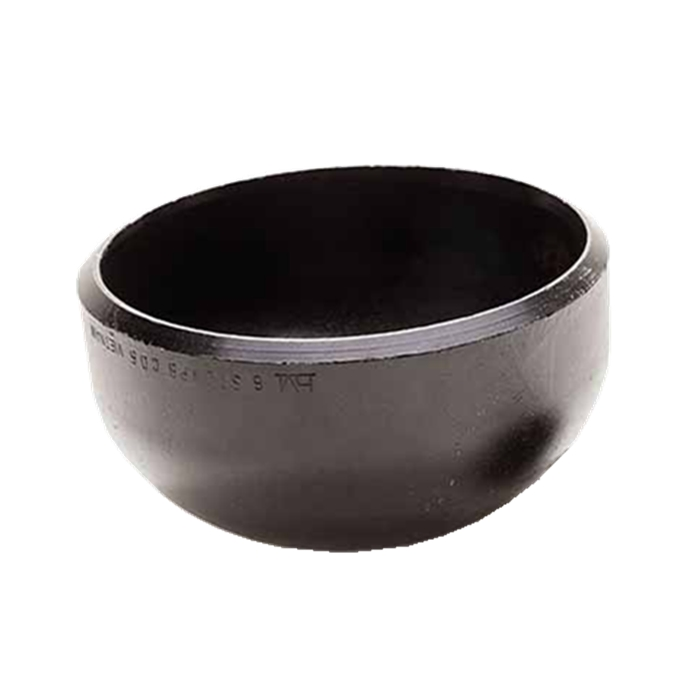

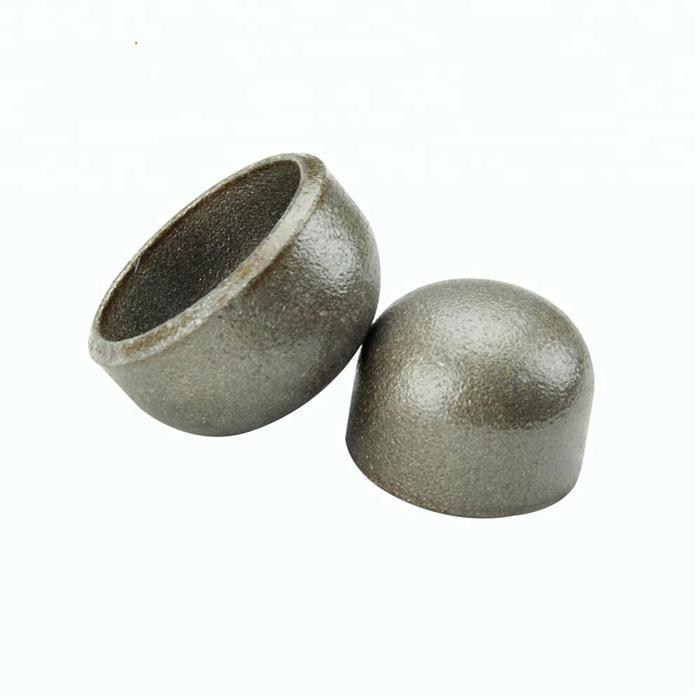

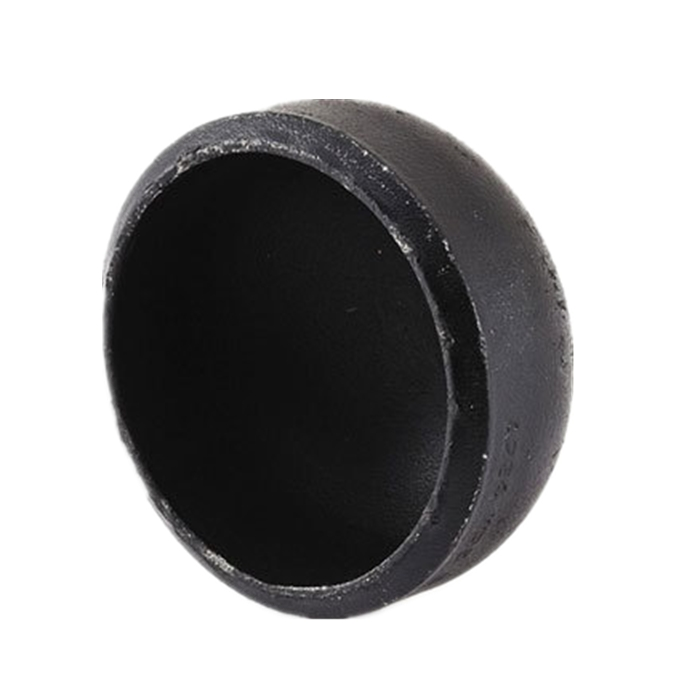

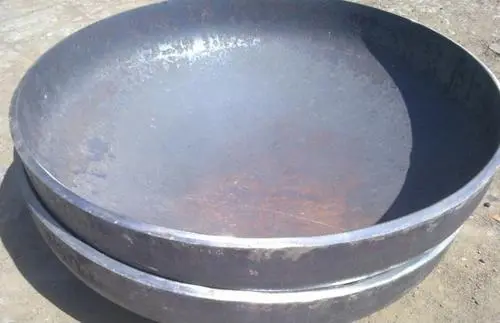

A porduct serves as the terminal closure for channeling frameworks, giving changeless fixing at pipeline endpoints. This basic fitting interfaces to pipe closes through butt welding, making a secure, leak-proof obstruction that keeps up framework judgment beneath pressure.

Our caps highlight an curved plan that proficiently disseminates stretch and weight loads. This building approach guarantees predominant execution compared to flat-end options, making them perfect for oil, gas, and mechanical applications.

Key Features & Advantages

Uniform Crown Thickness: Our accuracy fabricating keeps up steady divider thickness all through the whole cap body, killing powerless focuses that compromise framework safety.

Precision Beveling: Each cap highlights a machined 37.5° incline per ASME B16.25 measures, lessening welding arrangement time and minimizing imperfection risks.

Smooth Inner Surface: Hot-forming forms make scale-free insides surfaces, anticipating dregs amassing and stream turbulence.

Complete Traceability: Hard-stamped recognizable proof incorporates warm numbers, sizes, and fabric grades with comprehensive 3.1 Process Test Certificates.

Project-Ready Bundling: Secure plywood cases with clear labeling encourage stock administration and coordinate jobsite delivery.

Technical Specifications

Standards & Certifications

Our manufacturing processes comply with internationally recognized standards:

• ASME/ANSI B16.9 for dimensions and tolerances
• DIN 2617 for European applications
• EN 10253 for pressure equipment directive compliance

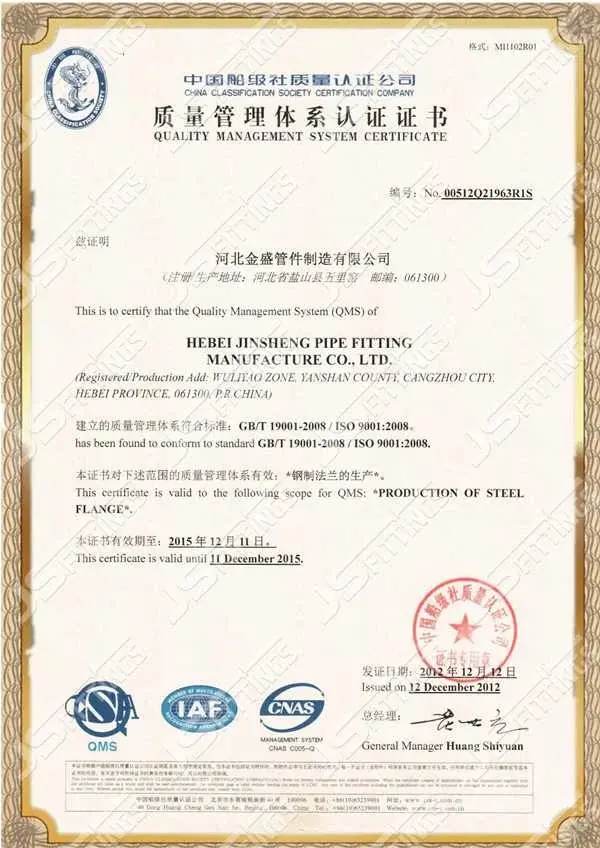

• ISO 9001 quality management system certification
• CE marking for European conformity

Chemical Composition & Mechanical Properties

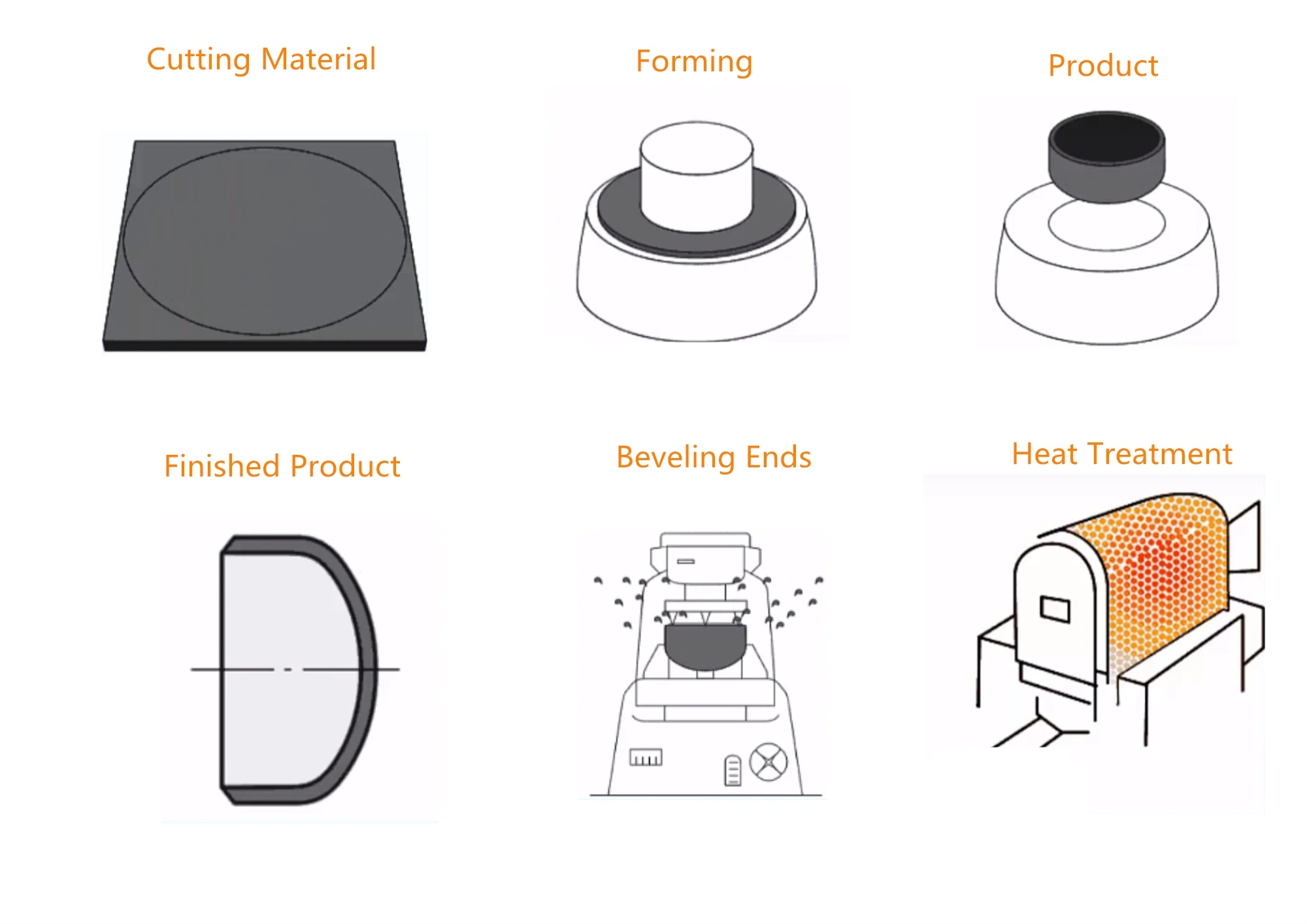

Manufacturing Process

Our advanced manufacturing follows strict quality protocols:

1. Material Selection: Raw materials undergo spectroscopic analysis for chemical composition verification
2. Hot Forming: Controlled heating and pressing create optimal grain structure
3. Heat Treatment: Stress relief and normalization ensure proper mechanical properties
4. Machining: Precision beveling and dimensional finishing
5. Testing: Dimensional inspection, surface quality checks, and pressure testing
6. Surface Treatment: Protective coating application based on material requirements

Surface Finish & Coating Options

Carbon Steel Options:

• Black lacquer painting for standard applications
• Anti-rust oil coating for temporary protection
• Epoxy coating for enhanced corrosion resistance
• Hot-dip galvanizing for severe environments

Stainless Steel Options:

• Pickling and passivation for optimal corrosion resistance
• Bright annealing for sanitary applications
• Electropolishing for pharmaceutical and food industries

Applications

Buttweld caps discover broad utilize over different industries:

Oil & Gas: Pipeline terminals, wellhead associations, and preparing equipment

Chemical Handling: Reactor vessels, capacity tanks, and prepare piping

Power Era: Steam frameworks, cooling circuits, and weight vessels

Water Treatment: Conveyance frameworks, filtration hardware, and capacity facilities

Marine Industry: Balance frameworks, fuel lines, and pressure driven circuits

Packaging & Delivery

We guarantee secure transportation through proficient packaging:

• Seaworthy plywood cases for worldwide shipping
• Individual wrapping with defensive materials
• Clear distinguishing proof names for simple handling
• Standardized documentation counting pressing records and certificates
• Container stacking optimization for cost-effective delivery

Customization Service

Our designing group gives custom-made solutions:

• Custom measurements past standard ranges
• Special fabric grades for one of a kind applications
• Modified slope points for particular welding requirements
• Enhanced surface medications for extraordinary environments
• Private labeling and stamping services​​​​​​​​​​​​​​







Quality Control

Rigorous testing guarantees reliable item quality:

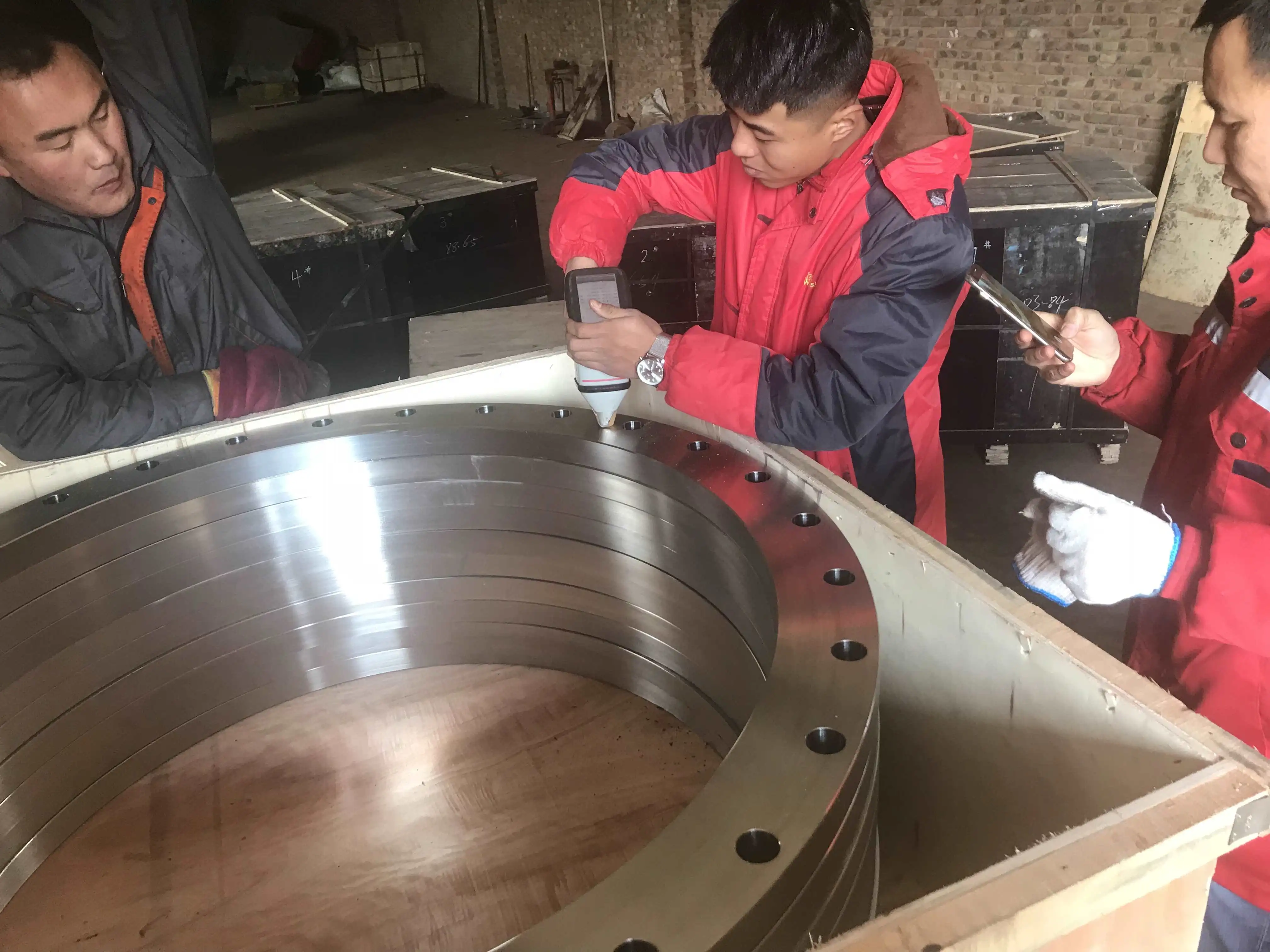

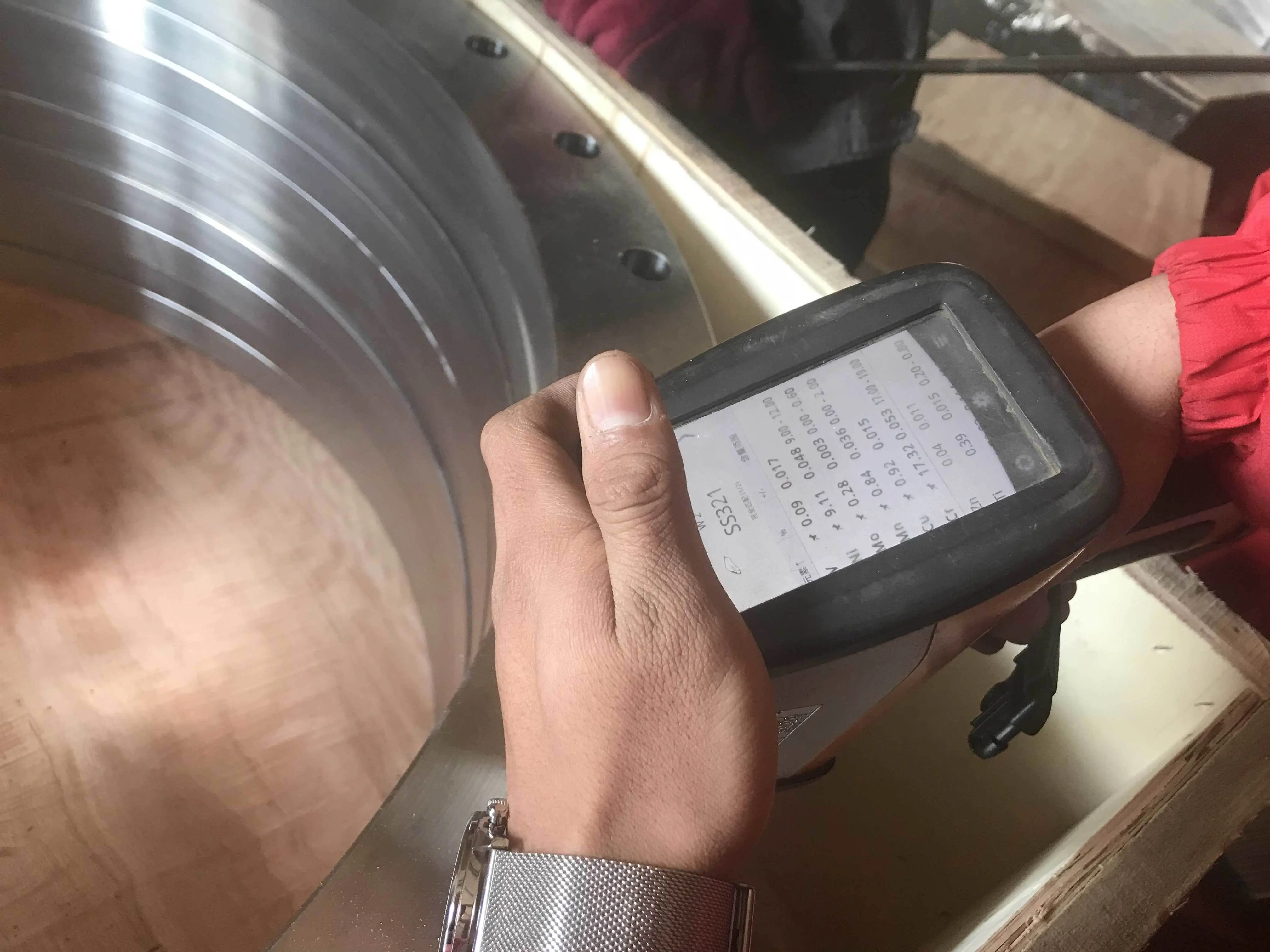

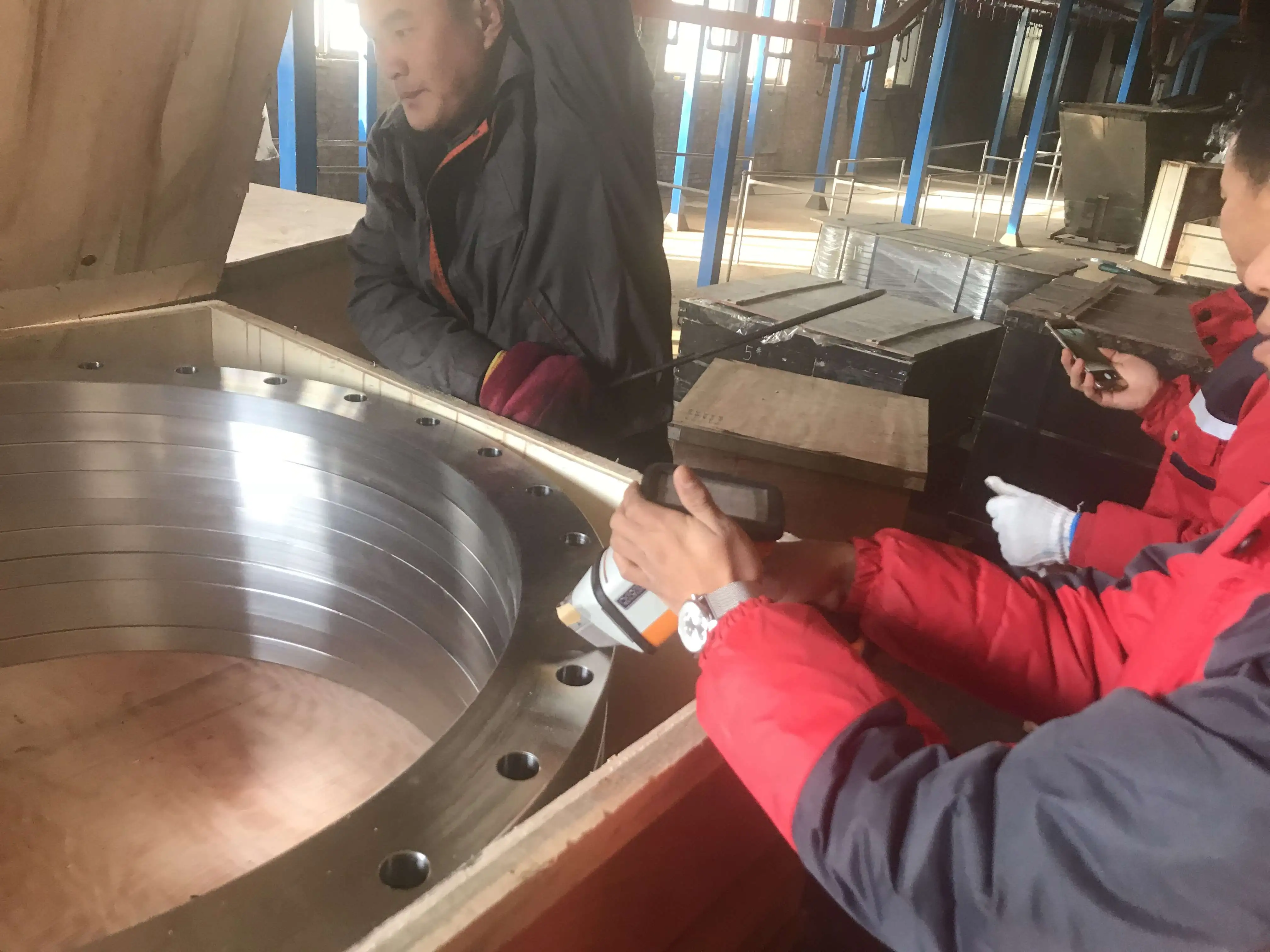

• Incoming fabric review with spectroscopic analysis
• In-process dimensional monitoring
• Final assessment counting visual and dimensional checks
• Hydrostatic testing for weight applications
• Complete documentation with traceability records

FAQ

Q1: Why choose elliptical caps over flat designs?

Elliptical caps distribute pressure stress more effectively than flat alternatives. The 2:1 ratio design provides optimal strength while minimizing material usage, making them safer for pressurized systems.

Q2: Can these caps serve as permanent pressure vessel ends?

Yes, when material grades and wall thicknesses match your design code requirements such as ASME Section VIII. Our caps are regularly used in tank and header fabrication.

Q3: How do you protect caps during shipping?

Carbon steel caps receive high-quality black lacquer or anti-rust oil treatment. Bevel ends include plastic protection caps to ensure welding-ready condition upon arrival.

Q4: Do you supply heavy-wall thickness options?

Yes, we specialize in XXS and custom thicknesses exceeding standard schedules for high-pressure applications meeting specific engineering requirements.

Contact Us

Ready to discuss your buttweld cap requirements? Contact our technical team at admin@jsfittings.com for expert guidance and competitive pricing.
