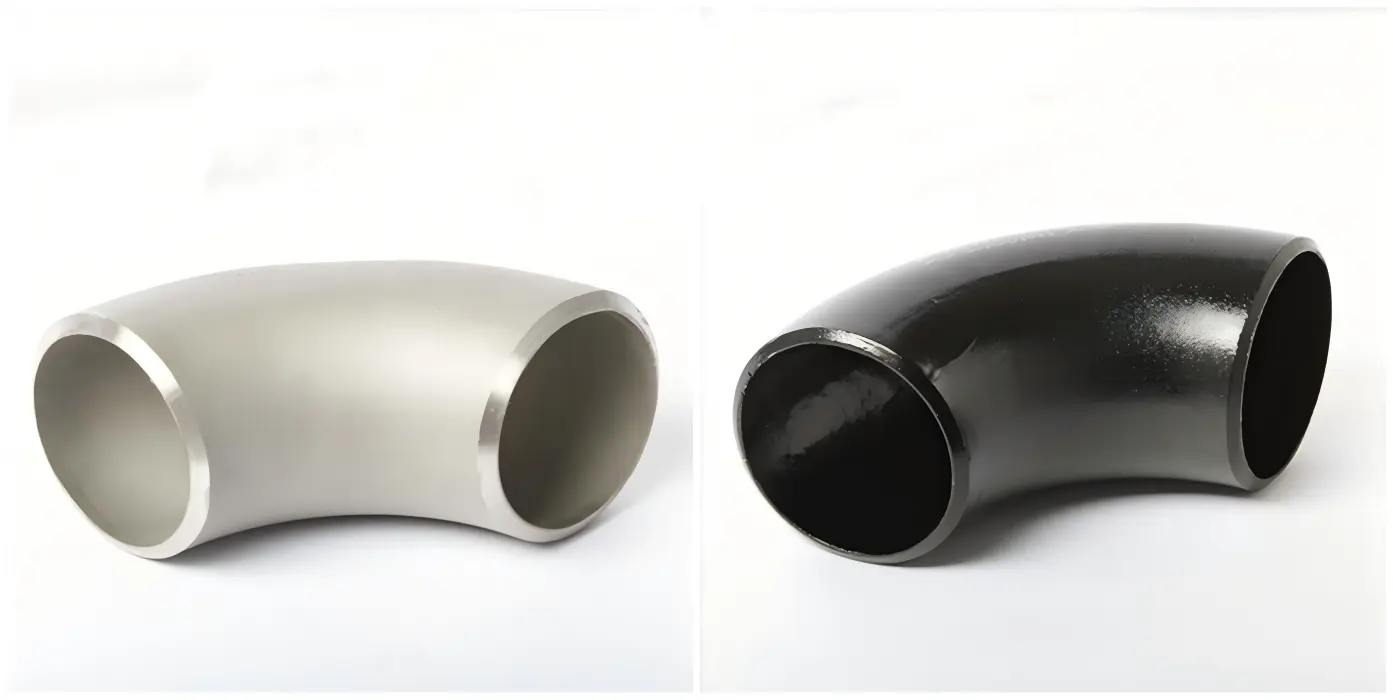

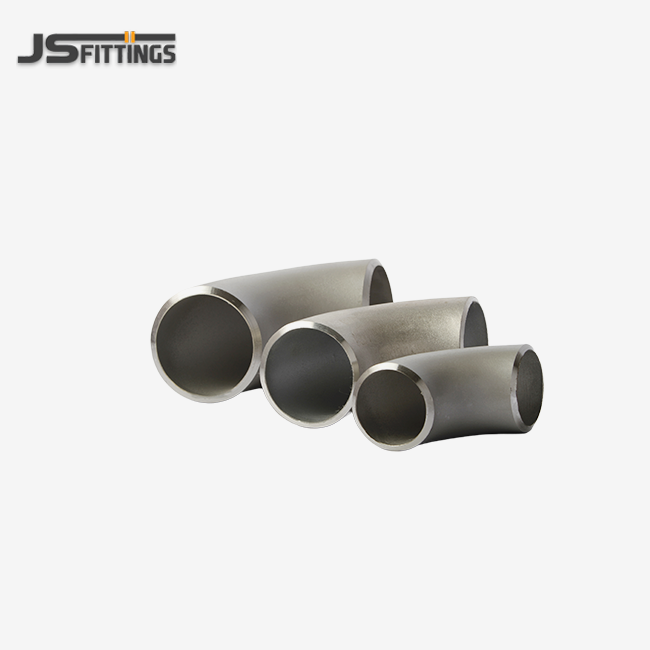

90 Degree Buttweld Elbow
Radius Types:
Long Radius (LR): 1.5D (Most common for smooth flow).
Short Radius (SR): 1D (For tight-space installations).
Size Range: 1/2" – 72" (DN15 – DN1800).
Wall Thickness: SCH 10, SCH 40, SCH 80, SCH 160, SCH XXS (Per ASME B16.9).
Standard Compliance: ASME B16.9, MSS-SP-75, EN10253, DIN 2605.
Material Grades:
Carbon Steel: ASTM A234 WPB
High-Yield: API 5L / ASTM A860 WPHY 42/52/60/65/70.
Stainless Steel: ASTM A403 WP304/L, WP316/L (Corrosion resistant).
Low-Temp: ASTM A420 WPL6.
End Finish: Precisely Beveled Ends (per ASME B16.25) for high-speed welding.
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
90 Degree Buttweld Elbow - Professional Manufacturer
Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd. stands as your trusted accomplice for premium 90 degree buttweld elbow arrangements, supported by over 40 a long time of fabricating brilliance. Our state-of-the-art 7,000 square meter office conveys remarkable pipe fittings with yearly deals surpassing RMB 100 million and month to month shipments outperforming 50 holders. We specialize in precision-engineered 90-degree elbows that meet rigid worldwide benchmarks counting ASTM/ASME, Commotion, JIS, and GOST, guaranteeing prevalent stream elements and dimensional precision for your basic pipeline applications.
90 Degree Buttweld Elbow Overview
A product serves as an fundamental pipe fitting planned to alter liquid course by precisely 90 degrees in pipeline frameworks. These steel elbows are shaped through hot squeezing or producing forms, making a coordinate welded association with steel channels. Accessible in both Long Span (LR) and Brief Sweep (SR) arrangements, our butt weld elbows exceed expectations in high-pressure and high-temperature applications where unwavering quality is paramount.
Long span variations include center-to-face measurements of 1.5 times the ostensible pipe measure, giving smoother stream characteristics. Brief span alternatives offer compact arrangements for space-constrained establishments whereas keeping up basic keenness and execution standards.
Key Features & Advantages
Optimal Stream Flow: Our controlled mandrel shaping prepare guarantees smooth inner span geometry, minimizing turbulence and grinding misfortunes in high-velocity systems.
Superior Divider Thickness Consistency: Exact fabricating keeps up divider thickness at the extrados inside ASME resiliences, protecting weight appraisals proportionate to straight pipe sections.
Exact Center-to-Face Measurements: Strict dimensional control empowers culminate arrangement amid channeling pre-fabrication, disposing of constrained fitting and lessening joint stress.
Clean, Ready-to-Weld Slopes: Each 90 degree buttweld elbow highlights exactness 37.5° inclines per ASME B16.25, encouraging speedier fit-ups and prevalent weld penetration.
Roundness Control: Kept up breadth coordinating avoids high-low jumbles amid welding, guaranteeing uniform inside stream paths.
Robust Surface Keenness: Clean wraps up free from breaks, pits, and scales anticipate localized erosion initiation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards | ASTM A234, MSS SP-75, ASTM A403 |
| Manufacturing Standard | ASME B16.9, DIN2615, JIS B2312 |
| Size Range | 1/2" to 48" |
| Wall Thickness | SCH 10, SCH 40, SCH 80 |
| Types | Long Radius (LR), Short Radius (SR) |
| Materials | Carbon Steel, Alloy Steel, Stainless Steel |
| Pressure Class | 150# to 2500# |

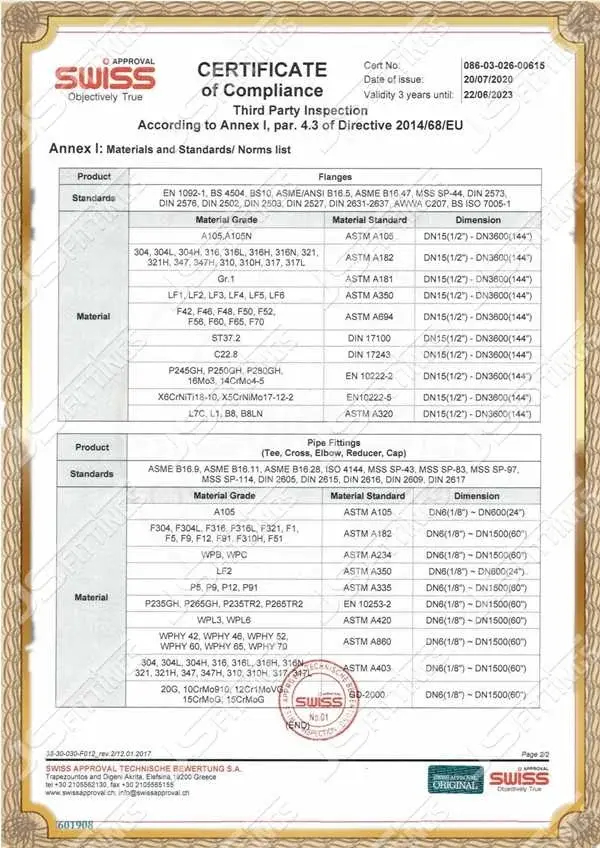

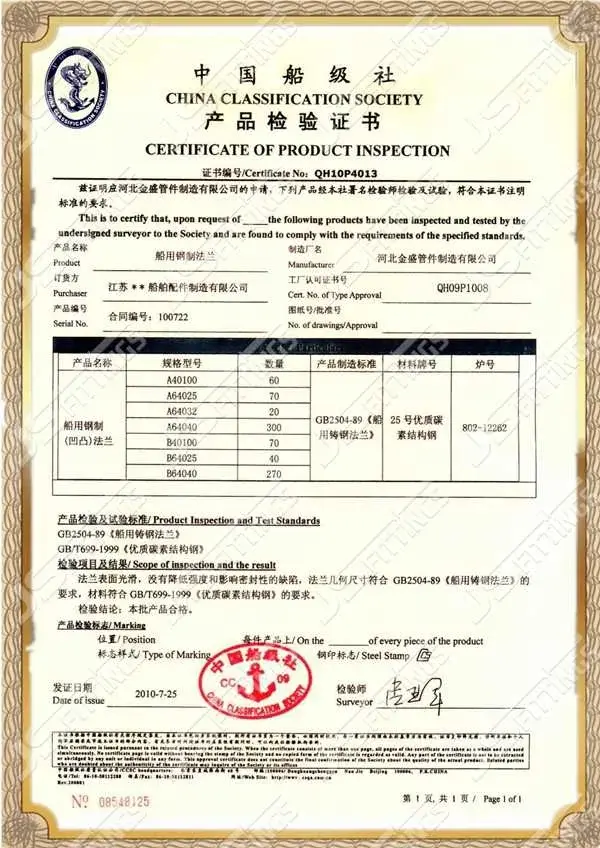

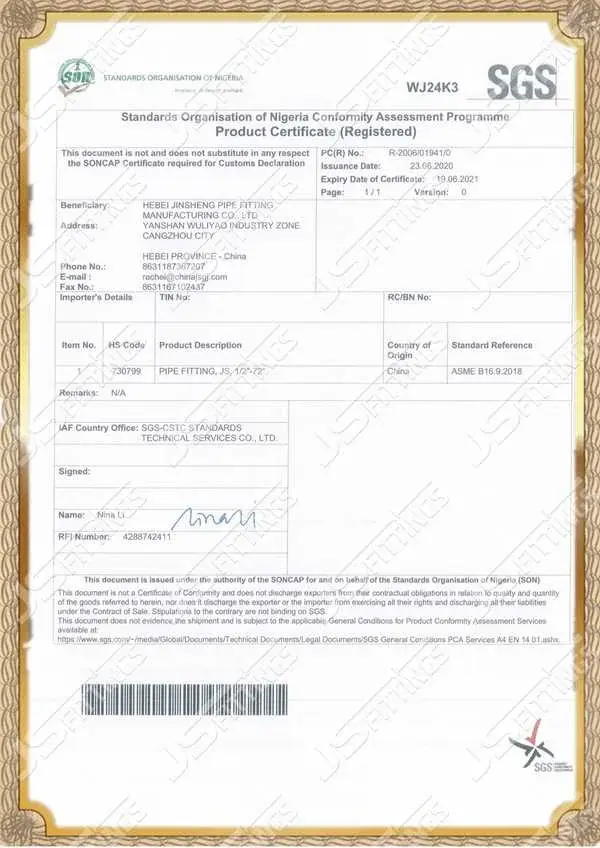

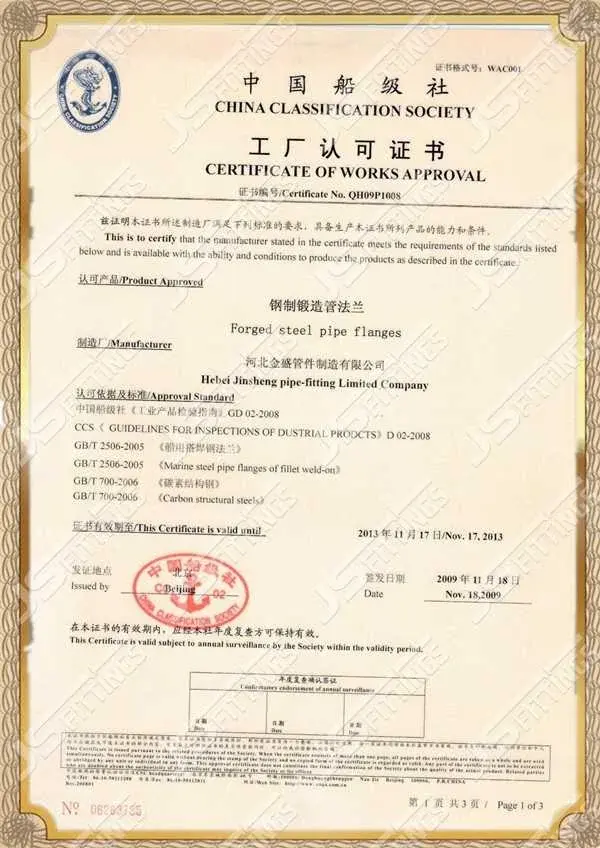

Standards & Certifications
Our manufacturing processes comply with internationally recognized standards ensuring global compatibility:
- ASME B16.9: Dimensional standards for factory-made wrought butt-welding fittings
- ASTM A234: Standard specification for piping fittings of wrought carbon steel
- DIN 2615: German standards for steel butt-welding pipe fittings
- JIS B2312: Japanese industrial standards for pipe fittings
- ISO 9001: Quality management system certification
- CE Marking: European conformity certification
- GOST-R: Russian technical standards compliance
Chemical Composition & Mechanical Properties
| Material Grade | Carbon (%) | Manganese (%) | Phosphorus (%) | Sulfur (%) | Tensile Strength (MPa) |
|---|---|---|---|---|---|
| A234 WPB | ≤0.30 | 0.29-1.06 | ≤0.035 | ≤0.035 | 415-585 |
| A234 WP11 | 0.05-0.15 | 0.30-0.80 | ≤0.035 | ≤0.035 | 415-585 |
| A403 WP316L | ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | 485-620 |

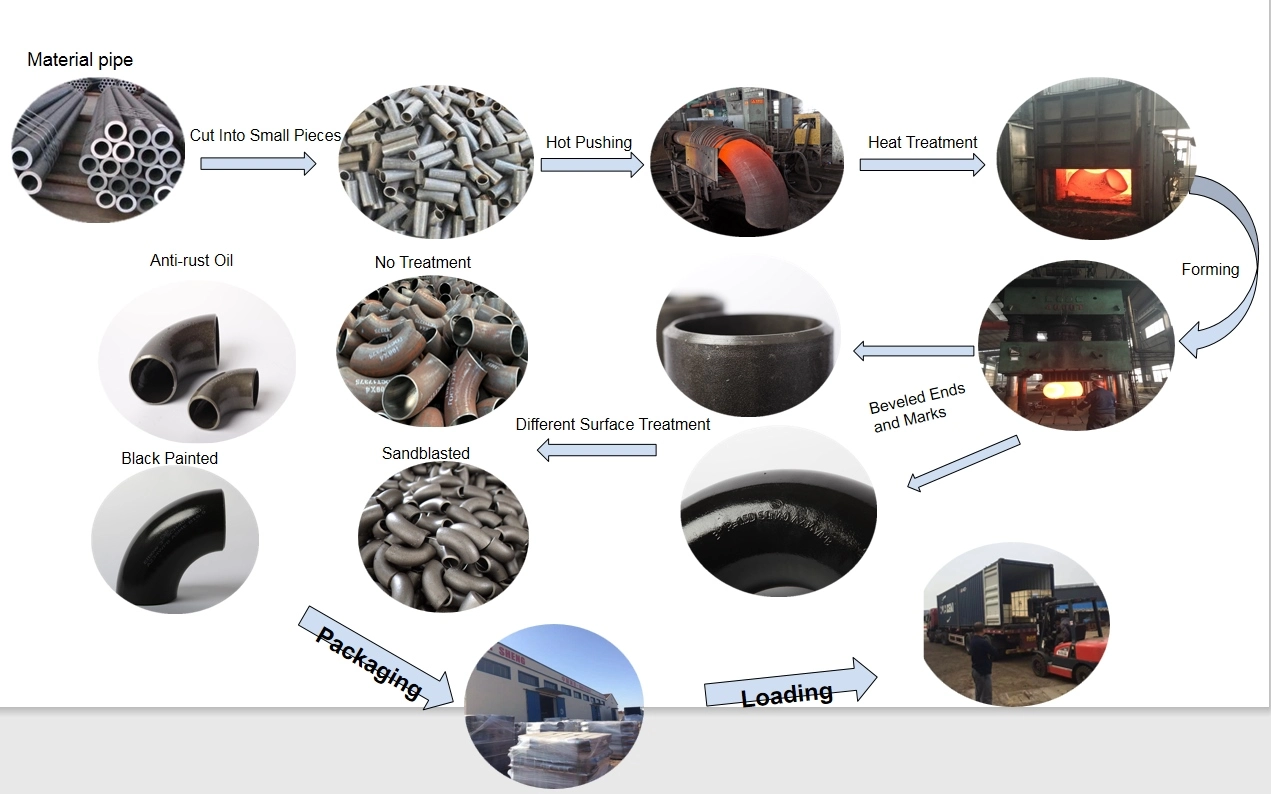

Manufacturing Process
Our precision manufacturing ensures consistent quality through controlled processes:
- Material Selection: Premium grade steel verification through spectrometer analysis
- Hot Forming: Controlled temperature forging for optimal grain structure
- Mandrel Processing: Internal radius formation for smooth flow characteristics
- Heat Treatment: Stress relief and mechanical property optimization
- Machining: Precision beveling and dimensional finishing
- Quality Inspection: Non-destructive testing and dimensional verification
- Surface Treatment: Protective coating application
Surface Finish & Coating Options
Black Painted: Standard industrial coating for general applications
- Varnished: Transparent protective finish for enhanced corrosion resistance
- Epoxy Coated: Specialized coating for harsh environmental conditions
- Galvanized: Hot-dip galvanizing for maximum corrosion protection
- Pickled & Passivated: Stainless steel surface treatment for food and pharmaceutical applications

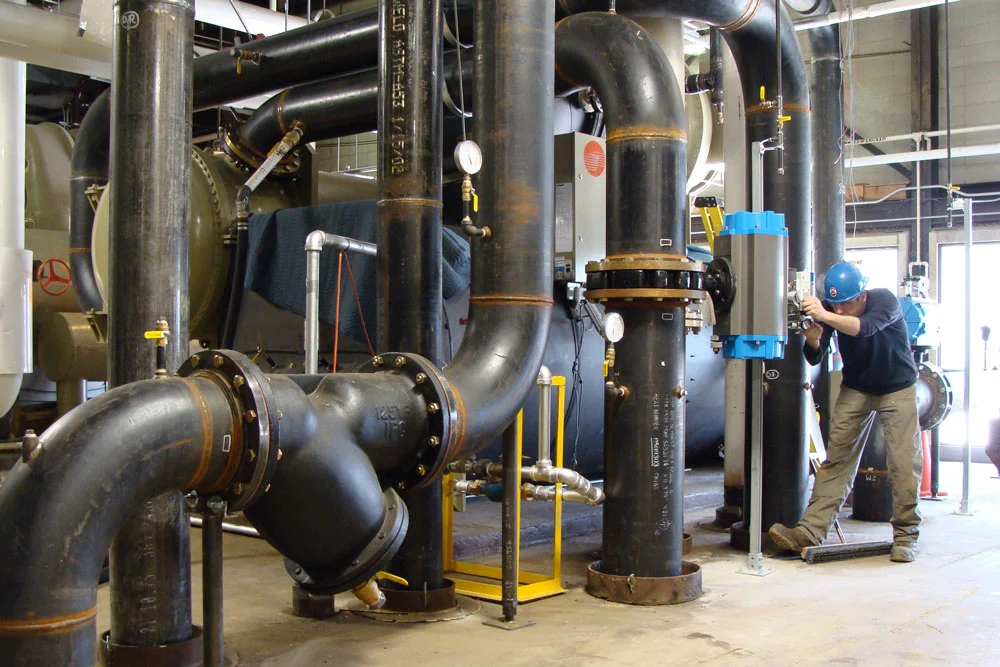

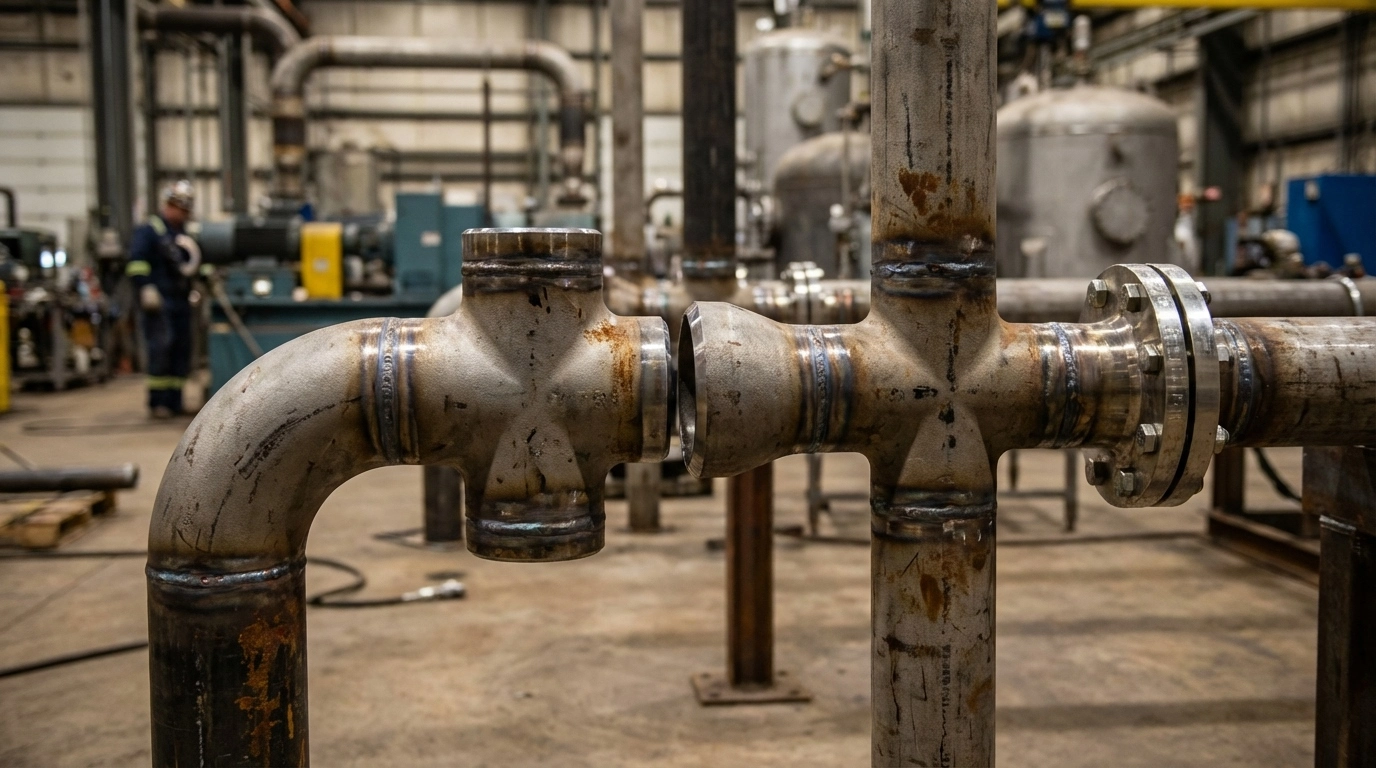

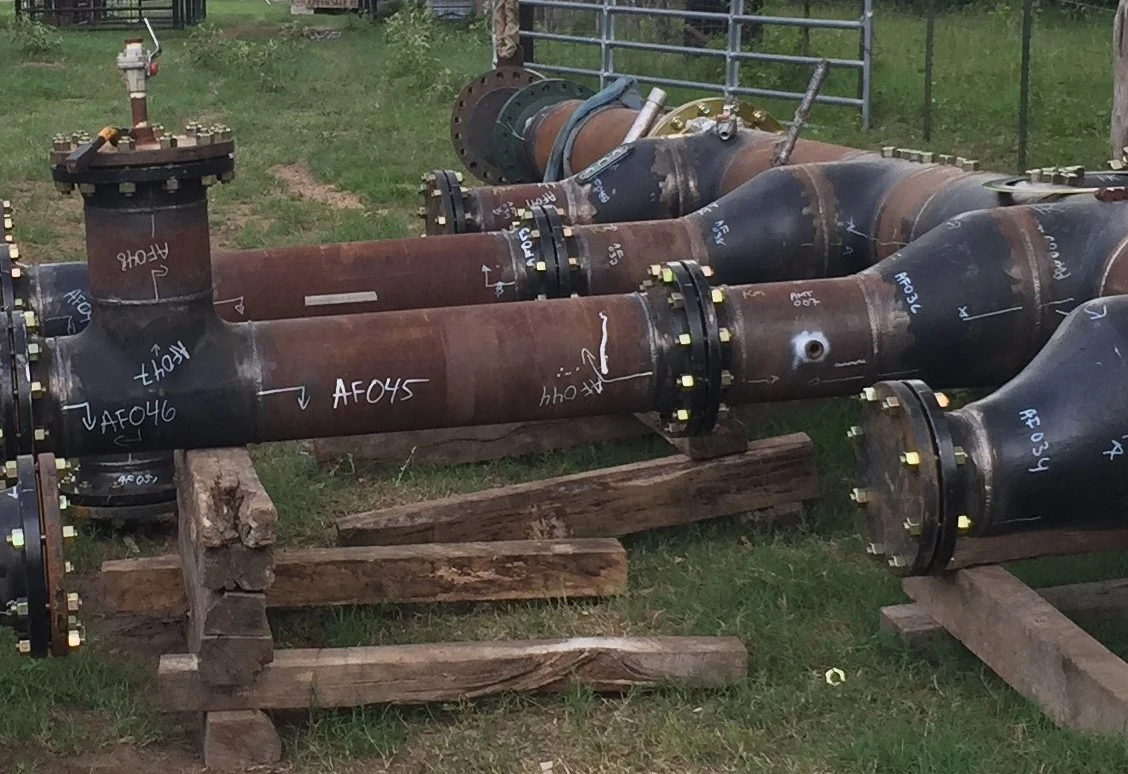

Applications
90 degree buttweld elbow fittings serve basic parts over differing industries:
- Oil & Gas: Pipeline course changes in refineries and dissemination systems
- Petrochemical: Handle channeling in chemical plants and capacity facilities
- Power Era: Steam and cooling water frameworks in control plants
- Marine: Shipboard channeling frameworks and seaward platforms
- HVAC: Commercial building warming and cooling installations
- Food Handling: Clean channeling frameworks requiring smooth stream paths
Pharmaceutical: Clean utility frameworks with exacting cleanliness requirements

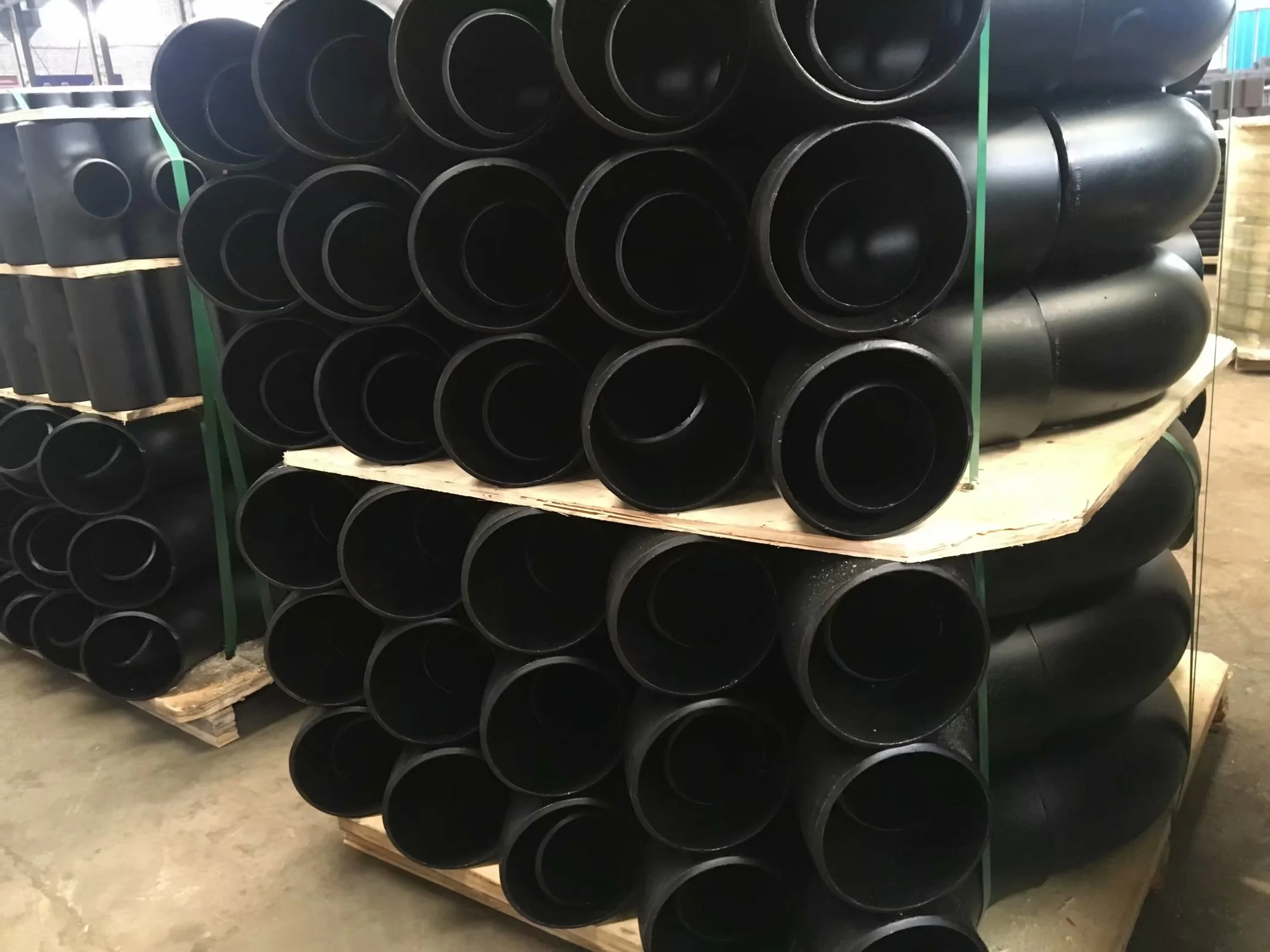

Packaging & Delivery
Your orders get proficient bundling guaranteeing secure transit:
- Individual Security: Each elbow wrapped in defensive film
- Wooden Cases: Secure bundling for worldwide shipping
- Shipping Marks: Clear recognizable proof and dealing with instructions
- Documentation: Total Process Test Certificates and compliance records
- Delivery Choices: Coxcomb, CIF, or EXW terms available
- Lead Time: Standard conveyance inside 15-30 days depending on specifications
Customization Service
We oblige particular extend necessities through comprehensive customization:
- Special Measurements: Non-standard sizes and divider thicknesses
- Material Grades: Extraordinary amalgams and specialized steel grades
- Surface Medicines: Project-specific coating requirements
- Marking: Custom recognizable proof and traceability marking
- Testing: Extra assessment and testing protocols
- Packaging: Specialized bundling for special shipping requirements
Quality Control
Our thorough quality confirmation guarantees each elbow meets specifications:
Incoming Fabric Assessment: Chemical composition and mechanical property verification
Dimensional Review: Exact estimation utilizing calibrated instruments
Non-Destructive Testing: Ultrasonic and attractive molecule inspection
Pressure Testing: Hydrostatic testing when required
Surface Quality: Visual and penetrant testing for deformity detection
Final Review: Total dimensional and visual confirmation some time recently shipment
FAQ
Q1: What recognizes Long Sweep from Brief Span 90-degree elbows?
A: Long Sweep elbows highlight 1.5D center-to-face measurements giving smoother stream and decreased weight drop. Brief Span elbows utilize 1.0D measurements for space-limited installations.
Q2: How do you guarantee correct 90-degree angles?
A: Each elbow experiences exactness checking utilizing measuring kicks the bucket and surface plates with high-precision squares, keeping up ASME B16.9 tolerances.
Q3: Are these elbows appropriate for piggable pipelines?
A: Yes, Long Sweep forms oblige pipeline review devices. Brief Span elbows ought to not be utilized in piggable frameworks due to ebb and flow limitations.
Q4: What traceability documentation do you provide?
A: Each elbow incorporates warm number stamping empowering full traceability to Process Test Certificates for security review requirements.
Q5: What defensive coatings are available?
A: Standard alternatives incorporate dark finish and anti-rust oil. We moreover give hot-dip galvanizing and specialized epoxy coatings for particular applications.
Contact Us
Ready to enhance your pipeline system with premium 90 degree buttweld elbow solutions? Contact our expert team today at admin@jsfittings.com for technical consultation and competitive quotations.
