Blind Flange Manufacturer

With over 40 a long time of fabricating brilliance, Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd. conveys enterprise-grade blind flange arrangements over total measure ranges. Our advanced 7,000 square meter office produces high-integrity produced spines with yearly deals surpassing RMB 100 million and month to month shipments over 50 holders. Each daze rib experiences accuracy CNC machining and meets ASME B16.5 weight evaluations from Course 150 to 2500, guaranteeing dependable pipeline end for basic mechanical applications worldwide.

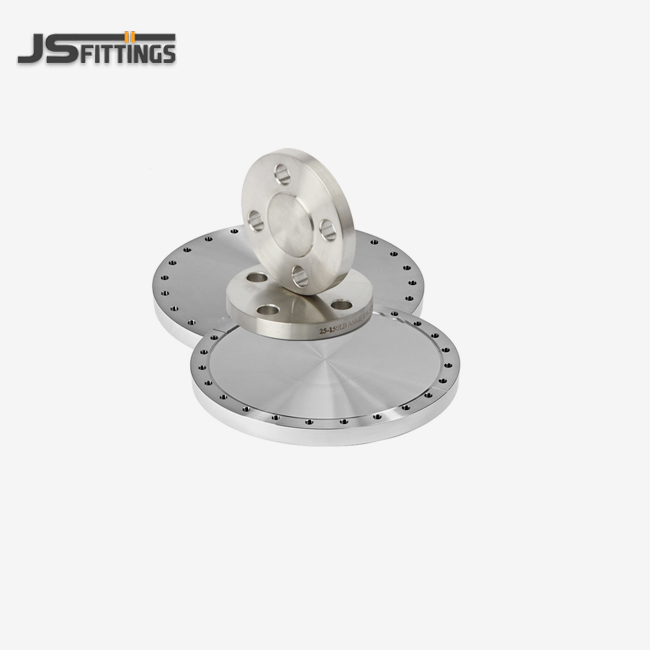

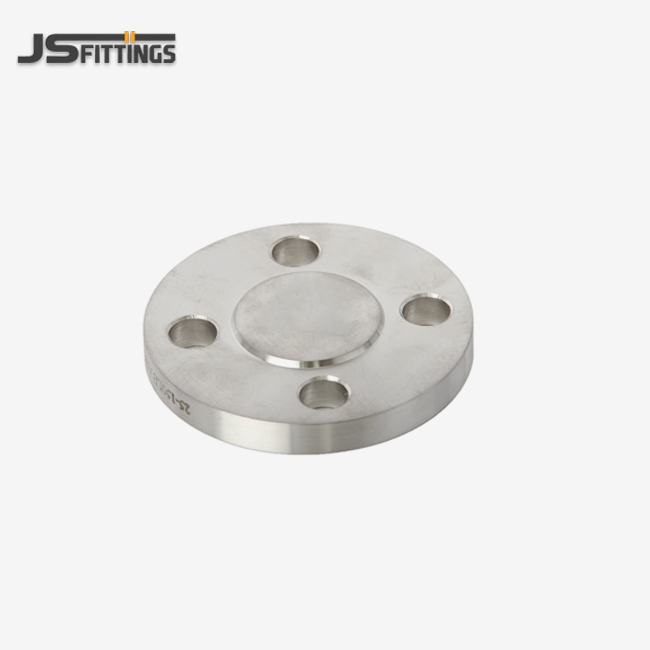

Blind Flange Overview

A Daze Rib serves as your essential pipeline closure arrangement when changeless or transitory stream end is required. Not at all like welded pipe caps, our daze ribs offer detachable get to for future upkeep, review, or framework expansion.

Our strong fashioned development handles extraordinary weight loads whereas keeping up culminate bolt-hole arrangement with your existing pipeline spines. Whether you're conducting hydrostatic testing or confining pipeline areas, these spines give leak-proof fixing that matches your system's weight rating.

Each unit highlights precision-machined gasket surfaces that work consistently with standard winding wound or RTJ gaskets. This plan dispenses with bypass spills and guarantees long-term operational safety.

Key Features & Advantages

Superior Pressure Containment

Forged steel development makes refined grain structures that stand up to inner breaking beneath weight surges. The strong plate plan handles full end-cap powers without deformation.

Precision Gasket Surface Finishing

CNC-machined surfaces provide correct serrated or smooth wraps up for high-integrity fixing. This exactness disposes of spill dangers and guarantees appropriate gasket compression.

Easy System Access

Removable plan permits fast pipeline section without cutting or welding. Basically unbolt the Daze Spine for support get to, at that point reinstall when complete.

Consistent Bolt-Hole Alignment

Strict fabricating resiliences guarantee idealize arrangement with Weld Neck or Slip-On spines. This decreases establishment time and field labor costs.

Durable Anti-Corrosion Protection

Every flange receives industrial-grade protective coatings including black lacquer, anti-rust oil, or hot-dip galvanizing for extended service life.

Technical Specifications

Standards & Certifications

Our manufacturing processes comply with international quality standards:

• ISO 9001 Quality Management System
• ASME/ANSI B16.5 and B16.47 Flange Standards
• MSS SP-44 Steel Pipeline Flanges
• DIN and EN 1092-1 European Standards
• CE Marking for European markets
• GOST-R certification for Russian markets

Chemical Composition & Mechanical Properties

Carbon Steel Grade A105/A105N

• Carbon: 0.35% max
• Manganese: 0.60-1.05%
• Phosphorus: 0.035% max
• Sulfur: 0.040% max
• Tensile Strength: 485-620 MPa

Stainless Steel 304/304L

• Chromium: 18.0-20.0%
• Nickel: 8.0-12.0%
• Carbon: 0.08% max (304), 0.035% max (304L)
• Tensile Strength: 515 MPa minimum

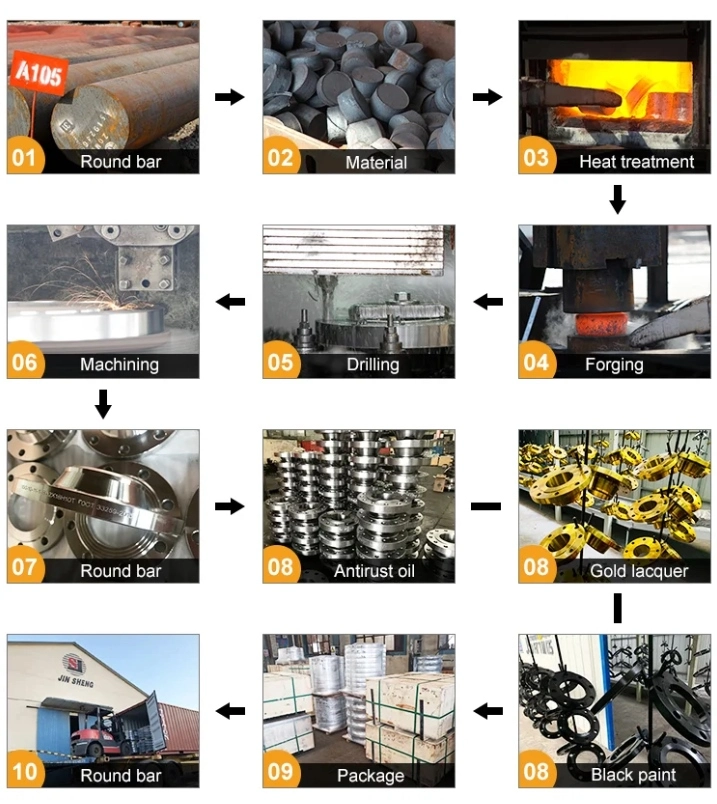

Manufacturing Process

Our blind flange production follows strict quality protocols:

1. Material Selection: Premium steel billets undergo chemical composition verification
2. Forging Process: High-temperature forging creates optimal grain flow patterns
3. Heat Treatment: Normalized processing relieves internal stresses
4. CNC Machining: Precision machining ensures exact dimensions and surface finish
5. Quality Inspection: 100% dimensional checking plus material testing
6. Surface Treatment: Protective coating application for corrosion resistance

Surface Finish & Coating Options

Standard Finishes:

• Black oxide coating for indoor applications
• Yellow anti-rust oil for temporary protection
• Hot-dip galvanizing for corrosive environments
• Epoxy coating for chemical resistance

Face Finishes:

• Raised Face (RF): 125-250 μin Ra surface finish
• Flat Face (FF): Smooth machined surface
• RTJ: Precision-machined groove dimensions per API standards

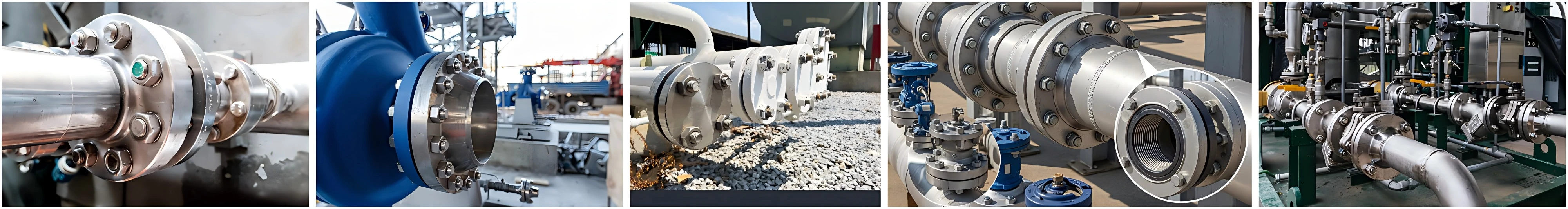

Applications

Oil & Gas Industry

Pipeline terminations, pressure testing, and maintenance isolation in upstream and downstream operations.

Chemical Processing

Reactor vessel closures and process line isolation in chemical manufacturing facilities.

Power Generation

Steam line isolation and boiler system terminations in power plants.

Water Treatment

Pipeline closures and system testing in municipal water treatment facilities.

Marine & Offshore

Deck piping terminations and subsea pipeline closures for offshore platforms.

Packaging & Delivery

Protective Packaging:

• Individual plastic bags with anti-rust treatment
• Wooden cases for international shipping
• Steel pallets for heavy-duty flanges
• Custom packaging for special requirements

Delivery Performance:

• Standard sizes: 7-15 days
• Custom specifications: 20-30 days
• Express shipping available for urgent orders
• Monthly shipping capacity exceeds 50 containers

Customization Service

We offer comprehensive customization options:

• Special Dimensions: Non-standard sizes and pressure ratings
• Tapped Centers: Threaded openings for instrumentation
• Special Materials: Duplex stainless steel, Inconel, and other alloys
• Custom Coatings: PTFE lining, rubber coating, or specialty finishes
• Private Labeling: Company logos and identification marking

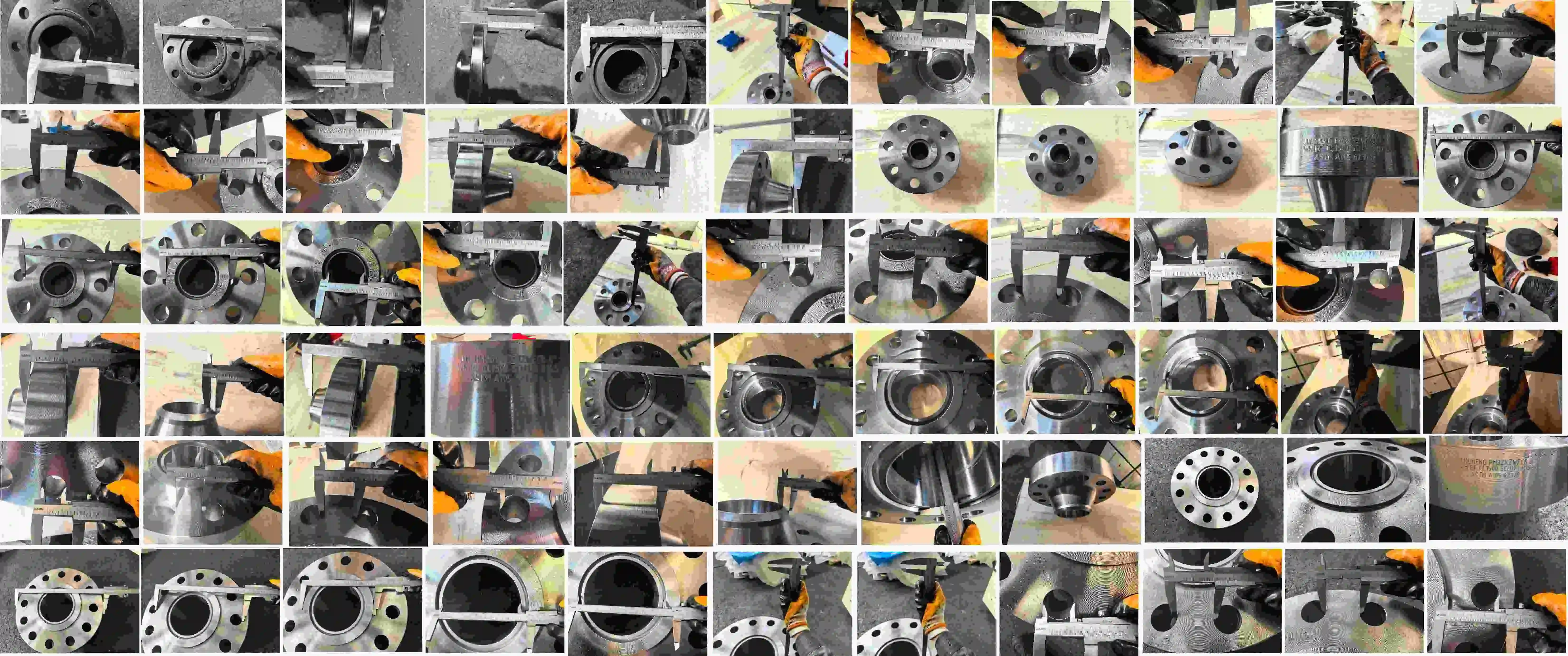

Quality Control

Our quality assurance program ensures every product meets specification requirements:

• Material Traceability: Complete documentation from steel mill to final product
• Dimensional Inspection: CMM verification of all critical dimensions
• Pressure Testing: Hydrostatic testing when required by specification
• Surface Quality: Visual and magnetic particle inspection
• Chemical Analysis: Spectrometer verification of material composition

FAQ

Q1: Why choose a Blind Flange over a Butt Weld Pipe Cap?

A pipe cap creates a permanent welded closure. A blind flange provides removable access for future inspection, cleaning, or pipeline extension without destroying the pipe.

Q2: Which part experiences the most stress?

The center faces highest mechanical stress from internal pressure thrust. Our forged construction prevents center failure that occurs with cast alternatives.

Q3: Can it function as a reducer?

Yes, by adding threaded or welded center openings. However, standard applications use solid discs for complete flow termination.

Q4: When should I specify RTJ facing?

Use RTJ faces for Class 600+ or high-temperature applications. The metal-to-metal seal provides superior reliability compared to standard raised faces.

Q5: What is a Tapped Blind Flange?

Features threaded center holes (typically 1/2", 3/4", or 1" NPT) for pressure gauges, vent valves, or drain connections without modifying the main pipe wall.

Contact Us

Ready to specify the right blind flange solution? Contact our technical team at admin@jsfittings.com for expert guidance and competitive quotations.
