Carbon Steel Lap Joint Flange

 Carbon Steel Lap Joint Flange Manufacturer

Hebei Jinsheng Pipe Fitting Manufacturing has specialized in fabricating carbon steel lap joint flange arrangements for over 40 a long time. Our progressed 7,000 square meter office produces high-quality two-component spine congregations with weight evaluations from Course 150 to Lesson 2500. With month to month shipments surpassing 50 holders and yearly deals outperforming RMB 100 million, we provide solid lap joint ribs that meet ASME/ANSI B16.5 and B16.47 guidelines for worldwide vitality companies counting NIOC and ADNOC.

Carbon Steel Lap Joint Flange Overview

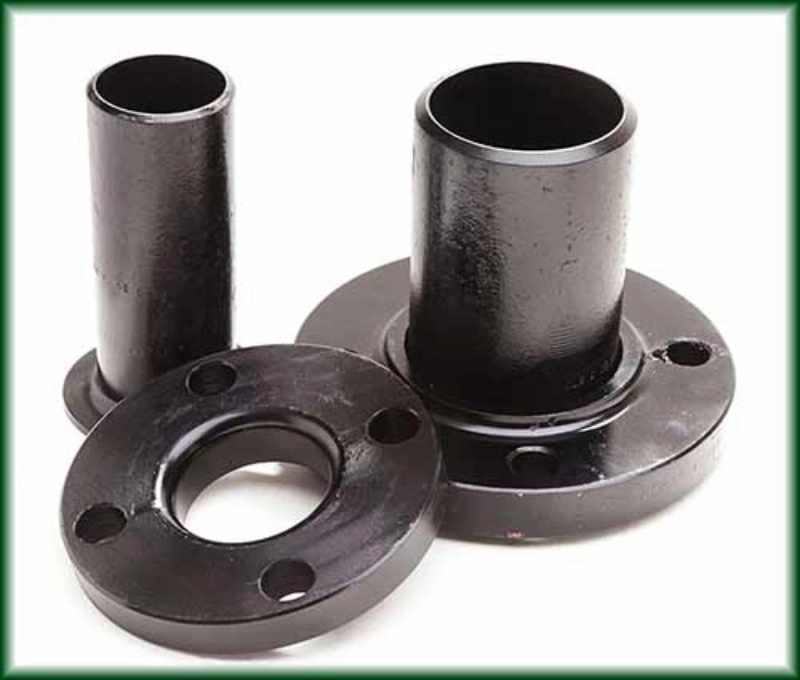

A lap joint flange speaks to a advanced two-piece get together outlined for most extreme adaptability in channeling frameworks. Not at all like ordinary spines, this interesting plan comprises of a free backing rib that slips over the pipe and a partitioned stub conclusion that welds to the pipeline.

This imaginative setup permits the spine to turn unreservedly around the pipe, making it your perfect choice when bolt-hole arrangement gets to be challenging. The flat-face plan depends on the stub conclusion for fixing, whereas the backing rib gives auxiliary back and association points.

Key Features & Advantages

Effortless Bolt Hole Alignment

Your establishment group will appreciate how the free-rotating plan kills arrangement battles. Since the rib isn't welded to the pipe, you can effectively position jolt gaps to coordinate mating flanges, indeed in tight spaces.

Simplified Maintenance Access

When your framework requires customary cleaning or assessment, lap joint spines offer unmatched comfort. You can rapidly disengage joints without cutting or re-welding the primary pipeline, diminishing downtime significantly.

Superior Stress Management

The two-piece plan assimilates warm extension and vibration more viably than unbending associations. This adaptability amplifies your system's lifecycle, particularly in applications with temperature cycling.

Cost-Effective Material Usage

You can utilize solid carbon steel backing spines indeed with destructive media by matching them with suitable stub conclusion materials. This combination gives financial focal points whereas keeping up execution standards.

Reusable Components

During framework updates or repairs, you can evacuate and reuse backing ribs on unused pipe areas, conveying long-term esteem for your operations.

Technical Specifications

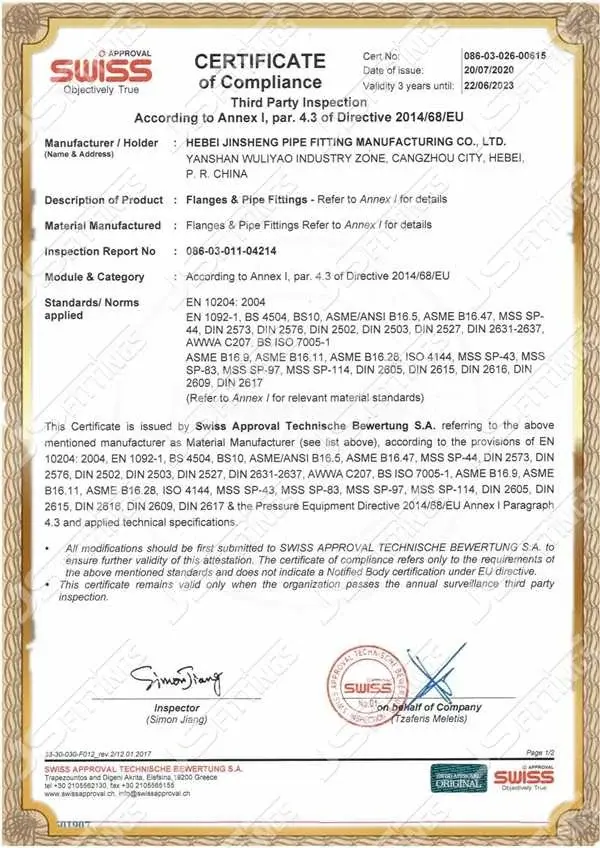

Standards & Certifications

Our manufacturing processes comply with internationally recognized standards:

• ASME/ANSI B16.5 - Standard flanges up to 24 inches
• ASME B16.47 - Large diameter applications 26" to 60"
• ISO 9001:2015 - Quality management certification
• CE Marking - European conformity standards
• GOST-R - Russian technical regulations

Chemical Composition & Mechanical Properties

ASTM A105 Carbon Steel:

• Carbon: 0.35% max
• Manganese: 0.60-1.05%
• Phosphorus: 0.035% max
• Sulfur: 0.040% max
• Silicon: 0.15-0.40%

Mechanical Properties:

• Tensile Strength: 485 MPa minimum
• Yield Strength: 250 MPa minimum
• Elongation: 22% minimum
• Impact Energy: 27J at 0°C

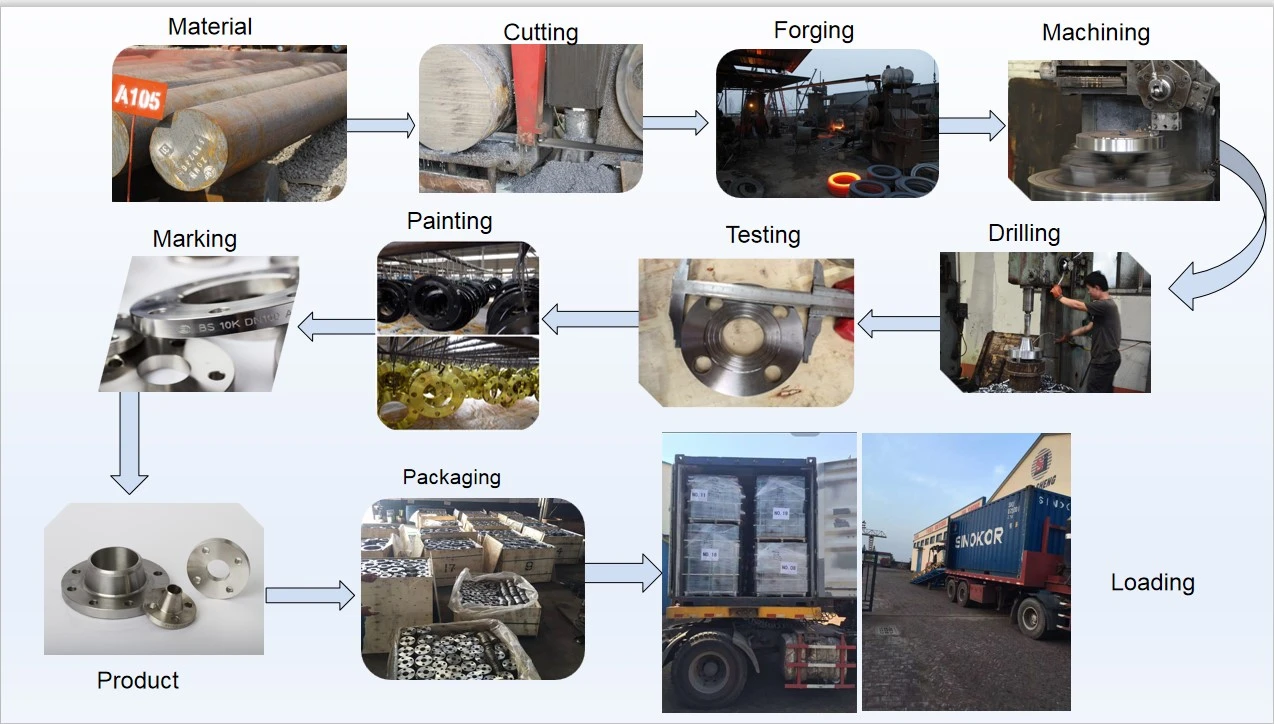

Manufacturing Process

Our precision manufacturing process ensures consistent quality:

1. Material Selection - Premium carbon steel billets undergo chemical composition verification
2. Forging - High-pressure forging creates dense grain structure
3. Heat Treatment - Normalizing process optimizes mechanical properties
4. Machining - CNC machining ensures precise bore radius and facing
5. Quality Testing - Dimensional inspection, hardness testing, and surface verification

Surface Finish & Coating Options

Standard Finishes:

• Black Lacquer - Basic corrosion protection for indoor applications
• Rust-Preventive Oil - Enhanced protection during storage and shipping
• Hot-Dip Galvanizing - Superior atmospheric protection for outdoor installations

Custom Coating Solutions:

• Epoxy coating for chemical resistance
• Zinc-rich primers for marine environments
• Special coatings per customer specifications

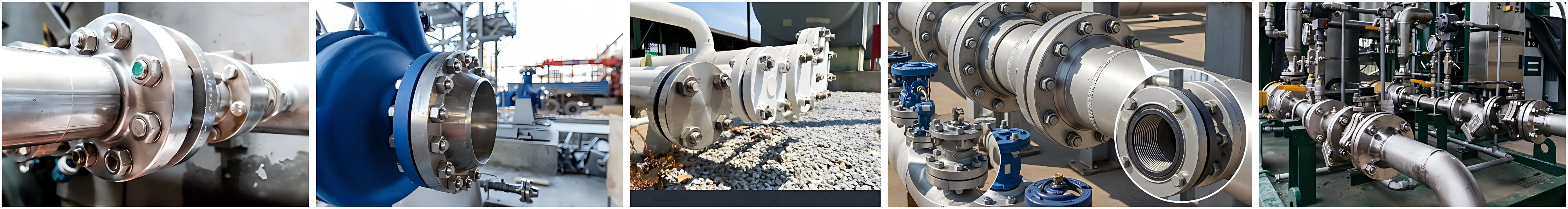

Applications

Carbon steel lap joint flange assemblies excel in various industrial sectors:

• Water Treatment Plants - Easy access for regular cleaning and maintenance
• Chemical Processing - Quick disassembly for equipment inspection
• Power Generation - Flexible connections in complex piping layouts
• Oil & Gas Facilities - Reliable performance in demanding environments
• Food Processing - Sanitary connections with easy cleaning access
• Marine Applications - Corrosion-resistant solutions for shipbuilding

Packaging & Delivery

Protective Packaging:

• Individual plastic caps for flange faces
• Wooden pallets for secure shipping
• Moisture-resistant wrapping materials
• Clear identification labels and certificates

Delivery Options:

• Express shipping for urgent orders
• Sea freight for large quantities
• Flexible scheduling to meet project timelines
• Global logistics network covering 30+ countries

Customization Service

We understand that your projects may require specific solutions. Our customization services include:

• Non-standard dimensions - Custom bore sizes and bolt patterns
• Special materials - Alternative steel grades for unique applications
• Modified designs - Engineering support for special requirements
• Private labeling - Brand marking and custom packaging
• Technical consultation - Application-specific recommendations

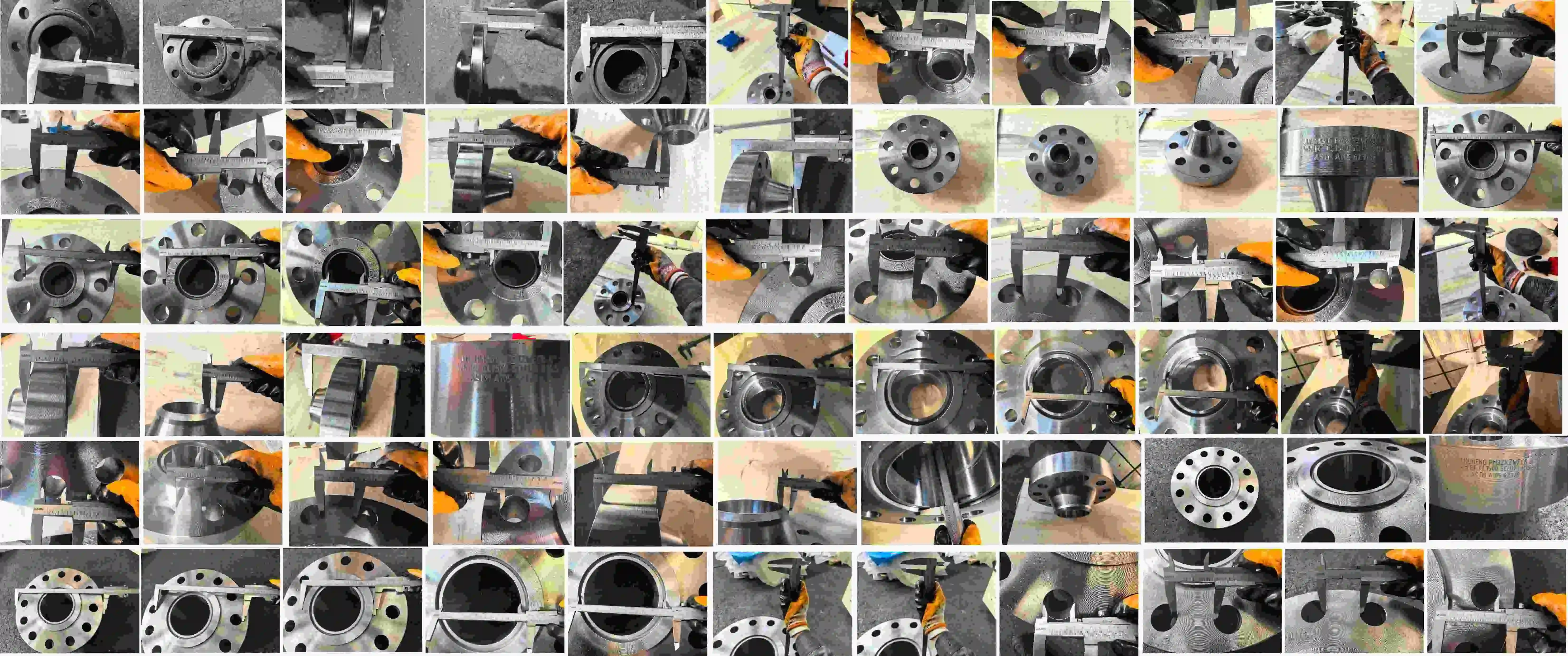

Quality Control

Your project success depends on consistent quality. Our comprehensive quality system includes:

• Incoming Material Inspection - Chemical composition and mechanical testing
• In-Process Monitoring - Dimensional checks at every manufacturing stage
• Final Inspection - Complete verification before shipment
• Test Certificates - Mill test certificates and compliance documentation
• Traceability - Complete material and process records

FAQ

Q1: What recognizes a Lap Joint rib from a Slip-On flange?

While both may show up comparative, a Slip-On spine welds straightforwardly to the pipe with a raised confront. A Lap Joint rib remains free on the pipe, highlights a level confront, and requires a stub conclusion for legitimate function.

Q2: Why is the inner bore span critical?

The machined sweep in the rib bore must coordinate the filet sweep on the stub end's back. This exact fit guarantees appropriate seating and avoids bolt-hole misalignment or joint failure.

Q3: Are high-pressure applications appropriate for Lap Joint flanges?

Yes, our flanges handle weights up to Lesson 2500. In any case, most applications utilize Course 150 and 300 evaluations, as the stub conclusion gives the essential fixing function.

Q4: Do you supply stub closes with the flanges?

We offer both person components and coordinated sets. Requesting together guarantees culminate compatibility between the spine bore span and stub conclusion fillet.

Q5: How do weight evaluations compare with other ASME B16.5 flanges?

When legitimately coordinated with appraised stub closes, our Lap Joint flanges meet indistinguishable pressure-temperature necessities as proportionate Weld Neck or Slip-On flanges.

Contact Us

Ready to discuss your carbon steel lap joint flange requirements? Contact our technical team today at admin@jsfittings.com for expert guidance and competitive pricing.
