Threaded Flanges
Thread Types: NPT , BSPT , or BSPP
Pressure Ratings: Class 150, 300, 600, 900, 1500, 2500.
Size Range: 1/2" – 4" (Most common for threaded) | Large diameters up to 24" available for specialized low-pressure service can be customized
Material Selection:
Carbon Steel: ASTM A105
Stainless Steel
Facing Types: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ).
Surface Treatment: Anti-rust Oil, Black Paint, or Hot-Dipped Galvanized.
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction

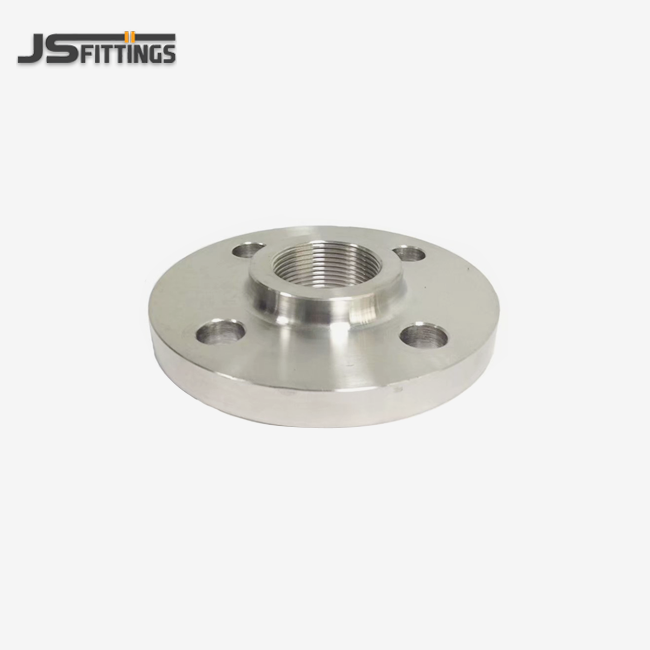

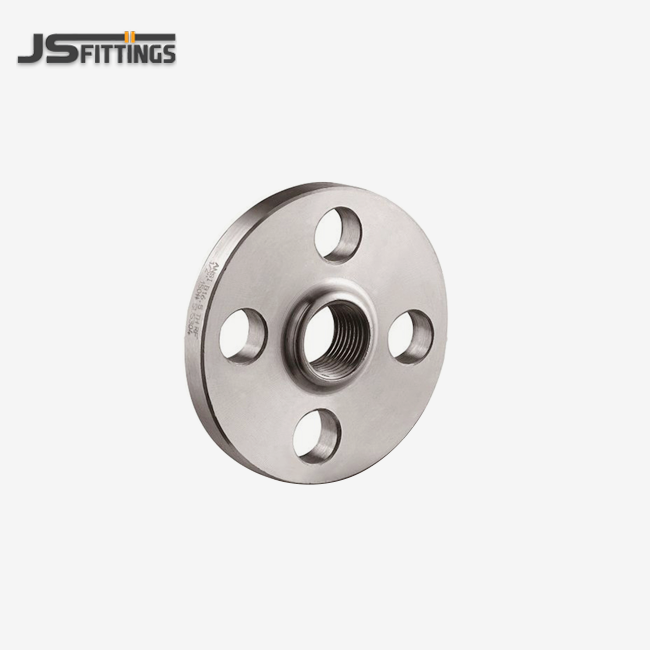

Threaded Flanges
Threaded Flanges Manufacturer
Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd. stands as your trusted source for premium threaded flanges with over 40 a long time of fabricating brilliance. Our state-of-the-art 7,000 square meter office produces high-quality screwed flanges that convey dependable execution in challenging mechanical situations. With yearly deals surpassing RMB 100 million and month to month shipments outperforming 50 holders, we give comprehensive arrangements from 1/2" to 4" distance across ranges. Our progressed testing hardware guarantees each strung spine meets exacting universal guidelines, making us the favored provider for major vitality companies worldwide.
Threaded Flanges Overview
Threaded spines speak to the idealize arrangement when you require dependable pipe associations without welding. These inventive components highlight inner decreased strings that screw straightforwardly onto channels with coordinating outside strings. This plan makes them priceless in unsafe situations where open-flame welding postures security risks.
Our flanges exceed expectations in refineries, chemical plants, and gas offices where security controls confine hot work. You'll appreciate their flexibility in both low-pressure applications and specialized high-pressure frameworks. The screwed association dispenses with welding prerequisites whereas keeping up amazing fixing performance.
Key Features & Advantages
Safe Installation in Hazardous Areas
Your security comes to begin with. These spines dispense with welding dangers in dynamic refineries, chemical capacity zones, and gas offices where flashes might cause disastrous incidents.
Rapid Assembly Process
You can total establishments rapidly without certified welders or costly welding gear. This altogether diminishes your extend timelines and labor costs.
Easy Maintenance Access
When you require framework adjustments or cleaning, basically unscrew the association. This openness demonstrates priceless for frameworks requiring visit inside maintenance.
No Heat Treatment Required
Skip the time-consuming post-weld warm treatment prepare completely. Your venture plans remain on track without compromising fabric properties.
Coating Protection
Threading jam your pipe's defensive coating, not at all like welding which harms galvanized or forte coatings. This keeps up long-term erosion resistance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturing Standards | ASME/ANSI B16.5, DIN/EN 1092-1 |
| Size Range | 1/2" to 4" (Standard), larger sizes for low-pressure service |
| Pressure Ratings | Class 150, 300, 600, 900, 1500, 2500 |
| Thread Types | NPT (National Pipe Thread), BSPT (British Standard Pipe Taper) |
| Facing Options | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |
| Materials | Carbon Steel, Stainless Steel, Alloy Steel |
| Temperature Range | -29°C to 538°C (-20°F to 1000°F) |
Standards & Certifications
Our manufacturing processes strictly adhere to international quality standards:
- ISO 9001 Quality Management System
- ASME/ANSI B16.5 Pipe Flanges and Flanged Fittings
- DIN/EN 1092-1 European Flange Standards
- CE Certification for European market compliance
- GOST-R Certification for Russian market requirements
Chemical Composition & Mechanical Properties
| Material Grade | Carbon (%) | Manganese (%) | Phosphorus (%) | Sulfur (%) | Tensile Strength (MPa) |
|---|---|---|---|---|---|
| A105 | ≤0.35 | 0.60-1.05 | ≤0.035 | ≤0.040 | 485-620 |
| A350 LF2 | ≤0.30 | 0.60-1.35 | ≤0.025 | ≤0.025 | 485-620 |
| 304/304L SS | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | 515-720 |
| 316/316L SS | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | 515-720 |

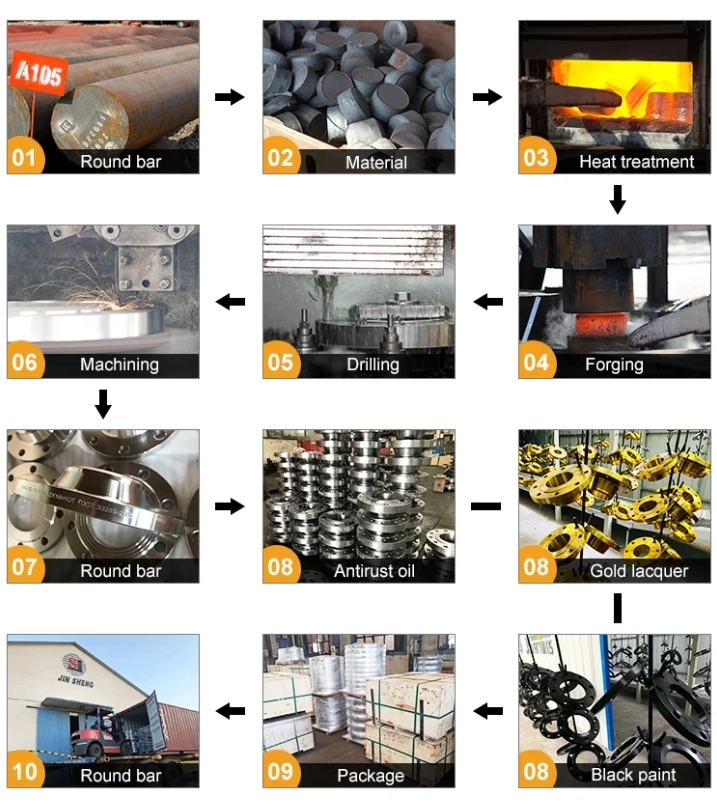

Manufacturing Process
Our precision manufacturing ensures consistent quality:
- Material Selection: We source certified raw materials meeting international specifications
- Forging Process: Hot forging creates optimal grain structure and mechanical properties
- Thread Machining: CNC machines cut precise tapered threads to exact tolerances
- Heat Treatment: Controlled heating and cooling optimize material properties
- Quality Inspection: Comprehensive testing including dimensional checks and pressure testing
Surface Finish & Coating Options
Standard Finishes
- Natural mill finish for carbon steel applications
- Pickled and passivated surface for stainless steel grades
Protective Coatings
- Hot-dip galvanizing for enhanced corrosion resistance
- Epoxy coating for chemical environments
- Custom coatings available for specific applications

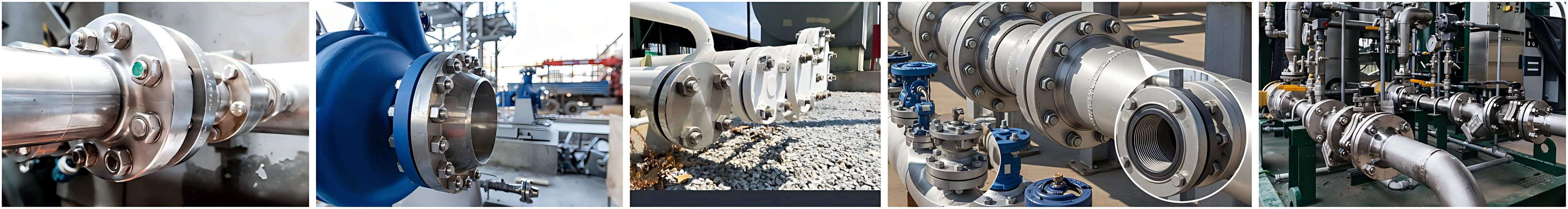

Applications
Threaded flanges serve critical roles across diverse industries:
Oil & Gas Industry
Perfect for instrument associations, examining lines, and small-bore prepare channeling where welding limitations apply.
Chemical Processing
Ideal for destructive benefit applications requiring visit upkeep get to and framework modifications.
Power Generation
Essential for assistant frameworks, instrumented, and utility associations in control plants.
Marine Applications
Excellent for shipboard channeling frameworks where space imperatives restrain welding accessibility.
Food & Beverage
Suitable for sterile applications requiring simple dismantling for cleaning and inspection.

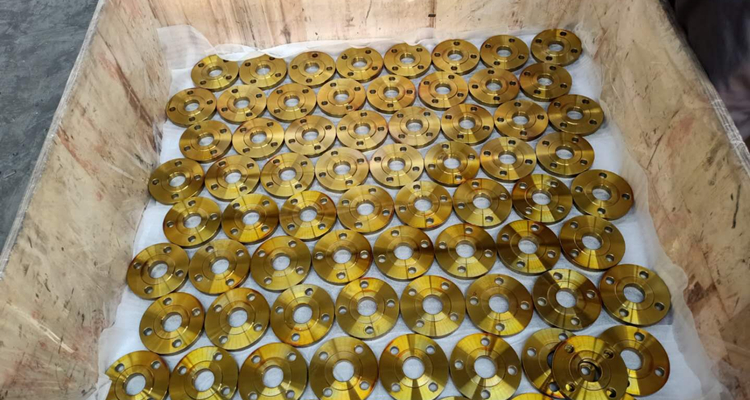

Packaging & Delivery
We guarantee your items arrive safely:
- Individual Security: Each spine gets plastic caps and wrapping
- Bulk Bundling: Wooden cases or steel outlines for bigger quantities
- Documentation: Total fabric certificates and test reports included
- Delivery Time: Standard items transport inside 15-30 days
- Logistics: Proficient cargo sending guarantees convenient conveyance worldwide
Customization Service
Your interesting prerequisites get our full attention:
- Custom materials and grades for uncommon applications
- Modified measurements for particular venture needs
- Special string arrangements and confronting options
- Custom stamping and recognizable proof systems
- Small clump generation for model development
Quality Control
Every item experiences thorough testing:
- Dimensional Assessment: Exact estimation of all basic dimensions
- Thread Testing: Gage confirmation guarantees appropriate string engagement
- Pressure Testing: Hydrostatic testing approves weight ratings
- Material Investigation: Spectrometer testing affirms chemical composition
- Non-Destructive Testing: Attractive molecule and ultrasonic review when required
FAQ
Q: Can flanges handle high-pressure applications?
A: Absolutely. Our product are available in ratings up to Class 2500, though they work best in smaller diameter lines under 4 inches.
Q: Do I need seal welding after installation?
A: Not typically. Quality thread sealant or PTFE tape provides adequate sealing for most applications, preserving the easy disassembly advantage.
Q: What's the difference between NPT and BSPT threads?
A: NPT uses 60-degree thread angles (American standard), while BSPT uses 55-degree angles (British standard). They're not interchangeable.
Q: Why are flanges limited to smaller pipes?
A: Larger diameter threading becomes mechanically challenging and less reliable. Welding provides better strength for pipes over 4 inches.
Q: Can I use these on thin-walled pipes?
A: No. You need sufficient wall thickness (typically Schedule 40 or 80) to cut threads without weakening the pipe structure.
