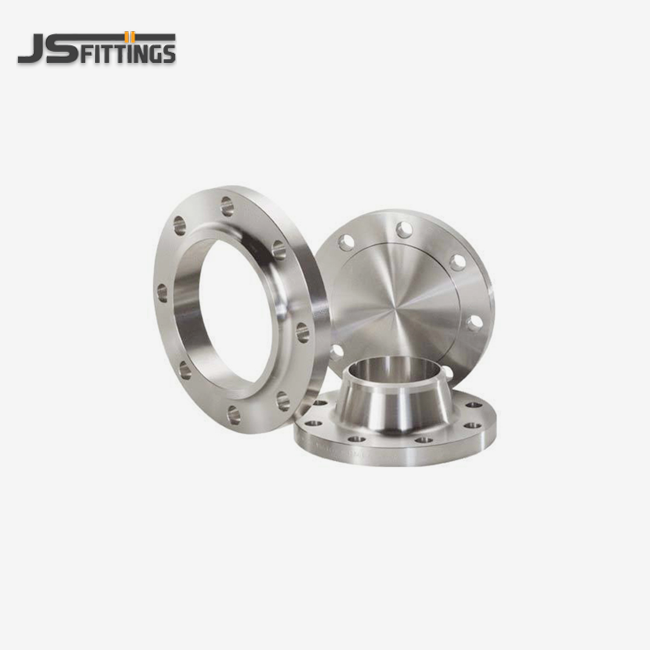

ANSI Pipe Flanges
Pressure Classes: 150, 300, 600, 900, 1500, 2500
Size Range: 1/2" to 60"
Facing Types: RF (Raised Face), FF (Flat Face), RTJ (Ring Type Joint)
Manufacturing Method: Forged and CNC Machined
Temperature Range: -29°C to 538°C (-20°F to 1000°F)
Materials:Carbon Steel, Stainless Steel, Alloy Steel
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
ANSI Pipe Flanges Manufacturer
With over 40 a long time of skill in pipeline fabricating, Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd. conveys premium ANSI pipe flanges built for requesting mechanical applications. Our advanced 7,000-square-meter office produces flanges from Classes 150 through 2500, assembly ANSI B16.5 and B16.47 standards. Your ventures advantage from our month to month shipment volume surpassing 50 holders, guaranteeing dependable supply chain bolster for time-critical establishments worldwide.
ANSI Pipe Flanges Overview
Flanges frame the spine of American standard pipeline associations over worldwide vitality and mechanical framework. These produced spines give standardized arrangements that guarantee basic unwavering quality over assorted pipeline formats. Whether you're interfacing pipe frameworks in refineries, chemical plants, or seaward stages, our ANSI spines provide the consistency and execution your operations demand.
Our comprehensive extend covers everything from standard raised confront setups to specialized RTJ applications. Each flange experiences CNC machining for exact dimensional control, guaranteeing culminate jolt arrangement and leak-tight execution in your basic systems.
Key Features & Advantages
Standardized Jolt Designs: Your establishment groups work more productively since our ANSI-standard flanges bolt flawlessly to any coordinating estimate and lesson, notwithstanding of producer. This compatibility kills field adjustments and diminishes establishment time.
Proven Security History: You get unsurprising execution sponsored by decades of designing information. ANSI guidelines join broad field encounter from Oil & Gas operations around the world, giving certainty in basic benefit applications.
Market Liquidity: Your acquirement groups appreciate these industry-standard components. They're the most fluid stock things for worldwide stockists due to widespread prerequisite in venture specifications.
Superior Dimensional Precision: Our CNC machining guarantees exact jolt gap arrangement and confront wrap up consistency. You'll involvement less spills and less demanding get together amid installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Governing Standards | ANSI B16.5 (up to 24"), ANSI B16.47 (26" to 60") |
| Pressure Classes | 150, 300, 600, 900, 1500, 2500 |
| Size Range | 1/2" to 60" |
| Facing Types | RF (Raised Face), FF (Flat Face), RTJ (Ring Type Joint) |
| Manufacturing Method | Forged and CNC Machined |
| Temperature Range | -29°C to 538°C (-20°F to 1000°F) |
| Materials | Carbon Steel, Stainless Steel, Alloy Steel |
Standards & Certifications
Our fabricating forms comply with universal quality guidelines counting ISO 9001 certification. All spines meet ASTM fabric details and experience thorough testing conventions. Your quality confirmation groups get total process test certificates with each shipment, archiving chemical composition and mechanical properties.
We keep up certifications for CE stamping and GOST-R compliance, guaranteeing your items meet territorial necessities over worldwide markets.
Chemical Composition & Mechanical Properties
Carbon steel spines include controlled carbon substance for ideal weldability and quality characteristics. Stainless steel grades give erosion resistance for cruel chemical situations. Our quality control research facility performs spectrometric examination on each warm, guaranteeing steady fabric properties all through your order.
Mechanical testing incorporates malleable quality, abdicate quality, and affect testing at indicated temperatures. You get reported verification that materials surpass least ASTM requirements.

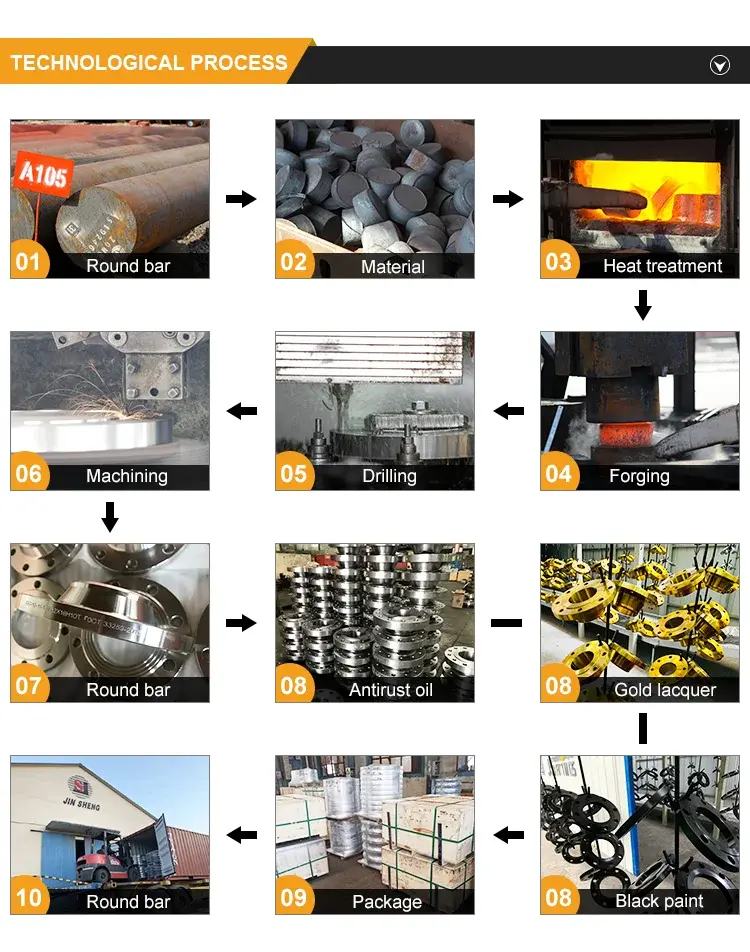

Manufacturing Process
Your spines start as premium steel billets that experience controlled fashioning operations. Our pressure driven presses shape the fabric whereas keeping up grain structure keenness. Warm treatment takes after exact temperature profiles to accomplish target mechanical properties.
CNC machining operations guarantee dimensional exactness and surface wrap up consistency. Last review incorporates dimensional confirmation, surface quality checks, and non-destructive testing when specified.
Surface Finish & Coating Options
Standard wrap up gives 125-250 microinch surface unpleasantness reasonable for most gasket applications. We offer upgraded wraps up for specialized fixing necessities. Discretionary coatings incorporate zinc plating for erosion security and specialized medicines for seaward environments.
Your particular application prerequisites decide the ideal surface planning and defensive coating selection.

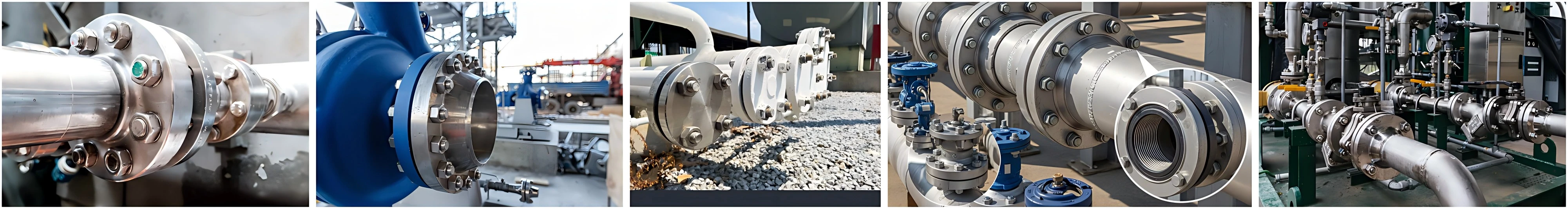

Applications
ANSI pipe flanges serve basic capacities over numerous industries:
- Oil & Gas Preparing: Interfacing pipeline frameworks in refineries and petrochemical plants
- Power Era: Steam and water frameworks in warm control facilities
- Chemical Handling: Destructive benefit applications requiring dependable sealing
- Water Treatment: Civil and mechanical water dealing with systems
- Marine Seaward: Subsea and topside channeling connections
Packaging & Delivery
Your flanges get defensive bundling planned for worldwide shipping. Wooden cases with dampness obstructions secure against travel harm and erosion. Clear checking frameworks guarantee simple distinguishing proof amid installation.
Our month to month shipment volume surpassing 50 holders illustrates dependable conveyance capability for your extend plans. Standard lead times oblige both stock and custom prerequisites.
Customization Service
Beyond standard ANSI configurations, we provide custom flange solutions for unique applications. Your engineering teams can specify modified bolt patterns, special materials, or enhanced testing requirements. Our technical staff collaborates directly with your design teams to ensure optimal solutions.
Custom marking, special packaging, and expedited delivery options support your project-specific needs.

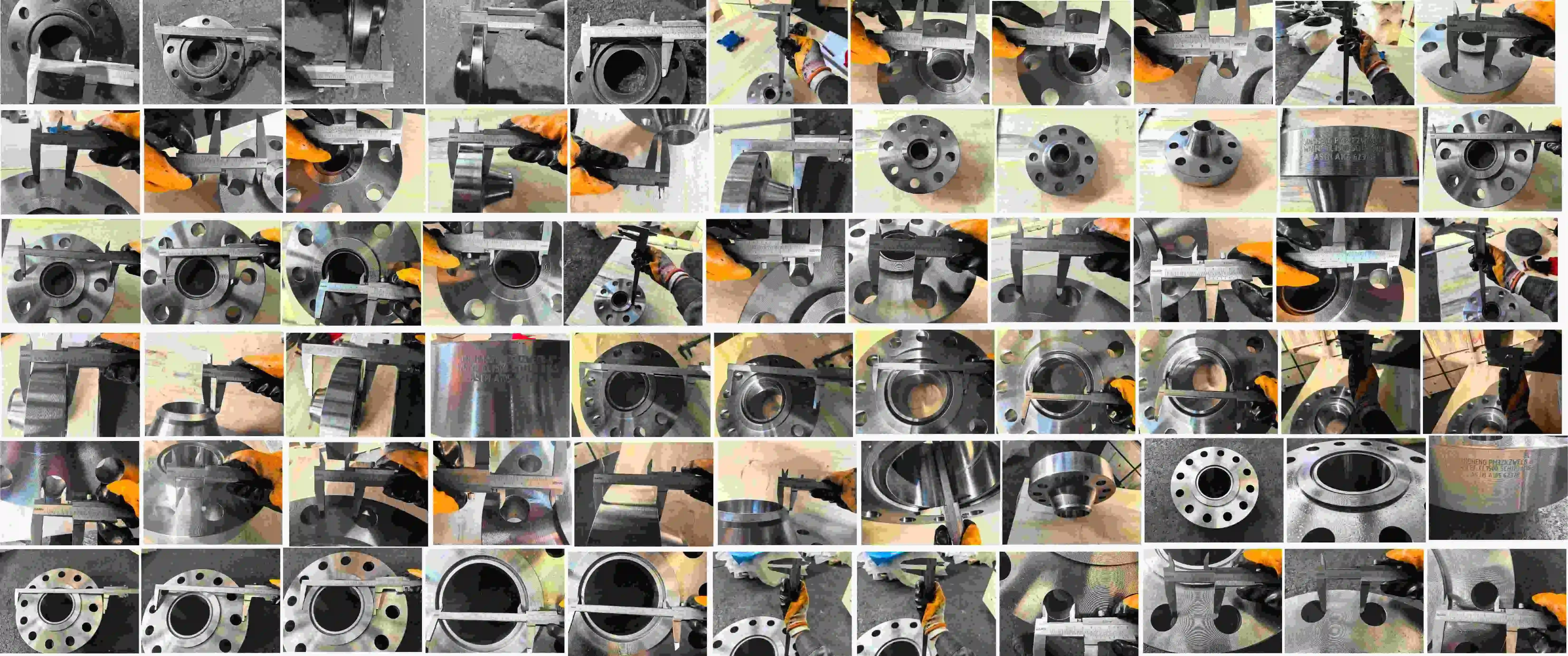

Quality Control
Advanced inspection equipment including spectrometers and non-destructive testing capabilities ensure consistent quality. Our ISO 9001 quality management system provides documented control throughout manufacturing processes.
Each flange undergoes dimensional inspection, material verification, and surface quality assessment before shipment. Your incoming inspection teams receive complete documentation supporting quality compliance.
FAQ
Q: How do I choose between RF (Raised Face) and FF (Flat Face) flanges?
A: RF is standard for steel flanges in most applications. FF works best when connecting to cast iron equipment like pumps or older valves, preventing flange cracking during bolt tightening.
Q: What's the difference between ANSI B16.5 and B16.47 standards?
A: B16.5 covers flanges up to 24 inches diameter. B16.47 specifies larger flanges from 26 to 60 inches, with different bolt patterns and dimensions.
Q: Can you provide material certificates with shipments?
A: Yes, complete mill test certificates accompany every order, documenting chemical composition and mechanical properties for full traceability.
Contact Us
Ready to discuss your ANSI pipe flanges requirements? Contact our technical team at admin@jsfittings.com for expert guidance and competitive pricing.
