ASTM A105 Weld Neck Flange
Dimensional Standard: ASME B16.5 (Standard for 1/2" to 24") | ASME B16.47 Series A & B (For 26" to 60").
Pressure Ratings: Class 150, 300, 400, 600, 900, 1500, 2500.
Facing Options: Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF).
Wall Thickness (Schedule): Matches pipe schedule (e.g., SCH 40, SCH 80, SCH 160, SCH XXS).
Size Range: 1/2" – 60" (DN15 – DN1500).
End Finish: Precision Beveled Ends (per ASME B16.25)
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
ASTM A105 Weld Neck Flange
ASTM A105 Weld Neck Flange Manufacturer
Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd conveys premium ASTM A105 weld neck flanges sponsored by over 40 a long time of fabricating fabulousness. With yearly deals surpassing RMB 100 million and month to month shipments outperforming 50 holders, we keep up comprehensive generation capabilities in our 7,000 square meter office. Our precision-forged ribs highlight decreased centers for prevalent stretch dissemination, accessible in weight classes from 150# to 2500# with custom bore coordinating for plans SCH 40, 80, 160, and XXS.
ASTM A105 Weld Neck Flange Overview
The product speaks to the apex of channeling association innovation. Its particular long decreased center plan makes a consistent butt-welded joint with your pipe framework. This designing greatness exchanges mechanical push from the rib specifically to the pipe, conveying unmatched security execution in requesting applications.
You'll appreciate how this produced carbon steel component handles extraordinary conditions whereas keeping up auxiliary judgment. The precision-machined bore matches your pipe's inside breadth flawlessly, guaranteeing smooth liquid stream without turbulence or weight drops.
Key Features & Advantages
Superior Stress Management
The decreased center acts as a characteristic stretch reliever, retaining vibration and warm extension without compromising joint astuteness. This plan anticipates weakness disappointments that torment other spine types.
Radiographic Inspection Ready
Your weld quality confirmation gets to be clear with X-ray assessment capabilities. The butt-weld plan permits total entrance examination for 100% security compliance.
Smooth Flow Characteristics
Matching inside breadths kill stream limitations and turbulence. You'll involvement decreased weight misfortune and minimized disintegration dangers in your channeling system.
Enhanced Safety Rating
This flange sort accomplishes the most elevated weight evaluations among all flange plans, making it your perfect choice for basic applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | ASME B16.5 (Dimensional), ASTM A105 (Material) |
| Pressure Classes | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Size Range | 1/2" to 24" (Standard sizes) |
| Bore Options | SCH 40, 80, 160, XXS |
| Facing Types | Raised Face (RF), Ring Type Joint (RTJ) |
| Temperature Range | -29°C to 427°C (-20°F to 800°F) |
Standards & Certifications
Your project compliance needs are met through our adherence to multiple international standards:
- ASME B16.5 for dimensions and tolerances
- ASTM A105 for material specifications
- ISO 9001 certified quality management system
- CE marking for European market compliance
- GOST-R certification for Russian markets
Chemical Composition & Mechanical Properties
Chemical Composition (ASTM A105)
| Element | Percentage |
|---|---|
| Carbon (C) | 0.35% max |
| Manganese (Mn) | 0.60-1.05% |
| Phosphorus (P) | 0.035% max |
| Sulfur (S) | 0.040% max |
| Silicon (Si) | 0.10-0.35% |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 485 MPa (70,000 psi) min |
| Yield Strength | 250 MPa (36,000 psi) min |
| Elongation | 30% min |
| Reduction of Area | 40% min |

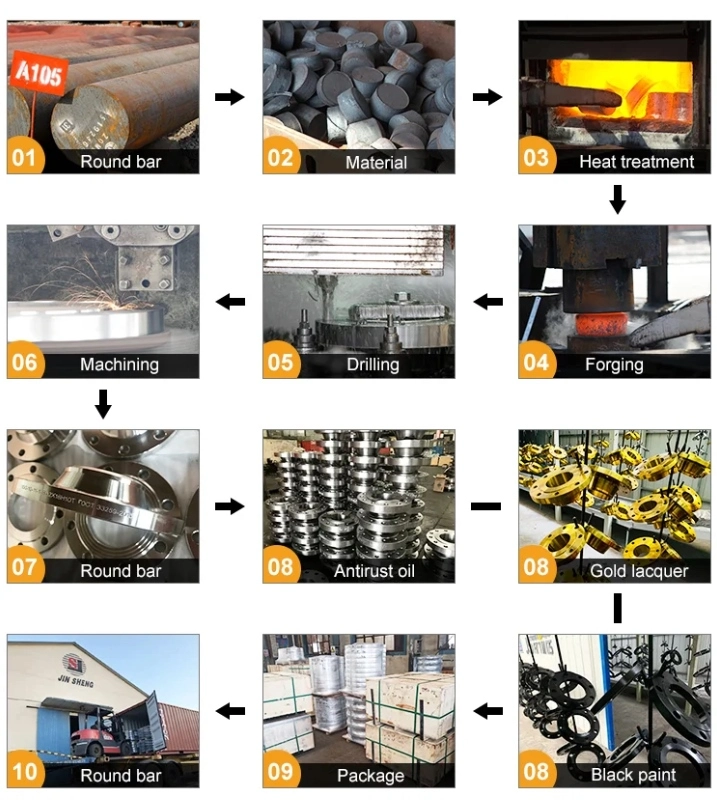

Manufacturing Process
Our progressed manufacturing prepare guarantees prevalent grain structure and mechanical properties. Each spine experiences controlled warming, exactness manufacturing, and warm treatment cycles. Machine wrapping up takes after correct ASME dimensional necessities with resistances confirmed through arrange measuring machines.
Quality checkpoints incorporate fabric confirmation, dimensional review, and surface wrap up assessment. Non-destructive testing affirms inside soundness some time recently last approval.
Surface Finish & Coating Options
Standard surface wraps up incorporate machine-finished faces with 125-250 micro-inch harshness. Defensive coatings accessible upon ask include:
- Black oxide coating for erosion resistance
- Zinc plating for expanded capacity life
- Special coatings for marine environments

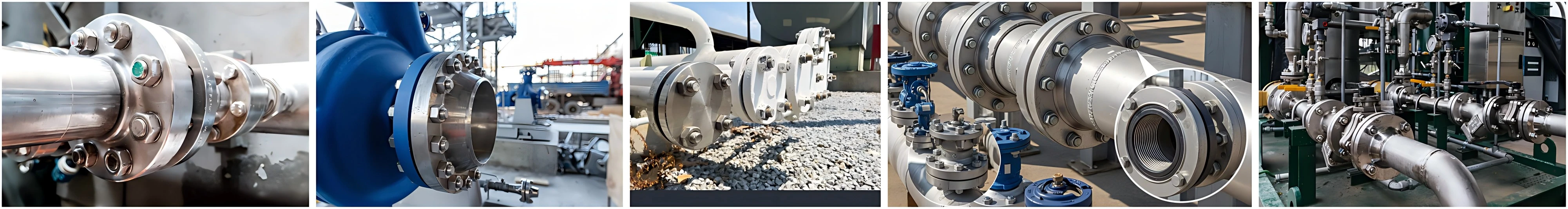

Applications
Your ASTM A105 weld neck flange serves basic capacities over different industries:
Oil & Gas Industry
- Wellhead associations and complex systems
- Pipeline stations and preparing facilities
- High-pressure penetrating equipment
Petrochemical Processing
- Reactor vessel connections
- Heat exchanger installations
- Process channeling systems
Power Generation
- Steam line connections
- Boiler nourish systems
- Cooling water circuits
Industrial Manufacturing
- Chemical preparing equipment
- Water treatment facilities
- HVAC systems
Packaging & Delivery
We ensure your venture with proficient bundling counting wooden cases for bigger spines and carton boxes for littler sizes. Plastic caps ensure rib faces amid travel. Our experienced coordinations group arranges shipping to over 30 nations worldwide.
Delivery plans suit your venture timelines with standard things dispatched inside 7-15 days and custom orders completed inside 25-30 days.
Customization Service
Your interesting prerequisites get personalized consideration through our designing group. We make custom measurements, extraordinary weight appraisals, and adjusted confronting setups. Our CAD plan benefit makes a difference visualize your determinations some time recently generation begins.
Sample orders and models bolster your testing and endorsement forms. Little group generation suits pilot ventures and specialized applications.

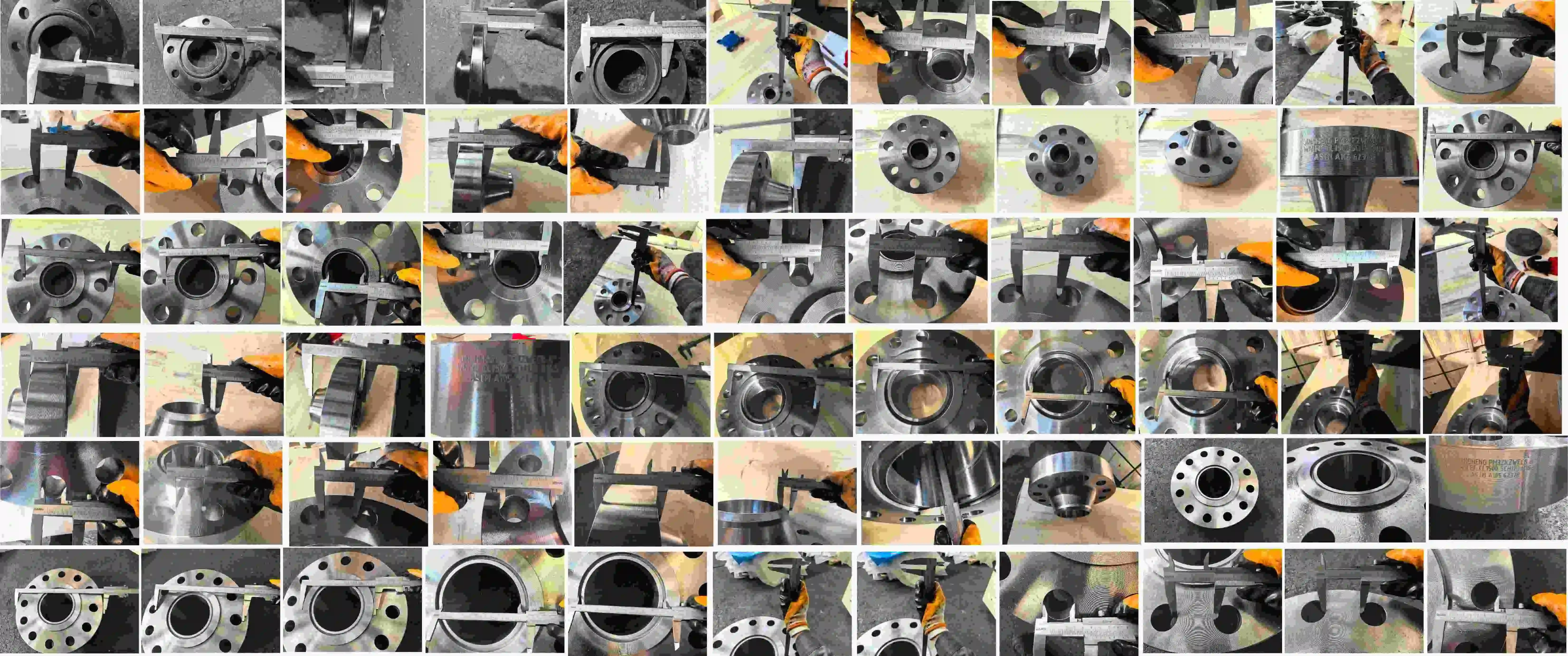

Quality Control
Every flange experiences thorough testing counting spectrometer examination for chemical composition confirmation and dimensional review utilizing accuracy measuring gear. Weight testing approves execution appraisals whereas surface assessment guarantees wrap up quality.
Our quality documentation incorporates fabric test certificates, dimensional reports, and compliance explanations supporting your venture determinations.
FAQ
Q: Why do I need to specify the "Schedule" for a Weld Neck flange?
A: Since the flange is welded end-to-end with the pipe, the internal bores must match. If the bores are different, it creates flow turbulence and complicates the welding process.
Q: What's the difference between RF and RTJ facing?
A: RF (Raised Face) uses gaskets for sealing and suits most standard applications. RTJ (Ring Type Joint) provides metal-to-metal sealing for high-pressure services above 600# class.
Q: How do you ensure proper fit with my existing piping?
A: We machine the bore to match your specified pipe schedule exactly. Providing your pipe outside diameter and wall thickness ensures perfect alignment.
Q: What testing documentation do you provide?
A: Each order includes material test certificates showing chemical composition and mechanical properties, plus dimensional inspection reports confirming ASME compliance.
Contact Us
Ready to discuss your ASTM A105 weld neck flange requirements? Contact our technical team at admin@jsfittings.com for expert guidance and competitive pricing.
Send Inquiry
