How Does a Plate Flange Work in Piping Systems?

The plate flange is a flat circular steel disc with a central bore that is slipped over the end of the pipe and held in place by fillet welds on either side. It forms a bolted, gasketed junction between two pipe sections or equipment nozzles. The mating flanges are fastened together, compressing the gasket to establish a pressure-tight seal. The plate flange’s low profile and simple geometry make it the preferred choice for utility systems operating at low to medium pressure where cost control and speed of installation are important.

Understanding Plate Flanges: Basics and Functions

What Is a Plate Flange?

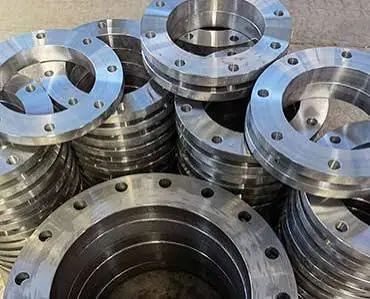

To prepare a plate flange, a hot-rolled steel plate is cut into a flat disc, and then the bore and bolt holes are machined to the proper sizes. It does not feature a tapered hub like a weld neck flange. The flat shape keeps the cost of materials low and gives installers more freedom when installing pipes in crowded areas. JS FITTINGS plate flanges are available in carbon steel, stainless steel, and other alloys for various service requirements.

How Does It Distribute Stress and Maintain Seal Integrity?

A flat flange must have the two surfaces to be joined parallel to one another, and the gasket evenly compressed to work as a seal. JS FITTINGS uses precision cutting to guarantee face smoothness within very tight tolerances. This keeps the gasket from being loaded unevenly when the bolts are tightened.  Double fillet welding performed on both the inside and outside of the bore strengthens the structure and prevents process media from penetrating the annular crevice between the pipe OD and the flange bore.

Applicable Standards and Material Grades

JS FITTINGS plate flanges comply with EN 1092-1 Type 01, DIN 2573/2576/2501/2502, BS 4504, AS 2129 and ASME B16.5. For metric units, the pressure ratings are PN6, PN10, PN16, PN25, and PN40, while the imperial rating is Class 150. Sizes range from DN15 to DN2000, equivalent to ½" to 80". Every order comes with an EN 10204 3.1 Mill Test Certificate documenting the material's chemical composition and mechanical properties.

Different Types of Plate Flanges and Their Applications

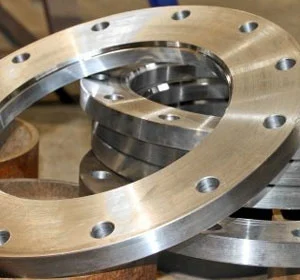

Standard Flat Plate Flange

The most common type is the normal flat plate flange, which has a flat face seating area.  It is simple to connect to tanks, pumps, and valves in water treatment plants, irrigation networks, and cooling systems in factories.  Installers can perfectly line up connections in the field without having to cut or move pipe because the flange can be rotated before welding to align the bolt holes.  This saves a lot of time on big jobs.

Blind Plate Flange

A blind plate flange has no central bore. It seals off the terminal end of a pipeline, vessel nozzle, or valve, providing reliable isolation for pressure testing, maintenance, or future tie-ins. Blind flanges are often used at pipe or branch terminations in water infrastructure and wastewater projects. This way, extra fittings or welded caps are not needed.

Raised Face and Custom Specialty Variants

A raised face plate flange includes a raised seating surface that concentrates the gasket load and can provide effective sealing for higher-pressure applications.  This type of flange is available from JS FITTINGS for chemical lines operating at relatively low temperatures and pressures.  Custom versions with non-standard bore diameters are also available.  This makes the plate flange very useful for repair work and making custom tanks when pipe outside diameters don't match catalog schedules.

Plate Flange vs. Other Common Flanges: Comparative Insights

How It Compares to Weld Neck and Slip-On Flanges?

For high-pressure and high-temperature service above Class 300, a weld neck flange is the best choice. It has a long, tapered hub that smoothly transfers stress into the pipe wall. At mid-range pressure levels, a slip-on ring with a hub has average strength. Plate flanges, on the other hand, don't have any hubs at all. This means they are generally suited to lower-pressure applications, while their simpler construction can reduce weight and cost compared with some forged alternatives. These cost advantages can be particularly relevant for utility lines operating at or below PN16.

Scenarios Where a Plate Flange Makes More Sense

For large-diameter water mains, a flat flange can help reduce flange weight and the resulting load on pipe supports over long pipeline runs. In marine applications where flange weight is a consideration, JIS B2220 SOP plate flanges are commonly used for cooling-water and ballast systems up to 10K. The plate flange works well and doesn't cost too much for EPC contractors and government infrastructure projects with set budgets.

Selection Guide Summary

A plate flange may be suitable when the operating pressure falls within the applicable PN or Class rating, the pipe carries water, air, low-pressure gas, or non-aggressive chemicals, and installation speed or bolt-hole alignment flexibility is important. It can also be considered when a forged hub flange is not justified by the project budget. If the system has to deal with repeated thermal loads, pressures above Class 300, or harsh process media, you should choose a weld neck or socket-weld flange instead.

Installation and Maintenance of Plate Flanges

Pre-Installation Checks and Fit-Up

Before you weld, make sure that the outside diameter of the pipe matches the machined bore within the limits shown on the drawing. Look for scratches or grooves that cross the gasket seating face. Any groove that goes across the width of the gasket seating forms a leak path. The bolt circle diameter and hole count must match the mating flange. The flat plate flange fits over the pipe easily, so you can freely rotate it to line up the bolt holes. This is a big benefit over options that are fixed in place.

Welding, Bolt Tightening, and Torque

Use two fillet welds: the inner weld should seal the gap between the pipe and the flange bore, while the outer fillet weld provides structural attachment and distributes mechanical loads across the flange body. Follow the applicable pressure-piping code and qualified welding procedures, such as ASME Section IX where applicable. Once the joint is cool, put the seal in place, then the bolts. Tighten the bolts in a cross-pattern sequence using multiple passes and the specified torque or bolt load for the flange and gasket. This cross-pattern spreads the clamp load evenly and helps prevent eccentric loading from causing gasket blowout.

Routine Maintenance and Corrosion Protection

For mild service conditions, check the flange joints every 12 months. If the climate is wet or chemically active, check them every 6 months. Look for rust on the bolts, gasket deterioration, and wear on the surface finish. Based on the work climate, JS FITTINGS offers plate flanges with yellow anti-rust paint, black lacquer, or hot-dip galvanizing. Hot-dip galvanizing provides a specified zinc coating thickness or coating weight according to the applicable hardware class for installations that are underground or exposed to water. This layer greatly increases the service life of the installation.

Procurement Insight: Buying Plate Flanges for B2B Clients

Identifying Certified Suppliers

Before placing an order, obtain Mill Test Certificates and third-party inspection reports for the goods. Also confirm that the supplier maintains ISO 9001 certification and can manufacture flanges that meet the applicable project standards, such as EN 1092-1, ASME B16.5, or DIN. As an approved supplier for leading energy corporations, including ADNOC and Petrobras, JS FITTINGS maintains ISO, CE, and GOST-R certifications and a track record that can be checked across demanding global projects.

Pricing, Lead Times, and Volume Planning

Plate flange prices depend on the type of raw material, how it is treated on the outside, the level of dimensional tolerance, and the size of the order. Standard-sized PN10 flanges made of carbon steel are the cheapest; ones made of stainless steel or galvanized steel cost more. JS FITTINGS ships more than 90 containers and 700 tons of flanges every month, which helps sales and distribution companies keep their stock levels stable and ensures that deliveries happen on time more than 95% of the time.

Building Long-Term Supplier Relationships

Stable supply gives both stockists and EPC contractors an edge in the market. OEM/ODM orders, sample production, and small-batch trial orders are all supported by JS FITTINGS. This lets procurement teams check the quality of the products before committing to full project volumes. Questions about foreign trade are answered within an hour by a specialized team, and a full after-sales system that includes pre-shipment inspection, packaging, and support after delivery lowers procurement risk throughout the lifecycle of a project.

Conclusion

A plate flange fits over the end of a pipe, is welded in place, and then a matching flange makes a gasketed, bolted joint. It is the most useful and cost-effective way to connect low- to medium-pressure systems in water treatment, irrigation, construction, and industrial utility lines because it has a flat shape, an accurate bore, and a double fillet weld. If you specify it properly and get it from an approved maker, it will seal well for a long time with little upkeep. JS FITTINGS manufactures plate flanges from DN15 to DN2000 for major international standards. With more than 43 years of manufacturing experience, the company can provide the relevant quality and inspection documentation for procurement review.

FAQ

1. What is the difference between a plate flange and a slip-on flange?

To weld, both types slide over the end of the pipe. A slip-on flange usually has a short hub machined into the forging. This makes the wall thicker at the bore, which lets it handle more pressure. A plate flange is made from flat plate stock that doesn't have a hub. This keeps the shape small and the cost low. It works best for PN16 and lower; a hubbed slip-on is better for moderate pressure.

2. Which material should I specify for a corrosive environment?

Hot-dip galvanized carbon steel can be suitable for outdoor use and certain water or mildly corrosive environments when the service conditions are compatible with the coating system. Choose SS316L for many chemical-service and marine environments, provided that the chloride concentration, temperature, and other service conditions are compatible with the material. For alloy options that can handle harsh acids or high temperatures, talk to JS FITTINGS. Always ask for EN 10204 3.1 Mill Test Certificates to make sure you are getting the right type of material.

3. How do I verify the pressure rating before purchase?

Check the Mill Test Certificate, the PN or Class number stamped on the flange face, and the flange standard. Before you install the flange, check the rated temperature-pressure table in the relevant standard to make sure it is rated for the conditions you will be using it in.

4. Can plate flanges be customized for non-standard pipe sizes?

Yes, JS FITTINGS can make custom bore sizes to fit non-standard pipe outside diameters. This is useful for repair work and making custom tanks where catalog dimensions don't apply.

Get a Quote From JS FITTINGS — Your Trusted Plate Flange Supplier

JS FITTINGS manufactures certified plate flanges from DN15 to DN2000, covering EN, DIN, ASME, and other major standards. With 43 years of production experience, ISO/CE/GOST-R certifications, and a repeat-customer rate of over 98%, we give procurement teams the supply consistency and documentation they need to keep projects on track. Send your requirements to admin@jsfittings.com for product details and a same-day quote.
