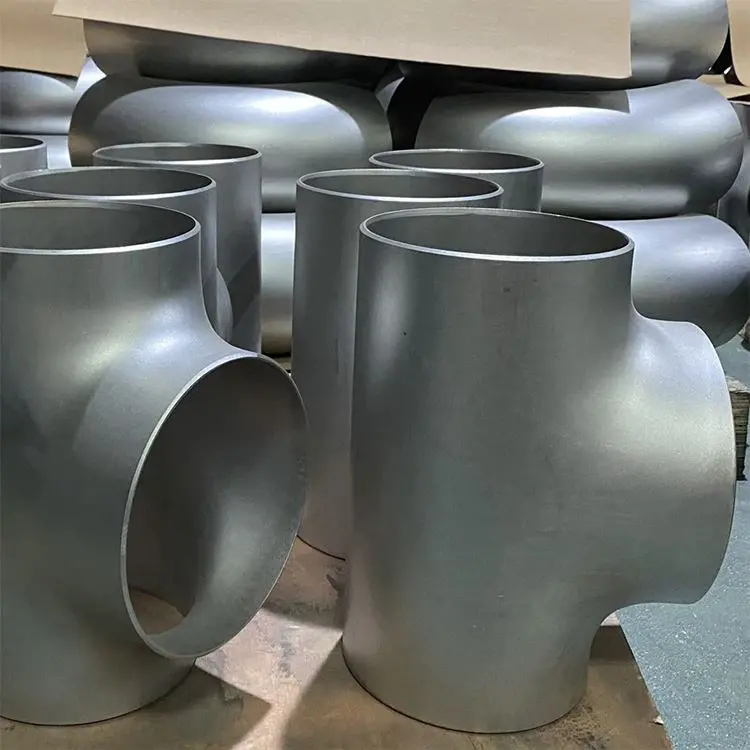

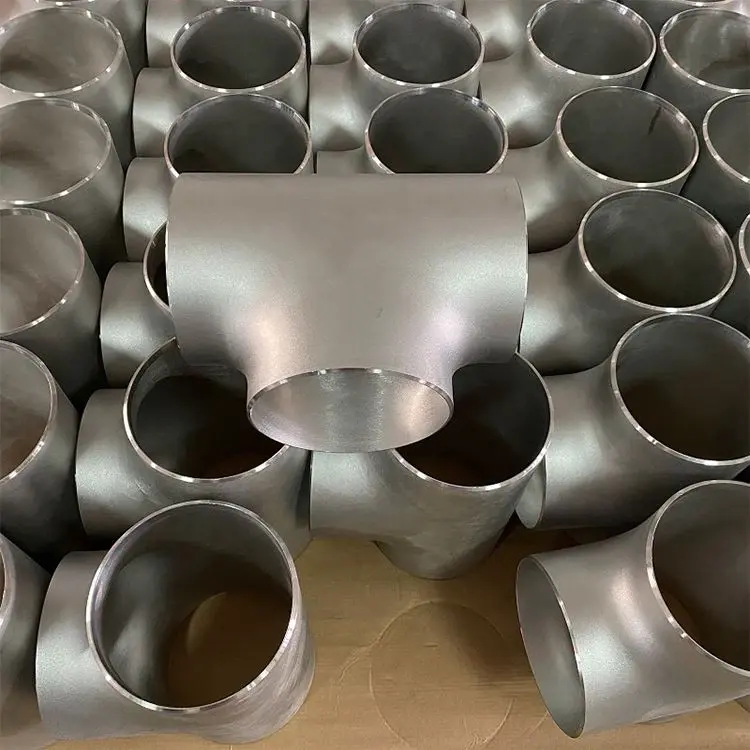

Seamless vs Welded Buttweld Tee for Oil and Gas Service

Choosing between seamless and welded pipe tees is a critical decision for oil and gas projects. Seamless buttweld tees, manufactured through cold forming or hot extrusion, offer superior structural integrity without longitudinal welds, making them ideal for high-pressure applications. Welded tees, produced from plate material, provide cost-effective solutions for larger diameters. Both types deliver reliable performance when properly selected and installed, meeting stringent industry standards like ASME B16.9 and API specifications essential for petroleum service environments.

Understanding Buttweld Tees: Types, Materials, and Standards

To keep a pipeline safe, you must first understand the basic parts that keep fluids moving. The buttweld tee is an important junction point that splits flow at exact 90-degree angles in networks of pipes that are very complicated. In oil and gas activities, where temperatures and pressures often go above 400°C and 1,500 PSI, choosing the right fitting can mean the difference between years of steady service and a catastrophic failure.

Manufacturing Fundamentals: Seamless vs Welded Construction

Seamless buttweld tees are typically manufactured from seamless pipe or billets using hot extrusion, hot forming, or hydraulic forming processes. This process keeps the parent material's continuous grain structure all the way through the fitting, even in the important crotch area where the branch and run meet. The weaker place in welded options is gone because there is no lengthwise seam.

On the other hand, welded buttweld tees are typically fabricated from steel plates or pipe sections that are formed and fused together along their longitudinal seams. Modern submerged arc welding methods make parts that are strong, but they need to be fully X-rayed before they can be used in critical situations. Larger diameters, from 24 inches to 72 inches, usually have to be joined together because of how they are made and what materials are available.

Material Grades for Aggressive Environments

Carbon steel is still the most common material used for general purposes. The tensile strength of ASTM A234 WPB tees is more than 60,000 PSI, which makes them highly suitable for most process pipelines and gathering systems. High-yield types like WPHY 65 and WPHY 70 can be used for thin-wall designs, which lowers the weight of the project and the cost of welding without lowering safety standards.

Stainless steel grades are highly suitable for sour gas environments and offshore installations due to their excellent corrosion resistance. Type 316L (ASTM A403 WP316L) has molybdenum added to it to make it more resistant to cracking and to extend its useful life in chloride-rich environments. Duplex grades, like UNS S31803, have both austenitic hardness and ferritic strength. This makes them perfect for underwater pipelines that are under a lot of mechanical stress and corrosive attack.

Fittings made of alloy steel are used in high-temperature situations. Chrome-moly grades WP11 (1.25Cr-0.5Mo) and WP22 (2.25Cr-1Mo) are widely used for elevated-temperature pressure piping service, typically up to about 540°C depending on design conditions, which is common in thermal power plants and hydrotreating units in refineries. Grade WP91 (9Cr-1Mo-V) supports service temperatures approaching 625°C, depending on design code requirements, which makes supercritical steam cycles possible and saves energy.

Standards Compliance and Certification Requirements

ASME B16.9 sets the rules for dimensional tolerances, which make sure that fittings fit correctly with pipes that have the same schedule. Centre-to-end tolerances are specified by ASME B16.9 and vary with fitting size. Tolerances for concentricity stop turbulent flow that speeds up corrosion. Pay extra attention to the wall thickness at the crotch area—if the wall thins during making, the original material choice must make up for it so that the design pressure ratings are kept.

Manufacturers of equipment can sell their goods in Europe thanks to international standards like EN 10253-2 and DIN 2615. These standards are similar to ASME codes in terms of basic safety rules, but they also take into account regional tastes for materials and testing methods. For projects that need to follow ISO 15156 (sour service) or NACE MR0175 (sulphide stress cracking prevention), pipe manufactured in accordance with API 5L makes sure that it can be traced back to the original mill test results.

Quality paperwork packages for stainless steel 316L butt weld tees for offshore oil and gas usually have material certificates with chemical makeup and mechanical test results, dimensional inspection reports that show the product meets ASME standards, and records of non-destructive tests that show the product is structurally sound. Putting a heat number on each part makes it possible to fully track them, which is very important for checks or failure investigations.

Seamless Buttweld Tee vs Welded Buttweld Tee: Key Differences and Performance Comparison

The argument between seamless and welded parts is mostly about how well you want them to work and how much money you have. Both methods of production make products that meet building codes, but depending on the service conditions, their structural features give them different benefits.

Manufacturing Process and Structural Integrity

Seamless buttweld tees are manufactured from seamless pipe sections or billets that are heated and shaped using hydraulic presses or mandrels. Because the grain flows continuously through the fitting, there are no weak spots. This makes the power even in all directions. This even structure doesn't crack easily when loaded and cyclically loaded, which is a problem that often happens in compressor discharge lines that are vibrating.

Pressure Ratings and Mechanical Performance

First, flat plates are rolled and bonded together along the length of the buttweld tee. Even though the lengthwise seam has been tested and approved, it creates a heat-affected zone where the microstructure has changed. These properties get back to normal after welding, but there are still some small differences. When it comes to manufacturing big sizes, welded construction is more practical. For example, to make a 48-inch seamless buttweld tee, you would need huge forging tools that are usually only found in specialised facilities.

The ability to withstand pressure rests on the thickness of the wall and the grade of the material, not just the way it was made. After the right heat treatment and testing, both welded and seamless Schedule 80 fittings manufactured to the same specification are designed for the same pressure ratings. When conditions are very bad, smooth building is better at handling pressure spikes and temperature changes because the stress is spread out evenly.

Corrosion Resistance Characteristics

When working in the Arctic or on the ocean, where mechanical shocks are common, impact protection is important. Charpy V-notch testing shows that seamless fittings made from ASTM A420 WPL6 stay flexible at -45°C, which keeps them from breaking when it gets really cold. Welded versions work just as well as seamless ones as long as the seam is checked with ultrasound waves and provided the welds and heat-affected zones are properly qualified and impact-tested in accordance with the applicable specification.

Under steady-state conditions, both seamless and welded buttweld tees made of the same grade of material have about the same level of corrosion resistance. The difference shows up at the edges of microstructures. Seamless fittings do not possess the microstructural variations inherent in weld fusion zones and heat-affected zones (HAZ). This eliminates localized galvanic corrosion cells that can accelerate localized attacks if welding parameters are poorly controlled.This benefit isn't very important for carbon steel, but it's very important for duplex stainless steel applications, where the wrong welding parameters can cause unwanted phases to form.

Size Availability and Dimensional Constraints

Coatings on the outside and cathodic protection systems make things equal. In earth contact or seawater immersion, a welded buttweld tee with the right epoxy covering and sacrificial anodes works the same as a seamless one. Corrosion inside a fitting from sour oil or produced water depends more on the flow rate and chemistry of the fluid than on how the fitting was built.

Small to middle sizes are mostly made by seamless manufacturing, and sizes from 1/2 inch to 24 inches are still easy to get from a number of places around the world. When the nominal diameter exceeds 24 inches, seamless options become difficult to source and less cost-effective. This gap is well filled by welded construction, which offers fittings up to 72 inches long for process pipelines and ocean risers. No matter what the buyer wants, custom sizes above standard ranges usually need to be welded together.

Cost Analysis and Lifecycle Value

Choosing the right wall thickness affects how easily something can be made. Costs go up for extra-heavy schedules (XXS and higher) in seamless construction because they need a lot of starting material. Welded buttweld tees made from plate stock are cheap for heavy-wall uses like high-pressure injection systems because they are easy to change in thickness.

Welded buttweld tees, especially ones that are longer than 16 inches, are cheaper at first. Plate forming saves 15 to 30 per cent of the cost of making seamless equivalents because it is more efficient. The prices of installation are about the same for both types because the bevelling and welding steps are the same. Due to thinner walls in big sizes, welded parts are slightly cheaper to ship.

The calculation changes because of lifecycle costs. Over 20 years of use, stainless steel 316L butt weld tees for offshore oil and gas, and seamless butt weld tees that are put through critical service (high pressure, sour gas, and cyclic loading) have lower failure rates. In situations where dependability is more important than cost, the extra cost may be worth it if it means less upkeep and less downtime. On the other hand, there aren't many differences in how well low-pressure gathering systems and water service work that would justify specifying seamless fittings.

Selecting the Best Buttweld Tee for Oil and Gas Service: Decision-Making Criteria

Instead of making conservative assumptions that drive up project costs needlessly, engineering specifications should be based on real working conditions. The choosing process strikes a mix between the need for safety and the need to save money. Both seamless and welded buttweld tees meet these needs when given the right instructions.

Pressure and Temperature Operating Windows

Design pressure figures out the minimum wall thickness using ASME B31.3 formulas that take into account mill errors, allowable stress, and corrosion. Design pressure determines the required wall thickness in accordance with ASME B31.3, considering pipe size, allowable stress, corrosion allowance, and manufacturing tolerances.

Temperature has a bigger effect on choosing materials than on how they are built. Carbon steel is suitable for many elevated-temperature services within the limits specified by the applicable material and design codes without any problems before creep sets in. Chrome-moly alloys make this range bigger. For example, WP91 can handle 625°C in superheater circuits. There is no inherent temperature advantage to seamless construction. High-temperature performance is determined by how the alloy was treated and how it was shaped.

Material Grade Optimisation

Matching the fitting grade to the pipeline material makes sure that the rates of thermal expansion and the welding process are compatible. Standard pre-heating and post-weld heat treatment make it easy for a WPB buttweld tee to join to an API 5L Grade B pipe. When different metals, like carbon steel and stainless steel, meet, they create residual stresses that make cracking more likely.

For sour service, there are more things to think about than just choosing the grade. To stop sulphide stress cracking, NACE MR0175 limits hardness to 22 HRC. Both seamless and welded fits meet standards by using controlled heat treatment. However, testing is easier for seamless construction because only the base metal needs to be checked, not the base metal and weld gap.

Environmental and Service Factors

Offshore platforms have to deal with salt spray, high humidity, and maintenance equipment that hits them physically. 316L and other types of stainless steel generally require much less maintenance than carbon steel in marine environments, and their coatings don't wear off as carbon steel does in marine environments. The question of whether a buttweld tee is seamless or welded is less important than choosing the right material.

Soil corrosion and external loading from traffic or frost heave are problems that buried pipelines have to deal with. Fusion-bonded epoxy coating covers both seamless and welded parts the same way, and cathodic protection currents polarise all steel surfaces, no matter how they were made. The quality and depth of the backfill have a bigger impact on service life than the way the fittings are built.

Customisation and Lead Time Considerations

From distributor stock, standard sizes ship quickly. Common sizes in WPB and 316L often leave warehouses within days. Custom specifications cause production wait times that range from four weeks for standard-sized seamless buttweld tees to twelve weeks for large-diameter welded fittings that need to be ordered and inspected.

When reducing butt-weld tees have non-standard branch sizes, delivery times are longer because tools have to be set up for specific combinations of dimensions. Critical path delays during the building phase can be avoided by ordering ahead based on basic planning. Some projects choose welded construction on purpose to cut down on time, even if it means paying a little more to get the job done on time.

Conclusion

In the oil and gas industry, seamless and welded buttweld tees are used in different ways. When it comes to high-pressure, important applications where failure could have serious effects, seamless construction is the most reliable option. Welded alternatives are a cheap way to handle large diameters and situations where the pressure and service conditions are within normal ranges. For most projects, the choice of materials, the right way to heat treat them, and strict quality control are more important than the method of production. A good procurement process chooses suppliers whose quality is consistent by having the right certifications, testing tools, and industry approvals. This is done by balancing technical needs with project budgets. Correct fitting using qualified methods guarantees decades of reliable service, no matter what kind of building was used.

FAQ

1. What advantages do seamless tees offer compared to welded versions?

Seamless buttweld tees don't have a lengthwise weld line, so they are stronger in all directions and less likely to wear out when loaded and unloaded many times. This design works well for high-pressure uses, sour gas service, and systems that vibrate or change temperature. The structure with continuous grains can handle stress better than structures that are welded.

2. How do I select appropriate materials for specific service conditions?

Match the grade of the material to the temperature, pressure, and corrosion environment where it will be used. Up to 425°C, carbon steel (ASTM A234 WPB) can handle normal work. Stainless 316L provides improved resistance to chloride-induced pitting and crevice corrosion but is not immune to these forms of attack. Chrome-moly alloys are used in processing processes that go above 540°C. In Arctic situations, low-temperature types like A420 WPL6 keep the steel from breaking easily.

3. What role do industry standards play in ensuring fitting quality?

ASME B16.9 sets the rules for sizes and tolerances that make sure pipes fit together correctly. Chemical make-up and mechanical qualities are controlled by ASTM material standards. Manufacturer quality systems are shown by ISO 9001 and product-specific badges like API Monogram. Compliance documentation makes it possible to track things, which is needed for audits and failure investigations.

Partner with JS FITTINGS for Reliable Buttweld Tee Solutions.

JS FITTINGS has been making high-quality products for over 40 years and can help you with your pipeline projects. As a qualified buttweld tee provider for big energy companies like Petrobras, ADNOC, and NIOC, we offer certified goods that meet international, ASME, and API standards. We have carbon steel, stainless steel, and alloy types in stock in seamless sizes up to 24 inches and welded forms up to 72 inches. With more than 95% on-time deliveries, more than 90 containers shipped every month, and customer complaint rates below 0.5%, we can safely support your project plans. Each part goes through a full heat treatment, precise CNC bevelling, and strict NDT processes to make sure it is ready for use in the field. Email our technical team at admin@jsfittings.com with your specifications to talk about them, get material certificates, or get detailed quotes that are made to fit your needs.

References

1. American Society of Mechanical Engineers (2020). ASME B16.9: Factory-Made Wrought Buttwelding Fittings. New York: ASME International.

2. American Society of Mechanical Engineers (2018). ASME B31.3: Process Piping. New York: ASME International.

3. ASTM International (2021). ASTM A234 Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service. West Conshohocken: ASTM.

4. National Association of Corrosion Engineers (2015). NACE MR0175/ISO 15156: Petroleum and Natural Gas Industries—Materials for Use in H₂S-Containing Environments in Oil and Gas Production. Houston: NACE International.

5. Det Norske Veritas (2017). Submarine Pipeline Systems: Recommended Practice DNV-RP-F401. Oslo: DNV GL.

6. Mohitpour, M., Golshan, H., and Murray, A. (2007). Pipeline Design and Construction: A Practical Approach (Third Edition). New York: American Society of Civil Engineers Press.
