Buttweld Tee Bevel End Preparation Standards Explained

Bevel end preparation for a buttweld tee determines whether your pipeline achieves leak-tight integrity or experiences costly failures. The bevel angle, root face dimension, and surface finish directly influence weld penetration depth, fusion quality, and joint strength. ASME B16.25 provides requirements for buttwelding end preparation, including bevel geometry and tolerances for applicable piping components. A commonly used bevel configuration is approximately 37.5° with a root face of about 1.6 mm (1/16 inch), but the applicable dimensions depend on the joint design and welding procedure.

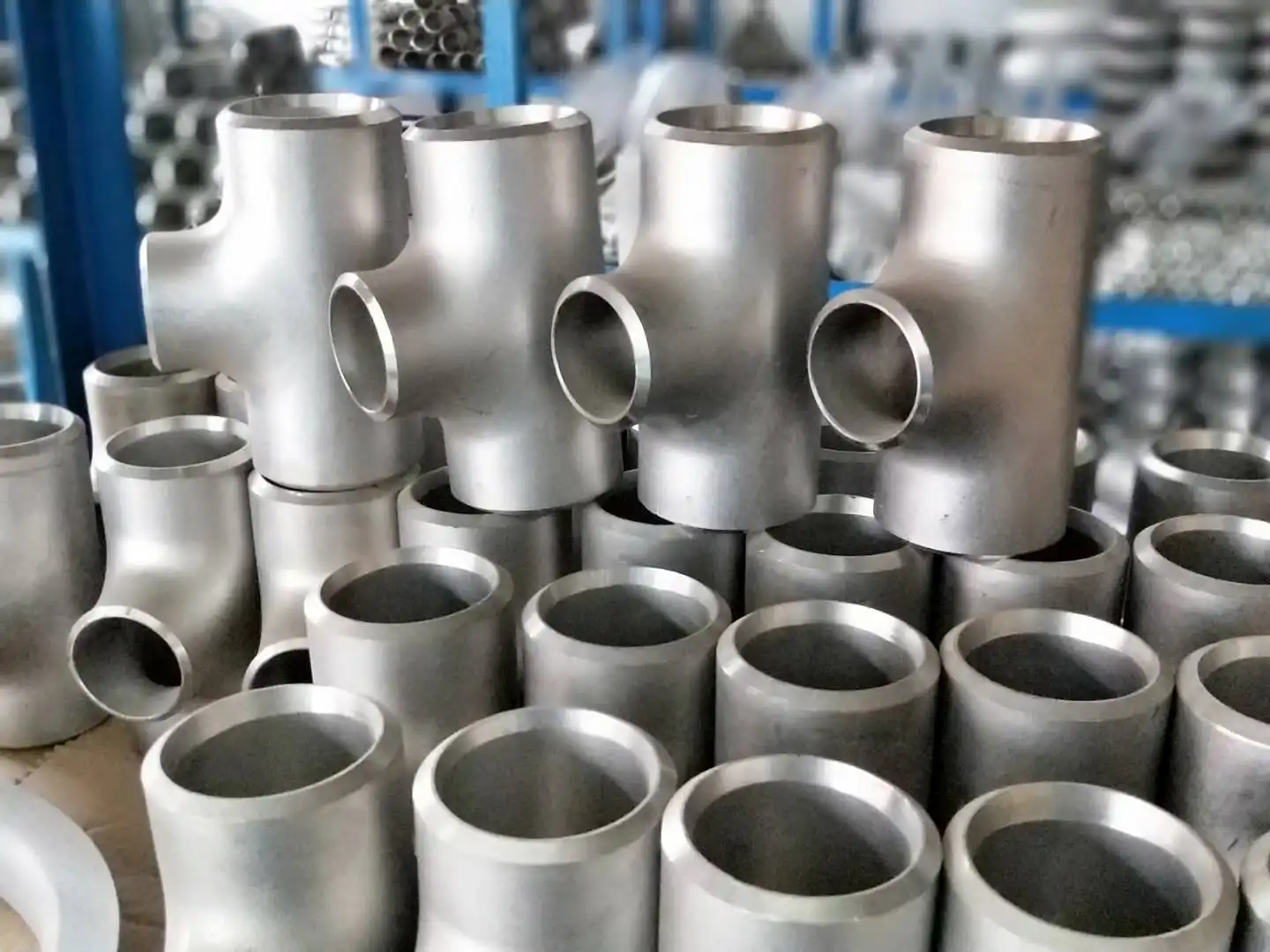

Understanding Butt Weld Tee and Its Bevel End Preparation

At JS FITTINGS, we've seen thousands of piping projects succeed or stumble based on one overlooked detail: proper bevel end preparation. A buttweld tee serves as a critical junction point where main flow lines branch off to secondary systems, and the quality of its beveled ends dictates the entire weld's structural integrity.

What Makes Bevel End Preparation Essential？

The beveled edge creates a V-groove between mating pipes, allowing welding electrodes to deposit filler material deep into the joint. This full-depth fusion prevents the weak "cold lap" defects common in square-cut connections. When procurement teams specify ASME B16.9-compliant tees together with the applicable ASME B16.25 end preparation requirements, they're ensuring that the fitting dimensions and bevel geometry follow recognized industry standards.

Our manufacturing process at JS FITTINGS employs high-precision CNC beveling machines that maintain the target 37.5° angle within a ±0.5° manufacturing tolerance. This consistency matters enormously during site installation—welders achieve proper fit-up without grinding or shimming, cutting installation time by 30% compared to manually beveled fittings. The root face, which is the small flat land at the bevel's base, controls weld pool penetration. An excessively wide root face risks incomplete fusion, while an overly narrow one increases the likelihood of burn-through.

Common Bevel Types and Their Applications

Three bevel configurations dominate industrial piping:

• V-Bevel (Single Bevel): The industry standard for pipe fittings up to 3/4 inch wall thickness. We machine this profile on 90% of our carbon steel tees ranging from DN15 to DN600. The 37.5° angle allows TIG root passes followed by SMAW fill passes, balancing weld quality with deposition speed.
• Double-V Bevel: Applied to heavy-wall alloy steel tees (Schedule 160 and XXS) exceeding 1 inch in thickness. Welding alternates between both sides, reducing residual stress and minimizing distortion in chrome-moly grades like ASTM A234 WP11 used in thermal power plants.
• J and U Bevels: Reserved for specialized applications requiring minimal weld filler volume. These compound curves reduce heat input during welding, preserving the heat-affected zone's toughness in cryogenic service tees manufactured from ASTM A420 WPL6 low-temperature steel.

Material composition influences bevel preparation significantly. Stainless steel grades (ASTM A403 WP316L) require sharper tooling and slower cutting speeds to prevent work hardening at the bevel surface. Carbon equivalent calculations determine preheat requirements—higher carbon content in ASTM A234 WPB demands controlled cooling rates post-welding to avoid hydrogen-induced cracking at the beveled joint.

Step-by-Step Guide to Buttweld Tee Bevel End Preparation

Procurement professionals often ask us, "How do we verify bevel quality before the fittings reach the construction site?" Here's the verification process our quality inspectors follow daily at JS FITTINGS, now adopted by many of our distributor partners for incoming material checks. A proper buttweld tee inspection ensures dimensional accuracy before field installation.

Pre-Weld Inspection Protocol

Surface cleanliness forms the foundation. We use abrasive blast cleaning to remove mill scale, rust, and any cutting oils up to the Sa 2.5 standard. When contaminants are trapped within the weld pool, they create porosity defects that compromise pressure containment integrity.We conduct Positive Material Identification (PMI) using spectral analyzers on every heat lot to verify that the chemical composition aligns with the approved mill test report—a safeguard against costly material mix-ups.

Dimensional verification follows a strict checklist tied to ASME B16.9 tolerances. Using laser protractors, inspectors measure the bevel angle at four quadrants around each tee outlet. The center-to-end dimension (the distance from the tee's centerline to the bevel's edge) must align with standard dimension tables; deviations beyond the applicable dimensional tolerances can cause misalignment during field assembly. We check the root face width with feeler gauges—1.6 mm ± 0.8 mm ensures consistent weld pool control across varying pipe schedules.

Manual vs. Automated Beveling Comparison

Small-batch custom orders sometimes require manual oxy-fuel beveling, particularly for odd-sized reducing tees. Skilled technicians achieve acceptable quality, but human variance introduces angle deviations up to ±3°. When following butt weld tee bevel end preparation standards, automated CNC beveling, a standard on our production line since 2018, maintains ±0.5° precision through servo-controlled cutting heads. The productivity difference is striking: manual methods bevel 8 tees per shift, versus 120 tees per shift with automated systems.

Automated beveling delivers another advantage crucial for distributors managing inventory: repeatability. Every DN150 Schedule 40 seamless tee leaving our facility carries identical bevel geometry. This standardization eliminates the "trial fit-up" delays that plague construction schedules when fittings from mixed suppliers require field adjustment.

Bevel Angle Impact on Weld Performance

The 37.5° angle isn't arbitrary—it balances accessibility for welding electrodes against the joint's load-bearing capacity. Narrower angles (20°-25°) restrict electrode access, forcing shallow weld passes prone to lack-of-fusion defects. Wider angles (45°-50°) demand excessive filler metal, increasing heat input that distorts thin-wall tees and degrades mechanical properties in the heat-affected zone.

Root face dimensions interact with welding amperage settings. Our technical team recommends 1.6 mm root faces for 70-90 amp TIG root passes on Schedule 40 pipe. Thicker Schedule 160 tees benefit from 2.4mm root faces, accommodating 100-120 amp settings that ensure deep penetration without melt-through. These parameters directly influence weld quality and joint integrity. Proper bevel geometry supports full-penetration welding and helps the assembly meet the applicable radiographic examination and acceptance criteria required for its design conditions.

Comparing Buttweld Tee Bevel Standards with Other Tee Types

Understanding when to specify butt-welded versus socket-welded or threaded tees prevents specification errors that delay projects. The decision hinges on pressure class, assembly permanence, and inspection requirements. Buttweld tees are commonly used in critical process piping because the full-penetration weld can provide a strong, continuous joint when properly designed and qualified.

Structural and Preparation Differences

Socket-weld tees feature a recessed socket accepting the pipe's outer diameter with a small gap at the bottom. This gap prevents stress concentration but creates a crevice vulnerable to corrosion in process fluids containing chlorides. Bevel preparation isn't required—the fillet weld forms only at the socket's outer shoulder. Socket-weld connections suit small-bore instrumentation lines (1/2" to 2") where disassembly isn't anticipated, with applicable pressure classes selected according to the fitting specification and service conditions.

Threaded tees eliminate welding entirely through tapered NPT threads. Installation speed makes them attractive for facility maintenance shops, but thread engagement and fitting design limit pressure capability, with allowable pressure depending on the applicable fitting standard, size, material, and service temperature. No bevel preparation exists; instead, thread compound application and proper torque control ensure seal integrity. We manufacture threaded tees primarily for compressed air systems and low-pressure utility water lines where welding restrictions apply.

Butt-welded tees remain the preferred choice for critical process piping, as the full-penetration weld ensures maximum structural continuity and leak-tight reliability.After proper bevel preparation and welding, non-destructive testing (100% radiography on our large-diameter welded tees) verifies internal soundness, which is impossible to achieve with socket or threaded alternatives.

Seamless vs. Welded Manufacturing Effects

Seamless tees, cold-formed from seamless pipe, contain no longitudinal weld seam. The absence of a longitudinal weld seam can provide a continuous material structure, while the required wall thickness is determined by the applicable design and material requirements. Our seamless range extends from DN15 to DN600, supplied with precision CNC bevels ready for immediate site welding. These tees undergo the heat treatment required by the applicable material specification after forming, restoring the required mechanical properties and ductility lost during the cold-working process.

Welded tees, fabricated from steel plate for sizes DN600 to DN1200 and, by agreement, larger special sizes, contain a longitudinal seam requiring special attention. At JS FITTINGS, we perform 100% ultrasonic testing (UT) on this seam before beveling to detect laminations and weld-related discontinuities. The bevel location is planned so that the longitudinal weld is positioned away from high-stress zones whenever possible, with butt weld tee bevel end preparation standards considered during the beveling process. Post-weld heat treatment (PWHT) may be required for welded tees depending on the material, thickness, welding procedure, service conditions, and applicable design code.

Procurement specifications should clearly distinguish "Seamless cold-formed tee per ASME B16.9, ASTM A234 WPB, beveled ends" versus "Welded tee per ASME B16.9, ASTM A234 WPB, with 100% RT on longitudinal seam, beveled ends." This clarity prevents the receipt of unsuitable products that fail inspection protocols.

Best Practices and Industry Standards for Procurement Professionals

Evaluating suppliers based on bevel quality separates reliable partners from risky vendors. Over 43 years, we've refined our quality systems to address the procurement pain points our customers face daily. Choosing a high-quality buttweld tee supplier prevents expensive field rework and keeps projects on schedule.

Certification and Traceability Requirements

Every fitting we ship carries hard-stamped identification: heat number, material grade (ASTM A234 WPB, A403 WP316L, etc.), and dimensional size. This permanent marking enables traceability back to the steel mill's certified material test report (CMTR). During plant inspections or regulatory audits, maintenance teams can verify installed components' pedigree decades after installation.

ISO 9001:2015 certification demonstrates systematic quality control, but savvy procurement teams dig deeper. Ask potential suppliers: "What's your bevel angle tolerance control process?" At JS FITTINGS, we maintain Statistical Process Control (SPC) charts tracking bevel angles across production runs. When measurements drift toward tolerance limits, automatic machine recalibration prevents defects before they occur. Our customer complaint rate remains below 0.5% because we catch issues during manufacturing, not after site delivery.

Third-party certifications matter significantly for international projects. Our CE marking confirms European Pressure Equipment Directive compliance, while GOST-R certification opens Russian and CIS markets. Holding PETROBRAS, NIOC, and ADNOC approvals means we've passed stringent pre-qualification audits verifying our bevel preparation capabilities meet global energy sector standards.

Evaluating Supplier Capabilities

Physical plant capability reveals more than marketing brochures. We encourage customer facility audits—seeing our CNC beveling machines, witnessing spectral analysis, and reviewing NDT records builds the confidence procurement teams need when approving vendors. Monthly output capacity matters: producing 800 tons of pipe fittings with an on-time delivery rate of 95%+ demonstrates consistent capability to support large EPC projects without supply interruptions.

Request bevel quality data packages, including dimensional inspection reports showing measured root face widths and bevel angles, surface finish measurements (Ra values), PMI reports checking material grades, and heat treatment charts showing the correct temperature cycles. Suppliers providing complete documentation upfront typically maintain tight process controls.

Standard vs. Custom Bevel Preparations

Standard 37.5° bevels suit 95% of applications, leveraging economies of scale. Custom bevels—compound angles, double-bevels, or non-standard root faces—serve specialized needs like automated orbital welding systems requiring precise geometry for weld head tracking. Our engineering team evaluates custom requests by determining whether the modification genuinely improves weldability or if it introduces unnecessary costs without performance gains.

Cost analysis reveals custom beveling adds 15-25% to unit price due to CNC programming, setup time, and dedicated inspection procedures. Lead times extend from our standard 15-day production to 25-30 days. Procurement teams should quantify the downstream value: Does custom beveling reduce site welding hours enough to offset the premium? Optimized bevel geometry can significantly reduce field labor costs, justifying the customization premium for mega-projects.

Conclusion

Proper bevel end preparation transforms buttweld tees from commodity fittings into precision-engineered components that support pipeline integrity throughout decades of service. Understanding ASME B16.25 standards, recognizing material-specific requirements, and partnering with suppliers maintaining strict bevel tolerances directly reduce project risk and total ownership costs. The 37.5° bevel angle with a 1.6 mm root face represents decades of industry refinement—specifications optimized for weld strength, installation efficiency, and long-term reliability across carbon steel, stainless steel, and alloy steel systems. Procurement professionals who prioritize certified bevel quality during supplier selection prevent costly field rework, avoid schedule delays, and enhance safety margins. Every properly prepared bevel ensures welders can deliver leak-tight joints that meet design pressure ratings, protecting both project budgets and operational continuity.

FAQ

1. What is the standard bevel angle for buttweld tees?

ASME B16.25 specifies 37.5° ± 2.5° as the standard bevel angle for a butt-weld tee, with a 1.6 mm (1/16 inch) root face. This geometry accommodates common welding processes (TIG, SMAW, FCAW) while ensuring adequate electrode access and proper weld penetration across Schedule 40 through Schedule 160 wall thicknesses.

2. How does bevel quality affect pressure ratings?

Improper bevels cause incomplete fusion or porosity defects that reduce joint strength below the pipe's rating. Proper bevel preparation enables full-penetration welds achieving 100% radiographic quality, allowing the assembly to meet its applicable design pressure and temperature requirements without unnecessary derating.

3. Can I order custom bevel preparations?

Custom bevels suit specialized applications like automated orbital welding requiring precise compound angles. JS FITTINGS engineers custom bevel geometries with 15-25% premium pricing and extended lead times. Contact admin@jsfittings.com with your technical requirements for feasibility assessment and quotation.

4. What's the difference between seamless and welded tee bevels?

Both types receive identical bevel machining to ASME B16.25 standards. Seamless tees (DN15-DN600) contain no longitudinal seam and undergo normalizing heat treatment. Welded tees (DN600-DN1200, with larger special sizes available by agreement) require 100% ultrasonic testing (UT) of the longitudinal weld before beveling, with the seam positioned away from high-stress zones.

Partner with JS FITTINGS for Precision Butt Weld Tee Solutions.

JS FITTINGS stands ready to support your next piping project with ISO-certified buttweld tees featuring precision CNC beveling that eliminates field fit-up delays. Our 43 years of manufacturing experience across carbon steel, stainless steel, and chrome-moly alloy grades ensure you receive ASME B16.25-compliant fittings with bevels machined to 37.5° ±0.5° tolerance—consistency that reduces weld rejection rates and accelerates construction schedules. As an approved buttweld tee supplier for PETROBRAS, NIOC, and ADNOC, we maintain comprehensive traceability and testing protocols that satisfy the most stringent procurement requirements. Contact our engineering team at admin@jsfittings.com to discuss your specifications, request certified material test reports, or arrange factory audits. With 95%+ on-time delivery across 90+ monthly container shipments and a 98% customer repurchase rate, we deliver the reliability your projects demand.

References

1. American Society of Mechanical Engineers. (2021). ASME B16.9: Factory-Made Wrought Buttwelding Fittings. New York: ASME Press.

2. American Society of Mechanical Engineers. (2020). ASME B16.25: Buttwelding Ends. New York: ASME Press.

3. American Welding Society. (2019). AWS D1.1: Structural Welding Code—Steel, Section 5: Welding Workmanship. Miami: AWS Publications.

4. ASTM International. (2022). ASTM A234: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service. West Conshohocken: ASTM.

5. European Committee for Standardization. (2020). EN 10253-2: Butt-welding Pipe Fittings—Part 2: Non-alloy and Ferritic Alloy Steels with Specific Inspection Requirements. Brussels: CEN.

6. Becht Engineering Company. (2018). Best Practices in Piping System Design and Fabrication Quality Control. Technical Report Series, Volume 14, Issue 3, pp. 87-104.
