Sch 40 vs Sch 80 Buttweld Tee Wall Thickness Explained

When selecting pipe fittings for critical industrial applications, it’s crucial to understand the difference in wall thickness between Schedule 40 and Schedule 80 buttweld tee options, since this has a direct impact on system safety, operational longevity, and project budget. Schedule 40 tees are for moderate pressure and have thinner walls, whereas Schedule 80 tees are for high pressure and include substantially thicker walls. This difference affects not only pressure ratings but also material prices, welding requirements, and mechanical durability. In 40 years of making pipe components, we've seen the devastation that choosing the incorrect schedule can do, from premature failures to costly retrofits and safety concerns. This article breaks down these critical parameters so that procurement pros may make smart choices.

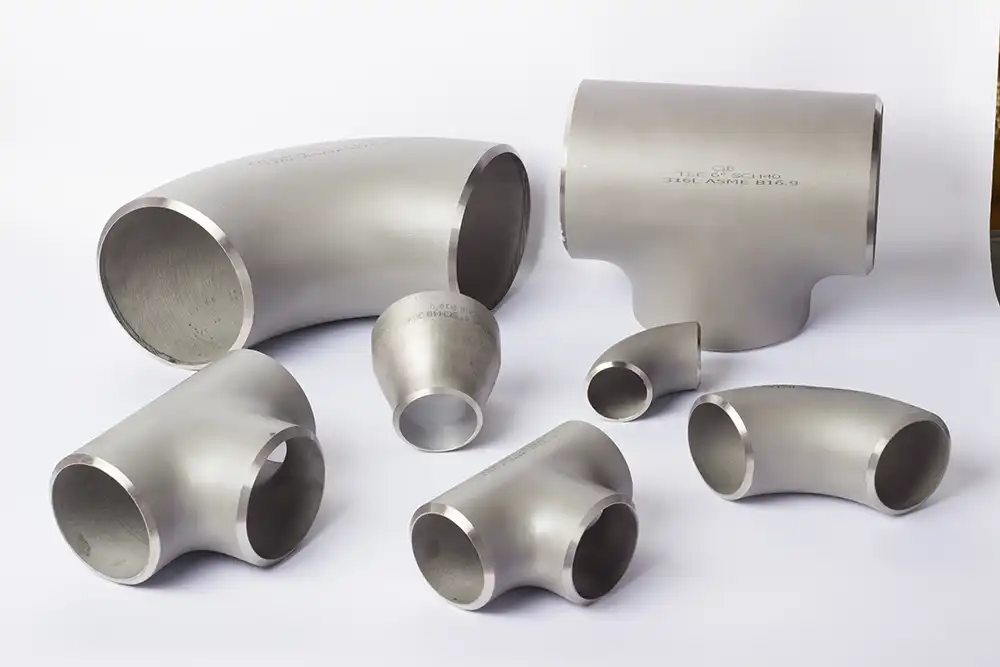

Understanding Buttweld Tee Fundamentals

What Makes Buttweld Tees Essential in Piping Systems?

Buttweld tees are T-shaped connections used for branching or merging flow pathways in industrial pipe networks. These fittings do not feature threaded or socket-weld options but rather have bevelled edges (typically 37.5 degrees) that allow full-penetration circular welds to be made. This welding technique results in junctions with strength equal to or greater than the parent pipe material. This is of utmost importance in applications like power plants, chemical plants, and oil industries, where system stability and reliability is critical.

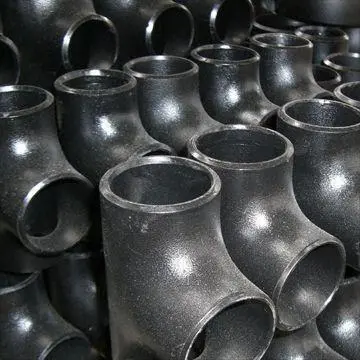

Material Diversity and Manufacturing Approaches

Depending on the use, there are many material grades available for these fittings. The most popular are carbon steel varieties (ASTM A234 WPB) in low-cost projects, which are required to perform reliably under typical circumstances. In applications where corrosion resistance is critical enough to warrant a higher investment, such as pharmaceutical or food processing environments, stainless steel grades (ASTM A403 WP304/316) are required. Creep resistance prevents long-term warping in power systems using chrome-moly metals at high temperatures (ASTM A234 WP11/WP22).

The production methods are generally divided into two types: seamless and welded. Seamless tees manufactured from seamless pipe by hydraulic bulge forming may withstand greater pressures because of the absence of longitudinal weld lines. The continuous grain structure makes it tougher against impacts and eliminates any potential weak points. Welded tees produced from plate material can handle larger widths (24 to 72"), but they must be subjected to a lot of radiographic testing to ensure the weld is robust across the seam zone.

Why Does Wall Thickness Define Performance?

There is a direct correlation between the pressure capacity and the wall thickness in ASME B31.3 pipe regulations. Higher internal forces cannot exceed the allowable stress limits of thicker walls before reaching their material yield strength. The wall thickness of a fitting determines its resistance to external mechanical loads, thermal stress cycles, and degradation by abrasive fluids. The crotch region, where the branch joins the main flow, bears the most stress. Good manufacturers will compensate for this thinning of metal during forming by leaving additional thickness in this vital area. This means that safety factors exceed minimum code standards.

Detailed Comparison: Schedule 40 vs. Schedule 80 Wall Specifications

Dimensional Differences Across Pipe Sizes

The schedule designation mechanism guarantees that the wall thickness is always equal to the nominal pipe size. The norm for regular industrial usage is Schedule 40, whereas Schedule 80 generally has a significantly thicker wall than Schedule 40, although the percentage difference varies by pipe size. For example, a nominal 4-inch pipe is required to have a wall thickness of 0.237 inches for Schedule 40 and 0.337 inches for Schedule 80. For these butt-welded tees, there is a difference of .100 inch, which is a large variation in strength.

This difference in thickness increases with increasing pipe diameter. For example, the walls of schedule 40 are 0.365” thick at the nominal size of 10 inches, while the walls of schedule 80 are 0.500” thick. The added material mass impacts not only pressure ratings but also weight concerns for building structural supports and transportation throughout the project implementation stages.

Pressure Rating Implications

The walls of schedule 80 tees are thicker and can withstand substantially greater operating pressures. Schedule 80 tees possess a significantly greater wall thickness, providing substantially improved pressure resistance compared to Schedule 40 tees. For example, a 4-inch carbon steel Schedule 40 tee generally has a lower pressure capacity than a Schedule 80 tee because of its thinner wall. The allowable pressure must be calculated according to the applicable piping code, material grade, temperature, and fitting dimensions, a 65% increase in pressure capacity. These ratings decrease as the operating temperatures increase since the material loses strength as the temperature increases. This makes schedule selection even more critical in high-temperature operation.

Engineers need to consider scenarios when pressure spikes (e.g., water hammer) and thermal expansion stresses briefly surpass steady-state pressures. Schedule 80 provides the flexibility to accommodate these short-term occurrences without exceeding the yield limits of the material, which might cause fractures to propagate or irreversible deformation.

Cost and Procurement Considerations

The material quantity directly correlates with different pricing. Schedule 80 fittings are often 40-60% more expensive than identical Schedule 40 parts due to the additional machining time and raw materials required. However, when considering lifespan costs, Schedule 80 becomes advantageous since it prevents operational shutdowns, eliminates costly environmental cleanups, and reduces premature replacement expenses.

Specialty materials and less popular schedules have greater lead time. Distributor stock includes popular sizes of standard carbon steel Schedule 40 tees (2" to 6") that ship in days. Scheduling 80 types, particularly in alloy steels or big diameters, might take 4 to 8 weeks to produce. At JS FITTINGS, we have a 7,000-square-meter facility with a ready inventory in both schedules so we can quickly accommodate the needs of urgent projects.

Selecting the Optimal Schedule for Your Application

Pressure Requirements Drive Primary Decisions

Selection is dependent on operating pressure. Systems rated 600 psi or below often provide adequate space for Schedule 40 buttweld tees. Applications beyond 800 psi should be Schedule 80 to keep within the regulations and prevent overstress. At intermediate pressures, you need to do some calculations and consider the material grade, temperature, and corrosion allowances.

Environmental and Operational Factors

Remember, thickness is important beyond pressure requirements alone for corrosive conditions. If a corrosion tolerance (typically 0.0625" to 0.125") is specified, Schedule 80 offers buffer material that increases service life before wall thinning affects structural integrity. Impact-tested materials such as ASTM A420 WPL6 are commonly specified for low-temperature service where improved toughness is required, and the thicker walls reduce the possibility of brittle fracture at sub-zero temperatures.

Schedule 80 provides greater structural rigidity and may reduce stress levels caused by vibration in some applications, but fatigue resistance still depends on system design, welding quality, and operating conditions, such as those found in compressor discharge lines.The added bulk also decreases high-frequency vibrations that cause weld joints to break out quicker in lighter-schedule fittings.

Standards Compliance and Certification

ASME B16.9 covers the material specifications and dimensional tolerances for wrought fittings fabricated in a shop. Pressure piping codes (ASME B31.1 for power piping and ASME B31.3 for process piping) inform you what is allowable stress and what minimum wall thickness should be. These requirements must be clearly listed in the procurement specifications, and manufacturers are asked to demonstrate that they are being fulfilled.

Third-party inspection certificates compile raw material test reports, heat treatment records, and dimensional checks. All fittings are hard-stamped with heat numbers for complete traceability, and this is a requirement when supplying the National Iranian Oil Company, the Abu Dhabi National Oil Company, and other such organizations that need tight quality records.

Manufacturing Excellence and Quality Verification

Seamless vs. Welded Production Methods

Seamless buttweld tees are made from a single piece of seamless pipe that is shaped by cold or hot forming. Hydraulic presses expand the main run while simultaneously forming the branch outlet, creating a continuous grain structure with no seams. This method makes fittings that can handle the toughest applications, but the available size range is generally more limited than welded tees, especially for large diameters.

Welded tees can fit larger diameters by cutting sections from plate material and joining them together using automated submerged arc welding. Modern CNC-controlled welding systems keep precise control over the heat input and travel speed, ensuring consistent penetration throughout the joint. Post-weld heat treatment removes any residual stresses and restores the mechanical properties of the base metal. This is especially important for alloy steels, where incorrect heat treatment leads to early failures in service.

Critical Quality Control Measures

We use a series of steps to make sure everything is safe, starting with X-ray fluorescence analyzers for positive material identification (PMI). This stops material mix-ups that could put the wrong grades into service in corrosive or high-temperature conditions. Next, coordinate measuring machines are used to make sure that center-to-end distances, branch angles, and wall thickness all meet ASME B16.9 standards.

The most important part of quality assurance is non-destructive testing:

• Radiographic Testing (RT): An X-ray shows internal breaks like porosity, slag inclusions, or incomplete fusion in welded tees. We offer 100% RT on large-diameter and high-pressure fittings when required by project specifications where hidden flaws pose a huge risk of failure.
• Ultrasonic Testing (UT): High-frequency sound waves find laminations and changes in wall thickness, which is especially important in the crotch area where forming stresses are highest. Automated UT scanning covers the whole area faster than manual methods and keeps permanent records for quality documentation.
• Liquid Penetrant Testing (PT): Surface cracks that can't be seen with the naked eye can be seen when dye penetrant is applied. This is necessary for austenitic stainless steels when magnetic particle inspection doesn't work.

Our beveling operations use CNC machines to make precise 37.5-degree angles with controlled root face dimensions. This standardization makes sure consistent fit-up during field installation, lowering the number of weld defects and speeding up project schedules—real benefits our distributor partners use to show end-users the value. These precise processes also support accurate Sch 40 vs. Sch 80 butt weld tee wall thickness comparisons, helping customers select the right tee specifications for different pressure requirements and piping applications.

Installation Best Practices

Installing things correctly stops problems from happening. Cleaning the bevel has a direct effect on the quality of the weld; grinding or wire brushing gets rid of mill scale, rust, and other impurities that cause holes or slag inclusions. Using external clamps for fit-up alignment keeps the bore aligned, preventing internal high-low conditions that cause erosion zones and stress risers.

Welding procedure specifications (WPS) qualified according to ASME Section IX define parameters for each combination of material grade and wall thickness. For chrome-moly alloys and thick-section carbon steel, preheat requirements become mandatory to stop hydrogen cracking. Interpass temperature control stops grain growth that weakens toughness in heat-affected zones. Post-weld heat treatment, when required by piping codes, releases locked-in stresses that could lead to stress corrosion cracking in harsh environments.

Procurement Strategies for Industrial Projects

Supplier Evaluation Framework

When looking for reliable buttweld tee suppliers, you need to look at more than just price quotes. For example, a supplier's manufacturing capacity shows whether they can handle large orders without affecting delivery times. For example, we ship over 800 tons of pipe fittings every month through 90+ containers, giving EPC contractors the throughput they need to keep projects on schedule.

Certification portfolios show that a company is accepted by the market and has a strong quality system. For example, ISO 9001 certification confirms that the company follows basic quality management standards. Industry-specific approvals, like our PETROBRAS, NIOC, and ADNOC qualifications, show that we can meet the strict requirements needed for big energy projects.

Premium suppliers are different from commodity vendors because they offer technical support. Engineering teams that help with developing specifications, choosing materials, and figuring out pressure ratings add value beyond just fulfilling purchase orders. We offer this consultative approach and use our 40 years of application experience to help customers find the best solutions.

Managing Lead Times and Inventory

Standard sizes in common materials can be shipped quickly from stock. For example, Schedule 40 carbon steel tees with 2" to 12" diameters can usually be delivered within 48 hours. Less common configurations need to be manufactured, which can take up to 8 weeks for large-diameter Schedule 80 alloy steel variants. Strategic buyers plan their purchases to match the stages of a project's construction, ordering long-lead items during the engineering stages and delaying ordering common fittings until the installation stage.

Large projects that need deliveries in stages can benefit from blanket purchase agreements, which lock in prices and allow for flexible release dates that are in line with building progress. Buyers get budget certainty, and suppliers get the most out of planning production across multiple order batches.

Documentation and Compliance

Complete material traceability documentation is becoming more and more important for regulatory compliance and owner acceptance. Mill test reports (MTRs) confirm that the chemical composition and mechanical properties of the material meet certain standards. Manufacturers' certifications confirm that the dimensions and testing meet ASME B16.9 requirements. Third-party inspection reports from companies like Bureau Veritas or SGS provide independent confirmation that insurance companies and project owners value.

We keep detailed records that make it easy to find paperwork years after it was shipped. This is especially useful when projects need to go through audits or when equipment needs to be expanded, and matching materials are needed. This administrative skill keeps projects from being held up by missing paperwork and shows the level of organizational maturity that buyers who are concerned about risk want.

Conclusion

When choosing between Schedule 40 and Schedule 80 buttweld tees, you need to carefully consider the pressure needs, the environment, and the lifecycle costs. Schedule 40 works well in moderate-pressure situations where cost-effectiveness is important, while Schedule 80 provides important safety margins in high-pressure or corrosive environments. The choice of materials, the quality of the manufacturing, and the dependability of the supplier all affect how well the system works and how safe it is to use. Tough inspection protocols and detailed specifications based on ASME standards make sure that fittings meet the high standards of modern industrial infrastructure.

FAQ

1. Can Schedule 40 and Schedule 80 Tees Be Used Interchangeably?

These schedules can't be switched around at random. Schedule 80's thicker wall changes the geometry of the weld preparation and causes internal diameter mismatches when joined to Schedule 40 pipe. Safety risks arise when lower-schedule buttweld tees are used instead of specified higher-schedule parts. To follow the code, schedules must be kept the same throughout piping systems unless engineering calculations specifically address transitions.

2. What Certifications Guarantee Buttweld Tee Quality?

Material specifications (ASTM A234, A403, etc.) and ASME B16.9 compliance are the building blocks. ISO 9001 certification shows that quality management is being done in a systematic way. Project-specific approvals from groups like PETROBRAS or major oil companies show that the company can meet strict technical standards. Third-party inspection reports go beyond the manufacturer's own certification to provide independent confirmation.

3. How Does Material Choice Affect Maintenance Requirements?

In humid places, carbon steel needs to be protected against corrosion with coatings or cathodic protection. Stainless steel grades don't rust, but they can still crack from chloride-induced stress corrosion. Chrome-moly alloys used in high-temperature applications need to be checked for hydrogen attack and creep deformation on a regular basis. Choosing materials by weighing the initial cost against maintenance costs is the best way to get the best total ownership cost over the lifecycle of a building.

Partner with JS FITTINGS for Reliable Buttweld Tee Supply

JS FITTINGS delivers Schedule 40 and Schedule 80 tees manufactured to exacting ASME B16.9 standards, backed by 40 years of industrial piping expertise. Our seamless and welded production capabilities span 1/2" through 72" diameters in carbon steel, stainless steel, and chrome-moly alloys. Rigorous inspection protocols—including 100% radiographic testing on critical components—ensure defect-free fittings ready for demanding offshore, petrochemical, and power generation applications. With monthly shipments exceeding 90 containers and on-time delivery rates above 95%, we provide the supply reliability EPC contractors and distributors require to meet aggressive project schedules. Our ISO 9001, CE, and GOST-R certifications, combined with qualified supplier status for PETROBRAS, NIOC, and ADNOC, demonstrate proven capability serving global energy infrastructure projects. Contact our technical team at admin@jsfittings.com to discuss your specifications, request material certifications, or obtain quotations for buttweld tee supplier partnerships.
