ASTM A234 WPB Buttweld Reducer for Industrial Piping

One of the key problems in industrial pipe systems is to achieve smooth transitions in diameter while retaining structural integrity and operational safety. ASTM A234 WPB buttweld reducers solve this problem by creating strong, lasting connections that improve flow characteristics and pressure distribution. These carbon steel fittings are vital in refineries, chemical plants, power generation, and infrastructure projects where dependability is not optional. For procurement managers and engineering teams, knowing the technical specifications, installation requirements, and quality standards of these fittings immediately translates into decreased project risk, lower total cost of ownership, and increased system performance. This comprehensive guide provides decision-makers with the practical insights required to choose, buy, and maintain ASTM A234 WPB reducers that fulfill rigorous compliance criteria and offer value over the long term.

Understanding ASTM A234 WPB Buttweld Reducers

What Defines an ASTM A234 WPB Butt Weld Reducer?

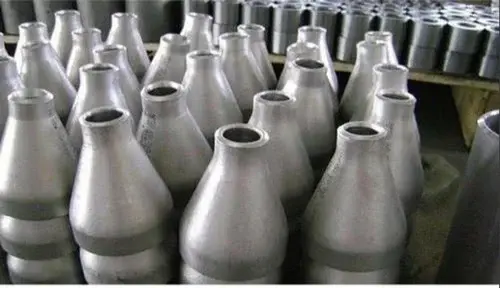

A buttweld reducer is an industrial pipe fitting that is manufactured to join lines of various diameters together by the use of circumferential welds. These are permanent leak-proof joints with a continuous metal construction that eliminates the high mechanical stress regions of threaded fittings and are subject to ASME B16.9 requirements. ASTM A234 is the standard for wrought carbon steel and alloy steel fittings for use at temperatures from moderate to high. WPB is a specific carbon steel grade that offers excellent weldability and robust mechanical properties, suitable for moderate to elevated temperature service. In comparison to socket-weld or threaded reducers, buttweld reducers provide a smooth diameter change that reduces noise, reduces pressure drop, and prevents cavitation in critical flow applications.

Material Composition and Performance Characteristics

ASTM A234 WPB buttweld reducers exhibit exceptional mechanical integrity and burst resistance under high-pressure conditions.They are thus ideal for demanding applications in systems handling hydrocarbons, steam, and industrial fluids. The carbon steel construction costs less than stainless steel choices, and when combined with the correct protective coatings, it may resist corrosion well enough. Material tensile strength is 60,000 to 85,000 psi, and yield strength is a minimum of 35,000 psi. Thus, the material is mechanically reliable even with a change in temperature. Chemical examination proves the presence of the proper quantity of carbon (typically not above 0.30 percent) and manganese (0.29 to 1.06 percent) to make the metal more readily welded without sacrificing toughness. Industrial procurement prioritizes dependable performance that strictly fulfills safety standards while maintaining cost-effective initial capital expenditures. These material properties meet that demand.

Configuration Types: Concentric vs. Eccentric Design

Two primary configurations are available to meet distinct operational demands. Concentric reducers maintain a shared centerline between the inlet and outlet ends, creating a symmetrical cone shape optimal for vertical pipelines where consistent flow distribution prevents erosion. They prevent noise pollution by making sure that the flow velocity fluctuations are smooth. Eccentric reductions have one flat side, and the centerlines are not exactly aligned. Used in horizontal pump pressure lines for critical applications. Installing it with the flat side up will prevent air pockets that may harm the impeller and cause the pump to cavitate. Conversely, installing eccentric reducers with the flat side down facilitates complete gravity drainage in systems requiring periodic maintenance or winterization. Understanding these essential characteristics may help engineers pick the proper shape to handle particular hydraulic difficulties and keep operations operating smoothly without paying for expensive downtime.

How to Choose the Right Buttweld Reducer for Your Pipeline System?

Matching Reducer Type to Flow Dynamics

Selection starts with a review of the system hydraulics and how it will be installed. When installing an eccentric reducer in a horizontal pump suction line, keep the flat side up. This will prevent vapor lock, which will affect the functioning of the pump. In chemical plants, concentric reducers are used in vertical process columns to maintain the center straight, which is crucial to provide uniform flow distribution during the reaction stages. Gradual curve angles are helpful to high-speed steam lines because they reduce the pressure drop and halt the vibration that occurs due to flow. For regular fittings, the transition angle is typically between 20° and 30°. But a bespoke structure may be made to suit certain demands. Procurement teams must provide precise P&ID drawings showing the flow direction, orientation, and upstream equipment so that vendors may offer the optimal options.

Material Selection: Carbon Steel vs. Stainless Alternatives

ASTM A234 WPB carbon steel is highly cost-effective and fully capable of withstanding elevated pressures, making the carbon steel buttweld concentric reducer a cost-effective choice for many piping applications. Yet there are times when other materials are required. Grades like ASTM A403 WP316L are required for corrosive service environments with chlorides or acidic substances, since they include molybdenum, which makes them less prone to pitting. If the temperature is over 800°F, you will have to use alloy steels such as ASTM A234 WP11 or WP22, which have had chromium and molybdenum added to resist creep deformation. For temperatures below -20°F, utilize ASTM A420 WPL6 material with controlled impact toughness. But carbon steel WPB is still the best option for general hydrocarbon service, steam systems, and compressed air networks when temperature and corrosion variables remain within reasonable limits. When optimizing procurement budgets, professionals evaluate the initial material costs against the projected lifecycle and maintenance requirements. Properly coated carbon steel may withstand 20 to 30 years of constant operation in the correct context.

Size, Schedule, and Pressure Rating Considerations

Dimension specifications have a direct impact on system efficiency and safety. Seamless structure from 1/2” x 1/4” to 24” x 20” provides superior stability for high-pressure applications to ANSI Class 2500. Large-diameter process pipes are joinable to welded-seam butt-weld reducers to 80" × 72". The weld quality is checked by radiographic testing. The wall thickness nomenclature per ASME standards varies from SCH 10 (thin-wall) to SCH 160 and XXS (double extra strong). Pressure rating is determined by taking into consideration all of those parameters: wall thickness, material grade, and temperature derating. Buyers should request complete dimensions, including end-to-end length, bevel angle (typically 37.5° per ASME B16.25), and guaranteed minimum wall thickness at stressed transition zones. The standards prevent the common failure mechanism of excessive thinning during manufacturing procedures that make it difficult to maintain pressure within.

Installation and Maintenance Best Practices for Buttweld Reducers

Welding Preparation and Technique

To ensure flawless full-penetration welds, the beveled edges must be thoroughly prepared, clean, and free of oxides prior to installation. JS FITTINGS' precision-machined bevels are burr- and slag-free, reducing the time needed for on-site preparation and ensuring consistent weld quality. The processes for welding should be in accordance with ASME Section IX. The temperature range for preheating should be between 200°F and 400°F, depending on the thickness of the material and the temperature of the surrounding air. Low hydrogen electrodes (E7018) or GTAW techniques are used during the root pass to provide complete fusion without undercutting. A series of fill and cap passes builds strength while managing the amount of heat going in to prevent distortion. If the wall thickness exceeds 1.25 inches or the service temperature exceeds 450°F, a post-weld heat treatment is necessary. This removes residual tensions, which otherwise may cause fracture during heat cycles.

Alignment Verification and Quality Control

Accurate measurements taken during fit-up prevent operating difficulties down the road. Flow and vibration reduction are important in high-speed systems to ensure a smooth flow. The centerlines of concentric butt weld reducers should be aligned in a 1 mm range. Reliable Buttweld pipe reducer suppliers use CNC-machined tools to keep this accuracy level across production lots. If you are employing eccentric reducers, be sure to note the orientation of the flat side carefully. The mating bevels should be no more than 1/16" apart, and tack welds should be put in to prevent distortion of the joint while it is being welded. Internal alignment clamps maintain the joint concentric, yet allow for expansion during welding. Our skillful welding and mechanical alignment methods generate X-ray-grade connections that exceed ASME B31.3 requirements for process piping systems.

Inspection Protocols and Nondestructive Testing

Quality assurance, if it is comprehensive, utilizes a number of inspection techniques for various sorts of defects. Visual inspection will include bevel condition, fit-up precision, and surface polish to specification criteria. Positive material identification using portable XRF analyzers confirms the exact composition of the alloy, which is especially important when mixing material grades within complicated systems. Welded-seam butt-weld reducers should be radiographically tested (RT) to identify internal discontinuities such as porosity, slag inclusions, or partial fusion that would impair pressure integrity. Ultrasonic testing (UT) is used to verify wall thickness throughout the whole body of the buttweld reducer, verifying that no inordinate thinning has occurred during production. Magnetic particle inspection (MPI) shows surface-breaking fractures in the carbon steel component. Procurement requirements should include EN 10204 3.1 Mill Test Certificates for each heat number with chemical analysis and mechanical testing to be supplied so that traceability is provided to the satisfaction of insurance and regulatory auditors.

Procurement Guide for ASTM A234 WPB Buttweld Reducers

Supplier Evaluation Criteria

Ensuring your manufacturer is fully qualified requires evaluating several critical factors beyond the initial quoted price. The production capacity is important for suppliers to be able to meet the project timelines, especially for large-scale installations, which require hundreds of fittings. JS FITTINGS produces over 800 tons of pipe fittings every month and exports over 90 containers, ensuring a reliable supply even during peak demand. Manufacturing standard compliance is ASME B16.9, EN 10253, DIN 2616, or MSS-SP-75, as per the project stated. Systematic quality control with international credentials such as ISO 9001, GOST-R, and third-party clearances from PETROBRAS, NIOC, and ADNOC. Technical capability is determined by the range of sizes available, experience in custom manufacturing, and sophistication of testing equipment. The best suppliers will provide engineering support in the specification development stage to minimize costly misapplication that delays projects.

Balancing Quality, Lead Time, and Total Cost

Purchase choices need to examine more elements than unit price. MTCs provide material traceability and avoid counterfeit weld reducers that might risk catastrophic failure during vital service. Quality manufacturers will execute a mandated chemical analysis and mechanical testing of each manufacturing lot and record the findings to meet engineering review. Lead time dependability has an impact on total project timelines. JS FITTINGS has a 95% on-time delivery record, due to methodical inventory management and production planning. Bulk ordering benefits include volume discounts and dedicated production runs to ensure dimensional consistency across large quantities. Custom fabrication is used when an application is unique and requires a non-standard size or specific material. Total cost analysis includes shipping logistics, with containerized packaging enhancing freight efficiency for overseas projects. Long-term supply contracts are less financially risky due to the flexibility in payment terms and existing banking ties.

Building Strategic Supplier Relationships

Long-term relationships with trusted producers have advantages beyond the particular transaction. Technical cooperation is used throughout the design stages to improve fitting requirements for manufacturability and cost-effectiveness. Suppliers with applications engineering experience may assist in locating value engineering possibilities that preserve performance and reduce material costs. Post-sales support, such as warranty coverage, replacement parts availability, and troubleshooting help, reduces operating interruptions in case of unforeseen problems. JS FITTINGS offers full service from OEM manufacture to one-stop pipe solutions and flexible trade assistance to meet the demands of clients. We have a client complaint rate of less than 0.5% and a repurchase rate of more than 98%. This operational excellence is what makes our reputation as a supplier. With more than 40 years of manufacturing experience since 1983, established suppliers have institutional expertise that can’t be matched by younger market entrants. Building partnerships with such partners helps you build supply chain resilience to shield your projects from interruptions.

Conclusion

ASTM A234 WPB buttweld reducers are critical piping components that demand rigorous selection, installation, and quality assurance protocols. Knowing the differences between concentric and eccentric configurations lets engineers choose fittings that solve specific hydraulic problems while avoiding common failure modes. When choosing materials, balancing cost against corrosion resistance and temperature capability maximizes life-cycle value. Strict purchasing practices that include supplier qualification, material traceability, and documented testing protect against fake products that compromise safety. Working with well-known manufacturers that offer full certifications, reliable delivery, and technical support builds the supply chain resilience that is needed for a successful project.

FAQ

1. When Should I Use Eccentric Instead of Concentric Reducers?

When installing a horizontal pump suction line, it's important to keep the liquid level full to avoid cavitation damage. Placing the flat side up eliminates high points where air pockets can build up, which protects the pump impellers from vapor lock. On the other hand, installing the flat side down is best for situations that need complete drainage, like winterized systems. Concentric reducers work best with vertical pipes when centerline alignment keeps the flow even across processing stages.

2. What Wall Thickness Schedule Should I Specify?

As per ASME B31.3, the choice of wall thickness is based on the design pressure, temperature, and corrosion allowance calculations. Standard weight (SCH 40) is best for moderate-pressure applications below 600 psi. Schedule 80 gives you more safety margin for higher pressures or corrosive environments that need a material loss allowance. Extra-strong schedules (SCH 160, XXS) are best for refineries and chemical plants with harsh service conditions where failure would be catastrophic.

3. How Do I Verify Material Authenticity?

Request EN 10204 3.1 Mill Test Certificates (MTCs) detailing the exact chemical composition and mechanical properties for each heat lot. Reliable suppliers will provide traceability by stamping MTCs with the names of specific products. Do independent PMI testing with XRF analyzers to make sure the carbon and alloy content matches the grades that were ordered, which will stop fake buttweld reducers from being used.

Partner with a Trusted Buttweld Reducer Manufacturer

Our ASTM A234 WPB buttweld reducers go through strict quality control that goes above and beyond industry standards. They are certified by ISO, CE, and GOST-R, and we are a preferred supplier for PETROBRAS, NIOC, and ADNOC. We can produce more than 30,000 tons of products each year and deliver them on time 95% of the time, so you can be sure your schedules will be met. If you need standard configurations or custom fabrications from DN15 to DN2000, our engineering team can help you find the best specifications for your application. Email us at admin@jsfittings.com to talk about your project needs and get detailed quotes along with full material documentation and expert advice.

References

1. American Society of Mechanical Engineers. (2020). ASME B16.9: Factory-Made Wrought Buttwelding Fittings. New York: ASME Press.

2. ASTM International. (2021). ASTM A234/A234M Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service. West Conshohocken: ASTM International.

3. Manufacturers Standardization Society. (2019). MSS SP-75: Specification for High-Test Wrought Welding Fittings. Vienna: MSS.

4. Nayyar, M. L. (2018). Piping Handbook, 8th Edition. New York: McGraw-Hill Education.

5. Singh, R. K. & Solanki, V. S. (2017). Industrial Piping and Equipment Estimation Manual. Oxford: Gulf Professional Publishing.

6. American Society of Mechanical Engineers. (2022). ASME B31.3: Process Piping. New York: ASME Press.
