Buttweld Bend Wall Thickness: Extrados Thinning Explained

When specifying piping components for high-pressure industrial systems, understanding wall thickness distribution becomes critical to operational safety and long-term performance. A buttweld bend—a pipe fitting manufactured through induction heating or cold forming processes—redirects flow in pipelines while maintaining structural integrity. The outer curve of this bend, known as the extrados, experiences wall thickness reduction during manufacturing and operation. This thinning phenomenon directly impacts pressure ratings, corrosion resistance, and system reliability. For procurement managers and project engineers working on oil and gas transmission, power generation, or chemical processing installations, recognising how extrados thinning develops and how to control it helps prevent costly failures and supports compliance with the applicable piping and pipeline codes, such as ASME B31.3 and B31.8.

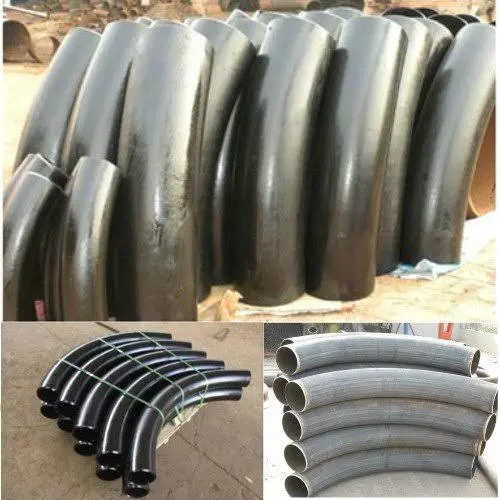

Understanding Butt Weld Bend Wall Thickness and Extrados Thinning

Distinguishing Bends from Elbows

When looking at component specs, Precise terminology is critical when specifying piping components. Longer-radius fittings are commonly referred to as pipe bends, with 3D, 5D, 6D, and 8D configurations widely used. On the other hand, elbows commonly have radii of either 1D or 1.5D. 1D radii mean short-radius elbows, and 1.5D radii mean long-radius elbows. This difference has an impact on how the flow works, how the pressure drop is calculated, and how well it works with pipeline inspection gauges (PIGs). Oil and gas transmission pipelines need large-diameter bends for better transport capacity and the ability to adapt to rough terrain. These pipelines need custom radius solutions.

What Causes Extrados Thinning?

Localised induction heating softens the steel during the induction bending process, while mechanical force forms the pipe into the shape that is needed. When there is tensile stress on the outer wall, it stretches, which makes the extrados thinner. At the same time, the inner curve (intrados) is compressed, which makes the wall thicker. This redistribution of material is a natural part of bending, but it needs to be carefully managed. Standards for manufacturing, such as ASME B16.49, say that finished bends must have enough wall thickness at the extrados to meet the minimum design requirements. To make up for the expected thinning, manufacturers often start with heavier-schedule pipes. This makes sure that the finished product can still withstand the required internal pressure.

Operational Factors Accelerating Thinning

In addition to the thinning that happens during manufacturing, operational environments also pose other risks. Over time, fluids moving quickly and carrying rough particles wear away at the extrados surface. Corrosive media, like sour gas or acidic chemical streams, are more likely to attack the thinner parts of the wall than the thicker ones. Changes in temperature cause thermal stress cycles that wear down the material. Because of these factors, the extrados can become a critical area of a piping bend and needs to be closely monitored and maintained to avoid sudden breakdowns that could cause production stoppages or safety issues.

Root Causes and Effects of Extrados Thinning on Butt Weld Bends

Manufacturing Process Variables

The extent of extrados thinning depends heavily on the precision of the induction bending operation. Controlling the temperature while heating has a direct effect on how flexible the material is. Excessive heat input can cause grain coarsening and reduce material strength, while insufficient heat increases forming resistance and causes uneven thinning patterns. The speed at which the pipe moves through the bending machine is also important; faster speeds may cause stress to build up in certain areas, while controlled speeds let the material flow evenly. Post-bend heat treatment (PBHT), when required by the material specification or applicable code, can help control the microstructure of the steel, relieve residual stresses, and achieve consistent hardness across the bend zone. Without the required heat treatment, the heat-affected zone may develop undesirable microstructural or hardness changes, which would make it less durable when hit or when the temperature drops.

Pressure Capacity Implications

In piping systems, the pressure ratings are directly related to the thickness of the walls.As the extrados thins, localized hoop stress increases under internal pressure. This creates a potential vulnerability within the piping system. According to ASME B31.3 engineering formulas, this is taken into account by setting minimum wall thickness standards that take into account manufacturing tolerances and corrosion allowances. If extrados thinning exceeds acceptable tolerances, the bend can no longer safely contain the design pressure. This is especially true during surge events or cycles of thermal expansion. This is why procurement specifications often ask manufacturers to record measurements of the post-bend wall thickness at several points along the extrados. These measurements must be checked by ultrasonic testing (UT) to make sure they match the engineering drawings.

Case Study: Offshore Platform Piping Failure

In a hypothetical high-pressure gas exit system on an offshore oil platform, a Steel Pipe Bend 3D 5D 8D could experience accelerated wall loss if manufacturing thinning is combined with erosion or corrosion during service. If the remaining wall thickness falls below the minimum required for the operating pressure, the bend may become vulnerable to failure. This example shows how important strict quality control, material traceability, and regular in-service inspection are for monitoring wall thickness throughout the asset's service life.

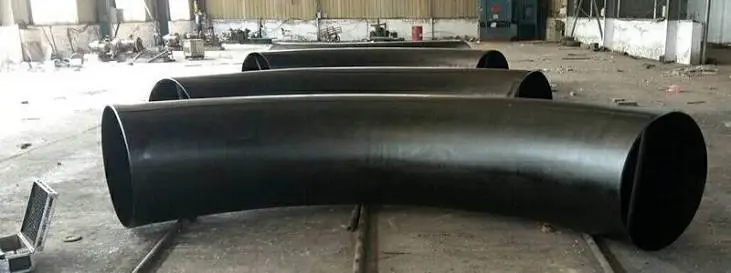

Dimension Analysis and Wall Thickness Management of Buttweld Bends

Understanding Thickness Distribution

There are three main areas where the wall thickness across a pipe bend changes: the extrados (outer curve), the intrados (inner curve), and the neutral axis (the line that runs through the middle of the inner and outer curves). The neutral axis generally experiences less wall-thickness change during bending, while the extrados gets thinner and the intrados gets thicker. The amount of thinning is determined by the bend radius. Tighter radii, like in 3D, cause more thinning than larger-radius curves, such as 8D or 10D configurations. This relationship is also affected by the nominal pipe size. When bent to the same relative radius, bigger-diameter pipes show different strain patterns than smaller sizes.

Calculating Acceptable Thinning Limits

ASME B16.49 specifies minimum wall-thickness requirements for the extrados and neutral axis and provides the design basis for the required thickness at the intrados. The original pipe schedule, bend radius, and required design pressure are all taken into account when determining these thickness requirements. Manufacturers must show that the finished bend meets these requirements through measurement records. As a general rule, procurement specs say that the wall thickness must be measured at regular intervals along the length and around the bend, paying special attention to the point where the wall is thinnest. Advanced ultrasonic thickness gauges give accurate readings, and these numbers are included in the paperwork that must be sent with every bend shipment.

Bend Angle and Radius Selection

Picking 45°, 60°, or 90° bends changes how much the material thins and how easily it can be installed. The bend radius and forming parameters have a stronger influence on wall-thickness reduction, while the bend angle affects the length of the deformed section. The choice of bend radius strikes a balance between hydraulic performance and production limitations. Longer radii lower pressure drop and make it easier for the pig to move, but they take up more room and may cost more in materials. JS FITTINGS makes bends with curves from 2D to 20D and angles from 15° to 90°. They can also make bends in configurations that fit the isometric plans of a project. Because of this, engineers can make the best pipe layouts that reduce the risk of thinning and the total cost of the system.

Comparing Buttweld Bends: Materials, Types, and Alternatives

Material Selection for Thinning Resistance

For uses that don't involve corrosion, carbon steel bends made from API 5L grades (B, X42, X52, X60, X65, and X70) are very strong for the price. The higher-grade X-series steels provide higher strength, but they generally require more careful welding procedure control during field installation. Alloy steel bends (ASTM A234 WP11, WP22, and WP91) offer good high-temperature strength and creep resistance for power plant steam systems, although long-term service above 600°C requires appropriate creep and allowable-stress evaluation. Stainless steels (ASTM A403 WP304/L, WP316/L) don't rust in chemical processes and marine settings, but they are more expensive and need to be carefully weighed against the costs of upkeep over their lifetime.

Seamless vs. Welded Pipe Bends

Seamless pipe bends have similar material properties because they don't have longitudinal weld lines. This means that you don't have to worry about where the weld seams will be when the pipe is bent. We make steel pipe bend 3D 5D 8D with diameters ranging from 1/2" to 24". These can be used in high-pressure situations where the integrity of the weld cannot be compromised. When welding bends from LSAW or HSAW pipes up to 60" in diameter, it's important to pay close attention to the direction of the seam. When bending, the longitudinal weld orientation should be controlled according to the qualified bending procedure so that excessive strain is not concentrated on the seam. To make sure they work well, both types go through the same quality control steps, such as non-destructive testing and dimensional verification.

Long Radius Bends vs. Standard Elbows

The selection between these components depends on specific application requirements. Standard elbows (1.5D radius) take up less installation space and cost less, but they create higher pressure drops and flow turbulence. Long-radius bends, especially 5D and beyond, provide smooth flow transitions that reduce erosion, minimise pumping energy requirements, and allow pig passage for pipeline maintenance. In long-distance oil and gas transmission, the operational savings from reduced pressure drop and better inspectability justify the extra material cost. We can make both types of fittings, so procurement teams can choose the best one for each piece of piping.

Procurement Insights: Buying Buttweld Bends with Optimal Wall Thickness

Evaluating Technical Specifications

To prevent supplier ambiguity and ensure the delivered bends meet engineering parameters, procurement documents must clearly specify the minimum required wall thickness at the extrados, rather than relying solely on the nominal schedule of the starting pipe. The choice of material grade must also be based on the service conditions; for example, sour gas service needs PSL2 grades with controlled sulphur content, and low-temperature applications need Charpy impact testing at design minimum temperatures. Pressure ratings should refer to the relevant piping codes (ASME B31.3 for process piping and B31.4/B31.8 for pipelines), with clear design factors and corrosion allowances stated.

Assessing Supplier Quality Capabilities

When comparing suppliers, it's important to look at more than just price. ISO 9001 certification is a good way to make sure that procedures are documented, and industry-specific qualifications, like approval by major energy companies, show that the supplier has performed well in the past. JS FITTINGS has a number of certifications, including CE, GOST-R, and qualifications from the National Iranian Oil Company (NIOC), Abu Dhabi National Oil Company (ADNOC), and Petrobras. These show that our manufacturing facilities, traceability systems, and testing capabilities have been thoroughly reviewed. Our seven-system framework includes material supply, production management, quality control, packaging, inventory, pre-shipment inspection, and after-sales service. This makes sure that the quality of all orders is consistent.

Balancing Cost and Performance

Higher wall thickness provides greater allowance for corrosion and pressure requirements, but it also costs more and takes longer to ship. The best specification balances these factors based on the severity of the service and the expected asset life. Critical applications, like subsea pipelines or high-consequence areas, should have premium specifications with more testing and documentation. Less demanding services, on the other hand, may be able to handle standard wall schedules with regular quality control. Lead time also affects supplier selection; our average monthly shipment volume of over 90 containers and on-time delivery rate of over 95% support project schedule certainty. We've been manufacturing for over 40 years and keep stock of common sizes for quick deployment while also offering custom fabrication for unique needs.

Documentation and Traceability Requirements

Complete material traceability from the steel mill to the finished bend establishes clear accountability and makes it easier to figure out what went wrong if something goes wrong in service. Mill test certificates (MTCs) record the chemical make-up and mechanical properties of the base material. Dimensional inspection reports confirm wall thickness measurements at regular intervals. Non-destructive testing records, such as ultrasonic and radiographic examinations for internal defects and magnetic particle or dye penetrant examinations for surface defects, document the required inspection results. Heat treatment charts record PBHT temperature profiles and soak times. This documentation package becomes part of the permanent project records, helping with regulatory compliance and managing the facility's assets for its entire life.

Conclusion

Extrados thinning is a natural part of a buttweld bend that needs to be carefully considered during the purchasing, installation, and operational phases. Knowing the manufacturing processes that cause thickness variations, the operational factors that speed up degradation, and the engineering standards that set acceptable limits helps you make smart decisions. Long-term system reliability depends on the material choice, the bend radius optimisation, and the quality capabilities of the supplier. With the right specifications, strict quality control, and proactive maintenance monitoring, pipe bends can provide decades of safe service in harsh industrial environments while also supporting operational efficiency and regulatory compliance across a wide range of applications.

FAQ

1. How does extrados thinning affect pipeline safety and lifespan?

Extrados thinning lowers the ability of pipe bends to contain pressure by reducing wall thickness at the point of highest stress. This makes a weak spot that can break under surge pressures or thermal expansion events. The reduced thickness also speeds up corrosion and erosion rates, which shortens service life in harsh environments. Regular ultrasonic thickness monitoring finds degradation trends before wall loss reaches critical levels, so replacements can be planned instead of emergency repairs.

2. What measurement techniques work after installation?

Ultrasonic thickness gauges can provide accurate measurements from the outside of a pipe, often without requiring system shutdown or pipe removal, depending on the inspection conditions. These devices use sound-wave reflection to measure wall thickness, although coatings or insulation may need to be removed depending on the equipment and inspection conditions. Radiographic inspection can detect certain internal volumetric defects and may be used for selected weld or component inspections. Smart pig runs in piggable pipelines collect full-thickness data along whole sections of the pipe. Permanent thickness monitoring stations at critical bends allow for continuous surveillance in high-risk situations.

3. Which materials perform best in aggressive environments?

Stainless steel grades WP316/316L are better at resisting corrosion in acidic and chloride-containing environments. Duplex stainless steel 2205 is stronger and more resistant to corrosion, making it ideal for demanding offshore applications. Alloy steel WP91 provides good high-temperature strength and creep resistance for demanding power-generation applications, subject to the applicable design temperature and allowable-stress requirements. Carbon steel with protective coatings like 3LPE, FBE, or internal epoxy is a cost-effective way to stop corrosion in less difficult situations.

Partner with a Trusted Buttweld Bend Manufacturer

Our specialised manufacturing experience of over 40 years makes JS FITTINGS the best choice for your most difficult piping projects. Our precise induction bending processes keep a close eye on extrados wall thickness, helping ensure that every buttweld bend meets the applicable minimum requirements of the relevant piping or pipeline code. We offer carbon steel, alloy steel, and stainless steel bends from DN15 to DN1500 (1/2" to 60") with radii from 2D to 20D and custom angles that match your isometric drawings. Our ISO-certified production facilities and qualifications from major energy companies guarantee consistent quality, and we deliver over 90 containers every month with an on-time delivery rate of over 95%. Contact our experienced international team at admin@jsfittings.com to talk about your needs and get a detailed quote and full technical support.
