How does SSAW compare to other pipe types?

When designing industrial pipelines, selecting the proper kind of pipe is key to staying under budget and adhering to safety regulations. SSAW carbon steel pipe, produced by a spiral submerged arc welding method, has been developed as a realistic option for large-diameter transmission projects in municipal water systems, oil and gas infrastructure, and structural piling applications. They can be more cost-effective for large-diameter applications than longitudinal welded or seamless pipes, while providing the mechanical performance required for many transmission and structural applications. Material utilization is very important for this kind of pipe when the diameter is more than 24 inches, as is production flexibility.

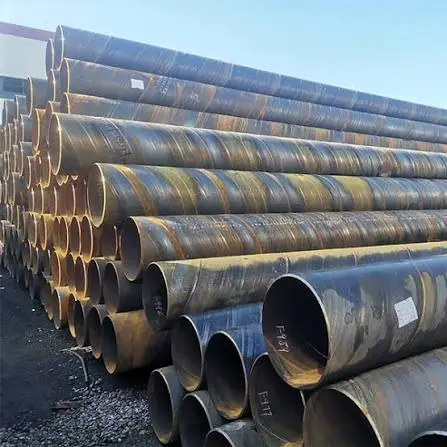

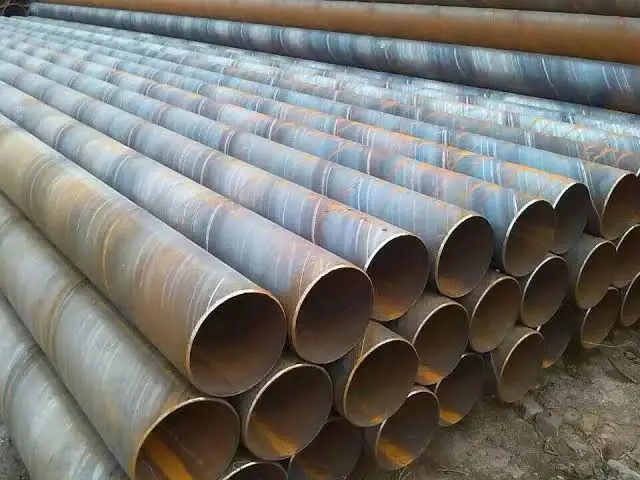

Understanding SSAW Carbon Steel Pipes

SSAW carbon steel pipe is made by rolling a hot-rolled steel strip into a helical pipe blank. The spiral seam is then welded automatically by submerged arc welding. The method of manufacture differs from pipes made from flat plates by bending or from solid billets by piercing.

Manufacturing Process and Structural Characteristics

Spiral welding enables the continuous fabrication of broader plates from narrower strips of steel, eliminating the need for longitudinal techniques and decreasing raw material waste. The helix angle of the steel strip entering the forming machine during fabrication is directly related to the ability of the pipe to withstand internal pressure and fracture propagation. The helix angle varies according to the pipe diameter, strip width, and forming parameters. Both the internal and external weld seams are welded by submerged arc welding under flux cover after formation; the welds are produced to meet the applicable mechanical and quality requirements of the specified standard. On our production line, 100% X-ray radiographic inspection of weld seams is performed to identify slag inclusions or porosity before the pipes leave the workshop.

Technical Specifications and Standards Compliance

SSAW pipe can be manufactured to the API 5L specification for line pipe and can be supplied in applicable API 5L grades such as B, X42, X52, X60, X65, X70, and X80, depending on the product specification and manufacturing requirements, with wall thicknesses ranging from 5 mm to 25.4 mm. When used as structural piling, they can be manufactured to meet ASTM A252 requirements, while ASTM A53 applies to general-purpose steel pipe applications. Capabilities range from 8 inches to 120 inches in outside diameter, serving applications where traditional pipe mills cannot cheaply manufacture equal diameters. The behavior of fracture propagation in spiral-welded pipe depends on the material properties, weld quality, pipe geometry, and operating conditions and must be evaluated against the applicable fracture-control requirements.

Primary Application Domains

Three vital infrastructure sectors are supplied by these pipelines. They are used by municipal water agencies in large-diameter transmission mains, sometimes in combination with cement-mortar lining and three-layer polyethylene coatings to provide service lifetimes of more than 50 years under corrosive soil conditions. Operators of oil and gas use API 5L-certified SSAW pipe for cross-country petroleum transmission in applicable gas and oil transmission pipeline applications where the pipe must accommodate ground movement and thermal expansion. Construction companies use ASTM A252 spiral pipes as foundation piles for bridges, wind turbine installations, and offshore platforms that work near the sea because of their high stiffness-to-weight ratio under vertical loads and lateral shear stresses.

Comparing SSAW with Other Pipe Types

Knowing how SSAW carbon steel pipe fits within the range of ERW, LSAW, and seamless options helps procurement teams marry technical needs with project costs.

SSAW vs. ERW Pipes

Electric resistance welded pipes are widely used for small- to medium-diameter utility lines from NPS 1/2 inch to 20 inches. ERW manufacturing involves passing steel coils through a series of forming rollers and welding the longitudinal edges using high-frequency induction heating. This technology is used to make tight-tolerance pipes for residential water distribution and natural gas service lines below 1,000 psi. However, ERW pipes have geometric restrictions, and the cost of manufacturing diameters larger than 24 inches becomes prohibitive owing to tooling limitations and decreasing weld quality.

Spiral-welded pipes are more scalable. The same manufacturing equipment can produce diameters from 16 to 120 inches by changing strip width and helix angle, eliminating costly die changes. Mechanical testing has shown that ERW and SSAW grades in the same range of sizes have similar tensile strength, but impact toughness at sub-zero temperatures depends on the specified steel grade, manufacturing process, weld quality, and applicable impact-testing requirements, which is important for pipelines traversing northern climates where ductile-to-brittle transition temperatures determine material selection.

SSAW vs. LSAW Pipes

Longitudinal Submerged Arc Welded (LSAW) pipes are used for high-pressure gas transportation from NPS 16 to 60 inches. LSAW manufacturing starts with flat steel plates that are formed into U- and O-shaped sections to make cylindrical forms and then welded along straight longitudinal seams by inside and outside submerged arc welding. This process delivers heavy-wall pipe with outstanding dimensional precision and weld uniformity. In comparison, API 5L SSAW welded carbon steel pipe is manufactured using a spiral welding process and is commonly selected for large-diameter pipeline applications. LSAW is commonly considered for high-pressure mainline transmission applications where heavy-wall pipe and tight dimensional control are required.

SSAW pipes are cost-efficient for moderate-pressure applications below 1,000 psi. The spiral shape distributes the hoop stress more uniformly around the circumference, leading to less local strain concentration that might cause fatigue fractures in the longitudinal welds under cyclic loading. Our cold expansion method for large-diameter spiral tubing provides roundness tolerances within 1% of the nominal diameter for field alignment during installation. On the material side, SSAW has the advantage: a 48-inch diameter pipe can be produced using a substantially narrower steel strip than the plate width required for an equivalent LSAW pipe, vs a 3,800 mm wide plate for identical LSAW dimensions, which can reduce raw material procurement requirements depending on the pipe dimensions and manufacturing process.

SSAW vs. Seamless Pipes

Seamless pipes are produced using a rotary piercing process that produces tubes with consistent wall thickness and isotropic mechanical characteristics without weld seams from solid billets. Seamless pipe is specified by pharmaceutical companies, power-generating plants, and high-pressure hydraulic systems when weld seam integrity is unacceptable, usually in diameters below 24 inches with wall schedules above XXS.

Economic and dimensional constraints restrict seamless pipe use in large-bore applications.Manufacturing seamless pipes larger than 16 inches requires specialized piercing mills, which have limited capacity and thus command a 40–60% price premium over comparable welded pipes.SSAW pipes bridge this performance gap through rigorous non-destructive testing and hydrostatic validation, confirming pressure containment capabilities comparable to seamless products for water transmission and low-pressure industrial applications.

Advantages of SSAW Pipes Over Other Types

The spiral welding technique offers practical advantages that immediately address the concerns of procurement managers about cost management, supply dependability, and long-term performance for SSAW carbon steel pipes.

Cost-Effectiveness and Production Efficiency

SSAW production can achieve high raw material utilization compared with some LSAW manufacturing configurations, depending on pipe dimensions and material preparation, which reduces scrap waste and carbon emissions per ton of completed pipe. With our continuous forming technique, we are able to customize diameters without retooling delays because we can change the helix angle and strip width to generate non-standard sizes not accessible from ERW or seamless inventory. Logistics is simplified in the case of bulk orders. Our site sends more than 90 containers per month with a 95% on-time delivery record. Projects cannot afford to have materials delayed.

This is especially true in the high-diameter ranges where the pricing benefits are multiplicative. For city water transmission, an SSAW pipe can be less expensive than an equivalent LSAW pipe in some large-diameter applications, but it has the same ASTM A53 mechanical qualities. This cost differential enables project managers to reallocate budget savings toward superior coating systems or extended pipeline routes, thus increasing infrastructure coverage within the constraints of capital outlays.

Mechanical Performance and Durability

SSAW pipes provide remarkable resistance to brittle fracture propagation owing to their spiral weld design. Laboratory investigations indicated that fracture propagation resistance depends more on the steel grade, weld properties, pipe geometry, and test conditions than on that for longitudinal faults, leading to an inherent safety margin under dynamic loading situations. Our Charpy V-Notch impact test results at -20°C are always equal to or better than the minimum criteria of API 5L X52, confirming its suitability for installations that are subject to freeze-thaw cycles.

Corrosion resistance with suitable coatings is equal to or better than that of comparable pipe types. Depending on the soil chemistry and operating temperatures, large diameter ssaw carbon steel pipe manufacturersuse fusion-bonded epoxy, 3-layer polyethylene, or coal tar enamel systems. Potable water mains are protected against tuberculation and pH variations by an internal cement mortar liner that maintains hydraulic efficiency for decades of operation. Field observations from water utilities show that well-coated SSAW pipes can achieve low corrosion rates when the coating system and cathodic protection are properly designed for the soil conditions.

Versatility and Customization Options

Spiral welding permits wall thickness modifications during a single production run, enabling the fabrication of tapered pipes for underwater crossings or transitional sections between different pipe sizes.We produce pipes ranging from DN200 to DN3000 (8 inches to 120 inches) with wall schedules ranging from STD to XXS for applications ranging from gravity-fed drainage systems to pressurized slurry transport. Grade flexibility includes carbon steel (Grades B, X42, and X52) and low-alloy compositions with superior sulphide stress cracking resistance for sour service applications.

Certification compliance is applicable to foreign markets. We have aligned our ISO 9001 quality management system with project-specific requirements under GOST, DIN, JIS, and EN standards, streamlining the sourcing process for multi-national EPC projects. We may also further customize the end preparation options: pipes can be supplied with bevelled ends for field welding, grooved ends for mechanical couplings, or flanged terminations to minimize on-site fabrication labor and reduce installation schedules.

How to Choose the Right Pipe Type for Your Project?

The selection of the best SSAW carbon steel pipe is a matter of technical performance versus economic and regulatory limitations.

Critical Decision Factors

The first selection boundary is set by the operating pressure. For projects with design pressures more than 1,400 psi, X65 or X70 grade LSAW heavy-wall pipes should be used to maintain acceptable safety factors. SSAW capabilities can be suitable for moderate-pressure applications when the pipe design, grade, wall thickness, and applicable standards meet the project requirements, especially when the diameter is over 24 inches. Spiral-welded pipe with reduced wall thickness might be used for low-pressure gravity systems below 150 psi. This would minimize the material cost without sacrificing structural adequacy.

The material grade and coating are selected according to environmental conditions. Cold temperature embrittlement is a concern for pipelines in permafrost areas. Charpy impact toughness of steel at -40°C must be assured. The exterior coatings and cathodic protection systems are required to be better for coastal installations exposed to salt water spray to compensate for the faster rate of corrosion. Internal lining options are dictated by soil chemistry data; aggressive groundwaters with pH below 6.5 need cement mortar or epoxy linings to guarantee pipe integrity for multi-decade service lives.

Diameter optimization studies are driven by budget restrictions. In water transmission systems, increasing the pipe diameter decreases the pumping energy required. This may balance the higher initial material costs with lifecycle savings. SSAW pipes provide inexpensive diameter upgrades. Going from 36-inch diameter to 48-inch diameter adds around 30% to material prices but may cut pumping expenses by 40% over a 30-year operational horizon.

Aligning Pipe Types with Applications

Pipelines carrying crude oil or natural gas should be constructed using API 5L-certified pipe with traceability and pressure test records. EPC contractors will specify LSAW pipe for high-pressure trunk lines and SSAW pipe for collection systems and secondary distribution networks where lower pressure will allow cost optimization.

Structural piling applications are covered by ASTM A252 requirements, which include three grades with specified mechanical properties. Marine contractors may specify Grade 3, which has a minimum yield strength of 50 ksi, for applications requiring higher structural strength for deep foundations for offshore platforms when lateral load resistance and drive durability are more important than the price premium over lesser grades. In stable soil conditions, bridge abutment piles are generally constructed using Grade 2, which has a minimum yield strength of 42 ksi to balance the structural capability with project costs.

Industrial manufacturing plants include process pipe systems with a variety of needs. ERW or SSAW pipe with basic external coatings is acceptable for cooling water services handling ambient temperature fluids. Alloy pipes with creep resistance are required to be seamless for the steam distribution headers operating at high temperatures. Large-diameter SSAW pipes are used in wastewater treatment facilities for clarifiers and digesters. Corrosion-resistant coatings and weld seam integrity are used to avoid environmental pollution.

Supplier Selection and Quality Assurance

By working with recognized producers, you reduce procurement risk. Suppliers must be ISO 9001 certified and have testing facilities equipped with spectroscopic analyzers for verification of chemical composition, ultrasonic equipment for non-destructive examination of welds, and hydraulic presses for flattening and bend tests. Qualified vendors provide mill test results with mechanical properties, dimensional measurements, and heat-specific chemistry for each pipe lot.

Assess manufacturing capabilities to guarantee project schedules are being met. Facilities capable of producing over 800 tons and exporting more than 50 containers monthly can reliably support major projects without delivery delays.Compare minimum order numbers with project phasing. Suppliers who provide flexible minimum order quantities may support staged construction timelines typical of infrastructure development.

Inspection processes should provide possibilities for third-party witnessing. We work with independent organizations like Bureau Veritas, Lloyd’s Register, and others to carry out pre-shipment inspections, including dimensional accuracy, surface finishing, coating thickness, and completeness of paperwork. This transparency builds confidence and fulfills owners' needs for government-sponsored projects, where accountability standards are higher than for private work.

Conclusion

Selecting between SSAW carbon steel pipes and alternative technologies depends on project-specific pressure requirements, diameter ranges, budget parameters, and compliance mandates. Spiral-welded pipes excel in large-diameter, moderate-pressure applications where cost efficiency and production flexibility outweigh the heavy-wall capabilities of LSAW alternatives. Their mechanical performance, verified through comprehensive testing protocols including 100% radiographic weld inspection and hydrostatic pressure testing, supports safe, reliable service in municipal water transmission, oil and gas gathering systems, and structural piling installations.

FAQ

1. Why are SSAW pipes preferred for large-diameter pipelines?

Spiral-welded pipes utilize narrower steel coils to form large diameters up to 120 inches, avoiding the wide plate requirements and associated costs of LSAW production. The helical seam configuration distributes stress evenly, providing crack arrest properties that enhance safety margins in moderate-pressure transmission systems while maintaining 15-25% cost advantages over longitudinal alternatives.

2. How can I verify compliance with API 5L and ASTM standards?

Request mill test reports documenting chemical composition, mechanical properties, and dimensional measurements traceable to specific heat numbers. Certified manufacturers provide third-party inspection certificates from agencies like Bureau Veritas confirming adherence to specified grades and test requirements, including hydrostatic pressure testing and non-destructive weld examination protocols.

3. Can SSAW pipes be customized for specific project requirements?

Manufacturers accommodate custom wall thicknesses, non-standard diameters, specialized coatings, and various end preparations within production capabilities. JS FITTINGS supplies pipes from DN15 to DN2000 with flexible specifications supporting unique applications, backed by engineering support to match material properties with operating conditions and regulatory compliance needs.

Partner with a Trusted SSAW Carbon Steel Pipe Manufacturer

JS FITTINGS brings 43 years of pipe manufacturing expertise to your infrastructure projects, combining ISO-certified quality systems with production capacity exceeding 30,000 tons annually. Our automatic submerged arc welding lines deliver spiral welded pipes from 8 to 120 inches in diameter, meeting API 5L, ASTM A53, and ASTM A252 specifications for applications spanning municipal water transmission, oil and gas infrastructure, and structural piling. As an approved supplier for NIOC, ADNOC, and Petrobras, we maintain rigorous testing protocols, including 100% X-ray weld inspection and hydrostatic pressure testing, to ensure reliability across demanding service environments. Our international trade team responds to inquiries within one hour, supporting procurement managers with technical guidance, competitive quotations, and delivery schedules aligned to construction timelines. Contact admin@jsfittings.com to discuss your project requirements with experienced SSAW carbon steel pipe suppliers committed to minimizing risk while optimizing lifecycle value.
