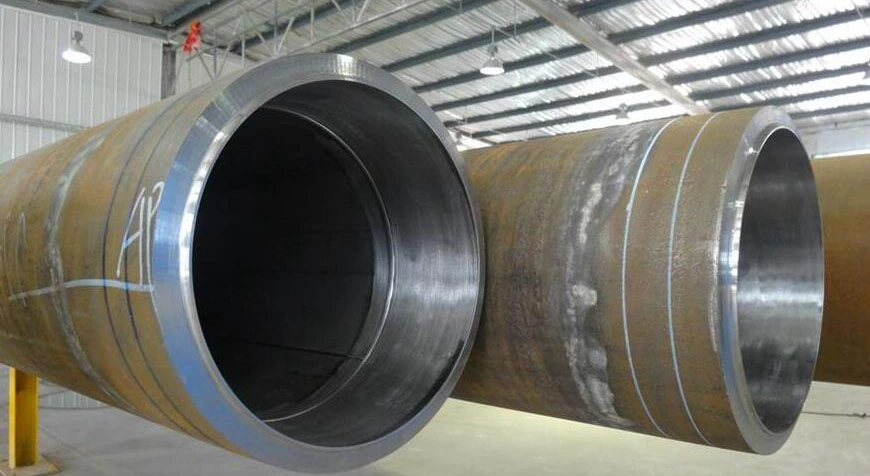

What is CRA clad pipe?

When your project involves transporting highly corrosive fluids through extreme environments, you need more than standard carbon steel. That's where CRA-clad pipe becomes essential. CRA-clad pipe (Corrosion Resistant Alloy-clad pipe) represents a bimetallic composite piping solution specifically engineered for the harshest upstream and downstream conditions. It consists of a load-bearing outer pipe made of carbon steel or low-alloy steel, metallurgically bonded to an internal corrosion-resistant alloy layer. Unlike mechanically lined alternatives, this solution features a continuous metallurgical bond between the two metals, achieved through explosive bonding, hot rolling, or weld overlay processes. Over my years working with industrial pipeline projects, I've watched countless engineers struggle with a difficult choice: invest in prohibitively expensive solid alloy pipes or accept the maintenance headaches and safety risks of carbon steel in corrosive service. CRA clad pipe elegantly solves this dilemma, and understanding its capabilities could save your project significant time, money, and operational risk.

The Critical Problems CRA Clad Pipe Solves

Industrial environments don't forgive poor material selection. The consequences range from costly downtime to catastrophic safety incidents. CRA clad pipe addresses three fundamental challenges that keep project managers awake at night.

• Cost optimisation in aggressive services stands as the primary driver for adoption. Solid Inconel 625 or duplex stainless steel pipes carry price tags that can torpedo project budgets, especially for long-distance pipelines. A 24-inch diameter pipeline running several miles in solid alloy becomes economically unfeasible. A CRA-clad pipe can often deliver significant cost reductions compared with solid alloy pipe by utilising economical carbon steel for pressure containment while maintaining a thin layer—typically a few millimetres—of expensive corrosion-resistant alloy where corrosion protection is required.
• Stress Corrosion Cracking (SCC) mitigation represents another critical advantage. In sour service environments containing high partial pressures of hydrogen sulphide (H₂S) and carbon dioxide (CO₂), standard carbon steel deteriorates rapidly. I've seen pipelines fail within months when materials weren't properly specified for sour gas conditions. The inner CRA layer provides a highly corrosion-resistant barrier against H₂S and CO₂ attack, protecting the structural backing steel from chemical degradation when properly selected for the service environment. This protection proves especially vital in offshore oil platforms and gas processing facilities where replacement costs involve not just materials but platform shutdowns and helicopter logistics.
• High-pressure structural integrity completes the value proposition. Solid CRA materials often lack the specific yield strength requirements for ultra-deepwater applications compared to high-grade API 5L X65 or X70 carbon steel. CRA-clad pipe marries the high strength of backing steel with the corrosion immunity of the internal liner. This combination allows designers to meet pressure ratings that would require impractically thick walls in solid alloy construction.

The real-world impact extends beyond technical specifications. Government infrastructure projects face strict compliance requirements and lifecycle cost scrutiny. EPC contractors operate under fixed-price contracts where material failures trigger penalty clauses. Distributors need products that won't generate customer complaints and warranty claims. A CRA-clad pipe addresses these business realities by reducing the total cost of ownership while maintaining safety and compliance standards.

Core Manufacturing Technologies and Performance Characteristics

The manufacturing process fundamentally determines the reliability of CRA clad pipe. Three primary methods exist, each with distinct advantages depending on application requirements.

• Explosive bonding creates the metallurgical bond through controlled detonation. A flat plate of corrosion-resistant alloy is positioned above a carbon steel plate with a precise gap. Explosives detonate across the surface, forcing the plates together at extreme velocity. This collision creates a wavy interface at the atomic level, forming a permanent bond. The resulting clad plate is then formed into a pipe. This method excels at bonding dissimilar metals that resist traditional welding, producing high shear bond strengths that typically meet or exceed project-specific qualification requirements. Projects requiring Inconel 625 or Incoloy 825 cladding frequently specify explosive bonding.
• Hot roll bonding suits high-volume production. Carbon steel and CRA plates are stacked, evacuated of air, sealed, then heated and rolled together under tremendous pressure. The heat and pressure create atomic diffusion between layers. This process produces exceptionally uniform bonding across large surfaces and works well for austenitic stainless steels like 316L or 304L. The resulting clad plate can be formed into pipe using standard pipe manufacturing processes such as UOE or JCOE forming, followed by welding and inspection.
• Weld overlay applies the CRA layer through automated welding processes. Multiple passes of speciality welding wire—matching the desired CRA composition—are deposited on the internal surface of carbon steel pipe. This method offers maximum flexibility for field joints and repair work. However, careful control of iron dilution from the backing steel into the weld overlay becomes critical. Excessive iron contamination degrades corrosion resistance.
• The backing material typically consists of high-yield carbon steel—ranging from API 5L X42 through X70 grades—providing the necessary pressure containment and robust mechanical strength.The internal CRA layer utilises materials selected based on the specific corrosive environment: austenitic stainless steel (316L, 304L) for moderate corrosion resistance, duplex stainless steel (2205) for chloride environments, or nickel-based alloys (Inconel 625, Incoloy 825) for severe sour service conditions.
• Metallurgical bond strength represents a critical performance metric. Shear strength requirements are specified according to applicable standards and project requirements, providing sufficient bond integrity for installation operations when properly qualified. This capability proves essential for pipeline projects requiring field bends or those installed via reel-laying vessels. Mechanically lined pipes cannot withstand such stresses; the friction-fit liner risks wrinkling or collapsing under bending loads.
• Chemical resistance performance varies by CRA material selection. Grade 316L stainless steel provides excellent resistance to most organic acids and moderate chloride concentrations. Duplex 2205 offers superior pitting and crevice corrosion resistance in seawater and high-chloride environments. Nickel alloys like Inconel 625 deliver outstanding performance against stress corrosion cracking in sour gas service and maintain stability at elevated temperatures up to 650°F.

Dimensional availability spans a wide range. Most CRA-clad pipe manufacturers supply diameters from four inches to forty-eight inches, with wall thickness combinations selected to meet pressure ratings. The CRA layer thickness commonly ranges from approximately two to five millimetres, depending on design requirements. The required thickness and expected service life are determined by corrosion assessment, operating conditions, and project specifications.

Specialised Applications and Industry Use Cases

A CRA-clad pipe serves demanding applications where failure carries severe consequences. Understanding these use cases helps procurement teams make informed material selections.

• Offshore oil and gas production represents one of the most important application sectors. Subsea flowlines transporting crude oil, natural gas, and produced water face simultaneous challenges: high pressures; corrosive fluids containing H₂S and CO₂; and seawater exposure on external surfaces. A subsea pipeline failure at water depths exceeding one thousand metres creates recovery costs measured in millions of dollars plus production losses during repairs. CRA clad pipe delivers the reliability these projects demand. The high-strength carbon steel backing withstands hydrostatic pressure, while the internal CRA layer resists fluid corrosion.
• Gas processing facilities handle streams with extreme H₂S concentrations. Sour gas containing even small percentages of H₂S attacks carbon steel through sulphide stress cracking. I've reviewed failure analysis reports where carbon steel piping showed through-wall cracking within eighteen months of startup. Replacing process piping in an operating plant involves scaffolding, hot work permits, production curtailment, and safety risks. Specifying CRA clad pipe during initial construction avoids these problems. The Inconel 625 or Incoloy 825 internal layer provides immunity to H₂S attack.
• Chemical processing plants utilise CRA-clad pipe for handling corrosive chemicals ranging from sulphuric acid to chlorinated organics. The chemical resistance of the internal CRA layer is matched to the specific process fluid. Duplex stainless steels work well for oxidising acids, while nickel alloys handle reducing acid environments. The carbon steel backing provides structural strength at a fraction of the cost of solid alloy construction.
• Desalination plants face unique corrosion challenges from high-temperature, high-salinity brine. Natural seawater typically contains approximately 35,000 ppm of chlorides, and modern desalination processes can concentrate this to a highly aggressive 70,000 ppm or more. To survive this extreme environment, deploying premium CRA-clad line pipe is absolutely essential.These conditions promote pitting corrosion and crevice corrosion in standard stainless steels. CRA-clad pipe using duplex 2205 or higher-grade stainless alloys resists these mechanisms. The technology enables larger diameter piping compared to solid alloy alternatives, improving hydraulic efficiency.
• Geothermal energy systems transport fluids containing dissolved minerals and gases at elevated temperatures. These conditions accelerate corrosion rates. CRA-clad pipe offers the thermal strength of carbon steel combined with corrosion protection tailored to the specific geothermal fluid chemistry. This application demonstrates how material engineering enables renewable energy infrastructure.

The common thread across these applications involves hostile environments where standard materials fail prematurely and where replacement carries disproportionate costs compared to initial material investment. Project developers performing lifecycle cost analysis consistently find that CRA clad pipe delivers superior economics compared to either carbon steel with corrosion allowance or solid alloy construction.

Quality Control and Inspection Requirements

Reliable performance demands rigorous quality control. Purchasers should insist on comprehensive inspection protocols aligned with API 5LD and DNV-OS-F101 standards.

• Ultrasonic testing (UT) stands as the mandatory non-destructive examination. A 100 per cent surface scan detects delamination or lack of fusion between the backing steel and CRA layer. Advanced UT techniques can map the thickness of the CRA layer and verify uniform bonding across the entire pipe surface. Any indication of debonding becomes cause for rejection. This inspection typically occurs after pipe forming but before final machining.
• Shear strength testing validates bond integrity through destructive sampling. Test coupons are cut from production pipes and subjected to tensile forces perpendicular to the bond interface. The minimum acceptable shear strength is typically 140 MPa, though many applications specify higher values. Test frequency follows API 5LD requirements: usually one test per heat treatment lot or every fifty pipes, whichever provides more frequent sampling.
• Hydrostatic pressure testing verifies leak tightness and structural integrity. Each pipe is filled with water and pressurised to a level exceeding design pressure, according to the pressure level specified by applicable standards and project requirements. The pipe is held at test pressure for a specified duration while inspectors examine for leaks, weeping, or structural deformation. This test confirms that both the backing steel and the CRA layer maintain integrity under stress.
• Positive Material Identification (PMI) ensures the internal CRA layer maintains its corrosion-resistant properties. Handheld X-ray fluorescence analysers verify the chemical composition at multiple locations around each pipe. This inspection detects excessive iron dilution from the backing steel, which is particularly important for weld overlay cladding. Specifications may control iron dilution in CRA weld overlay layers to maintain the required corrosion resistance.
• Dimensional inspection monitors wall thickness, ovality, and specifically the CRA layer thickness. Ultrasonic thickness gauges verify that the CRA layer meets minimum thickness specifications. This measurement proves critical because the CRA layer provides the corrosion allowance. Insufficient thickness reduces service life. Excessive thickness unnecessarily increases costs. Maintaining tight tolerances demonstrates manufacturing control.
• Bend testing on sample sections validates that the metallurgical bond withstands installation stresses. Test pieces are bent to specified radii without external heating. Post-bend UT examination confirms the bond remains intact without delamination. This test simulates field bending operations and provides confidence for installation planning.

These quality control measures add cost to manufacturing but deliver essential risk mitigation.

Distributors sourcing these critical components should rigorously audit the CRA-clad pipe manufacturer's quality management systems and demand comprehensive certification packages that document every inspection stage.End users should specify inspection requirements in purchase orders and consider third-party inspection for critical applications.

Conclusion

CRA clad pipe delivers an elegant engineering solution to one of industry's most persistent challenges: providing cost-effective corrosion protection in extreme service conditions. The technology combines carbon steel's structural strength and affordability with specialised alloys' chemical resistance, creating a composite material that outperforms either component alone. Applications ranging from subsea oil production to chemical processing demonstrate the versatility and reliability that have made CRA clad pipe the preferred choice for demanding environments. Proper material selection, manufacturing quality, and installation practices ensure decades of safe, reliable service while significantly reducing the total cost of ownership compared to alternative approaches.

FAQ

1. What is the primary difference between clad pipe and lined pipe?

The bonding mechanism creates the fundamental distinction. Clad pipe features a metallurgical bond—actual atomic fusion between the CRA layer and backing steel—suitable for dynamic stress environments and reel-laying installation methods. Lined pipe uses mechanical bonding through friction or shrink-fitting, appropriate only for static, straight-line applications. Lined pipe risks liner wrinkling or collapse under bending stress, thermal cycling, or rapid depressurisation. A clad pipe maintains bond integrity throughout the installation and operational lifecycle.

2. Can CRA clad pipe be welded using standard carbon steel procedures?

No, specialised procedures are mandatory. Standard carbon steel welding creates joints without corrosion protection at the internal surface. Proper procedures require the root pass to use filler metal matching the CRA layer composition—Inconel 625 filler for Inconel 625 clad pipe, for example. This maintains corrosion resistance continuity across joints. Subsequent fill passes use standard carbon steel fillers. Welders must qualify specifically for clad pipe welding, and procedures require testing to verify chemical composition and corrosion resistance.

3. How does CRA-clad pipe cost compare to solid-alloy pipe?

CRA-clad pipe typically costs thirty to fifty per cent less than equivalent solid-alloy pipe. Savings increase with larger diameters and higher pressure ratings where solid alloy wall thickness becomes prohibitively expensive. The economic advantage stems from using affordable carbon steel for structural strength while limiting expensive CRA material to a thin internal layer, providing corrosion protection. Lifecycle cost analysis shows even greater savings by eliminating the maintenance, inspection, and replacement expenses associated with carbon steel corrosion.

4. What service life can be expected from CRA clad pipe?

Design life is determined by project requirements and operating conditions, with many pipeline systems designed for several decades of service, depending on CRA layer thickness and service conditions. The three-millimetre CRA layer standard in most specifications provides adequate corrosion allowance for three decades in sour gas or seawater service. Actual service life depends on fluid corrosivity, temperature, flow velocity, and proper material selection for the specific environment. Projects requiring extended service life can specify thicker CRA layers. The metallurgical bond does not degrade over time, maintaining protection throughout the operational period.

Why Should JS FITTINGS Be Your CRA-Clad Pipe Supplier?

Selecting the right CRA clad pipe manufacturer impacts project success far beyond initial purchase price. JS Fittings brings over four decades of specialised manufacturing experience—since 1983—to your most demanding pipeline challenges. Our comprehensive quality management systems hold certifications from PETROBRAS, NIOC, and ADNOC, reflecting our qualification as a trusted supplier for major energy companies worldwide.

Our technical capabilities span the complete range of corrosion-resistant alloy pipe requirements. Utilizing advanced explosive bonding and precision weld overlay processes, we manufacture premium CRA clad line pipe that strictly complies with API 5LD, relevant ASTM base material specifications, and the rigorous DNV-OS-F101 submarine pipeline standards. Our quality control laboratory features spectral analysers, ultrasonic testing equipment, and hydraulic testing systems, ensuring every pipe meets specifications before shipment. With production capacity exceeding thirty thousand tonnes annually and monthly shipments of ninety-plus containers, we maintain inventory depth that supports your project schedules without the extended lead times that plague smaller suppliers.

What distinguishes JS FITTINGS is our commitment to technical partnership. Our engineering team responds to inquiries within one hour, working collaboratively to develop piping solutions optimised for your specific application. Whether your project requires Inconel 625 cladding for sour gas service or Duplex 2205 for seawater applications, we provide expert material selection guidance backed by decades of field performance data. Our on-time delivery rate exceeds ninety-five per cent, and our customer repurchase rate of above ninety-eight per cent demonstrates the reliability that keeps clients returning. Contact our team at admin@jsfittings.com to discuss how our CRA clad pipe solutions can reduce your project risk while controlling costs.

References

1. American Petroleum Institute. "API Specification 5LD: Specification for CRA Clad or Lined Steel Pipe." Fourth Edition, 2019.

2. Gullev, T., and Nielsen, K. "Corrosion Resistant Alloy Clad Bimetallic Pipe - Manufacturing Technology and Qualification." NACE International Corrosion Conference Proceedings, 2016.

3. Det Norske Veritas. "DNV-OS-F101: Submarine Pipeline Systems - Offshore Standard." Section on CRA Clad and Lined Pipe Requirements, 2021 Edition.

4. Song, F., Jiang, Z., and Li, X. "Manufacturing Processes for Corrosion-Resistant Alloy Clad Steel Pipes: A Comprehensive Review." Journal of Materials Processing Technology, Volume 242, 2017.

5. ASTM International. ASTM A333/A333M: Standard Specification for Seamless and Welded Steel Pipe for Low-Temperature Service.

6. Pinho, I., and Santos, R. "Long-Term Performance Evaluation of CRA Clad Pipelines in Offshore Sour Service Applications." Materials and Corrosion Engineering, Volume 68, Issue 9, 2018.
