The Dance of Spiral Forming: How SSAW Steel Pipes Are Made

The spiral forming process transforms hot-rolled steel coils into robust SSAW carbon steel pipe through a continuous helical welding technique. Unlike traditional longitudinal or seamless methods, this innovative approach wraps steel strips at a calculated helix angle before applying submerged arc welding along the seam. The resulting pipe combines cost efficiency with impressive dimensional flexibility, producing diameters from NPS 8" to 120". This manufacturing process balances speed with precision, enabling manufacturers to meet growing infrastructure demands while maintaining structural integrity for medium-to-low pressure applications across water transmission, piling projects, and oil transport networks.

Understanding SSAW Carbon Steel Pipes: Properties and Applications

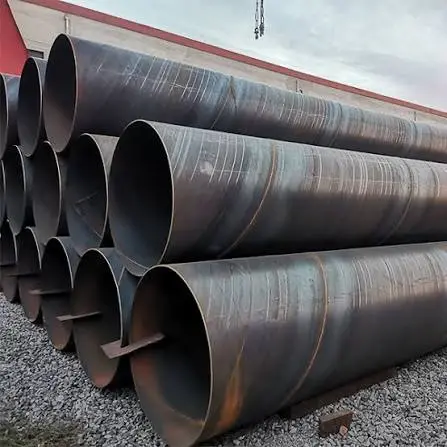

What Is SSAW Carbon Steel Pipe?

When it comes to large-diameter infrastructure projects, spiral submerged arc welding is a unique manufacturing method. Instead of wide steel plates, narrow hot-rolled coils are used in this method of production, which cuts down on material waste by about 15 to 20 per cent compared to longitudinal processes. This engineering method solves a major problem in the industry: it allows manufacturers to produce large-diameter pipes without investing in expensive plate-rolling equipment. The spiral seam layout spreads stress more evenly across the SSAW carbon steel pipe wall, allowing engineers to consider it for projects where controlled flexibility and appropriate pipeline design are required. This is an important property for long-distance transmission lines that go through earthquake zones or shaky terrain.

Key Material Properties and Standards

When procurement teams understand the technical specifications, they can better match pipe types to project requirements. API 5L standards are used to make SSAW carbon steel pipes that range from Grade B (popular for city water systems) to high-strength X80 (suitable for transporting oil in demanding conditions). To keep the weldability, the chemical composition is tightly controlled to the requirements of the specified API 5L PSL2 grade. The walls can be as thin as 5 mm or as thick as 25.4 mm, depending on the required pressure rating and application conditions.

There are clear engineering benefits to the spiral weld seam over the straight longitudinal seam. Pipeline safety studies show that helical seams are better at stopping cracks because if a crack starts, it moves along the spiral path instead of racing along the length of the seam, giving leak detection systems more time to work. In similar stressful situations, this trait may help distribute stresses differently and improve resistance to certain loading conditions when properly designed and manufactured.

Versatile Application Scenarios

SSAW carbon steel pipes are used in three main industries because their special features make them useful:

• Onshore oil and gas transmission networks rely on these lines to move oil and natural gas across the country. The pipe can handle ground movement and temperature changes without breaking at the joints, which is useful for projects that span several hundred kilometres. The spiral shape bends a little when it's loaded, taking on terrain-related stress that would compromise more rigid straight-seam options.
• Structural foundation piling uses pipes that meet ASTM A252 standards to hold up bridges, offshore wind farms, and marine bases. Because these hollow cylinders are very stiff for their weight, they can hold huge vertical loads—depending on diameter, length, soil conditions, and project-specific design requirements—while also fighting horizontal shear forces from things like earthquakes or currents in the tides. Engineers like the consistent sizes because ovality tolerances of less than 1% make driving easier in tough soil conditions.
• Municipal water supply and district heating systems in cities use large SSAW lines with an outer diameter of 600mm to 2400mm. Internal cement mortar lining (CML) is often used to stop tuberculation, and exterior three-layer polyethylene (3LPE) coatings are used to stop corrosion on the external soil side. Combined protective measures can help achieve service lives exceeding 50 years under properly designed and maintained conditions in harsh underground settings. Compared to carbon steel that isn't protected, lifetime replacement costs are 40% lower.

Our work with over 30 countries shows how choosing the right materials can affect the results of a project. A 2019 city water project in South America called for X52 grade pipe with a 3LPE coating. The pipes have been in use nonstop for four years and have never leaked, and they have kept their flow efficiency above the design limits.

The Spiral Forming Manufacturing Process Explained

Evolution from Traditional Pipe-Making Methods

Traditional seamless pipemaking uses rotating mills to penetrate solid billets.This procedure is energy-intensive and is typically limited to smaller diameters due to tooling constraints. Electric Resistance Welded (ERW) pipes work for NPS 1/2" to 20" utility lines but lose wall thickness as they grow. LSAW pipes can bear high pressure (NPS 16" to 60"); however, they need expensive steel plates and waste a lot when cut.

Spiral shaping made large projects cheaper. Continuous coil feed removes plate width-based diameter limits. From 1500 mm-wide coils, some industrial spiral pipe machines can produce diameters approaching 3000 mm. This allows project designers greater alternatives without specific steel mill runs.

Step-by-Step Spiral Forming Process

The production process begins with hot-rolled coil preparation. Optical emission spectroscopy (OES) verifies the API 5L chemical composition of arriving steel, a critical quality control step followed by reputable API 5L SAW-welded carbon steel pipe manufacturers to ensure material compliance. Edge milling removes rust and ensures strip thickness is consistent, which helps maintain the helix form. The ready coil is entered into an uncoiler with tension control devices to maintain material feed rate within ±2 mm/second.

Rollers steadily bend the strip into a cylinder while spiralling it. The forming angle is commonly 55° to 75°, depending on the diameter-to-thickness ratio. Computer-controlled hydraulic modifications line the edges and retain the welding gap between 1.5 and 2.5 mm for weldability. This automatic precision eliminates misalignment issues in prior SSAW carbon steel pipe systems that required manual adjustment.

Inner and outer seams are typically welded using submerged arc welding processes.Powdered flux protects the weld area from atmospheric contamination and facilitates clean fusion.Full-penetration bonding requires 800–1200 amps of welding current levels sufficient to create the required arc temperature for proper fusion. Weld metal is slightly elevated above the underlying material. After grinding, the metal is flush with the pipe.

Post-weld heat treatment removes forming and welding tensions.After passing through 600–650°C induction heating coils, the pipes undergo controlled cooling.In sour service situations with H₂S, this heating cycle increases material flexibility and reduces cracking risk.

Quality control is embedded into every manufacturing stage. Automated ultrasonic testing (UT) checks the weld for unacceptable internal discontinuities according to the applicable inspection standard. In X-ray radiographic inspection, weld seams are examined for internal defects such as porosity or inclusions. Each pipe undergoes hydrostatic testing, performed according to the applicable API 5L requirements and specified test pressure calculations. Pressure is kept for 5–10 seconds to ensure confinement integrity.

Using laser measuring instruments, dimensional testing checks for ovality (<1%), wall thickness consistency according to the tolerance requirements of the applicable specification, and straightness variation (<0.2% of length). These geometric tests ensure that pipes operate together in the field since deformed pipes must be altered or rejected, which is costly.

Advantages and Operational Scope

Spiral forming works well for medium-pressure transmission applications where design requirements allow spiral welded pipe. This technology can offer higher production efficiency than LSAW for many large-diameter applications. Steel costs can decrease when material utilisation is optimised through continuous coil production. Due to coil inventories, companies don't need plate mill schedules, reducing lead times.

However, the procedure has restrictions. Spiral welds need tougher testing since stress analysis is more sophisticated than straight seams. High pressure values are still too low for LSAW because of the seam orientation. In thick-wall applications requiring API 5L X70 or above, LSAW is generally requested for pressure safety.

Comparing SSAW Pipes with Alternative Pipe Types

Welded Piping Solutions Across Applications

Choosing what kind of pipe to buy depends on how well it will work in the service conditions. Three welded technologies control the supply chain for industry:

• ERW pipes are widely used for small- to medium-diameter applications, although larger sizes are also available. With electric resistance welding, normal wall schedules can be made quickly and cheaply. This makes it a good choice for building services, fire protection systems, and distribution networks that work with less than 600 PSI. Use is limited in primary transmission applications because the diameter range is small and the walls can't be very thick.
• LSAW pipes with thick walls are the best choice for high-pressure gas mains (NPS 16" to 60"). The longitudinal seam orientation allows the pipe to effectively withstand hoop stress when properly manufactured and tested, which makes it more difficult for pipes in compressor stations and offshore platforms to burst. Cold-expansion processes make sure that the outer diameter is within ±0.8 mm of perfection, which makes field welding easier. The higher prices are due to the higher cost of the plates and the lower output rate.
• SSAW pipes offer a cost-effective solution for transporting water and low-pressure gases (8" to 120" NPS) through large-diameter SSAW carbon steel pipes. The spiral method strikes a balance between structural soundness and cost-effectiveness, which makes it perfect for city infrastructure and Class 1 pipeline routes. Even though the pressure rates are lower than what is required by LSAW, the value argument gets stronger as the diameter goes above 800mm.

Performance and Cost Analysis

Comparing structural durability shows benefits that are specific to certain uses. LSAW pipes are better at resisting wear in cyclic pressure settings. Because the seams are oriented longitudinally, compressor discharge lines last 10-15% longer. When loaded from the side, SSAW carbon steel pipes are more resistant to pressure, which is why experienced large diameter SSAW carbon steel pipe manufacturers focus on optimising spiral seam quality and production processes to improve overall performance. These pipes can also absorb ground movement energy that would cause cracks to spread in straight-seam pipes.

Corrosion performance is mostly determined by the type of base material and protection layers, not by how the part was made. LSAW and SSAW carbon steel pipes can both use fusion-bonded epoxy (FBE), polythene, or cement mortar linings just as well. When the seams are protected by the same type of coating, there is no statistically significant difference in the rate of external corrosion in soil environments.

Lead time considerations affect project scheduling. When compared to LSAW orders, which need custom plate specs, SSAW makers usually keep a wider range of diameters in stock, which shortens the time it takes to get them by 3–4 weeks. This advantage of availability helps contractors meet tight deadlines for building projects without lowering the quality of the materials.

Cost structures diverge significantly with diameter escalation. ERW pipes with a diameter of less than 400 mm have the lowest unit price. When it comes to pressure needs, LSAW and SSAW are very close competitors between 400mm and 800mm. When the diameter is above 800 mm, SSAW can provide cost advantages for many large-diameter applications compared to other types of steel while still having good enough mechanical qualities for Class 1 and Class 2 transmission projects. For a recent 1200 mm water pipeline project, SSAW prices were $1,850 per tonne, while LSAW prices for similar X42 grade material were over $2,400 per tonne.

Selection Guidance for Procurement Teams

Selecting the optimal pipe type requires evaluating six key factors:

• Operating pressure sets the standard. For uses above 1200 PSI, LSAW or seamless options are usually required. SSAW is still competitive below 900 PSI, where safety factors take into account the effects of spiral seam direction.
• Diameter requirements favour SSAW beyond 600 mm where production efficiency and material utilisation offset any marginal strength reductions. Plate width limits in LSAW processes mean that diameters bigger than 1500mm almost always need spiral technology.
• Wall thickness impacts weldability and forming precision. SSAW handles up to 25.4mm walls effectively, covering most transmission requirements. For better through-thickness qualities, walls that are thicker than 30 mm might need LSAW.
• Material grade selection balances strength against weldability. Standard grades X42 and X52 work really well in a spiral shape. Higher grades (X60–X70) need more complex welding methods and heat treatment after the weld to achieve the desired mechanical properties. This makes SSAW's cost advantage a little less clear.
• Project timeline often dictates specification changes. When delivery windows get smaller because of delays in getting permits or bad weather at certain times of the year, SSAW's fast production processes and wide range of inventory keep project delays from becoming too expensive.
• Total installed cost integrates material pricing, freight logistics, field joining labour, and inspection requirements. Because SSAW can offer material and production advantages depending on diameter, wall thickness, and project requirements, it costs less to transport and handle. Longer mill lengths (up to 18 metres vs. 12 metres for LSAW standards) mean fewer field joints. On linear projects, this means 25–30% fewer welding work hours.

At JS FITTINGS, our expert team helps customers come up with specifications by looking at the details of the project and suggesting the best pipe types. Our stock includes ERW, LSAW, and SSAW goods from NPS 1/2" to NPS 120", meeting a wide range of infrastructure needs with the same high quality in all production methods.

Conclusion

The spiral forming process represents proven technology balancing production efficiency with structural performance for large-diameter pipeline projects. SSAW carbon steel pipe is a cost-effective way to solve problems in city water systems, structural piling, and Class 1-3 oil transportation networks, where its special properties help engineers solve real-world problems. To be successful at procurement, you need to know what the material requirements are, look at the manufacturing quality processes, and work with sellers who can consistently show they can deliver. This article gives decision-makers the technical information they need to choose the right pipe types, negotiate well with manufacturers, and set up quality control protocols that protect project investments.

FAQ

1. What advantages do SSAW pipes offer compared to seamless pipes?

When it comes to big-diameter uses, SSAW carbon steel pipes are more cost-effective than seamless options. They usually cost 35–40% less than seamless options above 400mm diameter. It is possible to make pipes with a diameter of up to 3000 mm, which is much larger than the practical limit of 660 mm for seamless pipes. When compared to catastrophic failures in seamless pipe, the spiral seam design can influence crack propagation behaviour and slow the spread of fractures. Due to automatic forming controls, dimensional accuracy stays high, and ovality stays below 1% throughout production runs.

2. How does corrosion resistance perform in underground installations?

Corrosion performance is mostly determined by the protective coating systems used, not the method of fabrication. All common finishes, like 3LPE, FBE, and cement mortar, stick to and work just as well on SSAW carbon steel pipes as they do on LSAW or seamless pipes. When the same coating methods are used to protect the surface, field studies that measure the rate of corrosion on the soil side of pipes show no statistically significant differences between the types of pipes. Long-term durability depends on how the surface is prepared (Sa 2.5 blast cleaning) and how the coating is applied. In harsh underground settings, properly coated SSAW pipes can last more than 50 years.

3. Can SSAW pipes be customised for specific project requirements?

Customisation choices include non-standard diameters between size steps, different wall thicknesses, manufacturing of cut-to-length pieces, custom coating systems, and marking methods that are unique to each customer. Manufacturing flexibility lets the diameter be changed within ±5mm of the requested size by changing the forming angle. Changes in wall thickness allow for structural estimates that need plans that are in the middle of standard requirements. Lead times are 3–4 weeks longer than for in-stock items, so early coordination is needed during project planning to keep building plans on track without having to pay extra for a rush job.

Partner With JS FITTINGS for Your SSAW Carbon Steel Pipe Needs

JS FITTINGS has been manufacturing premium piping solutions for 43 years and can help you with your infrastructure projects by providing a wide range of SSAW carbon steel pipe products and piping solutions that work together. Our quality management system has been approved by PETROBRAS, NIOC, and ADNOC, as well as ISO 9001. This proves that we can meet the needs of difficult energy sector uses. We keep a ready supply of SSAW pipes with diameters from 8" to 120" that meet API 5L, ASTM A53, and ASTM A252 standards. All of our tubes are 100% X-ray welded and tested for strength and water resistance. As a reliable supplier, we respond to quotes within hours, offer customisation from DN15 to DN2000, and have a 98% customer repurchase rate, which shows how committed we are to quality and personalisation. Our expert team at admin@jsfittings.com is here to talk about the details of your project and get personalised suggestions on how to improve speed while keeping costs low.

References

1. American Petroleum Institute. "Specification for Line Pipe: API 5L 46th Edition." API Publishing Services, 2018.

2. ASTM International. "Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless: ASTM A53/A53M-20." ASTM Technical Publications, 2020.

3. Det Norske Veritas. "Submarine Pipeline Systems: DNV-ST-F101 Standard." DNV GL Group, 2021.

4. Mohitpour, M., Golshan, H., and Murray, A. "Pipeline Design and Construction: A Practical Approach, Third Edition." ASME Press, 2007.

5. Pipeline Research Council International. "Spiral Weld Pipe Performance Assessment and Applications in High Pressure Service." PRCI Catalogue Report L52292e, 2015.

6. Xie, M., Tian, Z., and Zhou, J. "Structural Integrity Assessment of SSAW Pipes Under Combined Loading Conditions." International Journal of Pressure Vessels and Piping, Volume 198, 2022.
