How to Select the Right Blind Flange for Your Pipeline?

Selecting the right pipeline termination component involves understanding the functional purpose, mechanical stress distribution, and material compatibility of your sealing solution. A Blind Flange is a solid disk without a central bore, engineered to terminate piping runs, isolate sections during maintenance, and withstand internal pressure thrust. Unlike through-bore connection types, it absorbs bending moments at its center, requiring precise material selection, pressure class matching, and facing type compatibility. Proper selection minimizes lifecycle costs, reduces unplanned downtime, and ensures compliance with international piping codes, making it a critical decision for EPC contractors, distributors, and industrial end-users managing complex pipeline infrastructure.

Understanding Blind Flanges – Definition and Key Features

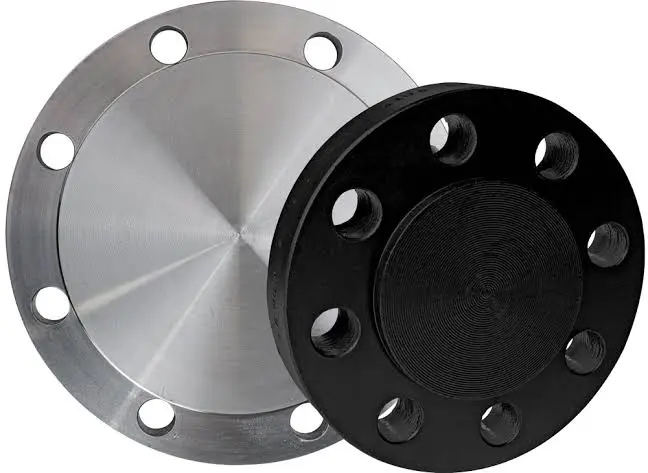

What Exactly Is a Blind Flange?

Blind flanges are solid discs used to terminate or isolate pipe systems, valves, and pressure tanks per ASME B16.5 and B16.47. The center boreless design separates it from slip-on and weld-neck versions. This is ideal for dead-end applications that must block flow. Open pipeline ends are converted into safe, pressure-containing walls so maintenance people may access them without welding.

According to structural engineering, the blind flange experiences its highest bending stresses toward the center, where pressure causes huge bending moments. Seal integrity requires appropriate bolt loading across the gasket seating area. These two stress types need wider discs than through-bore flanges at the same pressure.

Common Confusion: Blind Flange vs. Blank Flange

Despite technical differences, many procurement teams use "blind" and "blank" interchangeably. Blind flanges are permanent pressure-containing flanges, whereas "spade" and other line blanks are isolation plates installed between flange pairs. The gasket seating surface and bolt holes are precision-machined on the blind flange. A spade may be a temporary steel disc used during construction. Know this language to avoid buying mistakes.

Types of Blind Flanges and Their Applications

Manufacturing and connection methods result in different types of blind flanges. For high-pressure refineries, hot-working steel billets provides forged blind flanges with improved grain structure and mechanical qualities. Cast blind flanges provide a highly cost-effective solution for connecting larger pipes in low-stress municipal water systems.While both serve to arrest fluid flow, their specific applications diverge significantly.

The type of sealing influences the facing. In low-pressure water delivery, flat face (FF) systems evenly distribute gasket stress. In moderate-pressure situations, raised face (RF) variations concentrate sealing force in a smaller annular ring, enhancing leak resistance. Elastomeric gaskets may not be suitable for some petroleum process temperatures and pressures, whereas metal ring gaskets on Ring Type Joint (RTJ) facings may be .

Core Selection Criteria for Blind Flanges

Material Selection: Matching Corrosion Resistance to Process Conditions

Carbon steel remains the predominant choice for general industrial applications due to its optimal balance of mechanical strength and cost-effectiveness. ASTM A105 forged carbon steel can handle temperatures from -29°C to 427°C, which means it can be used in most power plants and refineries. If corrosive media are present, you need stainless steel grades. Type 316/316L stainless steel can handle acidic condensates in chemical processing and doesn't react with chloride in marine environments.

Alloy steels can handle wide ranges of temperatures better than carbon steel can. Chrome-moly alloys ASTM A182 F11 and F22 keep their creep resistance at high temperatures, which is important for power plant high-pressure steam systems. Even though they are more expensive, corrosion-resistant alloys such as Inconel 625 and Hastelloy C276 can address severe corrosion challenges in offshore underwater pipelines and harsh chemical reactors. The choice of material has a direct effect on the total cost of ownership because it balances the initial investment against the frequency of maintenance and the length of time the equipment lasts.

Pressure Ratings and Dimensional Standards

The allowable working pressure is determined by the pressure-temperature rating, material, and applicable standard. ASME B16.5 lists seven standard classes: 150, 300, 400, 600, 900, 1500, and 2500. Each class designation corresponds to a pressure-temperature rating that depends on the material group and service temperature. At 38°C, the allowable pressure for a Class 150 blind flange depends on the applicable material group, while the allowable pressure decreases as the service temperature increases (American Petroleum Institute, 2019).

Differences among international dimensional standards can make component interchangeability more difficult,so extreme diligence is required during global procurement. In North America, projects use ASME/ANSI dimensions; in Europe, installations use DIN standards; and in Japan, engineering is governed by JIS specifications. Comparing blind flange dimensions is essential because a DN100 PN16 blind flange according to DIN 2527 has a different bolt circle width and thickness than a 4-inch Class 150 ASME flange, even though they may have broadly comparable pressure-rating applications under specific conditions. By choosing the right standard, you can avoid costly mistakes in the field and delays in the project.

The sizes range from DN15 (1/2 inch) for instrument connections to DN2000 (80 inches) for water transfer mains with a large diameter. For larger sizes, fabrication from plate stock can be a practical manufacturing option instead of forging. This changes wait times and cost structures. To give an accurate size specification, you need to know the outside diameter of the pipe, not just its nominal size. This is especially important when working with wall schedules that aren't standard.

Surface Finish and Gasket Compatibility

For sealing to work, the gasket seating surface needs to have a certain finish. Non-metallic gaskets can grip the flange face and keep it from blowing out with the help of circular or spiral lines that make serrated or phonographic finishes. For rubber gaskets, the surface roughness usually falls between 125 and 250 microinches Ra. This is the right amount of roughness to get a good grip without breaking the gasket too much.

If the finish is smooth, between 32 and 63 microinches Ra, it works well with PTFE or graphite composite seals in chemical service. Any cuts, scratches, or corrosion pits that go through these grooves make leak paths that weaken the seal. During the receiving inspection process, flanges that have obvious grinding damage should be thrown away because remediating surface defects often exceeds the cost of a replacement flange. Proper surface finish matching to gasket type stops seals from failing too soon and prevents maintenance shutdowns that weren't planned.

Comparative Analysis — Choosing the Best Blind Flange Type for Your Pipeline

Blind Flanges vs. Alternative Termination Methods

When compared to blind flanges, welded caps offer permanent pipeline termination at a lower cost of materials. They also block future access without cutting. Blind flanges make infrastructure "future-ready" during the initial construction phase, like municipal water branches that serve land that hasn't been built on yet. Years later, to extend the service life, removing the blind flange only takes unbolting, which protects the original pipe end without the need for welding fixes that create heat-affected zones that need to be treated after the welding is done.

The separation and flow-through features of spectacle blinds are combined in a single part that looks like glasses. When you turn the spectacle 180 degrees, it goes from being open to being closed. This is useful for seasonal work or regular maintenance cycles. The spectacle takes up more axial room and costs around 40% more than separate blind flanges that do the same job. This is only necessary when operating freedom is greater than the initial investment. Discrete blind flanges or spectacle assemblies should be chosen based on the switching frequency and the amount of pipeline clearance that is available.

Plate Flanges: The Budget-Conscious Alternative

A plate flange, which is also called a slip-on plate flange, is a flat, round disk that fits over the end of the pipe and is joined by two fillet welds. This low-profile geometry, as opposed to raised hub designs, makes it the most cost-effective choice for low-pressure situations where bending stress is low. As outlined in JS FITTINGS technical specifications, when manufacturing plate flanges, we make sure that the two mating faces remain properly aligned so that the gasket doesn't get compressed unevenly when the bolt is tightened.

When compared to weld neck flanges, which need to be precisely beveled, the slip-on fitting method requires a lot less work in the field. The flange can freely spin on the pipe before welding, which makes it easy to line up the bolt holes. This cuts the time needed for onsite fit-up by almost 50%. Double filet welding, both inside and outside the bore, can provide suitable strength for systems within the applicable pressure rating of the selected flange standard and keep water from getting into the joint between the pipe and flange.

Our plate flanges are compatible with many international standards, such as EN 1092-1 Type 01, DIN 2573, BS 4504, and ASME B16.5. This makes them useful for a wide range of projects around the world, including applications that may require a blind flange ASME B16.5 for closing or isolating a pipe section. The size range is from DN15 to DN2000, so it can be used for everything from small-bore instrument connections to large-diameter water transfer lines. Surface treatments, like hot-dip galvanizing or epoxy coating, keep things from rusting in raw water and in the elements, which is common for irrigation and city infrastructure.

Plate flanges are very good at saving space, which is useful in piping layouts that are already crowded because the longer hub length of weld neck flanges would get in the way of nearby equipment. This space-saving advantage is useful for small mechanical rooms, skid-mounted process packages, and retrofit installs in buildings that are already there. We can change the bore widths to fit non-standard pipe outside diameters. This is especially helpful for repair work that needs to use old pipe specs or for making special tanks where standard sizes don't apply.

Plate flanges are great for water treatment plants, irrigation systems, and low-pressure industrial cooling lines that need secure connections but don't want to pay the higher price of forged hub flanges. Cutting down on machining time directly leads to lower prices per unit, which is especially clear in large-diameter uses. When used in non-critical situations, a DN600 plate flange works just as well as a similar weld neck flange while costing about 35% less.

When choosing plate flanges, you must pay attention to the pressure rating limits. Unlike weld neck designs, this one has a lower maximum service pressure because it doesn't have a reinforcing hub. Plate flanges are generally best suited to lower-pressure applications, with the allowable pressure determined by the applicable flange standard, material, size, and temperature, so that there are enough safety margins. If the pressure or temperature changes a lot, you should think about hubbed flange types because they can handle stress loading and creep deformation better over a longer service life.

Forged vs. Cast Blind Flanges: Strength and Durability Trade-offs

When steel is forged, the grain structure is aligned along stress lines. This gives the steel better dynamic qualities than when it is cast. Forged blind flanges have 15-20% higher tensile strength and much better impact resistance, which is very important for high-pressure refining turnarounds that involve quick depressurization cycles. Proper casting controls can help minimize internal defects that could contribute to crack initiation, which makes the product more reliable in the long run.

Cast blind flanges are used for low-pressure, large-diameter jobs where a forging press doesn't have enough power. For DN1200 and larger sizes, casting can be a cost-effective manufacturing option when the required dimensions and service conditions permit, even if it means giving up some mechanical properties. When you use investment casting, you can get near-net forms that reduce the amount of waste that comes from machining. This lowers the cost of making small numbers. Engineers can select the appropriate manufacturing method by using forged parts when the extra strength is worth it because of stress, and cast parts when size or cost is more important.

Stainless Steel vs. Carbon Steel: Balancing Performance and Cost

Blind flanges made of stainless steel can cost significantly more than those made of carbon steel, depending on the grade, size, pressure class, and market conditions. This price difference is only reasonable when corrosion resistance or cleanliness requirements call for it. Food processing plants, drug factories, and chemical plants that work with corrosive media get their money back by getting a longer service life and lower contamination risk. While carbon steel may require earlier replacement or more frequent maintenance in aggressive environments despite protective coatings, a 316L stainless blind flange can provide substantially longer service under suitable saltwater conditions.

For hydrocarbon service, carbon steel is most common because it can provide adequate performance under many hydrocarbon service conditions, while coatings on the outside can provide additional environmental protection. During turnarounds, refineries and petrochemical companies use thousands of carbon steel blind flanges every year. Facilities typically stock Class 150 through Class 600 in popular sizes to support turnaround requirements. The cost advantage of carbon steel enables the maintenance of larger inventories without tying up excessive working capital in idle assets. Instead of just comparing the initial purchase price, procurement strategies should look at the total cost of ownership, which includes how often maintenance needs to be done.

Conclusion

Choice of pipeline termination depends on pressure, material compatibility, dimensions, and future maintenance. Plate flanges are the best low-pressure alternative since they're inexpensive and easy to install. Close pipeline portions using blind flanges for isolation, testing, or extension. Forged alternatives can handle refinery pressure. Comparing carbon steel and stainless steel for lifecycle expenses requires weighing corrosion resistance against cost. Check the maker's records, monitor supply, and understand how lead times affect the project timetable to succeed at procurement. Proper installation and inspections prolong service life and prevent downtime. These selection criteria and best practices assist EPC builders, distributors, and industry end-users in designing reliable pipeline infrastructure that meets business goals and safety standards.

FAQ

1. How do I determine the correct pressure rating for my blind flange?

To choose the right pressure rating, you need to know both the highest operating pressure and temperature, not just their highest values. Check out the ASME B16.5 pressure-temperature tables. As the temperature rises, the material's strength decreases, so the allowed pressure goes down. Include a safety margin of at least 25% above usual working conditions to account for short-term pressure rises that happen when the valves close or the pump starts up. If the working conditions fall between standard classes, you should always select the next higher applicable pressure class instead of interpolating.

2. Can blind flanges withstand high-temperature applications?

The temperature range is more affected by the choice of material than by the design of the blind flange. The allowable temperature depends on the specific material grade, pressure class, design code, and service conditions. Stainless steels and chrome-moly steels can generally be used at higher temperatures than carbon steel, but the applicable pressure-temperature ratings must be checked for each material. At high temperatures, the choice of gasket becomes the limiting factor. Check the manufacturer's instructions to find out the maximum temperature at which a sealing material can be used. Thermal cycling speeds up wear damage, which could mean that parts need to be inspected more often in situations where they are heated and cooled over and over again.

3. What methods verify blind flange quality before purchase?

Request certified test reports verifying that the material's chemical compositionf and mechanical properties meet the specified requirements. Check that the measurements are correct by looking at inspection reports that list important measurements like thickness, bolt circle diameter, and facing profile. For important uses, hire third-party inspection services to watch production and test the product independently. Check the manufacturer's ISO 9001 certification as well as any applicable quality-system certifications such as API Q1, together with relevant product certifications or code approvals required by the project.

Partner with a Trusted Blind Flange Manufacturer for Your Next Project

JS FITTINGS sells approved flanges, including blind flange products, that are made to meet the strict needs of industrial structures around the world. Our factory makes both cost-effective plate flanges for water systems and precisely forged parts for high-pressure petrochemical service. All of these products come with full material traceability and internationally recognized certifications. We have maintained consistent quality across projects in more than 30 countries since 1983 by making more than 700 tons of flanges every month and having a 98% customer return rate.

Our technical team can help you choose the best flange configuration for your application, whether you need custom dimensions, unusual alloy materials, or faster delivery times. We support ASME, DIN, JIS, and GOST standards and can provide full paperwork packages that meet the strictest requirements for purchasing. Email our team at admin@jsfittings.com to talk about the details of your project and get a detailed quote within an hour.
