Low-Temp Carbon Steel Forged Steel Flange: A350 LF2 Grade

When your piping system operates in sub-zero environments—whether in Arctic oil fields, LNG terminals, or cryogenic processing plants—material selection becomes a life-or-death decision. The carbon steel forged steel flange manufactured to ASTM A350 LF2 specifications offers exceptional toughness and ductility at temperatures as low as -50°F (-46°C), preventing catastrophic brittle fractures that could endanger personnel and halt operations. At JS FITTINGS, we've supplied these critical components to energy infrastructure projects worldwide, where reliability under extreme cold isn't negotiable—it's mandatory.

Understanding A350 LF2 Carbon Steel Forged Steel Flanges

Low-temperature applications require materials that resist brittle fracture more effectively than standard carbon steels. The A350 LF2 grade is specifically engineered to perform reliably under these demanding conditions.

What Makes A350 LF2 Different from Standard Carbon Steel?

Carbon steel flanges are suitable for use at ambient and increased temperatures but may be prone to brittle fracture at sufficiently low temperatures. The A350 LF2 standard includes regulated chemistry and heat treatment procedures, which refine the grain structure and provide the impact toughness necessary for low-temperature operation. The JS FITTINGS forging process begins with inspected raw materials, which are tested by spectrometric analysis for their chemical composition. Once the steel reaches the correct forging temperature, it is shaped and crushed using hydraulic tools. The mechanical working results in a finer grain structure that follows the material flow, thereby reducing casting-related shrinkage flaws and internal discontinuities. These carbon steel forged flanges typically deliver a minimum tensile strength of 70,000 psi with Charpy V-notch impact values that fulfill stringent low-temperature standards.

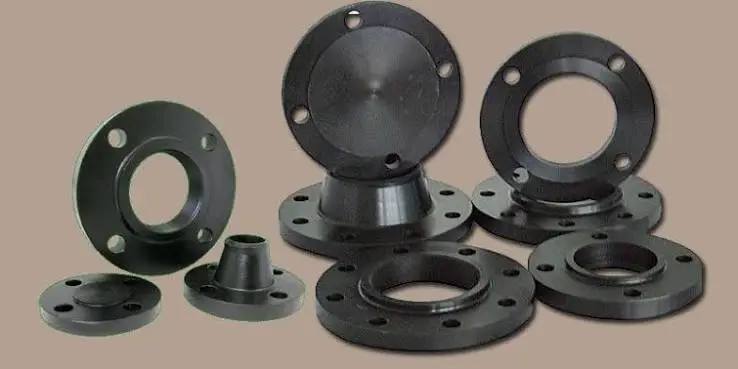

Common Flange Configurations for Low-Temperature Systems

The system's long-term reliability and performance are affected by the right fitting. At JS FITTINGS, we know how to make all of the following configurations:

• Weld Neck (WN) Flanges: The curved hub shares the load evenly, which makes them perfect for high-pressure service lines that are very important. The delayed change from pipe to flange reduces areas of high stress that lead to fatigue fractures. They come in diameters ranging from 1/2" to 60" and meet ASME B16.5 for standard sizes and B16.47 Series A and B for large diameters. Accurately matching the bolt holes ensures proper alignment with the mating flange and helps create a strong, even connection.
• Slip-On (SO) Flanges: These provide a highly cost-effective option. To slide over the pipe, there must be two fillet welds on the inside and outside. They work well in lower-pressure systems and save time during field installation because they are easy to line up. Our slip-on flanges keep hole sizes within ±1/16", which lets welders quickly place parts without requiring extensive fit-up adjustments.
• Blind (BL) Flanges: These solid, pressure-containing closures can stop a pipeline temporarily or make room for it to expand in the future. They are machined from solid forgings, so the thickness is uniform, and the spacing between the bolt holes matches that of the mating flanges. The gasket seating surface is CNC finished to be flat within 0.005", which stops leaks even when the temperature changes.
• Socket Weld (SW) and Threaded (TH) Flanges: These small designs mean that the ends of pipes in processing plants don't need to be beveled, which is useful for high-pressure monitoring lines with small diameters. Socket weld flanges have a pocket for the pipe end, and threaded versions can be put together manually instead of welding, which is helpful in places where it's not allowed to do hot work.
• Which type to use depends on the working pressure, temperature range, how often parts need to be removed, and the limitations of the piping system. Many project engineers have trusted our technical staff to select the right ASTM steel flange for these decisions based on how things work in the real world, not just on broad specs.

Industry Standards Governing A350 LF2 Flanges

Following well-known standards is important for safety and interchangeability. Our products meet a number of international standards, which lets purchasing teams around the world choose parts that work with the infrastructure they already have. In ASME/ANSI B16.5, it specifies the bolt circles, flange thickness, and face features for flanges that are 1/2" to 24" and for pressure classes 150 to 2500. As diameters get bigger, ASME B16.47 Series A and Series B cover large-diameter flanges from NPS 26 through NPS 60. Our manufacturing systems can switch between imperial and metric tooling to meet the needs of European projects that need DIN 2527 or EN 1092-1. To verify the dimensional accuracy of our production batches, we utilize calibrated measuring tools that are traceable to national standards.

Manufacturing Process and Quality Standards of A350 LF2 Forged Flanges

Quality control is built into every step of the production process for important pipe parts. Our 30 years of experience in the field have helped us refine these processes and reduce manufacturing errors.

The Forging Process: From Raw Material to Finished Component

The manufacturing process starts with the purchase of materials from mills that provide complete material traceability and validated mill test results. Documentation for each heat of steel includes chemical analysis, mechanical parameters, and heat treatment data. We keep this data as part of our quality control system so that the final ASTM steel flange can be completely traced back to the original steel batch. The blanks are heated in computer-controlled furnaces that maintain a constant temperature over the whole workpiece within plus or minus 25 degrees Fahrenheit. This regulated heating avoids isolated soft areas or grain coarsening, which would degrade strength. The steel is heated and pressed into near-net-form dies that have been machined. The hydraulic presses exert pressures of up to 8,000 tons. This reduces the following machining time and conserves material. Casting is the process of pouring liquid metal into molds. The metal solidifies into less desirable grain patterns and potential shrinkage voids. Forging is the process of working solid metal into form. The mechanical deformation destroys any pre-existing grain structure and transforms it into fine, uniform grains in the direction of the material flow. This finer microstructure accounts for the greater impact resistance seen in forged components compared to cast counterparts.

Heat Treatment and Mechanical Property Optimization

After forming, the flanges are subjected to the necessary heat treatment, such as normalizing and tempering or quenching and tempering, followed by the needed cooling procedure. This procedure reduces forging stresses and produces the final grain structure that imparts the required mechanical characteristics. Our heat treatment furnaces include many temperature zones and automatic recording systems throughout the whole thermal cycle. These records are included in the material certification packet sent with each item. The following machining processes are performed on CNC turning centers and milling machines programmed with dimensional tolerances straight from the respective standards. Special attention is paid to gasket seating surfaces, which have serrated finishes with groove depth and spacing held to exact specifications or smooth finishes with surface roughness held to 125 microinches Ra. This degree of surface preparation will guarantee that the gaskets are compressed evenly when the bolt is tightened, providing a leak-proof seal even when the pressure varies and the temperature changes repeatedly.

Quality Control and Certification Protocols

ISO 9001:2015 accreditation of our operations requires written procedures for all processes that impact product quality. Our inspection routine is as follows: visual inspection, dimensional inspection, surface finish inspection, and non-destructive testing. Internal discontinuities will be detected by ultrasonic testing, and surface-breaking flaws will be detected by magnetic particle or liquid penetrant inspection. All test results are retained in permanent files filed by heat number and manufacturing lot. In addition to standard quality checks, we also carry out mechanical testing on samples taken from each manufacturing batch. The tensile tests provide yield strength, ultimate strength, and elongation values. Charpy V-notch impact tests at -50°F verify that the material satisfies the toughness criteria at the particular test temperature. These test findings are documented on the material test reports (MTRs) accompanying each shipment, giving definitive verification of the flanges’ conformance to specification criteria. Our facilities have passed stringent audits, demonstrated by our status as an authorized supplier to major global energy firms, including the National Iranian Oil Company, Abu Dhabi National Oil Company, and Petrobras. These customers undertake periodic surveillance audits, in which they study our processes, check our equipment calibration records, and observe manufacturing activities. This external evaluation further assures us that our quality processes are operating as they should.

Comparison & Selection Guide: A350 LF2 Forged Flanges vs. Alternatives

When making procurement decisions, it is essential to balance performance requirements with budgetary constraints. Knowing the trade-offs between material type and production method can help you keep product lifetime costs as low as possible.

Forged vs. Cast Steel Flanges: Performance and Economic Considerations

Cast flanges offer lower initial purchase costs, making them attractive for non-critical applications. The casting process pours molten steel into sand molds, which solidify into the final shape with minimal machining required. However, the solidification process creates inherent weaknesses. Molten metal cools from the outside in, causing directional solidification that can trap gases and create porosity. The random grain structure lacks the aligned orientation that forged components possess, resulting in lower tensile strength and reduced impact resistance. When these cast flanges encounter pressure surges or thermal shocks, the internal defects can propagate into cracks, leading to leaks or catastrophic failures. Forged flanges, such as an ASTM steel flange, eliminate these concerns through mechanical working of solid steel. The compression forces applied during forging consolidate the material, closing any microscopic voids and creating a continuous grain structure. Impact testing can demonstrate the high impact toughness required of forged A350 LF2 flanges, particularly for low-temperature service. In low-temperature service, this performance margin becomes crucial—the difference between a flange that withstands operational stresses and one that fails unexpectedly during a cold snap.

A350 LF2 vs. Stainless Steel and Alloy Options

ASTM A182 F304 or F316 stainless steel flanges offer high corrosion resistance in many harsh chemical environments, but they are 3–4 times more expensive than carbon steel and need thicker sections to reach the same pressure ratings. A350 LF2 is less expensive and works well for hydrocarbon service at low temperatures where corrosion resistance is not a primary requirement.

Selecting the Right Flange Type for Your Application

Pressure class selection depends on system operating pressure and temperature. ASME B16.5 establishes pressure-temperature ratings that derate as temperature increases. A Class 300 flange for Group 1.1 materials is rated at 740 psi at 100°F, while its allowable pressure decreases at higher temperatures according to the applicable ASME B16.5 pressure-temperature rating due to reduced material strength at elevated temperatures. At temperatures below the reference rating temperature, the applicable ASME B16.5 pressure-temperature rating should be used rather than assuming that the flange maintains its full pressure rating. Our engineers assist clients in selecting appropriate pressure classes based on maximum allowable working pressure, design safety factors, and regulatory requirements. Face type selection influences gasket compatibility and leak prevention. Raised Face (RF) flanges feature a circular raised area that concentrates bolt load onto the gasket, improving seal integrity. Flat Face (FF) designs distribute load over a broader area, suitable for cast iron equipment that might crack under concentrated loads. Ring Type Joint (RTJ) flanges employ metal ring gaskets that seat into precisely machined grooves, providing the highest seal reliability for extreme pressure or temperature applications. We machine these grooves to the applicable ASME B16.5 specifications, ensuring proper ring seating and leak-tight performance.

Conclusion

Selecting the appropriate low-temperature carbon steel forged steel flange requires balancing technical performance requirements against project budget constraints. The A350 LF2 grade delivers proven reliability in sub-zero service through controlled chemistry and manufacturing processes that optimize impact toughness and ductility. Forged construction eliminates the internal defects inherent in cast alternatives, providing superior strength and fatigue resistance. Understanding the distinctions between flange types, pressure ratings, and facing configurations enables engineers to specify components that integrate seamlessly into existing systems while meeting safety and regulatory requirements. Partnering with experienced manufacturers who maintain rigorous quality control and provide complete material traceability reduces procurement risk and ensures on-time project delivery. These flanges represent critical infrastructure components where performance cannot be compromised—your choice of supplier directly impacts operational safety and long-term cost efficiency.

FAQ

1. Why is A350 LF2 preferred for low-temperature applications?

A350 LF2 utilizes controlled chemistry and specific heat treatments to refine the grain structure. This maintains the steel's impact toughness at -50°F and prevents the brittle fracture often seen in standard carbon steels during extreme cold exposure.

2. How do forged flanges differ from cast flanges in durability?

By mechanically working the solid metal to refine the grain structure and eliminate internal voids, properly manufactured forged flanges offer superior impact toughness and reliable performance in critical low-temperature applications. This means they will last longer and fail less often in critical situations.

3. What certifications should I verify when sourcing A350 LF2 flanges?

Baseline assurance comes from ISO 9001 quality management certification, documentation demonstrating ASTM material compliance, and industry group approval status. Chemical composition and mechanical property test results show that every manufacturing lot meets standards.

Contact JS FITTINGS for Certified Low-Temperature Flange Solutions

JS FITTINGS brings over 40 years of manufacturing expertise to every A350 LF2 carbon steel forged steel flange we produce. Our ISO-certified facilities maintain monthly output exceeding 800 tons of flanges while preserving the dimensional accuracy and material properties essential for critical service. We supply EPC contractors, distributors, and industrial end-users across 30 countries, delivering components that arrive ready for installation with complete material traceability documentation. Whether you need standard ASME B16.5 flanges or custom configurations for specialized applications, our technical team provides engineering support that ensures proper specification and sizing. As a qualified carbon steel forged steel flange supplier to major energy companies worldwide, we understand the procurement challenges you face—tight deadlines, budget constraints, and zero tolerance for quality defects. Our comprehensive inventory, flexible production scheduling, and on-time delivery rate exceeding 95% minimize supply chain disruptions. Contact our team at admin@jsfittings.com to discuss your low-temperature flange requirements and receive detailed quotations backed by technical documentation.

References

1. American Society of Mechanical Engineers. (2020). ASME B16.5: Pipe Flanges and Flanged Fittings: NPS 1/2 through NPS 24 Metric/Inch Standard. New York: ASME Press.

2. ASTM International. (2019). ASTM A350/A350M-19: Standard Specification for Carbon and Low-Alloy Steel Forgings, Requiring Notch Toughness Testing for Piping Components. West Conshohocken: ASTM International.

3. Davis, J.R. (2006). Metals Handbook: Carbon and Alloy Steels. Materials Park: ASM International.

4. Guo, X., & Wang, P. (2018). "Impact Toughness Comparison of Forged and Cast Low-Temperature Service Flanges." Journal of Pressure Vessel Technology, 140(3), 031402.

5. Nayyar, M.L. (2000). Piping Handbook (7th ed.). New York: McGraw-Hill Professional.

6. Smith, P.R., & Zappe, R.W. (2004). Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design for Every Industrial Flow Application (5th ed.). Burlington: Gulf Professional Publishing.
