Understanding LSAW Carbon Steel Pipes Through Material Grades

Understanding LSAW carbon steel pipe grades is crucial for procurement success in critical infrastructure projects. Material grades determine the chemical composition and mechanical properties that directly influence a pipe's strength, weldability, corrosion resistance, and suitability for high-pressure environments. From API 5L X42 to X80 grades, each designation reflects specific tensile strength and toughness characteristics essential for applications ranging from natural gas transmission to offshore platforms. Selecting the appropriate grade ensures compliance with project specifications, reduces lifecycle costs, and minimizes safety risks—making it a fundamental consideration for EPC contractors, distributors, and industrial end-users seeking reliable, cost-effective piping solutions.

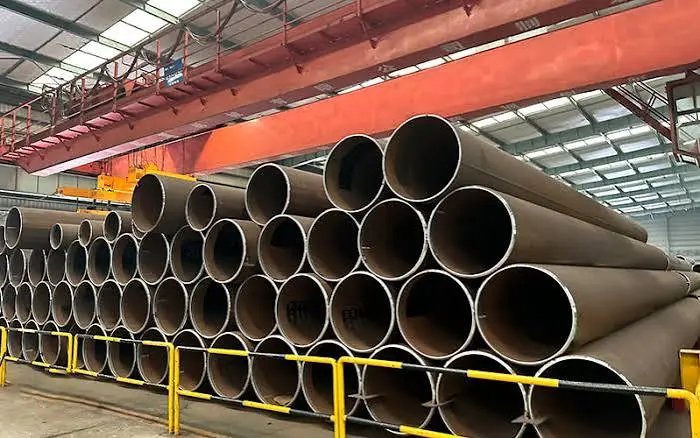

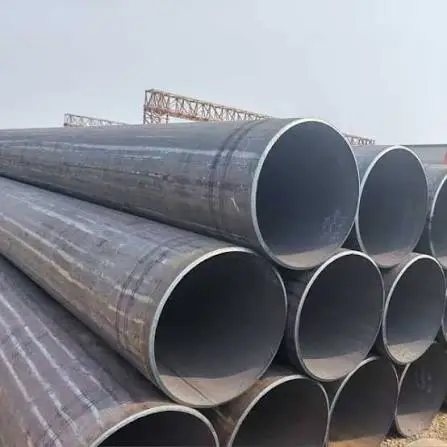

What Are LSAW Carbon Steel Pipes?

LSAW carbon steel pipes are made using a precise process that involves longitudinal double-sided submerged arc welding. This makes large pipes from flat steel plates. JCOE or UOE forming technology is used to make separate steel plates into tube forms at the start of the manufacturing process. LSAW technology produces a longitudinal straight seam that goes through strict welding steps and testing to achieve the required weld integrity and mechanical performance. This is different from ERW pipes made from coils or spiral-welded SSAW pipes.

The Manufacturing Process and Its Impact on Quality

First, steel plates are progressively bent into the shape of a cylinder. The long edges are then joined using automatic double-sided submerged arc welding (DSAW), which welds the inside and outside seams in separate submerged arc welding operations under a protective flux layer. This method ensures even coverage and deep entry, which is very important for high-pressure uses. After being welded, pipes go through a process called cold expansion, which improves dimensional accuracy and can achieve specified diameter tolerances according to the applicable product standard. This level of accuracy makes placement in the field easier and girth welding safer than with other types of pipes.

Diameter and Wall Thickness Capabilities

Our production range includes NPS that is 16" to 60" (406mm to 1626mm) in diameter and has walls that are up to 65mm thick. This range is made for tough jobs where thick walls are needed, like high-pressure gas mains, deep-sea oil transmission, and structural piling. ERW pipes are good for small- to medium-diameter needs (NPS 1/2" to 20"), and SSAW pipes are good for large-bore needs (NPS 8" to 120"). But LSAW pipes are the most important for medium-to-large diameter applications that need the highest pressure ratings and mechanical stability.

Industry Applications and Performance Demands

LSAW pipes are most often used in oil and gas pipelines, offshore platforms, water transmission systems, and infrastructure projects where failure could have serious consequences. Because they offer large-diameter capacity, thick walls, and high fracture toughness, they are essential for transporting energy over long distances and through rough terrain. Not only do these uses need precise measurements, but they also need material grades that are made to withstand high or low temperatures, pressures, and corrosive environments.

Understanding Material Grades of LSAW Carbon Steel Pipes

The technical language used to describe how LSAW carbon steel pipe works is called "material grade." In standards such as API 5L and applicable ASTM specifications, each material grade or designation defines specific chemical and mechanical requirements. These properties decide how the pipe acts when it is under stress.

Chemical Composition and Its Functional Role

Carbon content has a direct effect on tensile strength and weldability.
Grades with controlled carbon levels are designed to provide a balance of strength, toughness, and weldability. This prevents structural failure while maintaining high tensile strength.Manganese enhances both strength and toughness, particularly at low temperatures. Micro-alloying elements like niobium (Nb), vanadium (V), and titanium (Ti) smooth out the grain structure.This enhances the metal's pressure resistance and weldability, and when combined with controlled chemistry and processing, it can help achieve the mechanical and weldability requirements needed for sour-service applications. Controlling phosphorus and sulfur to the limits specified for the applicable grade helps reduce harmful segregation and supports the required notch toughness, which is very important for stopping catastrophic failures.

Mechanical Properties That Define Performance

There are eight grades of API 5L: B, X42, X52, X60, X65, X70, and X80. The numbers in the grades show the minimum yield strength in ksi. A minimum yield strength of 65 ksi (448 MPa) and a tensile strength of around 77 ksi (530 MPa) are found in Grade X65, which is commonly used in high-pressure carbon lsaw steel pipe. Elongation percentages, which are usually between 18% and 23%, show how flexible pipes are. This makes sure that pipes can handle installation stresses and ground movement without breaking. Charpy V-notch impact testing at specified temperatures helps verify that the material meets the required impact toughness for the intended service conditions, which is important for operations that take place in cold climates.

Standards Governing Material Grades

API 5L PSL2 (Product Specification Level 2) specifies additional chemical, mechanical, testing, and documentation requirements compared with PSL1. It requires full chemical testing, mechanical testing, and non-destructive examination. ASTM A252 sets the rules for using piles, and ISO 3183 sets the standards for worldwide consistency. These standards set criteria for what sizes, surfaces, and how often they should be tested are acceptable. This makes sure that everything in the global supply chain is the same. Compliance verification through mill test reports and inspections by a third party gives procurement teams the proof they need to confirm that the product meets the specifications.

Comparing LSAW Carbon Steel Pipe Grades with Other Pipe Types

To choose between types of welded pipes, you need to know how different manufacturing methods and LSAW carbon steel pipe grades affect how well the pipes work. Each type of welding has its own benefits that are best for certain diameter ranges and pressure needs.

ERW Versus LSAW: Application-Specific Advantages

When production efficiency and cost control are most important, ERW pipes are the best choice for small- to medium-diameter uses (NPS 1/2" to 20"). When you use high-frequency welding, you get small heat-affected zones that are good for power lines and moderate-pressure services. LSAW, on the other hand, can make walls that are thicker and have larger diameters than ERW. Our LSAW pipes are made with automatic submerged arc welding and 100% radiographic testing (RT) to make sure the weld integrity is the same as the strength of the base metal. This is necessary for high-pressure gas transmission and critical infrastructure where failure risks are not acceptable.

SSAW Cost-Effectiveness for Large Diameters

In large diameters, SSAW pipes can be a cost-effective option to move water with large diameters and low pressures. The spiral weld configuration requires careful consideration of weld quality, inspection requirements, and applicable design conditions in high-pressure systems. The single longitudinal seam of LSAW pipe cuts down on the number of possible failure points. Our cold-expansion method guarantees better roundness and consistent dimensions, which make alignment easier during installation. This is a useful benefit that cuts down on field labor costs and schedule delays.

Seamless Pipe Comparisons

Seamless pipes, which are made without welds, have generally been the best choice for high pressures. However, their limited diameter range (usually less than 24 inches) and higher production costs make them less useful in some situations. LSAW technology provides welded pipe with controlled weld quality and allows large diameters and custom wall thicknesses, making carbon steel LSAW steel pipe suppliers a practical choice for projects that require large-diameter piping. When you choose the right material grade, LSAW pipes can work as well as or better than seamless pipes in many situations, and they cost a lot less per ton.

Procurement Considerations for LSAW Carbon Steel Pipes by Grade

Procurement strategies that work well balance technical needs with practical business issues regarding LSAW carbon steel pipe selections. Choosing the right material grade has a direct effect on costs, wait times, and the supplier's skills. For a project to succeed, it is important to make well-informed decisions.

Supplier Qualification and Certification Verification

Reliable suppliers have quality management systems that follow ISO 9001 and have approvals from major end users. Our status as a supplier approved by the National Iranian Oil Company (NIOC), the Abu Dhabi National Oil Company (ADNOC), and Petrobras shows that we follow strict quality standards. As part of the verification process, mill test certificates are reviewed. These certificates show the results of chemical analysis and mechanical testing for each heat of steel. Independent third-party inspection bodies verify whether the supplied materials meet the specified standards. Factory audits verify manufacturing capabilities, quality control systems, and traceability procedures.These are important ways to make sure that materials meet standards.

Price Factors and Differences in Costs Based on Grade

Due to the prices of alloying elements and the difficulty of processing, the material grade has a significant effect on price. Higher grades (X65, X70, X80) need to be controlled rolled and cooled more quickly during plate production, which makes the cost of making them 15% to 30% higher than standard grades. Although micro-alloying additions only make up small parts of the final product, they fetch higher prices because they are hard to get and take more work to process. To find value opportunities and negotiate well, procurement teams should ask for specific breakdowns of prices for base materials, manufacturing, testing, and certification.

Lead times and things to think about with inventory

Standard grades (X42, X52) usually ship 30 to 45 days after production is scheduled. Lead times are longer for specialty types that need custom plate orders and certain heat treatments, taking 60 to 90 days. Our monthly production capacity of 800 tons of pipe fittings and 700 tons of flanges meets both current needs and long-term plans. Different grades and diameters have different minimum order quantities (MOQs). For example, large-bore, thick-wall specifications need higher MOQs to cover the costs of setting up the production line. Distributors can serve local markets more quickly by keeping a strategic inventory of common grades on hand.

Logistics and Reliability of Delivery

Our track record includes more than 95% of deliveries being made on time, thanks to our experienced international trade teams that handle container shipments to more than 30 countries. Shipments of 90 or more containers per month show that the supply chain is mature and that the transportation team is skilled. Delivery plans take into account the time it takes to make things, check them for quality, prepare paperwork, and ship them. We are committed to meeting specifications and delivering items without damage, which is why we have complaint rates below 0.5%. This cuts down on costly project delays and repairs.

Conclusion

Selecting the appropriate LSAW carbon steel pipe material grade is the critical first step in procuring pipes for infrastructure projects demanding high-pressure performance and long-term durability. Procurement pros can match pipe types perfectly to application needs if they know about chemical compositions, mechanical qualities, and standard requirements. Our manufacturing skills include NPS 16" to 60" diameters and wall thicknesses up to 65mm. When combined with automatic submerged arc welding and 100% radiographic inspection, these skills give the welds the strength and accuracy needed for oil and gas transmission, offshore platforms, and structural applications. Superior roundness achieved through cold expansion speeds up installation in the field, and full quality assurance backed by international certifications gives customers peace of mind throughout the lifecycle of a project. Choosing the right type of material, which can be proven through thorough testing and paperwork, lowers project risks, makes sure safety rules are followed, and lowers the total cost of ownership.

FAQ

1. What LSAW pipe grade suits high-pressure oil and gas applications?

API 5L X65 and X70 LSAW carbon steel pipe grades are often used for high-pressure transmission pipelines because they have balanced strength (65–70 ksi yield), are tough, and can be welded. Because of controlled chemistry and micro-alloying, these grades can be engineered to meet the requirements for certain sour-service applications, but suitability for H2S-containing environments must be verified against the applicable sour-service requirements and testing.

2. How can buyers authenticate material grade certificates?

Ask for mill test records that show chemical analysis and mechanical test results that are specific to heat. Check that the certificates are in line with the relevant standards (API 5L PSL2, ASTM). Hire outside inspection companies to watch the tests and make sure the paperwork is correct. Check the databases of the issuing authority against the supplier's certifications (ISO, GOST-R, and end-user approvals).

3. Can different material grades be mixed in a single project?

When engineers use different grades within the same pipeline system, they must verify compatibility in terms of strength, weldability, and corrosion performance. For changes between grades, there must be written welding processes and trained welders. In the industry, single grades are kept for each pipeline segment to make construction and maintenance easier.

Partner with JS FITTINGS for Premium LSAW Carbon Steel Pipe Solutions.

The success of a project depends on choosing the right LSAW carbon steel pipe supplier throughout the whole asset lifecycle. JS FITTINGS has been making things for more than 40 years and makes large-diameter longitudinally welded pipes from NPS 16" to 60" with wall thicknesses that meet the strictest requirements. Our automatic submerged arc welding methods, which are checked by 100% radiographic testing (RT), guarantee that the strength of the weld will match the properties of the base metal. This is important for high-pressure gas mains and important oil transmission lines. With cold-expansion technology, the diameter is accurate to within ±3mm, which speeds up installation in the field and makes it easier to line up.

We keep a large stock of materials that meet the standards set by API 5L, ASTM A252, and ISO 3183. Our ISO 9001 quality management and approvals from NIOC, ADNOC, and Petrobras back this up. Our yearly capacity of more than 30,000 tons, along with on-time delivery rates above 95% and customer complaint rates below 0.5%, shows that our supply chain is reliable enough for buying teams to rely on. You can get help from our technical team to choose the best grade for your operating conditions, whether you need X42 for normal use or X70 for high-pressure areas.

Email our experts at admin@jsfittings.com to talk about the needs of your project. We can handle both big infrastructure projects and distributors' inventory needs because we offer mill test certificates, third-party inspection coordination, and flexible order amounts.

References

1. American Petroleum Institute. (2018). Specification for Line Pipe: API 5L, 46th Edition. Washington, DC: API Publishing Services.

2. ASTM International. (2020). ASTM A252/A252M-20: Standard Specification for Welded and Seamless Steel Pipe Piles. West Conshohocken, PA: ASTM International.

3. Bai, Y., & Bai, Q. (2014). Subsea Pipeline Design, Analysis, and Installation. Oxford: Gulf Professional Publishing.

4. Hillenbrand, H. G., Gräf, M. K., & Kalwa, C. (2001). "Development and Production of High-Strength Pipeline Steels." Niobium Science & Technology: Proceedings of the International Symposium Niobium 2001, 543-569.

5. International Organization for Standardization. (2019). ISO 3183:2019 Petroleum and Natural Gas Industries – Steel Pipe for Pipeline Transportation Systems. Geneva: ISO Central Secretariat.

6. Xie, C. L., Davies, P., Perrin, G., & Pope, D. (2015). "Material Grade Selection and Performance Evaluation for High-Pressure LSAW Pipes in Offshore Applications." Journal of Pipeline Engineering, 14(2), 87-104.
