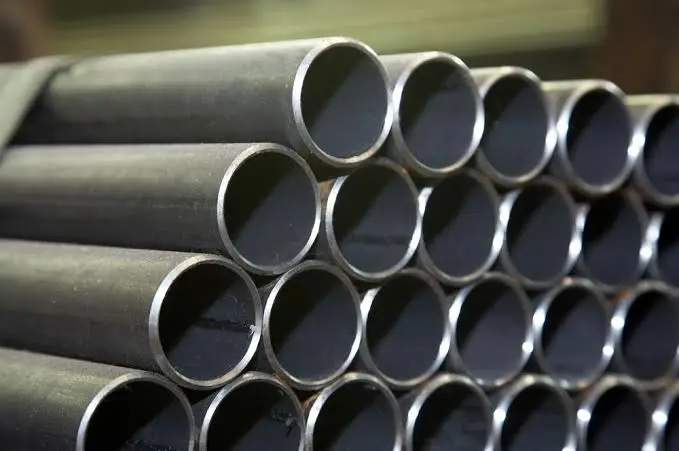

Carbon Steel Pipe: The Backbone of Industrial & Daily Applications

Industrial carbon steel pipe is the circulatory system of contemporary civilization, carrying water, oil, gas, and chemicals across continents and sustaining structural foundations in buildings, bridges, and industrial facilities. The best strength-to-cost ratios are provided by an iron-carbon alloy generally containing up to about 1.0% carbon by weight, which is the material of choice for procurement managers who must balance performance requirements with budget constraints. Its predictable mechanical properties, weldability, and availability in standardized grades meet significant issues throughout the energy infrastructure, construction, and industrial activities across the globe.

Understanding Carbon Steel Pipes: Grades, Manufacturing, and Standards

What Defines the Industry Carbon Steel Pipe Composition?

What makes industry carbon steel pipe special? The simplicity of its chemistry. Stainless steel contains chromium, which makes it resistant to corrosion. Industry carbon steel pipe is characterized by a low carbon content and tiny concentrations of manganese (0.29%–1.06%), silicon, phosphorus, and sulfur. Sulphur and phosphorus are strictly regulated, generally to less than .035% each, since higher quantities can make the metal brittle, hence weakening the weld and lowering its impact resistance. This chemical balance enables manufacturers to develop tensile strengths of 48,000 psi for ASTM A53 Grade A to more than 80,000 psi for API 5L X70 while retaining the flexibility required for manufacture and field installation.

Industrial carbon steel pipe has a thermal conductivity of around 50 W/(m·K); thus, it may be used in heat exchangers in power generation and petrochemical processing. The infinite recyclability of the material is in line with the increasing demand for eco-friendly construction materials in government contracts. It also has worth toward the end of its useful life, which recovers the expenses of purchasing it in the first place over decades.

Seamless vs. Welded Manufacturing Methods

The manufacturing process of pipes is a key factor in their performance and price. When hot-piercing and rolling solid billets into seamless pipes, there are no longitudinal weld seams. This seamless construction avoids weld-related vulnerabilities and can provide higher burst pressure performance. That’s why seamless is a must for high-pressure steam lines, hydraulic systems, and critical process pipes where failure would result in catastrophic consequences and severe financial losses.

There are three basic methods of welding pipe. ERW pipes are manufactured from flat steel strips that are rolled and welded along the longitudinal lines by high-frequency induction. They are economical for many small- and medium-diameter applications. LSAW pipes may be increased in diameter using plate forming and double-sided welding. Our cold-expansion technique improves dimensional accuracy, making field alignment easy. Spiral submerged arc welded (SSAW) pipes are the most cost-effective choice for large-bore water transmission and low-pressure gas distribution. They blend structural integrity with municipal project budget constraints.

Decoding Common Grades and Their Applications

Understanding material grades prevents costly specification errors. ASTM A106 Grade B seamless pipe has a minimum yield strength of 35,000 psi and a tensile strength is 60,000 psi. It is utilized in high-temperature applications in distilleries, boiler feedwater systems, and steam distribution networks operating at elevated temperatures. It has a larger percentage of silicon; therefore, it is less likely to oxidize when heated for a long duration.

ASTM A53 covers both seamless and welded pipe in Grades A and B. Grade B has improved mechanical properties and is suitable for structural applications, fire sprinkler systems, and general mechanical work. There are hot-dip galvanized versions that may be used for outdoor installations where the air might corrode bare industrial carbon steel pipe.

Grade B has a minimum yield strength of 35 ksi, while grades X42-X80 provide higher yield strengths and may allow higher pressure designs when combined with appropriate pipe dimensions and design calculations. Where surge pressures, elevation variations of the topography, or seismic considerations need broader structural margins, project engineers will specify higher classes.

ASTM A333 grades avoid brittleness at low temperatures by adding nickel and performing an impact test. The most popular variety is Grade 6. It retains its notch toughness and ductility down to approximately -50°F, depending on the applicable specification requirements. This prevents Arctic pipelines, LNG facilities, and refrigeration systems from experiencing catastrophic brittle fractures.

Dimensional Standards and Tolerances

The pipe sizes are in accordance with ASME B36.10M standards that provide nominal pipe sizes (NPS) and wall thickness schedules. Schedule 40 is the usual weight for most moderate-pressure applications. Schedules 80 and 160, however, may take greater pressures and mechanical stresses. Our pipes are available in outer diameters from ½ inch up to 60 inches and wall thicknesses from 2 mm up to 45 mm. These pipes are suitable for a wide variety of industrial applications, including instrument lines, big-diameter transmission mains, etc.

For wall thicknesses of industry carbon steel pipe, the tolerances are generally ± 12.5%. A reliable carbon steel seamless pipe manufacturer should ensure strict control of these tolerances during production, as pressure values don't offer much room for mistakes. Buyers have to determine the minimum wall thickness. For critical applications such as heat exchangers where tube-to-tubesheet fit is crucial to performance, ovality (difference between greatest and smallest diameters) should not exceed 1 percent of nominal diameter.

Comparing Carbon Steel Pipes with Alternatives: Helping You Decide

Material Property Comparisons

Price is not the only thing that has to be considered when picking the proper pipe material. The stainless steel is more resistant to corrosion in acid and chloride situations, resulting in reduced maintenance and eliminating the need for protective coatings. But stainless steel pipe pricing is 300%-500% more than industry carbon steel pipe. This additional cost is economically justified for companies manufacturing medications, preparing food, or working near the seaside, where the cost of contamination or corrosion damage is greater than the cost of obtaining cheaper materials.

Good compromises are steels alloyed with chromium, molybdenum, or vanadium. They provide just a minor price premium for improved high-temperature creep resistance and corrosion performance. In most projects involving temperatures exceeding 850°F or foul gas (hydrogen sulfide), upgrading to alloy steel is highly recommended.However, these expenditures are seldom necessary for routine hydrocarbon service.

Galvanized industry carbon steel pipe, which is hot-dip zinc-coated in accordance with ASTM A53, will survive quite a bit longer when utilized outside of weather-sensitive places such as for agricultural irrigation, handrails, and scaffolds. The zinc covering will erode first, shielding the base metal, so it doesn’t have to be replaced for 20 to 30 years. This is less than half the price of stainless steel ones and is sufficient for non-critical structural applications.

Seamless vs. Welded Selection Criteria

Cost is a huge element in choosing between seamless and welded. Seamless pipe is more difficult to justify, costing 30% to 60% more than ERW counterparts in typical sizes. This is because they need a consistent microstructure for pressure ratings, fatigue cycles, or corrosion problems. What we have noticed is that EPC firms will choose seamless construction for key process piping and pressure vessels but will accept welded pipe for utility services, firewater mains, and structural applications where cost is a driver.

Automated welding and comprehensive radiographic inspection have considerably improved the quality of the weld seams. Our LSAW and SSAW pipes are X-ray inspected throughout their whole length to ensure fusion zones are as robust as the base metal. This quality control ensures the welded pipe satisfies API 5L PSL2 criteria for mainline transmission service, which up until now was only available with seamless construction.

Grade Selection for Specialized Demands

ASTM A106 Grade B (for high-temperature pressure piping applications) should have suitable surface quality and yield strength and should be examined using ultrasonic testing to detect internal laminations. There are no longitudinal welds; hence, there are no potential failure locations under repeated loading circumstances leading to fatigue cracking during the life of the equipment.

For service below 0°F, ASTM A333 grades with proven Charpy V-notch impact values are required. This destructive testing makes sure that the material is robust at service temperatures and avoids the brittle fractures that have caused great failures in Arctic installations. But carbon equivalent calculations are not enough to guarantee adequate toughness, and hence, procurement criteria must include impact testing with observed mill test results.

ASTM A252 piling pipe or ASTM A53 Grade B is typically used for structural work in building frames, support beams, and bridge construction when mechanical strength is more critical than pressure management. For these usages, wider size variations are acceptable; cheaper materials may be utilized, which reduces costs while maintaining safety margins for breaking or bending loads.

Benefits and Applications of Carbon Steel Pipes in Construction and Industry

Core Performance Advantages

The mechanical properties of industrial carbon steel pipe make it useful in many situations. Tensile strength greater than 60,000 psi allows engineers to optimize wall thickness designs and achieve lighter system weights compared to heavier alternatives like ductile iron or concrete. A carbon steel welded pipe factory can provide pipes with consistent mechanical properties, helping engineers select suitable materials for projects. This lowers the cost of shipping and the amount of work needed for installation. A 12-inch Schedule 40 industry carbon steel pipe weighs 49.6 pounds per foot, while ductile iron weighs 72 pounds per foot. This means that cranes and base loads can be cut in half for projects that are higher than ground level.

When hydraulic surge—sudden pressure spikes from valve closings or pump trips—happens in water transport systems, shock resistance is very important. The flexibility of industry carbon steel pipe lets it handle these short-term forces without breaking, and its well-known stress-strain curves give engineers the trust they need to figure out safety factors that may not be possible with less predictable materials.

Weldability speeds up construction in the field by letting crews join sections together using standard arc welding tools and without requiring specialized procedures or exotic welding consumables. This makes it easier to get to, which cuts down on installation times and lets fixes happen in remote areas that don't have access to exotic welding equipment. The material is easy to machine and can accept threads, flanges, and other mechanical connections that make it easy to make changes to the system as it works.

Industry-Specific Applications

Most of the infrastructure for oil and gas is made of industrial carbon steel pipe. This includes gathering lines, transport tubes, and process pipes in refineries. Operators choose grades based on calculations of the maximum allowed operating pressure (MAOP) that take into account pipe diameter, wall thickness, yield strength, and longitudinal weld factors. These calculations are based on API 5L standards. The projects we've done for the National Iranian Oil Company and the Abu Dhabi National Oil Company have shown that they can work in harsh Middle Eastern conditions, including high temperatures and corrosive hydrocarbon streams.

ASTM A106 seamless pipe is used in boiler tubes, superheater sections, and high-pressure steam distribution in power plants where temperatures can reach 1,000°F. Because the material doesn't grow at high temperatures, it doesn't change size in ways that would make tube alignment and heat transfer less effective over decades of constant use.

Industry carbon steel pipe is used in construction projects for fire sprinkler systems, structural columns, and piling foundations in unstable soils. The material's code acceptance, local availability, and familiarity with contractors all lower the project's risk compared to other materials that need special training or inspection procedures for installation.

To move compressed air, cool water, and hydraulic fluids in factories, they need pipes made of industrial carbon steel pipe. Because it doesn't break easily from vibrations, it can be used in places where process equipment creates steady mechanical pressures that would break weaker materials.

Addressing Corrosion Challenges

External rust is the industry's carbon steel pipe's main weakness, so it needs protection tactics that are tailored to the climate it is exposed to. Three-layer polyethylene (3PE) protection systems can provide more than 30 years of protection under properly designed and maintained underground conditions. They include an epoxy base, an adhesive copolymer, and a polyethylene topcoat that doesn't react with soil toxins and doesn't let water touch it. Fusion-bonded epoxy (FBE) is a less expensive way to protect something in a normal climate with a single layer that is thinner.

Depending on the chemistry of the fluid, inhibitor injection, cathodic protection, or barrier layers are used to stop internal rust. Many water systems maintain pH levels within a controlled range, often around neutral conditions, to reduce corrosion risks and add corrosion inhibitors that cover steel surfaces to protect them. Batch inhibitor solutions help oil pipelines by getting rid of corrosive water films. Gas transport systems, on the other hand, are mostly safe as long as they don't have any free water or hydrogen sulfide in them.

Through microstructure improvement, heat treatment during production has a big effect on rust resistance. Normalizing heat treatments get rid of residual stresses from forming and welding. They also even out the grain structure, which leads to more uniform corrosion rates and gets rid of places where attacks can start. Stress-relief annealing stops stress corrosion cracking in places with hydroxides, nitrates, or other substances that attack stressed steel more easily.

Conclusion

With its mechanical strength, manufacturing maturity, and low cost, industrial carbon steel pipe remains the most popular choice for industrial infrastructure, even though other materials are in competition. Procurement professionals can find the best solutions that balance performance and cost by knowing about grade specifications, manufacturing methods, and application needs. To successfully source goods, you need to partner with capable suppliers， have qualifications that can be checked, have enough capacity, and have a commitment to long-term partnerships based on honesty and mutual success. Material failures that hurt safety, schedule, and budget goals can be avoided by using certified checks and mill paperwork to make sure the quality is high.

FAQ

1. What distinguishes carbon steel pipe from stainless steel pipe in industrial applications?

Industrial carbon steel pipe is highly durable and cost-effective because it only has iron and carbon as alloying elements. However, it needs to be protected from rusting in most places. Stainless steel has chromium in it (at least 10.5%), which forms passive oxide layers that protect it from corrosion even without a coating. Industry carbon steel pipe is good for places where extra protection is needed but not a priority, like underground pipes with coatings on the outside, systems inside with controlled environments, or structures where looks don't matter. Stainless steel is worth the extra money when it is used in corrosive chemical processing, food-grade systems that need clean surfaces, and building uses where the look and lack of upkeep are more important than the cost.

2. How can purchasers verify carbon steel pipe quality before shipment?

Quality testing uses more than one level of review. Ask for testing to be done by a third party under ASTM or API guidelines, which should include hydraulic pressure testing, measuring the size, mechanical property sampling, and chemical analysis. Mill test certificates that show these results make it possible to link them to individual output lots. For important uses, use pre-shipment inspection services that check the marks on the materials, the thickness of the coating, the conformance of the dimensions, and the integrity of the packing. Ultrasonic testing finds internal laminations in seamless pipe, and radiographic testing (RT) checks the quality of the weld seam in welded types. Setting up "hold points" in manufacturing, where checks are done by witnesses before moving forward, stops problems from being found after production is finished.

Partner with JS FITTINGS for Reliable Industry Carbon Steel Pipe Supply

When your project needs reliable delivery of industrial carbon steel pipe backed by quality assurance and technical know-how, JS FITTINGS can meet your needs. We have been manufacturing premium piping solutions for 43 years, offering a large selection of ASTM A106, A53, A333, and API 5L grades in both seamless and welded forms, with sizes ranging from ½ inch to 60 inches and schedules ranging from 10 to 160. These grades are backed by ISO, CE, GOST-R, PETROBRAS, NIOC, and ADNOC standards. As a trusted industry carbon steel pipe manufacturer, we've delivered 95% of our orders on time, kept 98% of our customers, and had less than 0.5% of our shipments to 30+ countries lodge complaints. Our experienced international trade team answers questions within an hour and gives technical advice on how to choose the right grade, what coatings to use, and how to make the best use of logistics. Contact admin@jsfittings.com to talk about the details of your project and find out how our quality systems, production capacity, and customer-focused approach can give your projects the reliable supply chain they need.

References

1. American Petroleum Institute. (2018). Specification for Line Pipe: API Specification 5L, 46th Edition. Washington, DC: API Publishing Services.

2. ASTM International. (2020). ASTM A106/A106M-19: Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service. West Conshohocken, PA: ASTM International.

3. Davis, J.R. (Editor). (2006). Corrosion of Carbon Steels. Materials Park, OH: ASM International Handbook Committee.

4. Mohitpour, M., Golshan, H., & Murray, A. (2007). Pipeline Design & Construction: A Practical Approach, 3rd Edition. New York: ASME Press.

5. Nayyar, M.L. (Editor). (2015). Piping Handbook, 8th Edition. New York: McGraw-Hill Education.

6. Singh, R. (2017). Applied Welding Engineering: Processes, Codes, and Standards, 2nd Edition. Burlington, MA: Butterworth-Heinemann.
