Weld Neck Carbon Steel Forged Steel Flange: High-Pressure Use

When selecting components for high-pressure industrial piping systems, the weld neck carbon steel forged steel flange stands out as the preferred choice among procurement managers and engineers. These flanges are precision-engineered through a mechanical forging process that compresses heated steel to create a refined grain structure, significantly reducing internal defects such as porosity and inclusions commonly found in cast alternatives. This manufacturing technique produces flanges capable of withstanding extreme pressure surges, thermal cycling, and mechanical stress without failure. For applications in oil refineries, chemical plants, and power generation facilities, these forged flanges deliver the structural integrity and leak-proof performance essential for operational safety and long-term reliability.

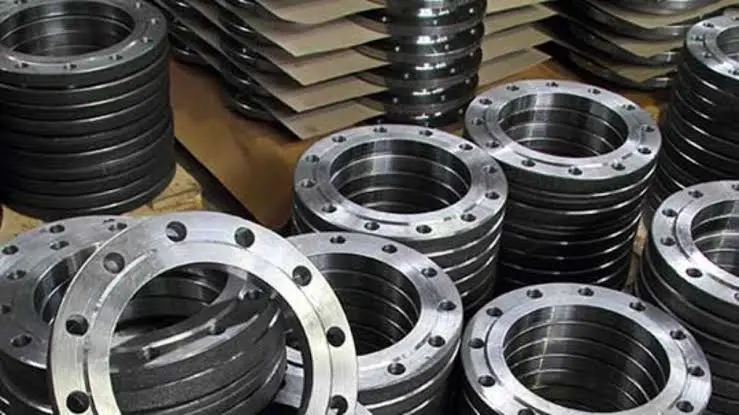

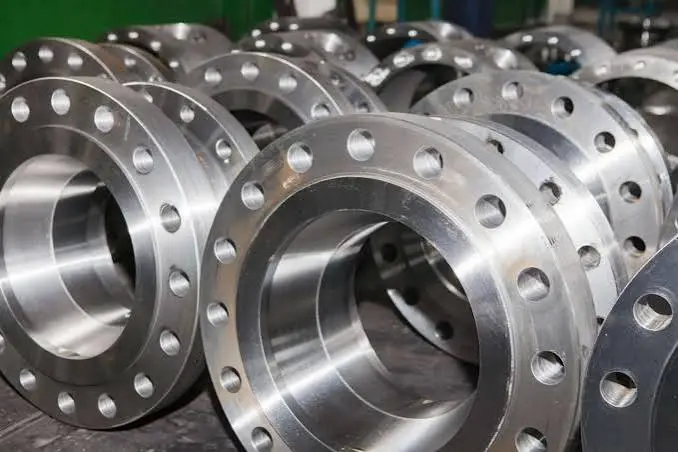

Understanding Weld Neck Carbon Steel Forged Steel Flanges

As you might expect, machined and cast flanges are different in how they are made and the materials that are used. Carbon steel forged flanges are produced under high pressure. This aligns the metal's grain structure, making the flanges tougher and more resistant to impact loads. Cast products may contain internal porosity and gas pockets. This process gets rid of them.This ensures components perform reliably under operational stress.

The Forging Process and Material Integrity

This is the ASTM A105 carbon steel that we use to make forged flanges. It has the right amount of carbon, manganese, and silicon to be easy to weld and have good mechanical qualities. Steel billets are typically heated to a forging temperature range of approximately 850°C to 1,200°C before the shaping process begins. Then, directed pressure is put on with hydraulic presses. This compressive force shapes the metal and refines its internal microstructure. In the end, forged flange blanks achieve a more uniform and dense internal structure throughout the material. By forging, the structure of the metal is evened out, which keeps cracks from spreading even after it has been loaded and unloaded many times. This is not the same as casting, which can hold on to tiny air bubbles or pieces of slag.

Standards and Specifications Overview

Our manufacturing processes for carbon steel forged flanges strictly adhere to international standards. For flanges with sizes from ½" to 24", ASME/ANSI B16.5 tells us what to do. Series A and B of ASME B16.47 cover flange sizes from NPS 26 through NPS 60. DIN/EN 1092-1 tells us what kind of flanges we need to make for sales in Europe. These standards define important measurements, like the patterns of bolt holes, the thickness of the flange, the profile of the hub, and the pressure-temperature ratings. Compliance makes sure that our flanges can be used with pipes, valves, and other tools from any authorised company around the world.

Pressure Ratings and Material Grades

Weld neck flanges are categorised by their pressure class. Class 150 is good for low-pressure water and steam lines, while Class 2500 is designed for very high-pressure applications where the applicable pressure-temperature ratings are required. On the European PN scale, commonly used ratings include PN6, PN10, PN16, PN25, PN40, and higher classes depending on the applicable standard. What kind of material is used depends on how it will be used. For most uses that happen at room temperature, ASTM A105 is the standard. For use in cold places (down to -50°C), ASTM A350 LF2 is more durable. The minimum wall thickness and hub size needed to safely control the internal pressure are set and kept the same for each pressure class.

Benefits of Using Weld Neck Carbon Steel Forged Steel Flanges in High-Pressure Systems

In high-stress applications where component failure could result in catastrophic consequences, the mechanical superiorities of carbon steel forged flanges become paramount. When buying, teams are often concerned about safety, compliance, and how well processes run. These flanges have a lot of performance benefits that directly address these concerns.

Superior Mechanical Strength and Fatigue Resistance

Forging refines the grain structure and improves grain flow alignment, which makes it very hard to wear down. This means that flanges won't get stress cracks after millions of cycles of pressure. In places where the pressure changes a lot, like steam pipes or hydraulic systems, this is very important. The gradual curve between the flange hub and pipe wall spreads stress out over a large area. This stops stress from building up in one place, which can increase the risk of premature failure in applications where slip-on or threaded designs are not suitable. Our CNC machines make sure that mistakes are less than 0.5 mm, which ensures that the bolt holes line up correctly when the part is put together. This stops the gasket from being filled in an uneven way, which could lead to leaks.

Enhanced Corrosion Protection and Surface Treatment

The main problem with carbon steel is that it can rust or oxidise industrial orifice flanges in places that are acidic or wet. We mitigate this risk by offering a comprehensive range of surface treatment options tailored to specific application environments. For industrial orifice flanges, a black lacquer finish is a simple way to keep moisture out, and it works well in dry places and warehouses. The yellow oil process gives you more short-term security while your goods are being shipped by sea. Hot-dip galvanising forms an iron-zinc alloy layer with a protective zinc coating that improves corrosion resistance. This layer will keep the metal from rusting for a long time in naval or outdoor settings. Consequently, these flanges are ready for immediate installation upon delivery to the job site, eliminating the need for additional surface preparation.

Compliance with International Safety Standards

We test every forged flange we make many times to make sure it meets the requirements of applicable piping and pressure equipment standards. These tests are part of our ISO 9001-certified quality management system. They check the chemical make-up with spectral analysis, the tensile and yield strengths with mechanical testing, and flaws on or below the surface with ultrasonic or magnetic particle testing. We can meet the tight buying needs of big energy companies because we have certifications from PETROBRAS, NIOC, and ADNOC. The time it takes to get a project accepted and the chance that materials will be turned down by a third party are both cut down by this certification portfolio.

Leak Prevention and Gasket Compatibility

The weld neck is shaped in a way that has a carefully machined face area that can fit different kinds of seals. Raised Face (RF) finishes have holes in the shape of a circle that keep spiral-wound or composite seals in place, even when the temperature goes up. Ring Type Joint (RTJ) faces have precisely machined grooves that hold oval or octagonal metal ring seals. This gives the best sealing performance for high-pressure hydrogen or volatile hydrocarbon service. Because we took very accurate measures, we know that the gasket is squeezed evenly all the way around. This stops the leak paths that happen when the bolt holes aren't lined up right and the load isn't spread out evenly.

Comparing Weld Neck Forged Steel Flanges with Other Flange Types

Understanding the technical distinctions between flange types helps procurement teams select the optimal component for specific applications.There are pros and cons to each type of flange depending on the pressure needs, fitting conditions, and maintenance needs. For high-pressure environments, carbon steel forged steel flanges remain the industrial standard.

Weld Neck Versus Slip-On Flanges

Slip-on flanges make it easier to line up the pipe during installation because it slides through the flange hole before it is welded. But this ease of use comes at the cost of less structural integrity. Slip-on designs need two fillet welds, one inside and one outside the flange. These create stress concentration points that can crack when pressure cycles. With a weld neck flange, the pipe and flange are joined together with a single full-penetration butt weld. This gets rid of the space between the pipe and the flange where corrosive fluids can gather. It also makes the inside of the pipe smooth, which reduces turbulence and erosion. When the pressure is higher than Class 600 or when there is a thermal cycle, weld neck design is the standard.

Forged Carbon Steel Versus Stainless Steel Options

Stainless steel flanges generally cost significantly more than carbon steel options, depending on the grade and market conditions. So long as they are properly treated, carbon steel forged flanges work well in many industrial settings and don't cost as much to buy. Forged carbon steel is easier to handle and install than heavier stainless steel grades because it has a high strength-to-weight ratio. Stainless steel is only cost-effective in harsh conditions that corrode it, like seawater or chemical processes with acidic media. This is because the longer service life makes up for the initial cost.

Blind Flanges for System Termination

Blind flanges are solid ends for pipe systems that let them grow in the future or give you access to check on and clean them. Forging these parts is the same as forging weld neck flanges, making solid discs without a centre bore but with the same bolt hole shapes and pressure ratings. Our ASME B16.5 blind flanges work perfectly with weld neck flanges in the same piping system, while industrial orifice flanges provide additional options for specific flow measurement applications. This gives engineers the freedom to design systems with planned expansion points or places for maintenance access.

Procurement Guide: How to Source and Order Weld Neck Carbon Steel Forged Flanges?

Efficient procurement requires an understanding of the technical requirements, evaluate the skills of suppliers, and handle transportation well. This section gives you useful tips on how to speed up the sourcing process and lower the risks of the project when ordering carbon steel forged steel flanges.

Defining Your Technical Requirements

First, make a list of all the exact requirements your project needs. Find out the normal pipe size (NPS), pressure class (PN rating), face type, and standard that applies (ASME, DIN, or JIS). Think about the operating conditions, such as the maximum working pressure, the temperature range, and the properties of the fluid. For example, NACE MR0175 provides material requirements and qualification guidance for sour service applications containing hydrogen sulfide to prevent sulfide stress cracking. The chemical properties of the process environment, including pH, moisture, and exposure conditions, help determine whether coating or galvanizing is required. By including these parameters in your request for quotation, you can be sure that suppliers will give you accurate prices and lead times.

Evaluating Supplier Credentials

Reliable providers show what they can do by having quality systems and certifications that are known around the world. Check to see if any possible suppliers have ISO 9001 certification that covers how they make things. Ask for copies of their material test reports (MTRs) from past orders to see how well they can test things. Full MTRs include heat numbers, chemical analysis, mechanical properties, and results from non-destructive tests. Some suppliers serving the oil and gas industry may also hold certifications such as API Q1 when required by specific projects, or they have special permissions from end users, like Saudi Aramco or ExxonMobil. JS Fittings has certificates from PETROBRAS, NIOC, and ADNOC, which show that we can meet the world's strictest buying standards.

Understanding Pricing and Lead Times

The price of a forged flange depends on its size, pressure class, material grade, and the quantity ordered. Flanges that are standard ASME B16.5 and come in popular sizes (2" to 12", Class 150-600) usually ship within a week from stock. Large-diameter flanges over 24" or high-pressure ratings (Class 1500–2500) need four to six weeks to manufacture, depending on current production schedules. Custom specifications, such as non-standard bolt hole patterns or special material grades, can add up to eight weeks to the manufacturing lead time. We can meet the needs of both urgent small-batch orders and large-scale project needs with our monthly production capacity of 700 tonnes of flanges, and we ship over 90 containers to customers around the world every month.

Managing Quality Assurance and Inspection

In your purchase order, make sure there are clear quality requirements that include required certifications, testing protocols, and documentation. Standard documentation includes material test reports, dimensional inspection records, and certificates of compliance with applicable standards. For important projects, you might want to consider third-party inspection—independent inspection agencies can watch production, confirm testing, and issue independent certificates that meet project quality assurance requirements. Our quality control system includes in-process inspections at every stage of production and final inspections that make sure all dimensional and material specifications are met before shipment. This method keeps our customer complaint rate below 0.5% across thousands of shipments every year.

Conclusion

To choose the right carbon steel forged steel flange, you have to balance technical performance needs with project costs and delivery times. The forging process makes parts that are stronger, more resistant to fatigue, and better at holding pressure than cast or welded alternatives. Procurement teams can choose flanges that meet safety and compliance standards throughout their service life by learning about international standards, pressure ratings, and material grades.

JS Fittings has been making flanges for over 40 years and uses modern quality systems to make sure they meet ASME, DIN, and other global standards. Our production capacity and inventory depth allow us to meet the needs of both urgent small orders and large-scale project requirements, and we consistently deliver high-quality products on time more than 95% of the time.

FAQ

1. What pressure ratings are available for weld neck forged steel flanges?

carbon steel forged steel flanges are made in ASME pressure classes from 150 to 2500, which correspond to working pressures from 290 psi (Class 150 at room temperature) to 6,170 psi (Class 2500). European PN ratings range from PN10 to PN64. The right rating is chosen based on the maximum operating pressure, temperature, and safety margin that is needed.

2. How long does it take to receive custom-ordered flanges?

Asme B16.5 flanges in common sizes usually ship within 5 to 7 business days from our stock. Custom specifications, such as non-standard sizes or special material grades, take 4-6 weeks to manufacture. Large-diameter flanges over 24" or high-pressure ratings may take up to 8 weeks, depending on production schedules.

3. Can carbon steel flanges withstand corrosive environments?

Carbon steel flanges that have the right kind of surface protection work well in a lot of industry settings. Hot-dip galvanising protects against rust for many years and can be used outside or on ships. For work with highly dangerous chemicals, switching to flanges made of alloy steel or stainless steel may save money in the long run.

Partner with JS FITTINGS for Certified Forged Flange Solutions.

Since 1983, JS FITTINGS has been making high-quality carbon steel forged steel flanges, so you can trust them to do a good job. During the forging, machining, and testing processes, our ISO-certified production sites keep a close eye on quality to make sure that every flange meets ASME, DIN, and industry-specific standards. We keep a large inventory of items in sizes and pressure classes ranging from ½" to 60" and 150 to 2500 PSI. This lets us quickly meet urgent needs and also offer custom manufacturing for unique uses.

Our expert team is there for you from the first review of the design to delivery and help with fitting. Whether your project needs standard ASME B16.5 flanges or special solutions for specific working conditions, we offer approved parts that come with test results and proof of compliance. Email our sales team at admin@jsfittings.com to talk about your unique needs and get detailed quotes that fit your project's budget and plan.
