API 5L Grade B SSAW Carbon Steel Pipe for Oil and Gas Projects

When industrial projects demand robust, cost-effective piping solutions, API 5L Grade B SSAW carbon steel pipe consistently emerges as a reliable choice. These spiral-welded pipes have become essential infrastructure components across oil and gas transportation, water transmission networks, and structural piling applications worldwide. Manufactured by rolling steel strips into a helical configuration and joining them through submerged arc welding, SSAW pipes deliver exceptional value for large-diameter installations where seamless alternatives would prove prohibitively expensive.At JS FITTINGS, we have supplied these critical components to energy projects for over four decades, witnessing how proper material selection directly impacts project timelines, safety records, and operational longevity.

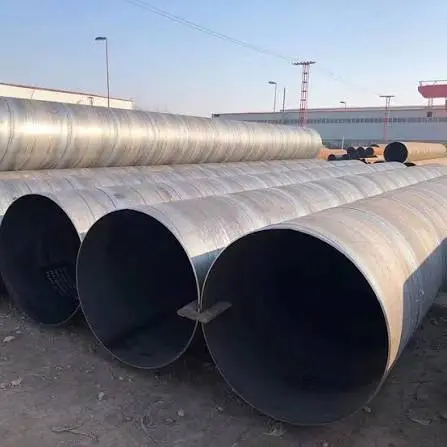

Understanding API 5L Grade B SSAW Carbon Steel Pipes

What Makes Spiral Welded Pipes Different?

SSAW carbon steel pipes are fundamentally different from LSAW and ERW pipes because of how they are made. LSAW pipes have a single lengthwise seam made from flat plate stock, but spiral welded pipes are made from hot-rolled coils that are shaped at a certain helix angle. When manufacturers use this continuous production method, they can make large diameters (NPS 8" up to 120") without having to store a lot of plates. Under internal pressure, SSAW pipes provide reliable performance when properly manufactured and inspected. However, LSAW pipes are generally preferred for high-pressure gas applications due to their straight seam configuration and superior dimensional stability achieved through cold expansion.

The first step is to get a hot-rolled carbon steel coil that meets the chemical makeup standards of API 5L. To keep weldability, we carefully control the carbon equivalent values. For Grade B material, this means controlling the carbon content within the limits specified by API 5L, with a maximum carbon content of 0.28% for standard thickness ranges. Before going into the making station, the edges of the strips are carefully bevelled. There, rollers slowly shape the flat material into a cylinder shape. The spiral seam is then fused under flux protection by automatic submerged arc welding, making welds that are as strong as the base metal. For sizes bigger than 24 inches, where plate prices for LSAW production go up sharply, this method works out to be the most cost-effective.

Mechanical Properties and Performance Standards

The API 5L Grade B standard says that the tensile strength must be between 60,000 and 75,000 psi and the yield strength must be at least 35,000 psi. These technical features make them suitable for medium-pressure oil and gas transmission lines operating under appropriate design conditions. The material is very tough at room temperature, but projects in cold places usually switch to X-grade materials, which have better Charpy impact values when it's below zero. We've supplied Grade B spiral-welded pipe for natural gas distribution networks in the Northeast and crude oil gathering systems across Texas. These systems perform reliably under moderate operating pressures and mild temperatures.

Mechanical properties and measurement standards are both important. We follow the tolerances specified by API 5L and applicable manufacturing standards when producing our products. For pipes longer than 20 inches, the outside diameter tolerance is ±1%, and the wall thickness variation is ±12.5%. This stability is very important for field assembly, where different sizes make it hard to line things and raise the cost of welding. The spiral method allows efficient production of large-diameter pipes, while dimensional accuracy depends on the manufacturing process and quality control measures applied, so they don't need to be reshaped in the field as much before they are welded.

Application Scenarios Across Industries

API 5L Grade B spiral welded pipe is in high demand in three main areas. The most common use is for oil and gas transmission on land. These pipes are the backbone of gathering systems that connect wellheads to processing facilities. Because long lines can be made with fewer field welds, installation time and possible leak spots are cut down along pipeline routes that go for hundreds of miles. We've worked on projects where the contractors specifically asked for SSAW material because it strikes a good balance between cost and structural integrity, especially in places where the soil allows for Class 1 or Class 2 design factors.

Large-diameter SSAW pipes manufactured to structural piling specifications such as ASTM A252 are widely used in foundation applications. These pipes move vertical loads and resist lateral forces in places like bridge foundations, offshore platform supports, and wind turbine bases. Engineers can choose lighter parts than solid ones because of the high stiffness-to-weight ratio. This lowers the cost of materials and the amount of tools needed for installation. Marine contractors benefit from the availability of 72-inch and larger diameters, which are physically impossible to manufacture using seamless pipe production methods.

The third big use is for utility water systems in cities. Large-bore spiral-welded pipe is used to make arterial water mains in cities that are growing. Diameters range from 48 inches to 96 inches, which are big enough to handle high flow needs. For these kinds of systems, we usually suggest covering the inside with cement mortar and sealing the outside with three layers of polyethylene. This creates a corrosion barrier that can help extend service life beyond 50 years in suitable underground conditions when combined with proper maintenance and corrosion protection measures. At these large diameters, the cost savings are substantial, with SSAW pipe often providing a 20% to 30% cost reduction over LSAW alternatives while meeting all performance requirements for municipal water service.

Manufacturing Process and Quality Control of SSAW Pipes

Production Stages and Critical Parameters

The first step in our manufacturing process is to inspect new materials. Spectrographic analysis checks the chemicals' makeup against API 5L standards. Careful control of the carbon equivalent is crucial, as excessive values can compromise weldability and complicate field welding during pipeline construction. We use ultrasonic gauging to check the thickness of the strip at several places, rejecting coils whose variations are too large. When the surface is inspected, any laminations or inclusions that could spread during forming are found. Any areas showing potential defects are marked so they can be taken out before production.

To get the desired width without too much stress, the making process needs to precisely adjust the entry angle and roller pressure. We keep an eye on the spiral pitch all the time because changes in it affect the end straightness and make it harder to apply the finish later. The quality of the edge preparation has a direct effect on the weld integrity. Our beveling tools keep the land width and bevel angle the same along the whole length of the strip. Both the internal and external welding heads work at the same time, and the flux composition is adjusted to match the steel's chemical composition for the best penetration and mechanical properties.

In thick-wall standards, post-weld heat treatment gets rid of any remaining stresses. However, for most Grade B uses with walls thinner than 0.75 inches, expansion and sizing are done directly. Our hydraulic expanders use even radial pressure to improve roundness and relieve membrane stresses caused by the forming process. This cold expansion also makes the material a little harder, which usually raises the yield strength by 2 to 3 ksi. The final SSAW carbon steel pipe has very consistent dimensions; even in 96-inch diameters, ovality rarely goes above 0.5%.

Comprehensive Quality Assurance Protocols

The most important part of our quality program is non-destructive testing. Automated technology that can find internal defects as small as 2 mm checks the entire spiral seam with ultrasonic waves. Along with this, we do X-ray exams at the ends of the pipes and at regular distances to look for porosity, slag inclusions, or partial fusion. Our acceptance standards are based on the applicable API 5L requirements and customer specifications, and we don't accept any sign that could weaken the pressure integrity or spread when the load is changed.

Hydrostatic testing is performed in accordance with API 5L requirements, with the test pressure calculated based on pipe dimensions and specified test conditions, and maintained for a minimum duration based on wall thickness. This proof test checks the quality of both the base metal and the weld. The test pressure is written down on each pipe's paperwork. Over the past five years, we've kept our hydrostatic failure rate below 0.3%. This is due to good process control and high-quality materials. Any pipe that leaks or changes size while being tested is thrown out and looked into to make sure it doesn't happen again.

The statistical validity of the production lot is checked by mechanical tests. We take tension pieces from both the base metal and the weld seam, and test them in a number of different places to see how the properties change over time. Guided bend testing checks how flexible a weld is by bending samples 180 degrees over a mandrel without breaking. This strict rule gets rid of welds that are easy to break. When needed, Charpy impact testing measures notch toughness. This is especially important for projects that will be done in cold places where brittle fracture resistance is important. For tracking, we keep full test records, and each package comes with a mill test certificate that lists all the mechanical, chemical, and dimensional results for api 5l ssaw welded carbon steel pipe manufacturers.

Comparing SSAW Pipes with Other Carbon Steel Pipe Types

Welding Technology and Size Capabilities

Understanding the differences in welding helps procurement teams make smart choices. Electric resistance welding is used to make ERW pipe, which is most common in the NPS 1/2" to 20" range. High-frequency induction makes resistance welds without filler material. This process works great for lower-pressure uses and utility distribution lines because it lets you control the dimensions very well and makes the insides smooth. ERW is generally less economical for diameters above 20 inches, though, because the cost of the electricity and forming equipment goes up a lot.

LSAW pipes are used in the NPS 16" to 60" range, especially when high pressure calls for a stronger weld. The lengthwise seam is joined using submerged arc welding, which is similar to SSAW products. However, the width and chemical makeup can be better controlled because the welding starts from a flat plate instead of a coil stock. We use automatic submerged arc welding and check all seams with X-rays to make sure the strength of the welds matches the strength of the base metal. Our cold-expansion method for LSAW pipes makes sure that the outer diameters are exact, which makes it easy to line up the ends of big pipes during installation. When projects call for design factors higher than 0.72 or working pressures higher than 1,440 psi, they usually need LSAW material because the straight-seam alignment and heat treatment after welding add extra safety.

As long as the pressure stays moderate, SSAW carbon steel pipe technology works best for NPS 8" and up, with practical limits around 120 inches depending on the forming equipment that is available. The continuous production method is very good for large-bore jobs. For example, municipal water mains, low-pressure gas distribution, and structural piling are all great examples of large-diameter jobs that can benefit from SSAW without compromising safety. The spiral weld seam distributes hoop stress over a helical path rather than a straight longitudinal line, which can provide advantageous stress distribution characteristics under internal pressure.

Cost Analysis and Value Proposition

Material costs have a big impact on pipe choice, especially for big infrastructure projects that need thousands of tonnes of materials. SSAW pipes usually cost 15–25% less than equivalent LSAW products in diameters above 30 inches, with the difference getting bigger as the size goes up. This is because they are made from narrow coil stock instead of wide plate, where steel mills charge more for different width and thickness combinations. The continuous production process also uses less labour per tonne than LSAW manufacturing, where each pipe needs to be handled individually, and seams need to be prepared.

When it comes to all sizes, seamless pipe costs the most and is only justified when code requirements require it or when severe service conditions make welded alternatives impossible. For API 5L Grade B applications at moderate pressures, seamless material doesn't offer any performance advantage worth the 40–60% cost premium. We recommend welded solutions unless specific regulations or operating conditions require seamless products. When life-cycle economics are properly analysed, the weight savings potential through higher-grade seamless materials rarely more than offsets the initial cost penalty.

Transportation and installation costs are also key considerations alongside the initial purchase price of the pipe. SSAW pipes can be stacked on top of each other during shipping, which lowers freight costs compared to LSAW bundles. The longer lengths—we regularly make 60-foot sections—reduce the number of field welds needed per mile of pipeline, which lowers both labour costs and potential leak points.

Conclusion

API 5L Grade B SSAW carbon steel pipe has been used successfully in oil and gas infrastructure where large diameters and moderate pressures are needed. The spiral welding process makes it possible to produce sizes that can exceed 120 inches depending on manufacturing equipment and project requirements at a low cost, which makes these pipes essential for transmission lines, municipal water systems, and building foundations all over the world.

FAQ

1. What are typical lead times for API 5L Grade B SSAW pipe orders?

Lead times are usually between 30 and 45 days for standard specifications like common diameters, wall thicknesses, and coating systems. This includes getting the raw materials, making the product, testing the quality, and applying the coating. Projects that need specialised testing like low-temperature Charpy impact evaluation, non-standard dimensions, or unusual coating systems may take up to 60 days. To make sure that procurement timelines are met, we suggest involving suppliers early in the planning stages of a project. Our production scheduling system gives orders priority based on their commitment dates, with larger volumes often getting special attention through dedicated production runs.

2. How can buyers verify quality compliance for spiral welded pipe?

Reviewing mill test certificates (MTCs) that detail the chemical composition, mechanical properties, and dimensional measurements is the essential first step in quality verification. These certificates should reference specific standards like API 5L and include individual pipe identification matching shipment documentation. We offer full non-destructive testing records showing ultrasonic and radiographic inspection results for every pipe. Third-party inspection services can watch production and testing and make independent verification reports. Our facility welcomes customer audits and keeps clear quality systems that allow traceability from raw coil to final shipment.

3. When should LSAW pipe be used instead of SSAW pipe in a project?

For high-pressure situations above 1,440 psi or when projects require higher design factors or stricter dimensional requirements, LSAW is better because the straight longitudinal seam holds up better under extreme stress. Projects involving high-pressure flammable gas service often specify LSAW pipes because of their dimensional control and suitability for demanding applications. The cold expansion process used in LSAW production gives tighter dimensional tolerances, which makes field alignment during construction easier. On the other hand, SSAW carbon steel pipe is highly suitable for moderate-pressure liquid transmission and structural applications.

Partner with JS FITTINGS for Reliable SSAW Carbon Steel Pipe Supply

Every API 5L Grade B SSAW carbon steel pipe project that JS FITTINGS works on is backed by over 40 years of manufacturing excellence. We can work with NPS 8" through 120" diameters and meet international standards like API 5L, ASTM A53, and ASTM A252 for a wide range of uses, from oil and gas transmission to structural piling. As a qualified supplier for major energy companies around the world, we've earned their trust through consistent quality, clear processes, and delivery reliability that is better than industry expectations. Email our engineering team at admin@jsfittings.com.

References

1. American Petroleum Institute. "Specification for Line Pipe: API Specification 5L," 46th Edition, 2018.

2. ASTM International. "Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless: ASTM A53/A53M," Annual Book of ASTM Standards, 2020.

3. Mohitpour, M., Golshan, H., and Murray, A. "Pipeline Design and Construction: A Practical Approach," Third Edition, ASME Press, 2007.

4. Det Norske Veritas. "Submarine Pipeline Systems: DNV-OS-F101," Offshore Standard, 2021.

5. National Association of Corrosion Engineers. "Control of External Corrosion on Underground or Submerged Metallic Piping Systems: NACE SP0169," Standard Practice, 2013.

6. Pipeline and Gas Journal. "Spiral Welded Pipe Manufacturing and Quality Control Advances," Vol. 247, No. 8, August 2020, pp. 42-49.
