ASTM A234 WPB Buttweld Bend: Grades, Sizes & Applications

When specifying direction changes in high-pressure piping systems, ASTM A234 WPB buttweld bends represent the industry standard for carbon steel applications. These engineered fittings redirect flow paths in pipelines while maintaining structural integrity under demanding conditions. Manufactured through induction bending or cold forming processes, WPB-grade bends offer mechanical properties suitable for demanding piping applications and can provide smoother flow paths than standard elbows when larger bend radii are used, making them essential components in oil and gas transmission lines, power generation facilities, and chemical processing plants. Understanding their material specifications, dimensional standards, and application suitability helps procurement teams minimise project risks and ensure regulatory compliance.

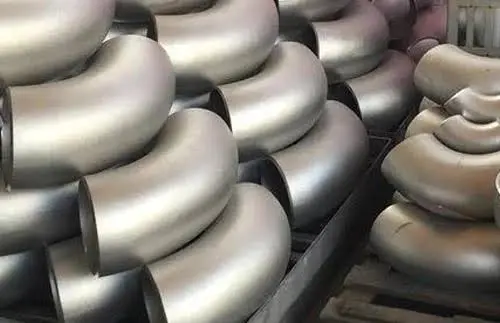

Understanding ASTM A234 WPB Buttweld Bend: Grades and Material Specifications

What Defines ASTM A234 WPB Material Grade？

Wrought carbon steel pipe fittings designed for moderate and elevated temperature services are called ASTM A234 WPB. The "WPB" classification means that the material meets certain chemical requirements for carbon, manganese, phosphorus, sulfur, and silicon. The controlled composition helps ensure that the material can be welded and used reliably in moderate- and high-temperature service, subject to the applicable design code and service conditions. Compared to alloy grades like WP11 (chromium-molybdenum) or WP22 (chromium-molybdenum-vanadium), WPB works better and costs less in situations where it doesn't need to be highly resistant to corrosion or strong at temperatures above 400°C.

Key Material Properties for Industrial Applications

WPB-grade fittings are made of carbon steel, which provides excellent tensile strength (typically 60,000 psi minimum) and sufficient ductility for field installation. When piping systems are subjected to thermal cycling or vibration loads, this balance is very important. In non-aggressive settings, the material reliably resists rust. However, protective coats are needed to extend their useful life in offshore or chemical exposure situations. Adhering to the applicable requirements of ASME B16.9 or ASME B16.49 helps ensure dimensional and manufacturing conformity, while pressure-temperature ratings must be determined according to the applicable piping design code and material requirements.

Comparative Analysis with Alternative Grades

Selecting between WPB and alloy options depends on specific application requirements and budgetary constraints. The WP11 and WP22 grades are much more expensive than WPB, but they can handle higher temperatures and have better creep resistance for power plant steam systems. Stainless steel types (ASTM A403 WP304/316L) protect against rust better in chemical service, but they need to be welded in a certain way. When used in oil and gas pipelines, factories, and water treatment plants that are within WPB's temperature range, the material gives the best value without lowering safety standards.

Dimensional Standards and Sizes of ASTM A234 WPB Buttweld Bends

Understanding Bend Radius Classifications

The main difference between buttweld bends and elbows is the ratio of their radius to diameter and their intended application. Buttweld bends are commonly specified with larger centreline radii, such as 3D, 5D, 6D, and 8D, while standard elbows commonly use shorter standardised radii. 3D, 5D, 6D, and 8D buttweld bends are common configurations. The number before the “D” indicates how many pipe diameters make up the centreline radius. Standard elbows commonly use shorter standardised radii, including 1.5D long-radius elbows, while some standards also cover other radius configurations. Long-radius bends are better for moving fluids at high speeds because they lower flow turbulence and pressure drop. This is important because efficiency affects running costs.

Standard Size Ranges and Wall Thickness Options

ASTM A234 WPB buttweld bends are available in sizes from 1/2 inch to 60 inches (DN15 to DN1500). For diameters up to 24 inches, seamless manufacturing can be used to produce Buttweld seamless pipe bends. For larger sizes, LSAW or HSAW construction is needed to start with welded pipe. The wall thickness can range from light schedules to heavy-wall and XXS configurations, depending on the product size, design requirements, and applicable standard. When project needs go beyond normal plans, custom heavy-wall specs can be made. When picking the wall thickness, you need to think about the internal pressure ratings, the chance of corrosion, and the wall possibly getting thinner during the bending process.

Angle Specifications and Custom Configurations

Manufacturers can make any angle to match isometric models, but the most common ones are 15°, 30°, 45°, 60°, and 90°. For large-diameter pipeline projects, navigating terrain obstacles or platform structures frequently necessitates non-standard bend angles. The manufacturing process keeps the dimensions accurate across the bend arc, and the amount of ovality (out-of-roundness) is controlled according to the applicable code and project requirements. Tangent lengths at each end make straight sections that can be butt-welded to neighbouring pipes. This keeps heat-affected areas separate from the complex grain structure of the bent section.

Installation and Inspection of Buttweld Bends in Industrial Piping

Welding Best Practices for Field Installation

Making sure that the material certifications match the project requirements is the first step in a proper installation. Each end has a straight tangent section that makes it easier to align and clamp during welding. If required by code, welding methods must follow approved WPS (Welding Procedure Specifications) that spell out the requirements for preheating, the highest and lowest temperatures between passes, and the heat treatment that must be done after the joint. The temperature range for preheating ASTM A234 WPB material is usually between 50°C and 150°C, but it depends on the thickness of the wall and the temperature outside. Keeping the interpass temperatures at the right level stops fast cooling that could damage microstructures in the heat-affected zone.

Non-Destructive Testing Methods

Protocols for quality assurance include a number of different inspection methods that are used before and after installation. Ultrasonic testing (UT) checks the wall thickness all the way around the bend, making sure that the extrados (outer curve) keeps enough material after being stretched during fabrication. Radiographic testing (RT) or phased-array ultrasonic testing (PAUT) detects internal discontinuities or volumetric flaws in field welds.Surface-breaking flaws can be found with magnetic particle inspection (MPI) or liquid penetrant testing (PT). Testing for hardness after heat treatment makes sure there aren't any hard spots that could cause the material to break easily. All documented test results form an integral part of the project's permanent quality records.

Addressing Common Installation Challenges

The most common problem during installation is misalignment during fit-up. This is especially true for large-diameter buttweld bends, where small angular deviations can cause big end-face gaps. Rework that costs a lot of money can be avoided by using the right alignment tools and checking readings from more than one point of reference. Too much weld heat can change the properties of the material in the heat-affected zone around the bend, so careful amperage control and weaving technique are needed. Hydrogen-induced cracking is more likely when there isn't enough preheat in cold weather. These problems can be reduced by having an experienced welder oversee the work and following the approved procedures. This helps ensure that the joints meet the applicable code requirements for pressure service.

Comparing Buttweld Bend Types and Materials for Optimal Procurement

Buttweld Bends versus Elbows: Structural Differences

The way these parts are made is just as important as their shape in telling them apart. Elbows are made from wrought metal by pressing or extruding it, which makes standard products that can be bought right away. Custom butt weld bends can be made from pipe using induction bending or cold bending, which lets you specify the exact radius and angle. The longer radius of buttweld bends makes flow transitions smoother, which lowers erosion and pressure loss caused by turbulence. This is very important for long-distance transmission pipelines because the costs of pumping build up over many years of use. Pipeline inspection gauges (pigs) can also get through butt weld bends, but they would get stuck in corners with a smaller radius.

Socket Weld versus Butt Weld Connection Methods

Socket weld fittings have a hollow socket that the pipe end fits into. This makes a mechanical joint with fillet welds added on top of it. This design is commonly used for smaller-diameter piping systems, including certain high-pressure applications where the connection design is suitable. Buttweld connections are typically designed to achieve full-penetration welds, with weld quality verified through appropriate inspection and testing, so there are no places where rust or erosion could happen. For high-pressure steam service, corrosive fluids, and applications requiring radiographic inspection, butt-welded seamless pipe bends are preferred because they provide a continuous welded flow path without the internal socket geometry associated with socket-weld connections. Socket welds are faster to place on small-bore pipes, but butt-weld construction is widely used in pipelines and process plants, particularly for larger-diameter piping.

Carbon Steel versus Stainless Steel Material Selection

ASTM A234 WPB carbon steel provides the most cost-effective solution for non-corrosive applications up to specified temperature limits. Stainless steel alternatives (ASTM A403 WP304/WP316L) are three to five times more expensive but offer better corrosion resistance in marine and chemical processing environments. For ocean uses, duplex stainless types offer better strength and protection against chloride stress corrosion. With protective coats like 3LPE, FBE, and epoxy, carbon steel often performs as well as stainless steel at a lower total cost of ownership. The decision takes into account the initial cost of the materials, their expected service life, and the cost of maintenance over the course of their lifetime.

Procuring ASTM A234 WPB Buttweld Bends: Suppliers, Pricing & Custom Solutions

Essential Supplier Selection Criteria

When looking for reliable manufacturers, you need to look at more than just price. ISO 9001 recognition shows that quality management is done in a planned way, and API, ASME, or PED approvals show that manufacturing meets recognised standards. Tracking material through mill test records and heat numbers helps verify the specified material grade. Strict quality control is demonstrated by in-house testing capabilities like spectroscopy, mechanical testing, and NDT. Successful vendor qualification by major energy companies (NIOC, ADNOC, and Petrobras) verifies the manufacturer's skills from a third party. Premium suppliers are different from commodity suppliers because they consistently deliver on time and offer quick expert help.

Understanding Market Pricing Dynamics

Prices for ASTM A234 WPB butt weld bends depend on the size, wall thickness, quantity, and level of customisation needed. When bought in bulk, small-diameter standard butt weld bends (2 to 6 inches, 90° long radius) could cost anywhere from $20 to $80 per piece. Custom butt welds with a width of 24 to 60 inches and non-standard angles can cost between $500 and $5,000, based on the needs. Material surcharges change based on the price of steel around the world. Base prices go up by 15 to 40 per cent for value-added services like bevelling, finishing, and heat treatment. Volume savings usually start at 10 to 20 tonnes, and yearly supply agreements get better prices. Lead times range from 4 to 8 weeks for standard orders and from 10 to 16 weeks for custom orders that need special tools.

Custom Manufacturing Capabilities

Engineered solutions from suppliers are helpful for projects with specific needs. Custom radius specs up to 20D can be used to work around site limitations in crowded setups. Non-standard wall thicknesses are used to meet the needs of high-pressure grades or weathering allowances that go beyond what is allowed by schedule. Compound buttweld bends, which combine several angles into one part, cut down on the number of welds and possible leak points. Pipe plans are made easier with transition turns that have changes in diameter built into the curve. Large-diameter pipeline projects are handled by suppliers with induction bending equipment that can bend up to 60 inches. Smaller producers may only be able to bend up to 24 inches. Verifying a supplier's manufacturing capabilities during the evaluation process prevents costly delays post-order.

Conclusion

To choose the right ASTM A234 WPB buttweld bends, you need to know about the qualities of the material, the standard sizes, and the needs of the individual application. The WPB grade works well for moderate-temperature carbon steel pipe systems in many different types of businesses. Long-term system integrity depends on following the right installation steps and inspection protocols. When you compare different bend configurations, you can get the best technical performance and project cost. Working with reputable manufacturers that have strict quality control systems and can provide custom engineering support lowers the project's risk while still meeting budget and deadline goals.

FAQ

1. What distinguishes a buttweld bend from a standard elbow?

The primary differences are in the radius and the way the product is made. Standard off-the-shelf parts called elbows have a 1D or 1.5D curve and are made by pressing or extruding metal. Buttweld bends have bigger curves (3D, 5D, 7D, or more), and they are made to order by heating pipes induction-style or cold-forming them. Buttweld bends are necessary for long-distance transmission systems because they lower flow resistance and facilitate the passage of pipeline inspection gauges (pigs).

2. How is wall thinning controlled during bend fabrication?

During bending, the outer wall (extrados) becomes thinner and stretches, while the inner wall (intrados) becomes thicker and compresses. A pipe with an appropriate wall thickness is used as the starting material so that the wall thickness after bending still meets the minimum design standards set by ASME B31.3 or B31.8. During induction bending, precise control of temperature and speed keeps thinning to a minimum. Ultrasonic testing after fabrication makes sure that the walls are thick enough all the way around the buttweld bend.

3. Does ASTM A234 WPB material require post-bend heat treatment?

Post-bend heat treatment (PBHT) may be required in certain situations to restore or control the material properties affected by bending that were changed by localised heating during manufacturing. Normalising or tempering removes leftover stresses and returns flexibility. This is especially important for materials with a high yield and thick walls that need to be bent. Based on the material, wall thickness, manufacturing process, and applicable service code, the required heat treatment should be determined according to the applicable specification and project requirements. After PBHT, hardness testing is performed to ensure the absence of excessively hard areas that could compromise service performance.
