Buttweld Bend Manufacturer: China Factory Wholesale Pricing

When searching for a reliable buttweld bend manufacturer, procurement professionals increasingly turn to Chinese factories for wholesale pricing that doesn't sacrifice quality for cost. These specialized pipe fittings—engineered with precise bending radii from 3D to 20D—solve critical challenges in oil and gas transmission, thermal power generation, and offshore installations. Chinese manufacturers combine decades of induction bending expertise with international certifications to deliver components that meet ASME B16.49 and API 5L standards while maintaining competitive price points that support project budgets without compromising safety or performance.

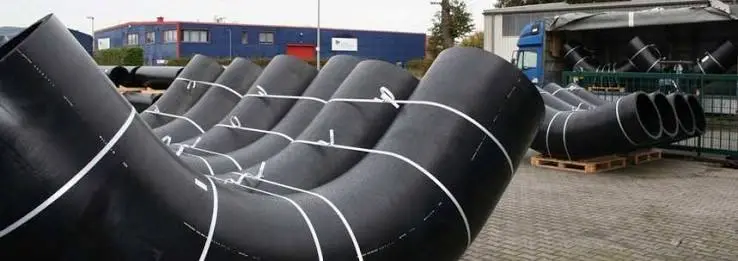

Understanding Buttweld Bends: Types, Specifications, and Applications

Buttweld bends are critical components in industrial piping systems for altering flow direction. They differ from standard elbows by offering larger, customizable bending radii. Understanding this distinction enables procurement teams to select the optimal component for specific project requirements.

Defining Buttweld Bends Versus Standard Elbows

The main difference is the bending radius compared to the pipe diameter. A buttweld bend is typically a long-radius pipe bend manufactured by induction bending, with common radius configurations including 3D, 5D, 6D, 8D, and larger custom radii. On the other hand, standard elbows commonly use smaller radii, such as 1D for short-radius and 1.5D for long-radius configurations. This difference in shape has big effects on the flow dynamics. For example, bends with longer radii reduce turbulence and pressure drop by a large amount compared to elbows with sharp angles.

Material Options for Diverse Operating Environments

To accommodate various operating environments, we manufacture bends from three primary material categories. Different types of carbon steel, including pipes manufactured to API 5L Grade B through X80 requirements, are commonly used as starting materials for pipeline bends, including PSL1, PSL2, and sour service applications, and are cost-effective for standard temperature and pressure uses. Some types of alloy steel, such as ASTM A234 WP11, WP22, and WP91, are commonly selected for elevated-temperature applications, including certain high-temperature power plant services. ASTM A403 WP304/WP304L and WP316/WP316L stainless steel fittings provide improved corrosion resistance for chemical processing and marine environments. For highly aggressive environments, we offer Duplex 2205, which provides high corrosion resistance and strength, while ASTM A860 WPHY grades are used where higher strength requirements are needed.

Standard Configurations and Custom Capabilities

We can make products with outer diameters ranging from 1/2" to 60" (DN15 to DN1500), including seamless constructions up to 24" and welded LSAW/HSAW variants for larger sizes. Standard bending angles include 15°, 30°, 45°, 60°, and 90°, but we often make custom angles that match specific isometric drawings. Wall thickness options range from SCH 10S to XXS, with heavier schedules available to account for wall thinning during the bending process. This makes sure that the finished part keeps the required minimum wall thickness on the extrados after forming.

Industrial Applications Driving Demand

Long-diameter bends are necessary for oil and gas transmission pipelines that need to be piggable, which means they have to be able to fit inspection and cleaning tools. Smooth-radius bends are used in supercritical thermal power plants to keep high-velocity steam lines from wearing down at temperatures above 600°C and 25 MPa. Subsea and offshore platforms use custom-angle bends to get through tight structural spaces while reducing the number of weld joints needed. This lowers the number of potential leak points and the number of inspections that need to be done. The better flow efficiency of long-radius configurations directly translates into lower pumping costs over the system's operational lifetime.

Manufacturing and Quality Standards of Butt Weld Bends in Chinese Factories

Advanced induction bending technology and strict quality control rules are used by Chinese manufacturers to make parts that always meet international standards. Our 43 years of manufacturing knowledge are used at every stage of production.

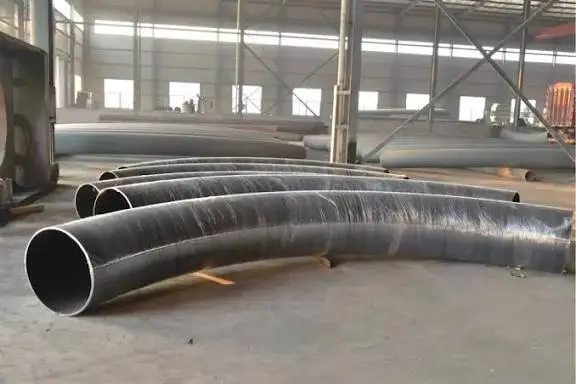

The Induction Bending Process

The first step in manufacturing is selecting starter pipe materials that meet the needs of the project. A heavier wall schedule is often chosen to account for stretching during forming. To achieve the desired radius, induction bending uses localized heating through electromagnetic coils and simultaneous mechanical force. This controlled process keeps the pipe's integrity more effectively than cold bending or fabricated weld assemblies. Temperature and bending speed are constantly monitored to avoid the outer curve (extrados) becoming too thin and the inner curve (intrados) becoming too thick.

Post-Bend Heat Treatment Requirements

After bending, the material's microstructure needs to be fixed through post-bend heat treatment. We do normalizing or quenching and tempering in properly calibrated furnaces to eliminate any residual stresses that were introduced during forming. This is an important step that prevents the formation of localized brittle zones that could fail under operational stress. Hardness testing across multiple zones confirms that the material properties are uniform, making sure that the finished part does not contain localized weak areas. For carbon steel buttweld pipe bends, ASME B16.49 governs the requirements for induction bending. Post-bend heat treatment (PBHT) requirements depend on the material grade, forming conditions, wall thickness, and applicable project specifications. We consistently perform this treatment for all required grades.

Controlling Critical Quality Parameters

During the bending process, it is critical to ensure that the wall thickness on the extrados does not thin below the minimum requirements set by ASME B31.3 or B31.8. We also keep a close eye on ovality, which is the out-of-roundness of the pipe cross-section, and make sure it remains within the allowable limits specified by the applicable standards and project requirements. This accuracy means that expensive corrections don't have to be made in the field during installation, because properly formed bends fit together perfectly with adjacent pipe sections when welding them together.

Comprehensive Inspection Protocols

Ultrasonic testing checks the uniformity of wall thickness and finds internal laminations. Radiographic inspection confirms the integrity of welded starter pipes. Magnetic Particle Inspection, or Dye Penetrant Testing, finds surface cracks that may have formed during bending. We do tensile testing and Charpy V-notch impact testing on sample pieces to verify compliance with mechanical property requirements.Our spectral analyzer checks the chemical composition to make sure it matches the material certifications.

JS FITTINGS Quality Assurance System

Our factory has seven integrated management systems that cover supplying materials, controlling production, quality assurance, packaging, inventory, pre-shipment inspection, and service after the sale. This thorough approach has earned us certifications from major energy companies like the National Iranian Oil Company, Abu Dhabi National Oil Company, and Petrobras. Our complaint rate remains below 0.5%, and our repurchase rate exceeds 98%, which shows that our products are consistently reliable.

Comparing Buttweld Bends: Material, Types, and Costs for Informed Procurement

To choose the best bend design, you have to weigh technical needs against the costs of the project. Knowing how the material works and how much it will cost helps you make smart decisions.

Material Performance and Cost Analysis

For normal service conditions, carbon steel grades remain the most cost-effective option. API 5L X-grades offer higher yield strengths for higher pressure ratings. The price difference between Grade B and X70 is usually 15% to 30%, which is reasonable when design pressures require higher strength. Stainless steel 316L costs about 3 to 4 times more than carbon steel, but it doesn't corrode in chemical or marine environments, so it often saves money in the long run even though it costs more at first. Alloy steels like WP11 and WP22 are in the middle. They offer creep resistance at high temperatures, but they are about twice as expensive as carbon steel.

Radius Selection Impact on Performance

When you look at 3D and 5D bends side by side, you can see that they have different pros and cons when it comes to space and hydraulic performance. A 5D bend generally reduces pressure loss compared with a 3D configuration under similar operating conditions, although the exact improvement depends on specific flow parameters. This increased hydraulic efficiency translates to significantly lower pumping costs over decades of operation. However, the 5D bend takes up more installation space and uses more material, which raises the initial costs by 20% to 35%. For pipeline systems that need pig passage, 5D or larger radii are required to keep tools from getting stuck, so choosing this is not an optimization choice.

Wholesale Pricing Advantages from China Factories

Through economies of scale and integrated supply chains, Chinese manufacturers offer big price advantages. Our monthly output of 800 tons of pipe fittings and 700 tons of flanges enables us to secure raw materials at highly competitive rates. Labor efficiency gained over decades of specialized production lowers per-unit manufacturing costs. These savings mean that wholesale prices can often be competitive compared with equivalent products from Western manufacturers due to production scale and supply chain advantages, without lowering quality standards. Orders over 20 tons often qualify for extra volume discounts of 5% to 10%.

Total Cost of Ownership Considerations

When procurement professionals look at the total cost of ownership, they should not only consider the initial purchase price. For example, properly manufactured CS ASME buttweld pipe bend products with controlled wall thickness and verified heat treatment rarely need to be replaced early, which significantly reduces costly downtime. Our bends' optimized geometry helps reduce the risk of inspection tool interference when designed according to pipeline pigging requirements, thereby preventing unexpected operational disruptions. The accuracy of our measurements cuts down on field welding time and the need for expensive alignment corrections. When these operational benefits are taken into account, the real cost advantage of quality Chinese manufacturing becomes even clearer.

How to Procure Buttweld Bends from China Factories: Step-by-Step Guide?

For foreign procurement to go smoothly, suppliers must be carefully evaluated and technical needs must be communicated clearly. This organized method lowers risks and raises value.

Identifying Qualified Manufacturers

Check that manufacturers have the right international certifications. ISO 9001 shows that they have systematic quality management, while API, ASME, and customer-specific qualifications from major oil companies show that they have proven their ability. Check the manufacturers' production capacity to make sure they can meet your deadlines and volume needs. For example, our 30,000-ton annual capacity and 90+ container monthly shipments give you confidence in our supply reliability. Ask for references from customers in your region or industry segment; successful project histories with similar requirements show that we can meet your needs.

Defining Precise Technical Requirements

Prepare detailed specifications that include the material grade, dimensions, bending radius, angles, wall thickness schedule, and any applicable standards. List the tests and documentation that are needed, such as mill test reports, radiographic film, impact test results, and dimensional inspection reports. Make it clear what coatings are needed if external protection like 3LPE, FBE, or internal epoxy is needed. For non-standard configurations, provide isometric drawings that show the exact installation geometry. Clear specifications help avoid confusion and allow accurate quotes.

Requesting Quotations and Evaluating Offers

To get accurate price quotes, you should contact several suppliers with the same specifications. In addition to unit prices, you should also look at lead times, payment terms, and shipping arrangements. Ask for clarification on what inspection documentation is included and what is available for an extra fee. Confirm the minimum order quantities—our flexibility allows for both large projects and small trial orders. Question any quotation that is significantly below market rates; very low prices may mean that quality has been compromised or there are hidden costs.

Negotiating Terms and Placing Orders

Talk about the possibility of framework agreements if you have ongoing needs. Make sure you understand exactly which costs the supplier covers and which ones are your responsibility. Set clear quality acceptance criteria and inspection procedures before production starts. For first orders, you might want to ask for a pre-production sample for approval—we support sample production to make sure specifications are met before full production. Write down all the agreed terms in a formal purchase order or contract.

Quality Verification and Logistics Coordination

Set up a third-party inspection if your organization or project requires it. We help with factory audits and witness testing when customers ask for independent confirmation. Review all documentation once it's done before approving shipment. Take care of the logistics of shipping, whether FOB, CFR, or CIF terms apply. Keep track of the movements of the containers and get ready for customs clearance at the destination. Our experienced international trade team helps with paperwork and logistics coordination by drawing on relationships built in more than 30 countries.

Conclusion

Finding a good Chinese buttweld bend manufacturer can help you save money, get a wider range of products, and be sure of a steady supply. Knowing the differences between bend types, how materials perform, and manufacturing quality standards can help you make smart purchasing decisions that fit your project needs and your budget. JS FITTINGS has 43 years of experience making specialized products, international certifications, and proven performance in tough applications around the world. Our thorough quality systems, quick technical support, and low wholesale prices make us a reliable partner for EPC contractors, distributors, engineering firms, and industrial end users who need reliable piping parts that meet deadlines without sacrificing safety or performance standards.

FAQ

1. What is the primary difference between a buttweld elbow and a buttweld bend?

The radius is what makes these parts different. Elbows have a 1D (short radius) or 1.5D (long radius) curvature and are mass-produced as standard fittings. Bends, on the other hand, have larger radii—usually 3D, 5D, 8D, or custom configurations—and are made by induction bending or cold forming. The longer radius lowers flow turbulence and pressure drop while letting pipeline inspection gauges (pigs) pass through that can't go around the sharp angles of standard elbows.

2. Does butt weld bending require post-bend heat treatment?

The type of material and applicable codes determine the heat treatment requirements. Induction bending changes the microstructure of steel by heating and cooling certain areas. ASME B16.49 requires PBHT for high-yield pipeline steels to make them more flexible again and relieve residual stresses. We do normalizing or tempering followed by hardness testing to make sure that the material properties are uniform and that there are no brittle spots that could compromise pressure containment.

3. How is wall thinning controlled during the bending process?

When we start with a starter pipe that has a thicker wall than what is needed for the finished product, the outer curve (extrados) stretches and thins while the inner curve (intrados) compresses and thickens. The amount of thinning is limited by carefully controlling the induction heating temperature and bending speed. The final dimensional inspection confirms that the extrados' remaining wall thickness is higher than the minimum design requirements set by ASME B31.3 or B31.8. This makes sure that the pressure rating is good.

4. Can buttweld bends accommodate custom angles and radii?

Yes. Standard configurations include 45° and 90° angles with 3D, 5D, or 8D radii, but we often make custom specifications that match project isometric drawings. Our induction bending process can handle non-standard angles like 22.5° or compound curves, and we can make custom radii up to 20D when flow optimization or space constraints call for it. Giving us detailed drawings during the quotation process ensures that we manufacture exactly what you need.

Partner with JS FITTINGS for Your Buttweld Bend Supply Needs

Join forces with JS FITTINGS for all of your buttweld bend needs. As a qualified buttweld bend supplier with certifications from Petrobras, NIOC, and ADNOC, JS FITTINGS can help you with your procurement needs. Our 7,000-square-meter factory produces 30,000 tons of components every year and delivers them on time more than 95% of the time, supporting project timelines in the oil and gas transmission, power generation, and industrial processing sectors. We can meet specifications from DN15 to DN1500 with custom radii, angles, and material grades, such as API 5L X-grades, ASTM A234 alloy steels, and corrosion-resistant stainless steels. Contact our technical team at admin@jsfittings.com to talk about your project needs and get detailed quotes with competitive wholesale prices.

References

1. American Society of Mechanical Engineers. (2021). ASME B16.49: Factory-Made Wrought Steel Buttwelding Induction Bends for Transportation and Distribution Systems. New York: ASME Press.

2. American Petroleum Institute. (2020). API Specification 5L: Specification for Line Pipe, 46th Edition. Washington, DC: API Publishing Services.

3. Mohitpour, M., Golshan, H., and Murray, A. (2007). Pipeline Design and Construction: A Practical Approach, Third Edition. New York: ASME Press.

4. Liu, H. (2003). Pipeline Engineering. Boca Raton: CRC Press.

5. Escoe, A. K. (2006). Piping and Pipeline Assessment Guide. Burlington: Gulf Professional Publishing.

6. Nayyar, M. L. (2000). Piping Handbook, Seventh Edition. New York: McGraw-Hill Professional.
