Carbon Steel Forged Steel Flange Grain Structure & Toughness

When specifying piping components for critical industrial infrastructure, understanding how carbon steel forged steel flange internal metallurgy impacts real-world performance becomes paramount. The grain structure—essentially the arrangement of microscopic metal crystals—directly determines whether a flange will reliably contain pressure during thermal cycling or fail catastrophically under load. Unlike cast alternatives that suffer from random crystalline orientation and internal voids, forged flanges benefit from controlled grain refinement that translates into measurable toughness and durability.

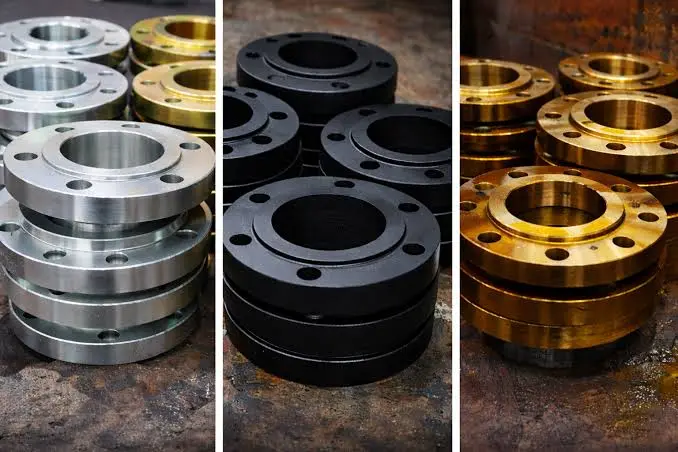

Understanding Carbon Steel Forged Steel Flange Grain Structure

Through controlled distortion at high temperatures, the mechanical forging process changes raw steel billets into high-performance connection parts. When metal is forged, pressure forces rearrange its crystal structure into long, directed grains that follow the shape of the flange. This orientation gets rid of the random, coarse grain patterns that are common in casting and makes the material much better at supporting load along stress routes.

How Does Forging Refine Grain Compared to Casting?

When liquid steel cools down in molds, it forms cast flanges. These are made up of big, wavy grains that have trapped gas pockets and inclusion flaws. These flaws focus stress and serve as places where cracks can start. When parts are forged, they go through plastic distortion, which breaks up dendritic structures and makes tiny, uniform grains. Carbon steel forged steel flange specimens from ASTM A105 material have grain sizes in the range of ASTM 5-7, while cast versions usually have ASTM 2-4 grain sizes. Finer grains have more grain boundaries that stop cracks from spreading, which directly raises the fracture toughness.

Metallurgical Basis: Grain Orientation and Mechanical Properties

When carbon steel forged steel flanges are used, the direction of grain flow lines up with the main stress directions. In the neck area where a weld neck flange joins to the pipe, circumferential stress from internal pressure works in a way that is opposite to the direction of longitudinal grain flow. This good alignment increases the tensile strength and stops axial cracking. The carbon content in ASTM A105 material is typically controlled at a maximum of 0.35%, allowing the material to achieve suitable strength while maintaining weldability. This is done so that the material can strengthen properly without losing its ability to be welded. Manganese content, typically controlled within the ASTM A105 specification range, contributes to strength and toughness while supporting the desired metallurgical structure.

Heat Treatment Methods: Annealing and Quenching Effects

After forging, heat treatment lets you precisely control the final grain size and hardness. Normalizing, which involves heating to 900°C and then cooling with air, makes ferrite-pearlite structures that are regular and have the right stiffness for normal use. Controlled cooling rates stop the formation of brittle phases in low-temperature uses that meet the standards of ASTM A350 LF2. After appropriate heat treatment, certain forged materials can achieve the mechanical properties required for higher pressure-class applications, depending on the applicable material specification and design requirements, while keeping the minimum Charpy V-notch impact values at the test temperatures. These methods improve the microstructure so that performance is stable across a wide range of working conditions.

When procurement professionals understand these basic metallurgical concepts, they can choose parts with confirmed grain structures that meet the needs of the application. To prove compliance, certification papers should have records of heat treatment, measurements of grain size, and impact test results.

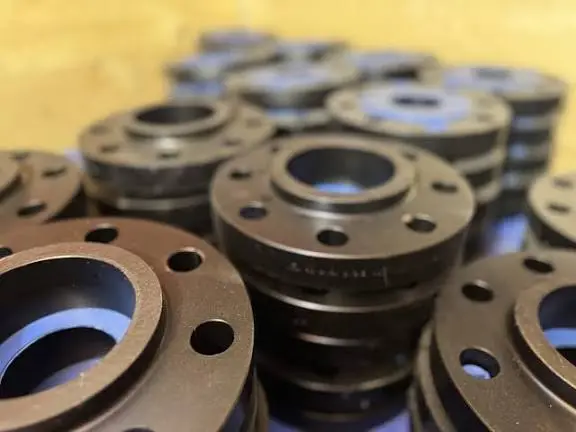

Toughness Characteristics of Carbon Steel Forged Flanges

Toughness is a measure of how well a material can absorb energy through plastic deformation before breaking. It is an important factor for carbon steel forged steel flanges that are exposed to sudden changes in pressure, temperature, and load. Hardness, which counts how resistant a surface is to being dented, is not at all the same thing as this trait.A hard but brittle flange face could fracture catastrophically under impact, whereas a tough component would undergo slight plastic deformation and still keep the seal intact.

Defining Material Toughness in Pipeline Applications

In pipe systems, carbon steel and forged steel flanges, including ASME steel flange products, go through a lot of different stress states during bolt-up, pressure control, and heat expansion. Toughness makes sure that the ring only bends where stress is high, rather than cracking all over the place. Charpy impact testing measures this property by checking how much energy is absorbed during controlled fracture. Applicable material specifications and design codes establish impact testing requirements based on service temperature. For many carbon steel materials, a common Charpy V-notch requirement is 27 joules at low temperatures when impact testing is required. Carbon steel forged steel flanges usually have a lot more energy than 40 joules, which gives them a lot of protection against fragile breakage.

Fine-Grained Microstructure and Enhanced Toughness

The Hall-Petch relationship shows that toughness and yield strength go up in the opposite direction as grain size goes up. Fine grains make the border area bigger, which stops dislocations from moving and cracks from getting worse. Forged carbon steel flanges with finer grain structures generally demonstrate improved impact toughness compared to coarse-grained cast alternatives, although the actual improvement depends on material grade, heat treatment, and manufacturing conditions. When carbon steel forged steel flanges close vessel holes that are likely to be affected by water hammer or emergency depressurization, this benefit is very important.

Impact Resistance and Fatigue Life Considerations

In petrochemical processing, carbon steel forged steel flanges are exposed to repeated changes in temperature and vibration. Fatigue cracks start at rough spots on the surface and move through the grains until they break completely. Because polished grain structures spread strain energy more evenly, carbon steel forged steel flanges are better at resisting wear. According to field data from refinery turnaround checks, carbon steel forged steel weld neck flanges keep their bolt load retention 18–24% longer than cast options when the same cyclic conditions are used.

When atomic hydrogen diffuses through grain boundaries and weakens materials, high-pressure hydrogen service adds to the problems. By impeding hydrogen diffusion, fine-grained carbon steel structures contribute to improved toughness and reduce susceptibility to hydrogen-induced cracking (HIC) when combined with proper hardness control. This metallurgical edge keeps key processing units safer and less likely to shut down without warning.

These toughness traits directly address procurement priorities that aim to reduce the risk of downtime and increase the service life of components. When you specify carbon steel or forged steel flanges with known impact qualities, you get measured protection against failure modes you didn't expect.

Comparing Carbon Steel Forged Flanges with Other Flange Types

To choose the best flange types, you need to look at how the grain structure and hardness change depending on the production method and material grade. There are differences between the options in terms of cost, power, and corrosion resistance, which affect the total cost of ownership.

Forged vs. Cast Steel Flanges

Cast steel flanges made according to ASTM A216 WCB are cheaper at first, but they have some problems with how they are made. The process of solidification makes dendritic grain structures with tiny holes for shrinking that make pressure control less reliable. According to mechanical tests, cast flanges have 20–30% less yield strength and 40% less impact toughness than their ASTM A105 carbon steel forged steel flange counterparts. When stress levels get close to the material's boundaries, Class 600 and higher uses make these flaws very important. Installation teams say that cast flanges need to be retorqued more often after thermal cycling because the microstructural instability causes the gasket seat to deform.

Stainless Steel Forged Flanges

Through chromium oxide passivation, austenitic stainless types like ASTM A182 F316L are very resistant to rust in sour gas or chloride conditions. In the same way that the forging process smooths out the grain structure, austenite's face-centered cubic crystal structure gives it different toughness properties than ferrite's. Austenitic stainless steel forged flanges, including ASME steel flange products, maintain excellent impact toughness even at very low temperatures, which is why they are best for use with LNG. The cost of the material is three to four times higher than that of carbon steel. This is necessary because rust limits would require walls that are too thick otherwise. When making purchases, people weigh the up-front cost against the benefits of less maintenance and longer replacement cycles.

Welded vs. Forged Construction

Welding cut rings to backing plates to make plate flanges saves money on forging costs, but it creates joint heat-affected zones with changed microstructures. In these areas where the weld metal meets the base material, there are strength gaps that make the metal more likely to crack. Welded flange construction may be selected based on design requirements, size limitations, material availability, and applicable fabrication standards, since the forging press can only hold so much. Carbon steel forged steel slip-on flanges have the same problems when fillet welds connect the flange body to the pipe wall—the right welding procedure qualification is still needed to maintain toughness.

Based on this comparison, it is clear that carbon steel forged steel flanges offer the best grain refinement and toughness for tough applications while still being cost-effective. These flanges are reliable enough that engineers can confidently specify them for high-impact systems, where the modest price premium over cast alternatives is worth it.

Procurement Considerations for Carbon Steel Forged Steel Flanges

Technical compliance and the business realities of global supply chains must be balanced for procurement to work well. Buying teams can get high-quality parts at reasonable prices if they know how standards affect the properties of materials and the abilities of suppliers.

International Standards Governing Grain Structure

For carbon steel forged steel flanges NPS 1/2 through 24, ASME B16.5 sets the size tolerances and pressure-temperature values. For bigger diameters up to NPS 60, ASME B16.47 Series A and B are used. As an example, ASTM A105 for carbon steel forgings requires certain chemistry limits, tensile properties, and grain size requirements that must be met according to approved mill test results. European buyers want DIN EN 1092-1 versions with PN pressure numbers, even though the chemistry of the materials is the same. When API 6A flanged components are used for wellhead and pressure-control equipment, they require additional testing and traceability requirements; they have extra testing and traceability rules that include ultrasonic examination to find internal breaks.

Supplier Certification and Manufacturing Capabilities

Suppliers you can trust keep ISO 9001 quality systems in place and keep track of the settings for forging, the steps of heat treatment, and the final machining. As required by ASME B16.47, our production plant at JS FITTINGS uses high-precision forging tools to work with billets ranging from small forged components to large-diameter weld neck flange forgings. CNC machines make gasket mounting surfaces with finishes as fine as 125 microns for raised face flanges and precise holes for RTJ uses. Testing and certifications from Petrobras, NIOC, and ADNOC that were seen by a third party show that the ability to meet strict technical and documentation requirements has been proven.

Pricing Structures and Lead Time Management

The price of a carbon steel forged steel flange depends on the cost of the raw materials, how hard it is to forge, and how much it needs to be machined. Weld neck flanges in standard sizes of 150 to 300 mm typically ship from warehouse stock within one to two weeks. For higher-pressure classes and special facings, production runs can last up to four to six weeks, based on how full the queue is. Our plant keeps ASTM A105 material in stock and can meet urgent needs quickly by setting aside time for focused production. Standard configurations usually have a minimum order quantity of 10 pieces. At 50 and 100 pieces, prices start to drop. Our stable supply capacity of more than 50 containers per month makes sure that we can always meet the needs of our distributor partners.

These buying factors help buyers choose sellers based on their real skills, not just what they say in their ads. When reviewing quotes, asking for material certifications, dimension inspection records, and PMI test data helps find makers who have good quality control.

Conclusion

Controlled forging methods that improve grain structure give measured performance benefits that directly address industrial buying goals. When compared to cast options, fine, directional grains improve toughness, resistance to wear, and pressure containment capability. By understanding these basic metallurgical concepts, you can specify parts whose qualities have been checked and meet the needs of the application. Carbon steel forged steel flanges can last for decades in harsh oil, gas, and chemical processing environments if they are installed and maintained correctly. If you choose sellers with documented factory controls, international certifications, and quality systems that have been shown to work, you can be sure that the parts you order will come ready for installation and will work as expected in the long term.

FAQ

1. How does grain structure affect pressure ratings?

Grain structure directly influences tensile strength and yield stress—the properties determining maximum allowable working pressure. Forged flanges with fine, uniform grains distribute applied loads across more grain boundaries, increasing resistance to plastic deformation. This allows higher stress intensity factors in ASME B16.5 pressure-temperature calculations. Coarse-grained cast material concentrates stress at fewer boundaries, requiring lower design stresses and reduced pressure ratings for equivalent dimensions.

2. Does welding compromise toughness?

Proper welding procedures preserve toughness when qualified welders follow approved parameters. The heat-affected zone experiences grain growth, but controlled cooling rates and possible post-weld heat treatment restore properties approaching base material values. Poorly executed welds with excessive heat input or rapid cooling create brittle martensite, requiring stress relief to regain toughness.

3. Why choose forged over cast flanges?

Forged components provide 30-40% higher impact toughness, superior fatigue resistance, and elimination of internal porosity compared to cast alternatives. These advantages reduce failure risk in critical applications, justifying modest cost premiums. Cast flanges remain viable for low-pressure, non-cyclic service where cost sensitivity outweighs reliability concerns.
