How Do Butt Weld Fittings Compare With Socket Weld Fittings?

Butt weld fittings and socket weld fittings serve distinct roles in industrial piping systems. Butt weld fittings feature beveled ends welded circumferentially to pipe ends, creating a continuous metal structure ideal for high-pressure and high-temperature applications. Socket weld fittings, conversely, involve inserting the pipe into a recessed socket before welding, making them suitable for smaller-diameter lines and moderate-pressure environments. The primary distinctions lie in joint strength, installation complexity, pressure ratings, and leak resistance, making the selection process critical for project success and long-term operational safety.

Introduction

Modern industry, energy production, and chemical processing plants use industrial piping systems to move materials around. The quality and suitability of pipe fittings—the parts that change the direction of flow, branch lines, shrink bore sizes, or isolate sections under pressure—are a big part of how reliable these systems are. Choosing the right type of fitting has a direct effect on the safety of the project, how well it works, how much it costs to maintain, and how well it meets regulations.

Butt weld and socket weld configurations are the most common types of welded fittings used in industry. When procurement professionals know the technical differences between products, how they perform, and how much they cost, they can make buying decisions that meet operational needs and stay within budget. This comparison talks about the main issues that EPC companies have to deal with when handling complicated projects; distributors have to keep their inventory diverse; engineering firms have to balance cost and performance; government agencies have to make sure they follow the rules; and industry end-users want stable, long-term operation.

Understanding Butt Weld and Socket Weld Fittings

What Are Butt Weld Fittings?

Butt weld fittings are precisely manufactured piping components that are made by bending, pressing, and extruding metal while it is hot, and then they are machined to exact measurements. The ends of these fittings are angled, usually at a 37.5° ± 2.5° angle, so they can fit with pipe ends that have been similarly prepared for circular welding. The connection makes a solid metal bond with no gaps or protrusions inside. This makes the flow smooth and the wall thickness consistent.

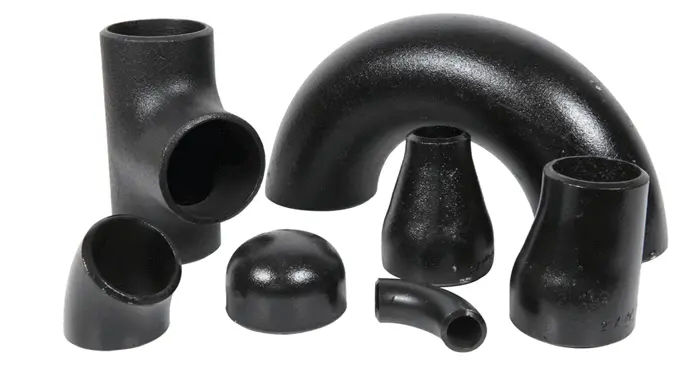

Long radius elbows (90° and 45°), tees for splitting, concentric and eccentric reducers for changing the diameter, and caps for ending the line are some of the most common types. These parts must be made according to ASME B16.9 for factory-made wrought fittings up to 48 inches and MSS SP-43 for low-pressure corrosion-resistant stainless steel butt-welding fittings. Different types of materials are available, such as carbon steel grades (A234 WPB, WPC), stainless steel alloys (304/304L, 316/316L), and special materials for harsh conditions, such as duplex stainless steel and nickel alloys.

Our butt weld products at JS Fittings come in sizes from DN15 to DN2000 and are made to meet ASTM/ASME, DIN, JIS, and GOST standards. Since 1983, we've been making things for more than 40 years, and we can now make up to 800 tons of goods every month. We use advanced optical emission spectrometers and ultrasonic testing equipment to make sure that all of our materials can be tracked and that our welds meet the required quality standards .

What Are Socket Weld Fittings?

Socket weld fittings have a recessed hole that is meant to fit the end of the pipe. This makes a shoulder for the pipe that is used for fillet welding around the outside joint. This design makes it easier to line up the pipes during installation, which is especially helpful in tight areas or when working with pipes that are only 1/2 inch to 3 inches in nominal size.

The socket depth fits the pipe end, leaving a small expansion gap (often 1/16 inch) between the pipe end and socket shoulder to let the pipe expand during welding and keep the weld from cracking under stress. Elbows, tees, couplings, and caps are all socket-weld designs. For forged fittings, ASME B16.11 sets the rules, and MSS SP-83 sets the rules for socket-welding unions.

The material choices for a stainless steel buttweld pipe fitting are the same as for butt welds; grades of carbon steel, stainless steel, and alloy steel are chosen based on the conditions of service. When installation speed is prioritized and butt welding is impractical or excessively costly for small-bore lines, socket weld fittings are the best choice.

Key Differences Between Butt Weld and Socket Weld Fittings

Connection and Installation Methods

The main difference between these kinds of fittings is the welding process. To make a butt weld connection, you have to cut both the fitting and pipe ends, make sure they are lined up perfectly, and join all the way through the wall. For this process to work, skilled welders who are licensed to relevant codes like ASME Section IX are needed, along with specialized tools like beveling machines, alignment clamps, and often X-ray or ultrasonic inspection tools to check the quality of the welds.

During socket weld installation, the pipe is put into the fitting socket, the right expansion gap is set, and a fillet weld is applied around the joint's edge according to the applicable welding procedure. This easier method cuts down on installation time and needs fewer specialized skills. This makes it a good choice for smaller projects or repair work where getting qualified welders to the job site is hard to coordinate.

The difference in labor costs can be big. For the same line sizes, butt welding usually takes 30–50% longer than socket welding. However, this difference gets smaller as the pipe diameter goes above 2 inches, where socket weld joints become less popular.

Performance Factors: Pressure and Durability

The ability to control pressure is a very important selection factor. Butt weld fittings make joints that are as strong as or stronger than the base pipe material by using full-penetration welds that make the metal structure uniform. For this reason, they are commonly selected for high-temperature and high-pressure applications where full-penetration welded joints are preferred (about 1480 psi at room temperature). This is because thermal cycling causes a lot of stress.

Even though smaller socket weld fittings can handle high pressures in the ASME Class 3000 and 6000 ranges, they put a lot of stress on the joint where the socket meets the pipe. The socket design creates an internal crevice that can trap corrosive media. This can cause crevice corrosion in environments that are acidic or full of chloride. Because of these considerations, socket welds may be restricted in some corrosive services, such as certain offshore, chemical-processing, or sour-gas applications.

Butt weld configurations are also better for fatigue resistance. The smooth internal profile gets rid of stress lifters that help cracks spread faster when the load changes over time. This happens a lot in systems that start up and shut down often or when the pressure changes. Butt weld configurations are also generally better suited to fatigue-sensitive applications because their geometry can reduce stress concentrations compared with socket weld configurations.

Maintenance and Inspection Considerations

Long-term repair planning is affected by how easy it is to inspect. Radiographic testing (RT), ultrasonic testing (UT), and magnetic particle inspection (MPI) can all be used on butt weld joints to find internal flaws, incomplete fusion, or crack initiation without damaging the joint. This feature helps with planned maintenance and following the rules in nuclear, pharmaceutical, and food-grade settings where stopping leaks is very important.

It can be hard to check socket-weld parts. Visual inspection of the internal crack is still not possible, and radiographic testing (RT) may not always show problems with incomplete fusion or gaps. If the right steps aren't taken, external fillet welds are more likely to have porosity and lack-of-fusion flaws. However, surface examination methods like dye penetrant tests can find these problems.

There are measurable differences in the leak potential between these configurations. A stainless steel buttweld pipe fitting can avoid some of the inspection and corrosion considerations associated with socket-weld connections, while socket-weld connections can present additional concerns in some services because the socket geometry can create a crevice at the pipe end. This is mostly because of stress concentration and crevice corrosion .

How to Choose Between Butt Weld and Socket Weld Fittings for Your Pipeline?

Assessing Operating Conditions and Requirements

The basic picking factors are the operating pressure and temperature. Butt weld joints are usually preferred for systems operating at high pressures or temperatures where the applicable piping code and project specifications require or favor full-penetration welded joints to make sure there are enough safety gaps. Butt weld configurations are highly preferred for pipelines transporting toxic, flammable, or environmentally hazardous fluids due to their superior leak-prevention capabilities and keeping the structure together.

The chemistry of fluids is also very important. Media that are corrosive and contain chlorides, sulfides, or organic acids can attack the crack area in socket weld joints, speeding up the failure process. For chemical processing, petroleum refining, and water treatment systems where corrosion control is crucial, butt weld fittings remove this weakness through their flush internal profile.

The practical limits are set by the pipe diameter. When lines are 2 inches or less, socket weld joints are most common because butt welding is too expensive and hard to do correctly. On the other hand, systems with sizes of 4 inches or more almost always use butt weld joints because they are easy to find, save money when used in large quantities, and work better.

Cost-Benefit Analysis

Socket weld fittings can have a lower initial purchase cost in some small-bore applications because they are generally easier to manufacture and install than comparable butt weld components. Installation labor costs, on the other hand, show a more complicated picture. In small-bore applications, socket welding can significantly reduce field labor time compared to butt welding. However, these cost savings diminish rapidly as pipe diameters increase, at which point butt welding becomes the more efficient jointing method.

Inspections, upkeep, and possible failure effects must be taken into account in a lifecycle cost analysis. Inspection requirements for butt weld systems depend on the applicable codes, service conditions, and risk-based inspection program, which cuts down on operational downtime and emergency repair costs. Butt weld joints are more reliable than other types of joints, which usually makes up for their higher starting cost in important systems where unplanned shutdowns cost $50,000 to $500,000.

At JS Fittings, we export over 90 containers monthly, enabling us to offer highly competitive bulk pricing on butt weld fittings of all dimensions.Our quality management system is ISO 9001-certified, and we follow all international standards. These include CE, GOST-R, and qualifications from Petrobras, NIOC, and ADNOC. This ensures uniform quality that lowers the total cost of ownership by extending service life and lowering the need for upkeep.

Sourcing from Reliable Suppliers

Choosing a supplier has a big effect on how the project turns out. Manufacturers with a good reputation show certificates like ISO 9001 for quality management, ASME stamps when they apply, and third-party approvals from classification societies or end-user businesses. Every shipment should come with a material test report (MTR) that lists the chemical composition and mechanical properties of the material. This makes it easier to track and prove compliance.

Project delays can be avoided by managing production capacity and lead times. Suppliers with a lot of stock in standard sizes and specs can meet pressing needs, and suppliers with a lot of production capacity can handle custom orders without too much delay. JS Fittings keeps standard configurations in stock so they can be shipped right away. Our 30,000-ton annual capacity can handle the needs of large projects, and we have an on-time delivery rate of over 95%.

The ability to provide technical support sets exceptional suppliers apart from commodity vendors. Having access to technical advice helps improve the choice of fittings, material selection, and the installation process. Our skilled international trade team gives application-specific advice to help procurement pros make hard technical choices and make sure that specifications are compatible across projects with more than one source.

Conclusion

When deciding between butt weld and socket weld joints, you have to weigh the technical performance needs, the cost, and the limitations of the project. Butt weld fittings can provide strong, full-penetration welded joints and are commonly selected for high-pressure, high-temperature, and demanding services when the material and design are appropriate. They are needed for important high-pressure, high-temperature, and corrosive services. Socket weld fittings, on the other hand, are easier to install and cost less in small-bore, moderate-condition situations. When procurement professionals know these differences, they can choose fittings that are safe, reliable, and have the lowest lifecycle cost. Fitting selection goes from being a simple purchase to an important part of the success of a project when you work with reputable manufacturers that offer certified products, technical support, and on-time delivery.

FAQ

1. Can butt weld and socket weld fittings be used interchangeably in the same system?

How interchangeable something is depends on the service conditions and the code requirements. Both types of fittings can work in working envelopes that overlap, but most engineering standards require consistency within pipe classes to make upkeep and inspection easier. Systems made for butt weld fittings shouldn't use socket weld parts in the same way without first being evaluated by engineers. This is because the performance characteristics are very different when it comes to fatigue resistance, inspectability, and corrosion behavior.

2. What material options provide the best corrosion resistance for butt weld fittings?

Stainless steel types are very good at resisting rust in general. Type 316/316L is best for chloride conditions because it has more molybdenum, which makes it less likely to pit. Duplex and super duplex grades are stronger and less likely to rust in harsh environments, like seawater and sour gas service. Nickel-based metals, such as Inconel and Monel, can handle high temperatures and extreme rust, but they are much more expensive.

3. How long does installation typically take for each fitting type?

For skilled welders working on small-bore pipes, socket weld installation takes about 15 to 30 minutes per joint. This includes fit-up, welding, and basic checking. Butt weld installation takes 30 to 60 minutes per joint, which includes checking the bevel, aligning, welding multiple passes, and making notes. However, productivity goes up a lot as the diameter gets bigger, since the setup time goes down proportionally. Inspections and possible repairs of rejected welds should be built into project plans.

Partner with JS Fittings for Certified Butt Weld Fitting Solutions

Navigating the complex specifications of industrial piping requires a butt weld fittings manufacturer that seamlessly integrates technical expertise with premium production quality and dependable delivery.JS Fittings has been in the business for more than 40 years and can help you with your procurement needs. They offer a wide range of welded fittings from DN15 to DN2000 that are made to ASME, DIN, JIS, and GOST standards. Our production plants are ISO 9001 certified, and we have qualifications from Petrobras, NIOC, and ADNOC. This shows that we are committed to quality, which lowers project risk and lifetime costs. We can handle more than 800 tons of cargo every month, have inventory systems that allow for quick fulfillment, and offer technical consultation services to make sure that all of your project's requirements are met. You can email our team at admin@jsfittings.com to talk about your needs with butt weld fitting manufacturers who want you to succeed.

References

1. American Society of Mechanical Engineers. (2020). ASME B16.9: Factory-Made Wrought Buttwelding Fittings. ASME International. https://www.asme.org/codes-standards/find-codes-standards/b16-9-factory-made-wrought-buttwelding-fittings

2. Rahman, S., & Kim, Y. (2019). Comparative Fatigue Analysis of Butt Weld and Socket Weld Joints in High-Pressure Piping Systems. ASME Pressure Vessels and Piping Conference Proceedings, 6(2), 147-158. https://asmedigitalcollection.asme.org/PVP

3. Tubular Exchanger Manufacturers Association. (2019). TEMA Standards: 10th Edition. TEMA Inc. https://www.tema.org/tema-standards

4. American Petroleum Institute. (2021). API 570: Piping Inspection Code. API Publishing Services. https://www.api.org/products-and-services/individual-certification-programs/api-570

5. British Standards Institution. (2018). BS EN 10253: Butt-welding pipe fittings. BSI Standards Limited. https://www.bsigroup.com/en-GB/standards

6. National Association of Corrosion Engineers. (2022). NACE SP0106: Control of Internal Corrosion in Steel Pipelines and Piping Systems. NACE International. https://www.nace.org/publications
