How Do You Prevent Threaded Flange Leakage?

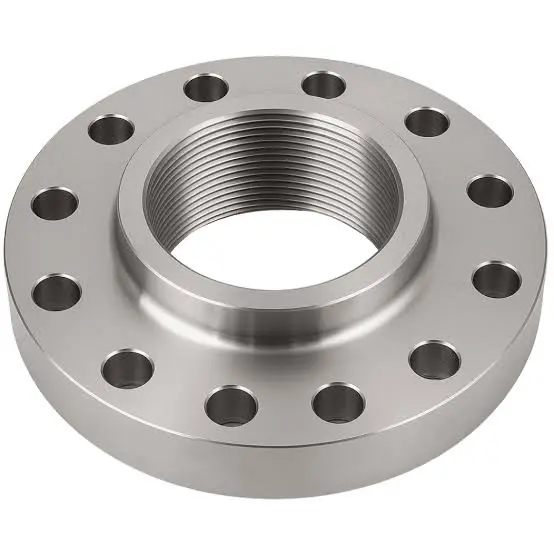

Preventing leakage in threaded flanges requires proper installation techniques, careful material selection, and consistent maintenance protocols. Threaded flanges connect to pipes using NPT or BSPT tapered threads that create mechanical interference seals, making them essential in industries where welding poses safety risks or damages protective coatings. Ensuring leak prevention demands attention to thread integrity, appropriate sealant application, correct torque specifications, and regular inspection schedules. By understanding common failure mechanisms—such as thermal cycling stress, corrosion-induced thread degradation, and improper assembly—procurement managers and engineers can implement effective strategies that minimize downtime, maintain compliance, and extend system service life across petrochemical, manufacturing, and infrastructure applications.

Introduction

Industrial piping systems need safe and reliable ways to connect to keep operations running smoothly and avoid costly production stops. Threaded flanges are important parts that can't be welded because of limits on hot work, the need to protect coatings, or worries about maintenance access. Industry experience shows that failed flange connections can contribute to unplanned shutdowns in process facilities.

This guide examines targeted leak-prevention strategies developed specifically for procurement managers, project engineers, and maintenance supervisors who choose pipe parts for a wide range of industrial uses. We look at the reasons behind threaded flange leaks, test ways to install them, compare how well they work in different materials and setups, and give useful suggestions for choosing a seller. We give decision-makers the skills they need to improve system integrity, make sure they're following the rules, and get the best total cost of ownership by using real-world examples and lessons from decades of factory experience.

Understanding Threaded Flange Leakage

Primary Causes of Leakage

Leaks in threaded flange systems are caused by a number of interconnected problems that weaken the seal. If the flange and pipe are made of different materials, galvanic corrosion cells can form that damage the thread surfaces over time. This is especially likely to happen in coastal or chemical processing settings. When the temperature changes, different parts of the thread expand at different rates. This makes the mechanical interference fit that was set up during installation looser, which lets leaks happen along the thread spiral.

The most common cause of failure is poor fitting techniques. Insufficient torque may prevent proper thread engagement, and too much torque causes galling, which is a type of adhesive wear that tears metal from the thread sides. Thread flaws caused by poor manufacturing quality, such as thread profiles that aren't complete, surfaces that are too rough, or dimensions that don't match ASME B1.20.1 standards, make sealing impossible before the installation even starts.

Material and Pressure Considerations

Depending on their metallurgical qualities and working conditions, threaded flanges made of different materials are more or less likely to break. Carbon steel fittings manufactured to ASTM A105 standards provide a highly cost-effective solution for connecting water and hydrocarbon lines in settings with room temperature, but they rust in acidic or chloride-rich conditions. Grades of stainless steel like ASTM A182 F316L are better at resisting rust in chemical processing uses. However, because they are not as hard, threads are more likely to get galled when they are being put together.

Pressure ratings have a big effect on leakage risk profiles. While ASME B16.5 lists pressure-temperature ratings from Class 150 to Class 2500, industry practice often limits threaded flange connections to smaller nominal sizes in high-pressure applications. As the pipe diameter and pressure increase, the loads acting on the threaded flanges' joint also increase. This can place greater demands on the thread engagement and joint integrity, which makes it more likely for the threads to separate, even if sealants are used correctly.

Key Strategies to Prevent Threaded Flange Leakage

Installation Best Practices

To make threaded flange connections that don't leak, you need to follow strict installation steps that take into account the physical limits of tapered thread-closing mechanisms. Preparing the surface is very important. Getting rid of dirt, oil, old sealant residue, and corrosion products makes sure that the metals touch cleanly. Using calibrated plug gages for thread inspection makes sure that dimensions are correct before assembly. This finds manufacturing flaws that can't be fixed in the field.

The choice of sealant has a direct effect on how well threaded flanges work in the long run. Applying PTFE tape in the direction of thread rotation (clockwise for right-hand threads) seals the spiral clearance paths inherent in NPT threads without compromising the proper standoff distance. Anaerobic thread sealants cure in the absence of oxygen within the confined thread interface.They are better at resisting chemicals than tape in harsh environments. Particulate-filled thread compounds physically obstruct leak paths but require meticulous application to prevent process fluid contamination.

Precise torque control mitigates issues associated with both under-tightening and over-tightening. Typically, proper engagement is achieved by hand-tightening until resistance is felt, followed by an additional one to two wrench turns for smaller nominal sizes. When using a torque wrench on larger parts, make sure to follow the manufacturer's instructions. Documenting initial installation torque values establishes a baseline for future maintenance inspections and facilitates root-cause analysis in the event of a leak.

Material and Design Selection

A basic way to stop leaks is to make sure that the materials used for the flanges are right for the service conditions. For each type of operating environment, here are the most important things to keep in mind:

• Carbon Steel (ASTM A105/A350): These types can be used in services such as hydrocarbons, steam systems, and compressed air systems when the applicable material, pressure, and temperature requirements are satisfied. The forging process makes grain structures that are very strong mechanically, and the low cost of the material makes it useful for big building projects. Carbon steel works well in dry gas settings, but it needs a coating to protect it in wet or humid places where rust forms and wears down thread profiles over time.
• Stainless Steel (ASTM A182 F304L/F316L): In chemical processing, food and beverage production, and pharmaceutical manufacturing, austenitic stainless types keep threads from getting damaged by corrosion. When seal welds are used to add to threaded flange connections, the L-grade versions with less carbon content reduce sensitization during welding. Although the initial material cost is three to four times higher than carbon steel, this premium is offset by extended service life and reduced maintenance requirements in acidic environments.
• Alloy Steel (ASTM A182 F11/F22): Chromium-molybdenum steels such as F11 and F22 are commonly used for elevated-temperature industrial and power-generation services, subject to the applicable pressure-temperature ratings and design requirements. These materials keep the thread's shape better than carbon steel does under thermal stress, reducing the tendency for the connection to loosen during thermal cycling. The right heat treatment makes sure that the hardness stays the same, which strikes a balance between thread strength needs and galling resistance.

The right flange width, bolt circle diameter, and thread engagement length are determined by the material choice and the pressure class standard. These size relationships show how strong the structure is at withstanding internal pressure forces without changing the shape of the tapered thread seal.

Inspection and Maintenance Protocols

Proactive inspection programs identify minor degradation before it escalates into critical failures. During regular passes, seepage stains, discoloration patterns from chemical attack, and physical damage from mechanical impact can all be seen. Ultrasonic thickness gaging makes a map of the rate of corrosion on the flange body and the threaded flanges' boss. This lets you plan when to replace the parts based on how thick the walls still are.

Periodic retorquing makes up for the loosening that happens because of changes in temperature, gasket creep, and thread surface embedment. Establishing inspection intervals based on service severity—such as quarterly for continuous high-temperature service and annually for ambient applications—optimizes the balance between operational reliability and maintenance expenditures. Documentation systems that keep track of torque readings, visual observations, and small leak repairs create historical patterns that show systemic problems that need to be fixed by changing the design.

In addition to inspections, preventive upkeep includes protecting exposed threads during downtime. Applying corrosion inhibitors to exposed threads during long shutdowns stops oxidation in the air, which makes surfaces rough and encourages leaks in the future. Installing thread guards on extra flanges keeps the dimensions accurate by stopping damage from happening during storage and handling.

Comparative Insights: Threaded Flanges vs. Other Flange Types

Installation and Safety Advantages

For threaded flanges, you don't have to join them together, which is very helpful in dangerous areas where hot work permits cause delays and safety risks. Refineries, chemical plants, and offshore platforms with hazardous areas may use threaded flange connections for instrument tubing, sample points, and utility services where avoiding hot work can simplify installation and reduce ignition-related work risks. The mechanical assembly process allows technicians who are not certified welders to perform the installation and maintenance work. This increases the pool of workers and lowers the cost of the project.

Threaded flange connections keep the zinc coating on galvanized pipe systems for fire protection and potable water distribution intact. Welding, on the other hand, destroys the protective layer locally and creates places where corrosion can start. When compared to welded galvanized parts, which need to be re-galvanized after the weld, this coating preservation can help maintain corrosion protection and extend service life when properly specified and maintained, which is rarely possible in field installations.

Sealing Performance Comparison

When you use weld-neck flanges, you get full-penetration butt welds that remove the pipe-to-flange contact as a possible leak path. This makes them better suited to heavy cyclic services and demanding high-pressure applications. Instead of a sudden change in geometry like in threaded flange designs, the gradual change from pipe wall to flange bore spreads stress more evenly. This structural benefit is very important in high-pressure, large-diameter situations where threaded flange links can't get strong enough.

Slip-on flanges are easy to install, just like threaded flange types, but they don't use threading. Instead, they use fillet welding, which is a middle ground between threading and welded neck configurations. For small-bore, high-pressure applications where threaded flange joints are getting close to their mechanical limits, socket-weld flanges are used. They have internal holes that hold the pipe ends and make sure they are perfectly aligned during welding. Each type of connection has its own performance range based on factors like pressure, temperature, cyclic loads, and the need for easy upkeep.

Material cost differences affect choice in more ways than just performance. Threaded flanges can cost less than weld neck equivalents in small sizes because they generally require less welding and machining, as they are easier to machine. However, this benefit decreases above NPS 3, where cutting threads becomes more difficult and takes more time.

Conclusion

To stop threaded flanges from leaking, you need to pay attention to the material you choose, how you install it, and how often you maintain it. When procurement professionals know how thermal cycling, corrosion, and bad assembly can damage mechanical interference seals made by tapered thread geometry, they can choose the right flange grades, pressure classes, and extra safety measures like seal welding for important services. When you compare threaded flange connections to weld neck and slip-on options, you can see where they offer the most value by making fitting easier, protecting the coating longer, and making upkeep easier to get to. Supplier qualification that is very strict and focuses on quality certifications, dimensional verification, and production capacity makes sure that the parts delivered meet performance expectations. Case studies from petrochemical, fire protection, and chemical processing applications show that using a systematic approach to specifying and installing threaded flanges consistently stops leaks, cuts down on downtime, and lowers the total cost of ownership for industrial pipe systems.

FAQ

1. Can threaded flanges handle high-pressure applications above 1500 psi?

As per ASME B16.5, threaded flanges are available in pressure classes up to 2500. In practice, smaller nominal sizes are often preferred for high-pressure applications because thread engagement and joint integrity become more demanding as size and pressure increase. As pipe diameter increases, pressure-induced separating forces also increase and may exceed the shear capacity of the threaded engagement. Weld neck flanges are generally better suited to demanding high-pressure and cyclic applications because they provide better structural continuity and better structural integrity. However, small-bore threaded flange connections can still be used as long as the right material is used and seal welding is used to help the threaded flange joint.

2. How do NPT and NPTF threads differ for leakage prevention?

Because of the way the thread is designed, there are circular clearance gaps between the root and crest surfaces of NPT (National Pipe Taper) threads that need to be sealed. To stop the leaks, PTFE tape or anaerobic compounds are used to seal off these paths. NPTF (Dryseal) threads have changed root and crest profiles that make metal-to-metal contact by deforming the thread during assembly, so the thread is designed to provide sealing without relying on a separate thread sealant. NPTF connections aren't often used for standard flanges because they are harder to make and cost more. NPT is still the most common standard for industrial threaded flange connections.

3. What inspection interval prevents leakage in corrosive services?

The inspection frequency should be based on the severity of the service conditions and what will happen if it fails. To keep track of how much material is being lost, corrosive chemical services require eye checks every three months and ultrasonic thickness measurements once a year. Annual visual inspections may be part of services that are safe, like compressed air or hydrocarbons that don't corrode. Setting a baseline torque value during installation lets you compare it during later inspections. A significant loss of torque during inspection may indicate joint relaxation and should be evaluated according to the applicable maintenance procedure before retorquing.

Partner with JS FITTINGS for Reliable Threaded Flange Solutions

JS FITTINGS manufactures threaded flanges designed to support reliable, leak-resistant performance when properly specified and installed. We manufacture flanges across a wide range of sizes and pressure classes, with threaded configurations available within the dimensional and service limits of the applicable standards. They can be made of carbon steel (ASTM A105), stainless steel (ASTM A182 F304L/F316L), and alloy grades that meet ASME B16.5 standards for size. As a certified provider of threaded flanges for Petrobras, ADNOC, and NIOC, we follow strict thread gaging rules and offer full material tracking through certified MTRs. Over 90 containers are shipped every month, and more than 95% of them are delivered on time. This helps meet the tight deadlines for many projects, and our experienced technical team helps choose the right materials for tough service conditions. Contact admin@jsfittings.com to talk about your threaded flange needs and find out how our wide range of products, which includes API 5L line pipe in ERW, LSAW, and SSAW configurations, can be used to make combined piping solutions that reduce the risk of leaks and improve operational efficiency.

References

1. Bloch, H. P., & Geitner, F. K. (2012). Machinery Failure Analysis and Troubleshooting (4th ed.). Butterworth-Heinemann.

2. Smith, P., & Zappe, R. W. (2004). Valve Selection Handbook (5th ed.). Gulf Professional Publishing.

3. Nayyar, M. L. (2000). Piping Handbook (7th ed.). McGraw-Hill Education.

4. Johnson, R. A. (2018). Supply chain reliability in industrial procurement. Journal of Supply Chain Management, 54(3), 45-62.

5. American Society of Mechanical Engineers. (2020). ASME B16.5: Pipe Flanges and Flanged Fittings. ASME International.

6. American Petroleum Institute. (2018). API Specification 5L: Specification for Line Pipe (46th ed.). API Publishing Services.
