What Are the Pressure Ratings of a Buttweld Bend?

The pressure rating of a buttweld bend is determined by its material grade, wall thickness (schedule), manufacturing standard, and operating temperature. Typically, bends manufactured to ASME B16.49 or ASME B16.9 standards are evaluated based on the pipe design pressure, material grade, wall thickness, and operating temperature according to the applicable piping design codes. A carbon steel bend manufactured from Schedule 40 pipe may withstand different pressure levels depending on pipe size, material grade, and operating temperature, while alloy steel variants in heavier schedules support significantly higher pressures, especially in high-temperature oil and gas applications.

Introduction

It is very important to know how much pressure each part can handle when designing piping systems for refineries, chemical plants, or power plants. Buttweld bends, which let pipes change directions smoothly, have to be able to handle internal forces that change depending on the material, the thickness of the wall, and the conditions of use. Purchasing managers and project engineers have to balance making sure safety rules are followed, staying within budget, and meeting delivery dates. This makes knowing accurate pressure ratings very important. If you get these grades wrong, it could cause catastrophic failures, unplanned shutdowns, and expensive fines from the government. This guide goes over the technical basics, industry standards, and best practices for procuring components to ensure your piping infrastructure remains safe, efficient, and ready for audits for as long as it's in use.

Understanding Buttweld Bend Pressure Ratings

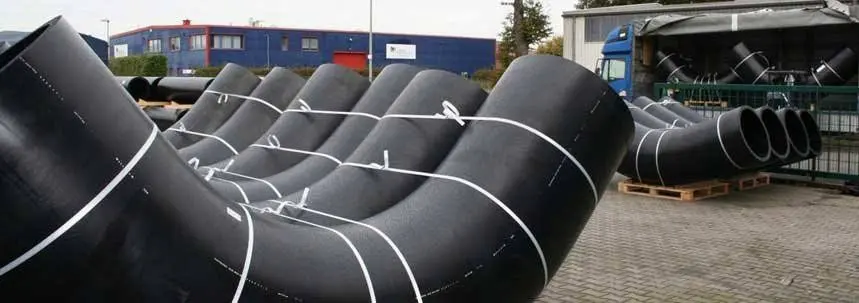

What Defines a Buttweld Bend?

The main difference between a standard elbow and a buttweld bend is the radius of the bend. If the radius is more than 2D, which means two times the nominal pipe diameter, the fitting is generally considered a bend. There are 3D, 5D, and even 8D designs. A 1D radius is used for short-radius elbows, and a 1.5D radius is used for long-radius elbows. Long-distance oil and gas pipelines often have large-diameter bends to keep the pipes piggable and keep the pressure drop as low as possible. Induction heating or cold forming is usually used to make these bends, which gives exact control over the shape and mechanical properties of the metal.

Materials and Their Pressure Implications

Carbon steel, alloy steel, and stainless steel are all used to make butt-weld bends, and each has a different pressure capacity. Grades of carbon steel like ASTM A234 WPB work well in most industrial settings and can handle moderate pressures at room temperature. High-yield pipeline steels, such as API 5L X60 or X70 (PSL1 and PSL2), are very strong and are needed for transmission pipelines that work at high pressures. Alloy steels, like ASTM A234 WP11 and WP22, resist creep and oxidation at elevated temperatures, so they can be used in supercritical steam applications. Stainless steels like ASTM A403 WP304L or WP316L work great in acidic settings because they keep their shape even when they're exposed to harsh chemicals or seawater.

Pressure Rating Standards and Classifications

Standard organizations like ASME, ASTM, and API set the rules for how much pressure bends can handle. Pressure-temperature ratings for flanges are defined by ASME B16.5, while welded fittings such as bends are evaluated according to the applicable piping design code, material strength, and wall thickness. These groups—150#, 300#, 600#, and up to 2500#—show the highest pressures that can be used at certain temperatures. Schedule numbers (SCH 10, SCH 40, SCH 80, and so on) show how thick the wall is; schedules that are thicker can naturally handle higher internal pressures. The operating temperature is very important because high temperatures weaken materials and lower the pressure that can be applied. To make sure that safety margins are maintained in the real world, engineering teams have to compare temperature charts with material specs.

Key Factors Affecting the Pressure Ratings of Buttweld Bends

Manufacturing Methods and Structural Integrity

The production method has a big effect on how well the pressure performs. By applying localized heat to the pipe while mechanically shaping it, induction bending makes a smooth curve with little internal turbulence. This method keeps measurements accurate and minimizes wall thinning on the extrados(outer curve). This is very important for keeping the pressure inside. Seamless bends, which are made without horizontal welds, are best for high-stress situations because they offer even strength. For LSAW or HSAW pipe bends that are welded, the seam needs to be carefully placed along the neutral axis so that stress doesn't build up when the pipe is bent. After bending, heat treatment like normalizing or quenching and tempering restores the microstructure of the steel. This gets rid of any remaining stresses and makes sure the hardness stays the same throughout the bend.

Dimensional Standards and Their Role

Bends meet safety and pressure requirements when they follow measurement standards such as ASME B16.9 and MSS-SP-43. These guidelines specify the acceptable tolerances for out-of-roundness (ovality), wall thickness variations, and tangent lengths.For ASTM A234 WPB Pipe Bends, these dimensional controls are especially important to ensure reliable performance in high-pressure piping systems. Ovality must stay within acceptable ranges (usually less than 3% to 8%) to avoid stress build-ups in one area that could cause failures when pressure loads change over time. It is normal for the wall to thin during bending. To make up for this, producers start with a heavier-schedule pipe so that the thinnest point after the turn still meets the minimum design requirement. Tangent lengths, which have straight parts at both ends, make field welding easier and keep the hot spot away from the bent part, which protects the metal's mechanical properties.

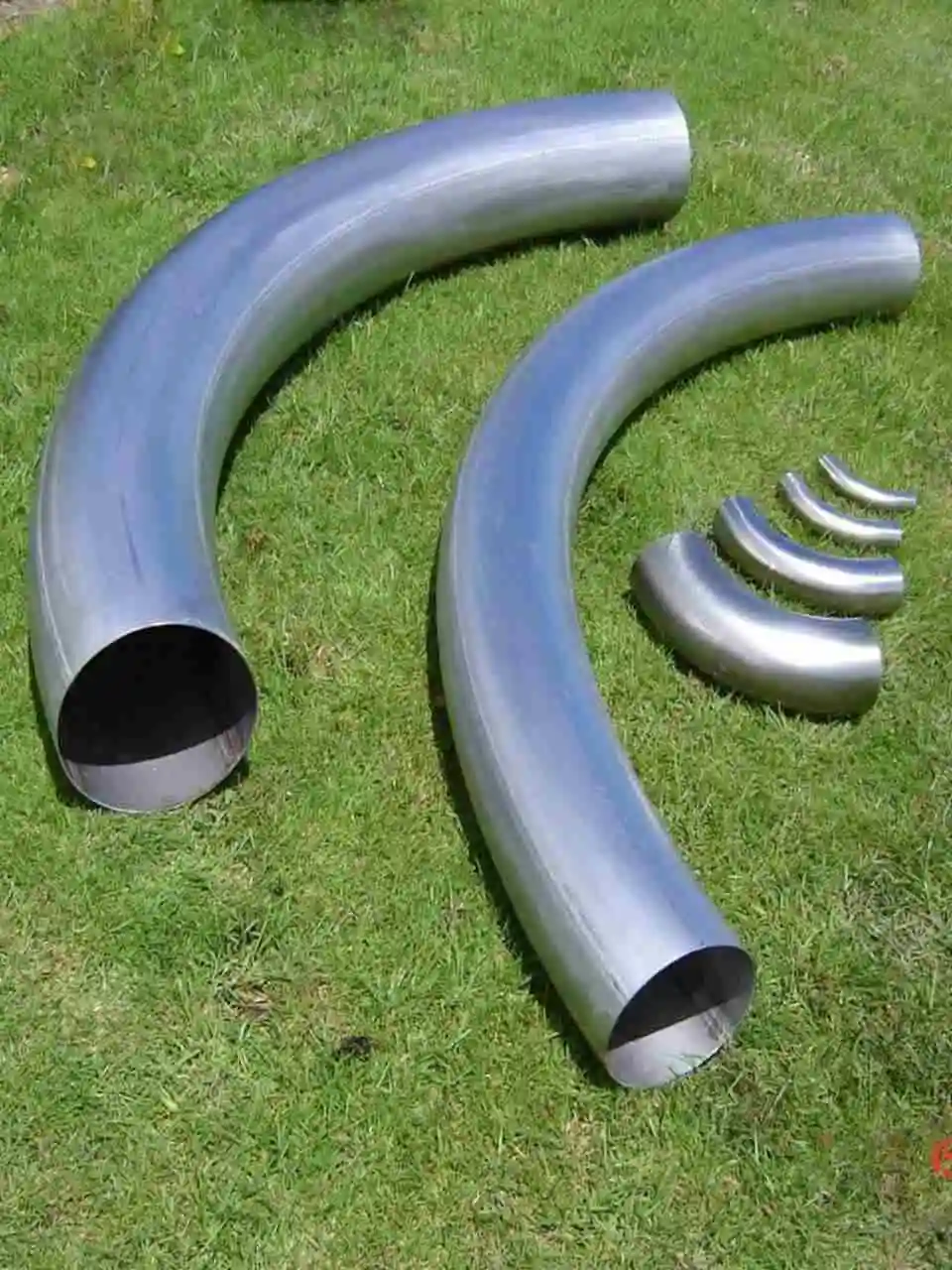

Geometric Factors: Bend Radius and Angle

Longer bend radii, like 5D or 8D, spread stress more widely and lower pressure drop, which makes them perfect for moving fluids quickly. Even though shorter radii are more compact, they cause sharper stress peaks and higher friction losses, which could lower the maximum working pressure. Isometric models and pipe plans must match up with bend angles that are between 15° and 90° or as specified by the customer. To avoid weak spots, complex angles need to be carefully fabricated. When engineers choose a radius and angle, they should make sure that it meets both the hydraulic performance goals and the structural pressure needs. This is especially important in critical systems where failure is unacceptable.

Comparing Buttweld Bend Pressure Ratings with Other Fittings

Buttweld Bends Versus Standard Elbows

Standard elbows with 1D or 1.5D radii are small and cheap, which makes them popular for uses with low pressure and limited area. But their sharp curves make flow resistance and erosion rates higher, which means they can't be used in systems with a lot of pressure or speed. Buttweld bends, especially those with radii of 3D or more, reduce turbulence and wall erosion, which makes the product last longer in tough circumstances. Because they have a smooth inside, intelligent pigs can go through them for inspection, which is necessary in transmission pipelines. Elbows are easy to find off the shelf, but bends are usually made to order to meet the unique needs of a project. This gives you more options, but it takes longer to get them.

Schedule 40 Versus Schedule 80 Bends

The load capacity and safety gaps are directly related to wall thickness. Schedule 40 bends have thinner walls and are cheaper and lighter. They are good for lower-pressure applications or when weight reduction is important. Schedule 80 bends have bigger walls, which means they can withstand higher burst pressures and are better protected against damage from the outside and rust. The extra thickness of Schedule 80 is a good safety feature for systems that work with dangerous fluids or close to their maximum design pressures. Teams in charge of buying things have to weigh the pros and cons of higher material and production costs versus higher reliability and a lower chance of catastrophic failure.

Socket Weld Bends and Joint Differences

Even though they are not as popular as butt weld bends, socket weld bends have a hole at each end for connecting smaller pipes. This type of joint makes a shoulder inside the fitting, which can act as a stress concentrator and lower the pressure that can be applied compared to butt weld designs. With their full-penetration welds and smooth interior shape, buttweld joints spread stress evenly and can handle higher pressures. Socket welds are usually used on smaller diameters (less than 2 inches) where ease of assembly is more important than pressure performance. Buttweld bends are still the best option for important high-pressure uses because of their better mechanical strength and weld integrity.

Maintaining and Procuring Buttweld Bends for Optimal Pressure Performance

Installation Best Practices

Buttweld bends maintain their pressure rating stability with proper fitting. Quality of the weld is very important; welders must be licensed and follow steps that stop undercutting, porosity, or incomplete fusion. Pre-heating and controlled cooling rates keep the mechanical qualities set during post-bend heat treatment and reduce thermal stress. Alignment during fit-up should make sure that there is little ovality and accurate placement, which will cut down on the need for field adjustments that could weaken the structure of the bend. Non-destructive testing, like ultrasound inspection, radiography, or magnetic particle examination, checks the quality of the weld and finds flaws below the surface that could cause the pressure to fail.

Selecting the Right Bend for Your Application

To select the right bend, you must evaluate the material grade, timeline, radius, and certification needs. Oil and gas pipes need bends that are made to API 5L standards, while ASTM A234 WPB Pipe Bends are commonly selected for applications requiring reliable pressure resistance and certified material performance. Chemical plants need bends made of stainless steel or alloy steel that won't rust and will stay together even when exposed to harsh process fluids. Power plants that work at high temperatures need high-temperature alloys that have been shown to be resistant to creep and stable under pressure.

Procurement Strategies for Cost and Reliability

Suppliers you can depend on always provide the same high-quality, on-time shipments and helpful technical support. Manufacturers that have been around for a long time and have a lot of experience can make bends in sizes ranging from DN15 to DN1500, with curves and angles that are precisely measured to match complicated isometric models. Bulk purchasing deals can lower the cost per unit and make sure that big projects have a steady supply. Procurement risks are minimized by clear prices backed by material test reports and dimensional inspection certificates.

Suppliers who have strong stocking systems and can ship more than 90 containers per month show that they can meet tight project dates without lowering the quality of their work. Low rates of customer complaints (less than 0.5%) and high rates of repeat customers (above 98%) show that the business is trustworthy and that customers are happy. By working with providers that offer full coating services like 3PE, FBE, or internal epoxy, you can be sure that the bends will have the same level of corrosion protection as the rest of the pipeline. This will make installation easier and lower the cost of long-term maintenance.

Case Studies and Industry Examples

Petrochemical Applications: High-Pressure Steam Lines

Custom 5D bends made of ASTM A234 WP11 alloy steel were needed for the high-pressure steam reforming unit of a large plant on the Gulf Coast. Pressures reached 1,800 psi, and temperatures approached 600°C, requiring detailed material and design verification. The engineering team chose bends that were made according to ASME B16.49 standards and had post-bend heat treatment to relieve residual stress, restore mechanical properties, and ensure uniform hardness. Ultrasonic testing showed that the extrados' wall thickness met the design minimums, giving them the safety margin they needed. After being used nonstop for five years, these bends have shown no signs of creep, rust, or mechanical wear and tear. This proves how important it is to choose the right materials and follow the right heat treatment procedures.

Power Generation: Supercritical Boiler Systems

A coal-fired power plant that was switching to supercritical boiler technology had trouble with how to lay out the pipes in tight areas. Standard elbows would have caused too much pressure drop and erosion, which would have made the system less efficient and required more upkeep. The job called for 3D and 6D induction bends made of API 5L X70 steel. These bends should allow for smooth flow changes and the ability to pig for future checks. Strict ovality control (less than 3%) made sure that the alignment was perfect during field welding, which cut down on installation time and the chance of weld defects. The bends have worked well even when they were loaded and unloaded many times and when the temperature was high. This shows how useful custom-made solutions can be in harsh power generation environments.

Lessons from Pressure Rating Errors

A midstream pipeline project experienced a severe failure when bends with incorrect dimensions were put in a high-pressure crude oil transfer line. The procurement team chose Schedule 40 bends based only on price, without taking into account the 1,200 psi operating pressure of the system. Within six months, localized thinning at the extrados caused a break that polluted the environment, led to fines from the government, and caused months of downtime. After the accident, an investigation showed that Schedule 80 bends, when heated correctly, would have provided the needed safety margin. This case shows how important it is to make sure that pressure ratings are accurate for real-world situations and to avoid cost-cutting tactics that put safety at risk.

Conclusion

Procurement managers and engineers who have to build reliable, legal pipe systems need to know how much pressure buttweld bends can handle. The ability of a bend to safely hold internal pressures depends on the material used, the wall thickness, the manufacturing standards, and the working conditions. For high-pressure and high-temperature situations where off-the-shelf elbows don't work, custom-fabricated bends that are made to ASME B16.49 or ASME B16.9 standards are the best choice. Clients reduce project risk and ensure long-term operational success by giving preference to suppliers with proven expertise, strong quality controls, and full certification portfolios.

FAQ

1. What is the primary difference between a buttweld bend and a standard elbow?

The main difference is in the bending radius and the way the parts are made. A lot of elbows are made with fixed radii: 1.5D for long-radius configurations and 1D for short-radius configurations. Custom-made bends with larger radii (3D, 5D, 8D, or higher) are often made by induction heating to make smooth curves that lower flow resistance and make pigging in pipelines easier.

2. How is wall thinning managed during the bending process?

The outside wall stretches and gets thinner when it bends. When manufacturers start with heavier-schedule pipe, they make sure that the wall thickness at the extrados is higher than the minimum design standard after the pipe has been formed. Precise control of speed and temperature during induction bending keeps the ability to contain pressure and minimizes thinning.

3. Does a buttweld bend require post-bend heat treatment?

Yes, especially for important uses and high-yield steels. Localized heating and cooling happen during induction bending, which can affect the microstructure, residual stress, and mechanical properties of the steel. Post-bend heat treatment (PBHT), which includes normalizing or tempering, returns flexibility, reduces leftover stresses, and ensures that the hardness is uniform. This meets the standards of ASME B16.49 and improves the pressure performance.

4. Can welded pipes be used to manufacture buttweld bends?

Yes, but when the piece is being bent, the lengthwise seam weld should be placed along the neutral line so that it doesn't get too stressed. This placement makes sure that the seam doesn't damage the buttweld bend's ability to handle pressure or its structural integrity.

Partner with a Trusted Buttweld Bend Manufacturer

To choose high-quality, pressure-rated bends, you need a provider with scientific know-how, strict quality controls, and quick service. JS FITTINGS has been manufacturing premium piping components for more than 40 years and can make unique buttweld bends from DN15 to DN1500 out of carbon steel, alloy steel, and stainless steel. These bends are made to meet ASME B16.49, ASME B16.9, and other foreign standards. Our induction bending method, which is backed by ISO, CE, and GOST-R certifications, controls wall thickness, minimizes ovality, and keeps the pipeline piggable. We are dedicated to meeting your project goals, as shown by the fact that we ship more than 90 containers every month and have an on-time delivery rate of over 95%. You can email us at admin@jsfittings.com to talk about your needs and get a full price.
