Industrial Buttweld Elbow Solutions for Power Plant Piping

The integrity of pipe systems directly influences the operational safety, efficiency, and cost-effectiveness of power plants. Buttweld elbows are critical for altering the direction of fluid flow while maintaining structural integrity under severe pressure and temperature conditions. By choosing recognized manufacturers and pipe fittings meeting ASME B16.9 requirements, you may lower the risk to your project, ensuring you are in compliance with regulations and improving the lifespan of your system. JS FITTINGS brings to you more than 40 years of manufacturing experience and ISO certifications to provide dependable solutions that enable your procurement teams to achieve their operational objectives with confidence.

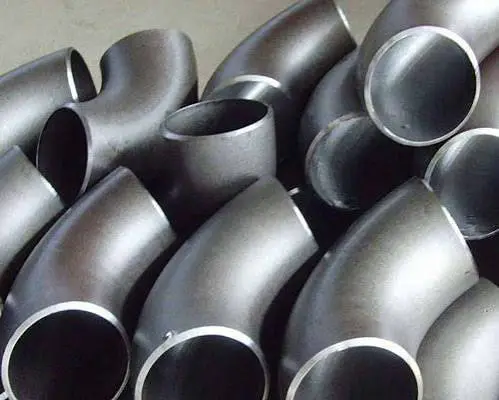

Understanding Buttweld Elbows in Power Plant Piping

The Role of Elbows in Directing Flow

Power plants have incredibly sophisticated pipe networks that carry steam, water, and chemicals from the boilers to the turbines, condensers, and cooling circuits. With proper design, fittings may shift the flow direction without causing pressure reduction or turbulence. Buttweld elbows with angled ends provide permanent, leak-free couplings by welding to full depth. This eliminates the vulnerabilities inherent to threaded connections. The design enables smooth internal changes when high-speed steam or corrosive fluids are handled, thereby reducing pressure loss and preventing erosion. Its bevelled edges comply with ASME B16.25 requirements, so contractors may achieve consistent weld quality in the field, reducing installation time and rework.

Common Angles and Configurations

Different pipe layouts require different angle designs for optimum space use and flow characteristics. The 90-degree elbow provides a quick change of direction while maneuvering around structural obstacles. But in circumstances when the velocity is great, the 45-degree elbow provides smoother shifts that reduce flow resistance. For an LR elbow, the center-to-face distance is 1.5 times the typical pipe size. This decreases turbulence and is used in most power plant designs. The short radius (SR) option with 1.0 times the nominal size is effective in tight spaces; however, it has a larger pressure drop. Custom curves such as 60-degree and 180-degree return bends are utilized to overcome unique route constraints in feedwater and condensate return lines.

Material Selection for Harsh Environments

Pipes in power plants are exposed to fluctuating temperatures, chemical assaults, and mechanical stresses. For moderate temperature water and steam services, carbon steel grades like ASTM A234 WPB are widely utilized due to their mechanical strength, widespread availability, and cost-effectiveness. Certain stainless steels such as ASTM A403, WP304/304L, and WP316/316L are more resistant to environments containing chlorides, sulfates, or acidic vapors and are thus less likely to rust. Alloy steel grades such as ASTM A234 WP11 and WP91 are designed for elevated-temperature applications and provide good creep resistance in high-temperature steam circuits and retain their creep resistance during decades of thermal stress in superheater and reheater circuits.

The basic raw materials are sourced from qualified mills such as Baosteel and Tsingshan. This ensures that the chemical and mechanical properties are always the same. Each fitting is supplied with a 3.1 Mill Test Certificate (MTC) stating the precise chemical composition and tensile strength of the material. This gives the purchasing team confidence that the fittings are suitable for the project.

Size Range and Standards Compliance

Power plant installations need fittings for anything from small-bore instrumentation lines to huge-diameter main steam heads. Seamless manufacturing processes can handle diameters from 1/2" to 24" for the cooling water intake & discharge systems, whereas welded pipe construction using longitudinal or spiral seams can accommodate sizes up to 72". Wall thicknesses are offered from Schedule 10S to XXS and are the same as pipe schedules to maintain the same internal diameter and eliminate flow disruptions at junctions. It conforms to a range of international standards, including ASME/ANSI B16.9, MSS-SP-43, EN 10253, and DIN 2605, guaranteeing compliance with worldwide engineering requirements and facilitating international sourcing for global projects.

Comparing Fitting Types: Making the Right Choice for Power Plant Applications

Threaded vs. Welded Connections

Threaded fittings facilitate rapid assembly in low-pressure utility lines, but they can rust in cracks and can only handle pressures below 2000 psi. The threaded interface creates stress concentration points that can fail due to thermal cycling. Buttweld elbows get rid of these problems by spreading stress evenly across the connection and allowing radiographic inspection to confirm the weld's integrity. This is especially important for critical service lines where joint failure could cause catastrophic events or unplanned shutdowns that cost millions of dollars in lost generation capacity.

Socket Weld vs. Butt Weld Designs

Socket weld fittings work well in small-bore situations (usually 2" or less) where room is limited and compact designs are preferred. The pipe fits into a recessed socket, so all that needs to be done on the outside is fillet welding. But the internal crevice can trap contaminants and moisture, which speeds up rust in systems with very pure water or steam vapor. Full penetration welds made by beveled ends get rid of internal gaps. This makes the bore continuous and smooth, which stops deposits from building up and keeps the flow going smoothly. This design also allows ultrasonic testing (UT) and magnetic particle inspection (MPI) to detect internal and surface-related defects, respectively, which is needed to meet the ASME B31.1 power piping code.

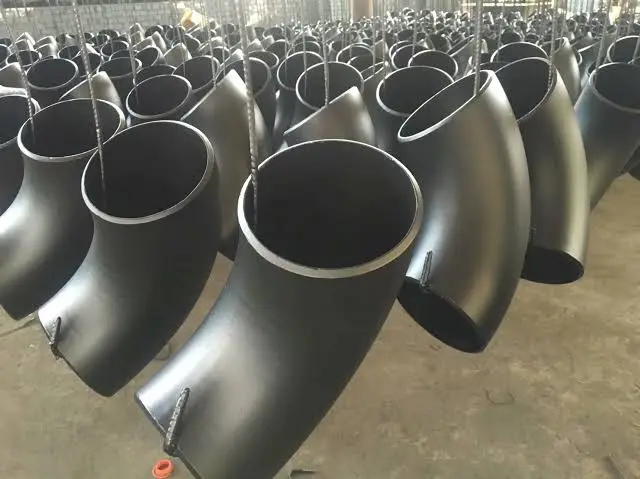

Seamless vs. Welded Manufacturing Methods

When hot mandrel processes are used to shape solid billets into seamless elbows, the grain structure is regular, and the mechanical properties are excellent. The absence of longitudinal seams eliminates potential vulnerabilities, rendering them ideal for high-pressure boiler circuits and important header connections. When made from rolled plate with longitudinal seams, buttweld elbows are cheaper for bigger diameters while still being strong enough for moderate-pressure work. JS FITTINGS uses specially designed cold-forming methods that make sure the wall thickness is the same all the way around, especially at the back radius, where it usually thins out. This keeps the fitting's structure strong throughout its lifetime.

Performance in Corrosive and High-Temperature Service

For cooling water systems that have chlorides, sulfates, or liquid oxygen, grades of stainless steel with molybdenum added (316/316L) are needed to keep the steel from pitting and cracking. Chrome-moly alloy steels (WP11, WP22) that make protective oxide layers are good for feedwater heater pipes that are subject to erosion and corrosion from two-phase flow. For superheater and reheater circuits operating at elevated temperatures, materials with high creep strength, such as WP91, are often selected so the dimensions don't change over many years of use. Material documents showing the toughness, hardness, and grain size of a material can help engineering teams make sure it is right for a certain job.

Installation and Maintenance Guidelines for Welded Elbows

Pre-Installation Inspection and Preparation

Before starting to weld, workers must make sure that the fitting bevels meet the dimensional limits set by ASME B16.25. They must also look for damage from shipping that could affect the quality of the weld. Cleaning the inside gets rid of mill scale, rust, and other impurities that make the weld metal have holes or slag inclusions. Utilizing pipe jacks or alignment clamps to ensure precise fit-up prevents angular misalignment that cause stress risers and early wear. Precision CNC beveling is used by JS FITTINGS to keep the land dimensions consistent (usually 1/16"). This makes root pass welding easier without burn-through and makes sure that the joint is fully fused across the whole thing.

Welding Procedures and Quality Control

Welding procedures that are qualified tell you the right preheat temperatures, interpass controls, and post-weld heat treatment needs based on the type of material and the thickness of the wall. In order to keep hydrogen cracks from happening, carbon steel parts usually need to be heated to 200–400°F. Stainless steels, on the other hand, need interpass temperature limits to keep their rust resistance. With multi-pass welding, the joint is built up step by step, and each pass is checked for flaws before moving on to the next one. Radiographic examination finds internal breaks like not enough fusion or incomplete penetration, while dye penetrant testing finds cracks that break through the surface.

Protocols for non-destructive tests are an important part of quality assurance. Before sending out fittings, JS FITTINGS tests them with ultrasonic testing (UT) and magnetic particle inspection (MPI), and they document the results according to applicable ASME Section V nondestructive examination requirements. This upstream quality control lowers the number of rejects on-site and speeds up project schedules by getting rid of rework delays.

Common Installation Pitfalls to Avoid

If there isn't enough space between the pipe and fitting, roots can't get in properly, which makes the joints weak and likely to leak. On the other hand, gaps that are too big cause too much weld metal to be used and distortion. To achieve optimal weld penetration and profile, maintain the root opening between 1/16" and 1/8". Insufficient tack welding allows joint movement during welding, resulting in misalignment that requires costly rework. When you use experienced welders who know the rules for power lines, you can avoid problems that might not be seen until hydrostatic testing or, worse, when the system is running.

Maintenance Strategies for Long-Term Reliability

Visual checks done on a regular basis can find external rust, damage to the insulation, or support decay that speeds up the breakdown of the fitting. Ultrasonic thickness measurements keep track of how much wall is being lost in areas that are likely to erode and corrode. This lets maintenance be planned ahead of time, before leaks happen. Thermal imaging finds hot spots that mean there are deposits or flow restrictions inside. Monitoring the pH, dissolved oxygen, and chloride levels in water helps keep corrosion to a minimum, which means that in well-run systems, buttweld elbows can achieve service lives exceeding 30 years in properly designed and maintained systems.

Procuring Quality Fittings: What Power Plant Buyers Need to Know?

Evaluating Supplier Qualifications

Procurement teams have to make sure that suppliers have quality management systems that are certified to ISO 9001. This shows that the manufacturing process is uniform and that products can be tracked. Approval from big energy companies like NIOC, ADNOC, or Petrobras shows that the company can meet strict technical standards and performance promises. Decades of experience in manufacturing show process maturity and problem-solving skills that younger companies don't have. With 43 years of experience in the business, yearly sales of more than $15 million, and shipments of 90 or more containers every month, JS FITTINGS meets the large-scale supply requirements of EPC companies in charge of multimillion-dollar power projects.

Inventory Readiness and Lead Times

Project schedules cannot accommodate procurement delays, which halt construction activities and trigger liquidated damages.Suppliers who keep a lot of stock in common sizes and grades can meet routine needs right away, and flexible custom manufacturing options can be used for materials or sizes that aren't commonly used. With an on-time delivery rate of over 95% and a monthly production capacity of 800 tons for pipe fittings, JS FITTINGS makes sure that products are available even during times of high demand.

Pricing Considerations and Bulk Purchase Advantages

Fitting costs change a lot depending on the size, plan, grade of material, and need for tests. Heavy-duty seamless stainless steel buttweld elbows cost more because they are harder to make and use more expensive raw materials. By combining needs from different systems or project stages, you can get big savings that cut your overall spending on purchases by 10–20%. Long-term partnerships with agreed-upon yearly volumes allow for better prices and faster distribution when supplies are low, which keeps project budgets safe from changes in the market.

Documentation and Compliance Verification

Engineers can check that a material meets building codes and is suitable for its intended use by looking at full test results that include chemical analysis, mechanical qualities, and heat treatment information. Non-destructive testing papers show that the inside is sound and the surface is intact. Dimensional measurement records show that the product meets the required limits. For quality control, mill certificates that link raw materials to steel mill heat numbers create a chain of ownership. JS FITTINGS offers complete paperwork packages that meet ASME B31.1 standards and speed up the approval process with owner-operators and third-party inspections.

Conclusion

Fittings for power plant piping systems need to be able to balance short-term cost concerns with long-term reliability needs. Buttweld elbows made to international standards give boiler, turbine, and cooling systems the structural integrity, corrosion resistance, and inspection capabilities they need to work safely and efficiently. When you choose the right materials for the job, whether it's high-temperature steam, corrosive cooling water, or erosive two-phase flow, you can avoid early failures that put safety and profits at risk. When procurement teams work with well-known providers who offer detailed quality paperwork, steady supply capacity, and technical know-how, they can lower project risks and get the best total cost of ownership over many years of operations.

FAQ

1. What distinguishes welded elbows from threaded alternatives?

Buttweld elbows make permanent joints by fully penetrating the angled ends and welding them together. This spreads the stress evenly and allows for high-pressure service above 3000 psi. Threaded connections depend on mechanical interlocking that can only handle 2000 psi, and they aren't good for use in power plants because they can rust in cracks.

2. Which materials suit high-temperature steam service?

For uses below 750°F, carbon steel types like ASTM A234 WPB are best. For temperatures between 750°F and 1000°F, chrome-moly metals like WP11 or WP22 are best. When used at temperatures above 1000°F, new materials like WP91 with better creep resistance are needed to keep the dimensions from changing over many years.

3. What are typical lead times for custom elbow orders?

Shipments of standard specs from stock arrive within days. Custom sizes, materials, or testing needs usually take between 4 and 6 weeks for seamless products and between 6 and 8 weeks for butt-weld large-diameter fittings. This depends on the number of items and how complicated the order is. There are extra costs for expedited production, which meets urgent project needs.

4. How do long-radius and short-radius elbows differ functionally?

For standard installations, long-radius elbows (1.5×NPS center-to-face) are best because they reduce pressure drop and turbulence. Short-radius versions (1.0×NPS) work well in places with limited room, but they raise the flow resistance by 30–40%, which means the pump has to use more energy and the erosion speeds up.

Partner With JS FITTINGS for Certified Butt Weld Elbow Supply

Procurement professionals seeking a reliable buttweld elbow manufacturer for power plant projects will find that JS FITTINGS has the best quality, volume, and service. Our ISO-certified facility runs seven combined systems that provide everything from materials to after-sales support. This makes sure that our products are always of the highest quality and that we send them on time more than 95% of the time. We work with EPC contractors, wholesalers, and end users in 30 countries. Our yearly capacity is 30,000 tons, and we ship more than 90 containers every month. Our customer retention rate is above 98%. Each fitting comes with strict NDT paperwork, precision CNC beveling according to ASME B16.25, and full material tracking from Tier-1 mills. Get in touch with our technical team at admin@jsfittings.com for custom solutions, competitive bulk pricing, and expert advice on how to get the best results from your power plant's piping requirements using tested and approved parts.

References

1. American Society of Mechanical Engineers. (2020). ASME B16.9: Factory-Made Wrought Buttwelding Fittings. New York: ASME Press.

2. American Society of Mechanical Engineers. (2022). ASME B31.1: Power Piping Code. New York: ASME Press.

3. ASTM International. (2021). ASTM A234/A234M: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service. West Conshohocken: ASTM.

4. ASTM International. (2023). ASTM A403/A403M: Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings. West Conshohocken: ASTM.

5. Manufacturers Standardization Society. (2019). MSS SP-43: Wrought Stainless Steel Butt-Welding Fittings. Vienna: MSS.

6. Singh, R. K., & Verma, S. (2021). Material Selection and Performance Analysis of Pipe Fittings in Thermal Power Plants. Journal of Pressure Vessel Technology, 143(4), 041502.
