Stainless Steel vs Carbon Steel Buttweld Reducer Comparison

When specifying piping components for industrial projects, choosing between stainless steel and carbon steel buttweld reducers requires a clear understanding of operational demands, environmental conditions, and total cost of ownership. Stainless steel reducers excel in corrosive environments and high-purity applications, offering exceptional longevity with minimal maintenance. Carbon steel reducers deliver superior mechanical strength and cost efficiency for standard pressure systems without aggressive chemical exposure. Both materials comply with ASME B16.9 and related standards, yet their performance profiles differ significantly in corrosion resistance, pressure ratings, and lifecycle economics—making material selection a critical decision point for procurement managers balancing safety, compliance, and budget.

Understanding Buttweld Reducers and Their Applications

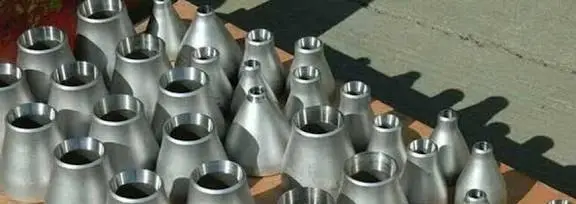

Buttweld reducers are permanent pipe fittings that join two pipes with different diameters by welding around the outside. Unlike threaded or flanged connections, these fittings create a continuous metal structure that prevents leakage and withstands severe operating conditions. The design allows smooth diameter transitions, which minimize turbulence and pressure drops that can compromise system efficiency.

Concentric vs. Eccentric Reducer Configurations

There are two main versions that meet different operating needs. Concentric reducers keep the centerlines of the inlet and outlet pipes aligned. This makes them good for vertical pipe runs and applications where uniform flow distribution is required. These reducers keep noise and vibration to a minimum in high-velocity systems. This is especially important in power plants where the dependability of the equipment rests on the flow dynamics being smooth.

Eccentric reducers have one flat side and uneven centerlines. The flat side can be installed up or down, based on the needs of the system. When installing a horizontal pump suction line, putting it in flat-side-up keeps air pockets from forming, which can damage impeller assemblies through cavitation. On the other hand, orienting the container flat side down allows for full gravity draining, which keeps fluids from pooling and microbes from growing in water treatment systems. Eccentric reducers are often used in chemical processing plants to keep liquid levels steady and prevent vapor lock conditions that disrupt process control.

Industrial Applications Across Sectors

These fittings are used by oil and gas companies in pipeline infrastructure, processing plants, and gathering systems where maintaining pressure stability and preventing leaks are a must. In petrochemical plants, reducers are used in heat exchanger networks, product transfer lines, and distillation stacks to deal with high-temperature, corrosive fuels. They are used in power plants in cooling water circuits, condensate return lines, and steam distribution systems where temperature cycling makes service conditions tough. Reducers are used to connect pumps, pipes in treatment processes, and distribution networks. They need to be able to resist corrosion for a long time.

Material Overview: Stainless Steel vs. Carbon Steel in Butt Weld Reducers

A system's performance, reliability, and maintenance costs are all directly affected by the materials used. Buttweld reducers made of carbon steel and stainless steel both meet the strict requirements set by ASTM and ASME. However, their chemical makeups make their property profiles very different.

Carbon Steel Material Specifications

Carbon steel reducers made from ASTM A234 WPB have strong mechanical properties. Their tensile strength is usually between 60,000 and 75,000 psi, and their yield strength is about 35,000 psi. This type of material is the standard for basic industrial piping systems because it is easy to weld and shape. ASTM A420 WPL6 has controlled chemical composition and impact testing requirements that make it suitable for low-temperature service down to -50°F. High-yield grades like MSS-SP-75 WPHY 52, 60, and 65 are stronger for high-pressure uses while still being flexible enough for manufacturing in the field.

The main problem is that it can rust in wet, acidic, or chloride-containing environments. Without protective coatings, carbon steel buttweld reducer corrosion rates vary significantly depending on moisture, pollutants, temperature, and exposure conditions, and this rate speeds up a lot when it is exposed to aggressive chemicals. However, properly applied coatings such as epoxy, black lacquer, or hot-dip galvanizing can significantly extend service life in less aggressive environments.

Stainless Steel Material Specifications

ASTM A403-compliant stainless steel reducers contain more than 10.5% chromium. This creates a passive oxide layer that protects against corrosion. In mildly corrosive environments, food processing, and pharmaceutical applications that need clean conditions, Grade 304/304L works very well. The low-carbon variant (304L) minimizes carbide precipitation during welding, thereby mitigating the risk of intergranular corrosion in the heat-affected zone (HAZ).

Grade 316/316L has an extra 2% to 3% molybdenum, which improves resistance to chlorides, saltwater environments, and some acidic solutions. More highly alloyed grades may be required for severe sulphuric acid service, pulp and paper mills that bleach paper, and facilities near the coast that get salt spray. For tough rust problems, grade 904L has higher nickel and molybdenum content, providing improved resistance to phosphoric acid, sulfuric acid, and other aggressive chemical environments.

The mechanical qualities of different grades of stainless steel vary, but 304 stainless has a tensile strength of about 75,000 psi and a yield strength of about 30,000 psi. Although stainless steel generally has lower yield strength than carbon steel, it retains its mechanical properties over a broader temperature spectrum and maintains ductility at cryogenic temperatures without fracturing.

Dimensional Standards and Tolerances

Both materials are available in standard buttweld reducer sizes covered by ASME B16.9, with larger sizes available through special manufacturing agreements for large-diameter uses. There are different wall thicknesses available, from SCH 10S to XXS, and they can handle pressures from 150# to 2500#. When products are made according to ASME B16.9, they are guaranteed to be the same size, with ASME B16.9 specifying dimensional tolerances for outside diameter, center-to-end dimensions, and other fitting dimensions according to the applicable size range for sizes less than 12 inches.

Bevelled ends prepared according to ASME B16.25 typically use a 37.5° bevel angle for standard wall thickness applications, with dimensions varying according to pipe thickness and welding requirements. This makes it easier to do full-penetration welds that pass radiographic inspection. This preparation is very important for high-pressure systems where the integrity of the weld directly impacts safety and the ability to keep the system running.

Performance Comparison: Stainless Steel vs. Carbon Steel Butt Weld Reducers

Understanding these performance distinctions enables procurement teams to select materials that align with operational requirements and budgetary constraints. Stainless steel and carbon steel buttweld reducers, side by side in terms of performance, provide a clear view for material selection.

Pressure and Temperature Capabilities

At room temperature, carbon steel reducers can handle higher design pressures, and smaller sizes of SCH 80 ASTM A234 WPB reducers may be suitable for high-pressure service, but allowable pressure ratings depend on size, temperature, design code, and applicable calculations. Standard carbon steel can withstand temperatures up to 800°F, while alloy steel types like A234 WP11 and WP22 can handle temperatures up to 1100°F in high-temperature steam and hydrocarbon service. Because of these qualities, carbon steel is the best choice for refinery crude units, catalytic crackers, and other high-temperature process applications where corrosion is controlled by process conditions rather than the material used.

Stainless steel reducers can handle a wider range of temperatures, keeping their mechanical properties from very cold temperatures (-425°F for austenitic grades) to very hot temperatures (1000°F for specialized grades like 310). Pressure ratings are slightly lower at equivalent wall thicknesses because of lower yield strength, but being able to work in a wide range of temperatures without becoming weak gives operators more options. This is useful in LNG facilities, cryogenic storage systems, and other places where temperatures change often.

Corrosion Resistance and Longevity

The most significant performance distinction lies in the material's corrosion resistance. In any environment with moisture, carbon steel needs protection in the form of coatings, cathodic protection, or corrosion allowances. Even with coatings, damaged areas can experience localized corrosion that can spread quickly. In chemical service, corrosion rates can reach 50 to 100 mils per year, depending on concentration, temperature, and velocity effects.

The passive layer of stainless steel protects against corrosion in most atmospheric and aqueous environments. Corrosion rates can be extremely low in properly selected stainless steel grades under suitable operating conditions, even in tough conditions. This means that stainless steel can provide significantly longer service life in properly selected applications, while coated carbon steel service life varies widely depending on coating performance and maintenance practices. However, stainless steel can still fail in certain ways, such as pitting in chloride solutions that don't move, stress corrosion cracking in high-temperature caustic service, and crevice corrosion in deposits or under insulation.

Maintenance and Lifecycle Economics

Carbon steel systems need regular coating maintenance, thickness checks, and replacements when corrosion wears away at the wall thickness. These ongoing costs add up over the lifecycle of a project, especially in facilities that will be used for a long time. Unexpected failures cause unplanned shutdowns that cause production losses that often exceed the direct repair costs.

Stainless steel reducers don't need to be recoated and are inspected more often, which lowers operational costs. The initial cost of the material is three to five times higher than that of carbon steel, but the total cost of ownership often favors stainless steel when maintenance avoidance, longer service life, and lower downtime risk are taken into account. This economic advantage grows in applications that are hard to get to, have high downtime costs, or have strict purity requirements where contamination from corrosion products is not acceptable.

How to Choose Between Stainless Steel and Carbon Steel Buttweld Reducers?

To choose the right material, you need to carefully consider a lot of different factors that affect both the short-term prices of the project and its long-term success. Choosing buttweld reducers made of stainless steel or carbon steel requires evaluation of the operating environment.

Operating Environment Assessment

To begin, describe the process fluid by its chemical make-up, concentration, temperature, and flow rate. Carbon steel works well in dry gas applications, hydrocarbon liquids that don't contain water, and steam systems that treat the water properly. Stainless steel, on the other hand, is needed when working with corrosive chemicals, water that has more than 100 parts per million of chloride, or any other setting where rust contamination could hurt the quality of the product.

Extreme temperatures have a big effect on the choice of material. Below certain low temperatures, impact testing requirements may apply depending on the material grade, thickness, and applicable design code. Above 800°F, you need alloy steel or high-temperature stainless grades. The number of thermal cycles also matters. Stainless steel may offer advantages in thermal cycling applications because of its corrosion resistance and temperature capability, but thermal fatigue performance depends on the complete system design, so it's better for processes that start up and shut down frequently.

Pressure and Mechanical Requirements

Calculate the required wall thickness and select the appropriate material grade by combining the design pressure and temperature. Carbon steel's higher allowable stress values allow thinner walls at equivalent pressure ratings, which lowers the cost of the material and welding costs. However, when corrosion allowance is added to the carbon steel wall thickness, the weight and cost benefits often diminish or go away completely.

Look at the outside loads that are acting on the system, such as the weight of the insulation, seismic loads, and thermal expansion stresses. Stainless steel has a lower modulus of elasticity, which means it can absorb stress better during thermal transients. This could mean that less support is needed and the system can be designed in a more flexible way.

Industry-Specific Considerations

304L or 316L stainless steel is required for product contact surfaces in food and beverage processing, with 304L or 316L chosen based on how well it reacts with cleaning chemicals. Similar rules apply to pharmaceutical manufacturing, but extra paperwork is needed to prove material traceability and surface finish. In these fields, sanitary design and cleanability are more important than cost.

Chemical processing plants look at corrosion data that is specific to their process chemistry. Based on operational experience, many plants set standards for material selection, using stainless steel for certain tasks even when carbon steel would technically work just as well because they know the higher initial investment is worth it for the increased reliability.

For offshore platforms and subsea applications where maintenance access is limited and failure consequences are severe, oil and gas companies are choosing stainless steel more and more. Onshore processing plants and gathering systems, on the other hand, usually use carbon steel with cathodic protection, which means they have to accept higher maintenance requirements to keep capital costs low.

Supplier Certification and Documentation

No matter what material you choose, make sure that suppliers provide complete material test reports that follow EN 10204 3.1. These reports should include chemical analysis and mechanical properties for each heat lot. Before welding, positive material identification should be done on-site to make sure you're using the right grade. Reliable manufacturers maintain valid ISO 9001 certification and have approvals from major end users like national oil companies and EPC contractors.

For critical service applications, procurement professionals evaluating a buttweld pipe reducer manufacturer should verify additional certifications like GOST-R for Russian projects, PED for European pressure equipment, or specific end-user qualifications from companies like Petrobras, NIOC, or ADNOC. These certifications show that the products are made well and are tested more thoroughly than what is required by code.

Conclusion

To choose between carbon steel and stainless steel reducers, procurement teams need to carefully look at operating conditions, lifecycle economics, and project-specific needs. Carbon steel performs well in non-corrosive environments with the right coating protection, while stainless steel is reliable even in harsh chemical and temperature conditions with no need for maintenance. They should look at the total cost of ownership instead of just the initial material price, taking into account maintenance costs, expected service life, and downtime risk. Working with experienced manufacturers who maintain rigorous quality systems and provide full documentation makes sure that the materials chosen meet operational and regulatory requirements throughout the project's lifecycle.

FAQ

1. Can carbon steel reducers be used in mildly corrosive environments?

If you protect carbon steel reducers with a good coating like epoxy, fusion-bonded epoxy, or hot-dip galvanizing, they can work in mildly corrosive conditions. Regular inspection and coating maintenance will extend their service life, but you should add an allowance for corrosion to the wall thickness calculations. Stainless steel is still the best choice for long-term reliability with little maintenance, even in moderately corrosive situations.

2. What is the difference between concentric and eccentric reducers?

Concentric reducers keep the centerlines of pipes of different diameters aligned, which is good for vertical runs and symmetrical flow needs. Eccentric reducers have offset centerlines and one flat side, which stops air pockets from forming in horizontal pump suction lines when installed flat-side-up or lets all the water drain away when installed flat-side-down. The best configuration for a system depends on the needs of the job.

3. Do stainless steel and carbon steel reducers have different pressure ratings?

When the wall thickness is the same, carbon steel usually has higher pressure ratings because it has a higher yield strength. However, stainless steel keeps its pressure rating across a wider temperature range and doesn't need any corrosion allowances. To get the right pressure rating, you need to look at the design temperature, the material grade, and the relevant code calculations according to ASME B31.3 or the relevant piping standards.
