What is SSAW carbon steel pipe?

When industrial projects demand reliable, large-diameter piping at competitive prices, understanding your material options becomes mission-critical. SSAW carbon steel pipe represents a heavy-duty industrial piping solution manufactured by rolling low-carbon or low-alloy structural steel strip into a tube blank at a specific helix angle and welding the spiral seam using submerged arc welding. Unlike pipes derived from flat steel plates, this method uses hot-rolled coils, enabling continuous production of large-diameter pipes from narrower steel strips. This manufacturing approach directly addresses economic constraints in long-distance transmission infrastructure while maintaining structural integrity. Our experience at JS FITTINGS over four decades has proven that selecting the right welded pipe type influences project timelines, budgets, and long-term operational safety.

This guide walks you through the technical foundations, comparative advantages, and procurement strategies surrounding spiral-welded pipes, helping decision-makers align product specifications with project requirements while minimizing risk.

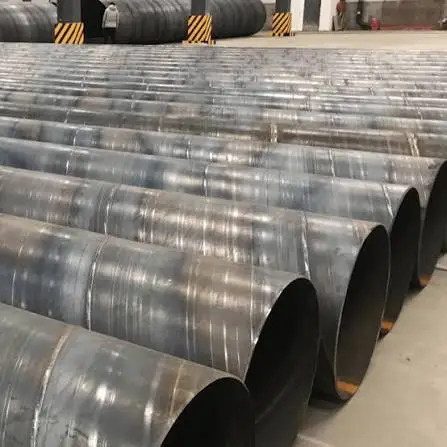

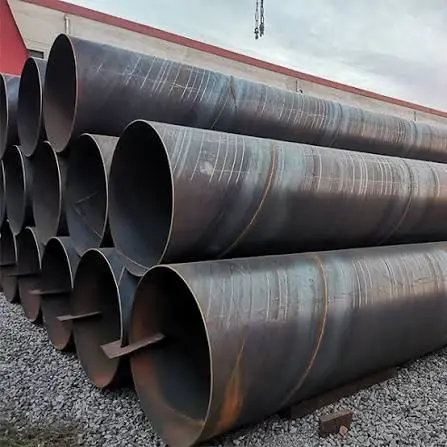

Understanding SSAW Carbon Steel Pipe

Manufacturing Process and Structural Characteristics

The manufacturing method determines production efficiency. Hot-rolled steel coils are fed continuously into machines that form them into cylindrical shapes at set helix angles, which are set according to the required pipe diameter, strip width, and manufacturing parameters. Automatic submerged arc welding equipment deposits weld metal along the spiral seam, while granular flux protects the molten metal from contamination from the air. This method makes a continuous spiral weld that handles stress differently from longitudinal welds.

There are clear engineering benefits to the spiral shape. If a crack starts, its propagation path and behavior differ from those associated with straight longitudinal seams, which can affect failure behavior under certain loading conditions. This characteristic is highly critical in applications involving frequent pressure fluctuations. At JS FITTINGS, we use cold-expansion methods after welding to get rid of any remaining stress and improve roundness. This makes sure that the pipe ends line up perfectly when they are installed in the field.

Chemical Composition and Mechanical Properties

How well pipes hold up under operating demands depends on the materials they are made of. The carbon content is usually between 0.16% and 0.29%, which makes the metal strong and easy to weld. Adding manganese between 0.60% and 1.65% makes the material tougher and easier to harden. A silicon percentage of about 0.30% helps deoxidation happen while steel is being made. From Grade B (yield strength of at least 240 MPa) to X80 (yield strength of at least 555 MPa), these controlled compositions meet API 5L requirements.

Charpy V-Notch testing measures impact toughness, while tensile testing determines tensile strength and elongation to assess whether a material is suitable for specific environmental conditions.Higher impact toughness is required to prevent brittle fracture at low temperatures. Higher yield strength grades may allow engineers to meet high-pressure design requirements with an appropriate combination of pipe diameter and wall thickness. We use spectrographic analysis on every heat to make sure that the carbon equivalent values stay within the ranges that can be welded. This helps reduce the risk of hydrogen-assisted cracking during field welding.

Industry Standards and Size Ranges

Projects are safer from costly rework when they have compliance paperwork. Line pipe for oil and gas transmission is governed by API 5L. PSL1 covers the basic requirements, and PSL2 adds extra testing. ASTM A252 specifies requirements for welded and seamless steel pipe piles used as permanent load-carrying members or as shells for cast-in-place concrete piles, while ASTM A53 talks about general-purpose pipes.ISO 3183 ensures that cross-border projects align with international standards for SSAW carbon steel pipe.

There are diameter options from NPS 8" up to 120", which can be used in situations where ERW and seamless choices are too expensive. Wall thickness ranges from 5 mm to 25.4 mm, but custom specs can be made to fit different pressure values. This gives purchasing teams greater flexibility when sourcing non-standard sizes without having to make expensive changes to the tools they use. This cuts down on lead times for complex building projects.

Comparing SSAW Carbon Steel Pipe with Other Pipe Types

ERW, LSAW, and SSAW: Structural Differences

Welded piping solutions meet a range of diameter and pressure needs. Electric Resistance Welded (ERW) pipes are good for utility lines with a small to medium diameter, from NPS 1/2" to 20". High-frequency current heats the sides that touch up to the temperature needed for forging. This creates high-strength forged welds without the need for filler metal. This method gives consistent wall thickness, but it has limits on the diameter.

LSAW (Longitudinal Submerged Arc Welded) pipes are widely used for large-diameter and high-pressure pipeline applications, with available sizes depending on the manufacturer and project requirements. With submerged arc welding, a single straight seam is joined from both sides of flat steel plates that are rolled into cylinders. Because of this, the thick walls can handle high pressures, but they need wider raw materials, which makes the costs higher for bigger sizes.

SSAW carbon steel pipe has low-cost options for moving big amounts of water and low-pressure fluids. By spiraling thinner coils into cylinders, a large diameter SSAW Steel Pipe Manufacturer can produce very large diameters with SSAW technology without the same plate-width constraints associated with some plate-based manufacturing methods, without the material waste that comes with plate-based methods. Production flexibility lets manufacturers change the diameter all the time by changing the helix angle, which cuts down on the delays that come with other methods.

Cost Factors and Lead Time Considerations

Buying decisions are based on budgets. ERW pipes have lower unit costs for smaller diameters because they can be made quickly and don't need as many weld inspections. LSAW pipes, on the other hand, can cost more because they require wider steel plates and longitudinal submerged arc welding, while the appropriate manufacturing method depends on pipe size, wall thickness, grade, pressure, and project requirements.

Spiral-welded pipes are the best choice for large-bore applications due to their optimized material utilization compared to traditional plate-formed manufacturing methods. Production continuity means shorter lead times—our facility keeps cycle times under four weeks for standard specifications, compared to six to eight weeks for heavy-wall LSAW orders. Bulk orders benefit from economies of scale because continuous coil processing minimizes setup transitions.

Quality Benchmarks and Pressure Ratings

Both LSAW and SSAW carbon steel pipe use automatic submerged arc welding, but the inspection methods are different. We use 100% X-ray (RT) inspection of spiral seams to make sure that the weld strength matches the properties of the base metal. Ultrasonic testing finds internal discontinuities like slag inclusions or porosity that radiography might miss.

Pressure containment is confirmed by hydrostatic testing. Each pipe undergoes hydrostatic testing at a pressure calculated according to the applicable API or project specification, with the required test pressure and holding time verified against the ordered standard, holding pressure for times specified in API standards. Geometric audits using laser measurement make sure that the pipe ovality remains within the dimensional tolerances specified by the applicable product standard and project specification and its wall thickness stays within manufacturing tolerances. These quality gates minimize field failures that disrupt project schedules.

Advantages and Applications of SSAW Carbon Steel Pipe

Core Benefits Driving Procurement Decisions

In some situations, spiral-welded solutions are more cost-effective than LSAW solutions for large bores. For example, making a 72-inch-diameter water transmission pipe with SSAW carbon steel pipes can cost less than an equivalent LSAW pipe in some large-diameter applications, depending on material utilization, production conditions, and project specifications, while still being safe. A lot less material is wasted because coil widths need less trimming than plates that are too big.

Before presenting technical benefits, it's helpful to know how these features convert into operational benefits that have a direct effect on the total cost of ownership. The following features are the result of decades of collecting data on field performance and improving manufacturing techniques.

Superior Roundness and Alignment: Our cold-expansion process helps achieve accurate outer diameters, which makes installation easier in the field. Pipe ends can be aligned more consistently, which cuts down on welding time and the risk of heat-affected zones. Contractors say that installing our pipes takes 10–15% less time than installing out-of-round alternatives.

Weld Seam Integrity: Computer-controlled automatic submerged arc welding keeps the heat input and travel speed constant. Full radiographic inspection detects flaws before shipment, and the spiral path stops cracks from spreading. This shape is especially useful in seismic zones where ground movement could stress straight seams.

Customization Flexibility: By changing the helix angle and coil width, non-standard diameters can be made without having to retool. For example, projects that need 43-inch or 87-inch pipes don't have to pay extra for special plate cutting. Our engineering team works with clients to find the best specifications that balance performance with budget.

All of these benefits help with the tough parts of procurement, like keeping costs down, meeting schedules, and lowering business risks. Procurement professionals gain confidence knowing that the capabilities of China carbon SSAW steel pipes match their long-term performance standards.

Primary Application Scenarios

Onshore oil and gas transmission uses SSAW carbon steel pipes a lot for long-distance pipelines that pass through Class 1 to Class 3 locations. These pipes can stay intact over hundreds of kilometers during ground movement, which works well in rough terrain. Operators like the balance between strength and ductility because it keeps catastrophic brittle failures from happening.

As foundations for bridges, offshore platforms, and wind farms, structural piling and marine construction use pipes that meet ASTM A252 standards. Their high stiffness-to-weight ratios let them handle huge vertical loads and lateral shear forces in complex soil environments, and corrosion-resistant coatings make them last longer when exposed to saltwater.

Large-diameter capabilities are important for municipal water and district heating networks. Spiral-welded pipes are the backbone of urban water supply systems and district heating infrastructure. The 3-layer polyethylene (3LPE) coatings on the outside and the cement mortar lining (CML) on the inside protect the pipes from chemical erosion, which can provide long-term corrosion protection in underground environments when properly specified, applied, and maintained. Installation crews like how the geometric consistency speeds up jointing.

Procurement Guide for SSAW Carbon Steel Pipe

Price Determinants and Cost Planning

Knowing the factors that affect prices helps you plan your budget. The grades of the raw materials make up 55–65% of the total cost of SSAW carbon steel pipe. For example, the price of X42 may differ from Grade B depending on the alloy requirements, market conditions, order volume, and applicable specifications because of the addition of alloys. The thickness of the wall increases the amount of material used linearly; a 12mm wall weighs about 40% more than an 8mm wall of the same diameter, which causes proportional cost changes.

The reputation of a supplier affects prices. Manufacturers with certifications from PETROBRAS, NIOC, and ADNOC usually charge 5-8% more, but this is because they have strict quality systems and proof of traceability. This investment pays off when bid requirements require prequalified vendors or when stable supply chains keep projects from running late.

When you commit to a certain amount of goods, you can save money. For example, when you order larger volumes, manufacturers may offer volume discounts depending on production schedules, raw-material costs, and commercial terms because they want to make the most of their production runs. Setting up framework agreements with yearly amounts lets you plan your schedule more efficiently during times of high demand. Our clients like clear pricing models that take into account changes in the steel market by making adjustments every three months based on public indexes.

Supplier Evaluation Criteria

Risks can be reduced by working with trustworthy partners. Certification files show a commitment to quality; ISO 9001 shows process control, and API Q1 meets the needs of the oil and gas industry. Third-party checks from SGS or TÜV provide independent confirmation.

The reliability of delivery depends on how much a factory can make each month. Plants that only make 500 tons may have trouble with sudden demand, which can make lead times longer than expected. We keep our 800 tons monthly output for pipe fittings, along with additional production capacity for welded pipes, which ensures orders ship within agreed-upon windows. Our 95% on-time delivery rate over the past three years shows how well we plan our production.

Different suppliers offer different levels of technical support. Engineering teams that know how to use finite element analysis can help find the best wall thickness for different pressure and soil load scenarios. This can cut material costs by 5–10% without affecting safety. Our 43 years of manufacturing experience translate into useful advice that keeps specification mistakes from happening.

Quality Assurance and Documentation

Buying decisions depend on quality standards that can be checked. Non-destructive testing is the base; 100% continuous ultrasonic testing (UT) of weld seams finds flaws inside, and X-ray radiographic inspection may be added at specified locations according to the applicable standard and project inspection requirements. We give full test reports that link each pipe to its steel heat number.

Verifying material mechanical properties involves tensile testing to make sure it has the right yield and ultimate strength and Charpy V-Notch impact testing to see how tough it is at service temperatures. Guided bend tests check how flexible the weld is,ensuring the joints can withstand handling stresses during installation. Chemical composition analysis using spectrographic methods confirms that the carbon equivalent values support field welding.

Geometric audits using laser measurement record any ovality (usually less than 1% of diameter), wall thickness conformity within the tolerances specified by the applicable manufacturing standard, and straightness deviations (usually less than 0.2% of length). These dimensional controls avoid problems during installation and make sure that hydraulic performance matches the design calculations. Documentation packages include mill test certificates, third-party inspection reports, and coating application records, which meet the requirements of the tender and make customs clearance easier.

Conclusion

If you want to choose the right piping solutions, you have to balance technical performance with cost considerations. SSAW carbon steel pipe offers great value for large-diameter, lower-pressure applications where material efficiency and installation speed are key to project success. Procurement professionals can confidently specify products when they know about manufacturing processes, quality benchmarks, and comparative advantages.

Different types of ERW, LSAW, and SSAW technologies have different diameter ranges, pressure capabilities, and cost structures that make them better for different uses. Tough quality control, which includes non-destructive testing, hydrostatic validation, and geometric audits, tells you which suppliers are reliable and which aren't. Checking certifications, production capacity, and technical support abilities keeps projects safe from supply chain problems and specification mismatches.

When you work with experienced makers, you can make better purchasing decisions based on their decades of engineering knowledge. This helps you meet foreign safety and performance standards while also keeping costs low.

FAQ

1. What industries primarily use spiral-welded pipes?

Onshore oil and gas transmission, municipal water distribution, district heating networks, and structural foundation piling are some of the main markets for SSAW carbon steel pipes that meet ASTM A252. These industries value large-diameter capabilities at a low cost. Marine construction and wind farm foundations also use these pipes for load-bearing applications.

2. How does the manufacturing process affect pipe strength?

Automatic submerged arc welding keeps the heat input constant, making full-penetration welds with the same mechanical properties as the base metal. Post-weld cold expansion relieves residual stress and improves roundness. The spiral seam orientation resists crack propagation differently than longitudinal welds, giving failure mode advantages in some pressure cycling situations.

3. Can specifications be customized for unique project requirements?

To change the diameter, the helix angle can be changed without having to make new tools. Custom wall thicknesses, lengths, and coating systems can be made to fit specific pressure ratings, soil conditions, and corrosion environments. Our engineering team works together on specifications and does stress analysis to find the best way to use materials while still meeting safety standards.

Partner with a Trusted SSAW Carbon Steel Pipe Manufacturer

Since 1983, JS FITTINGS has been providing reliable welded pipe solutions for infrastructure projects in over 30 countries, with ISO, CE, GOST-R, PETROBRAS, NIOC, and ADNOC certifications. Our automatic submerged arc welding lines make SSAW carbon steel pipes from NPS 8" to 120" with full radiographic inspection, and we have a 95% on-time delivery rate and a 98% customer repurchase rate. Monthly shipments of more than 90 containers show that our production capacity can grow with your project needs.

If you need API 5L line pipe to move oil, ASTM A252 piling for offshore platforms, or large-diameter water mains with special coatings, our experienced team can help you with your specifications, give you competitive quotes, and provide full-cycle after-sales support. Email admin@jsfittings.com today to talk about your project needs with a qualified supplier who is committed to minimizing procurement risks while meeting your deadlines and budget goals.

References

1. American Petroleum Institute. API Specification 5L: Specification for Line Pipe, 46th Edition. Washington, DC: API Publishing Services, 2018.

2. ASTM International. ASTM A252/A252M-19: Standard Specification for Welded and Seamless Steel Pipe Piles. West Conshohocken, PA: ASTM International, 2019.

3. Bai, Yong, and Bai, Qiang. Subsea Pipeline Design, Analysis, and Installation. Oxford: Gulf Professional Publishing, 2014.

4. International Organization for Standardization. ISO 3183:2019 Petroleum and Natural Gas Industries — Steel Pipe for Pipeline Transportation Systems. Geneva: ISO, 2019.

5. Mohitpour, Moness, Golshan, Hossein, and Murray, Alan. Pipeline Design & Construction: A Practical Approach, 3rd Edition. New York: ASME Press, 2007.

6. Palmer, Andrew C., and King, Roger A. Subsea Pipeline Engineering, 2nd Edition. Tulsa: PennWell Corporation, 2008.
